Model # JTD5000BN1TS Official GE electric wall oven
Here are the diagrams and repair parts for Official GE JTD5000BN1TS electric wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

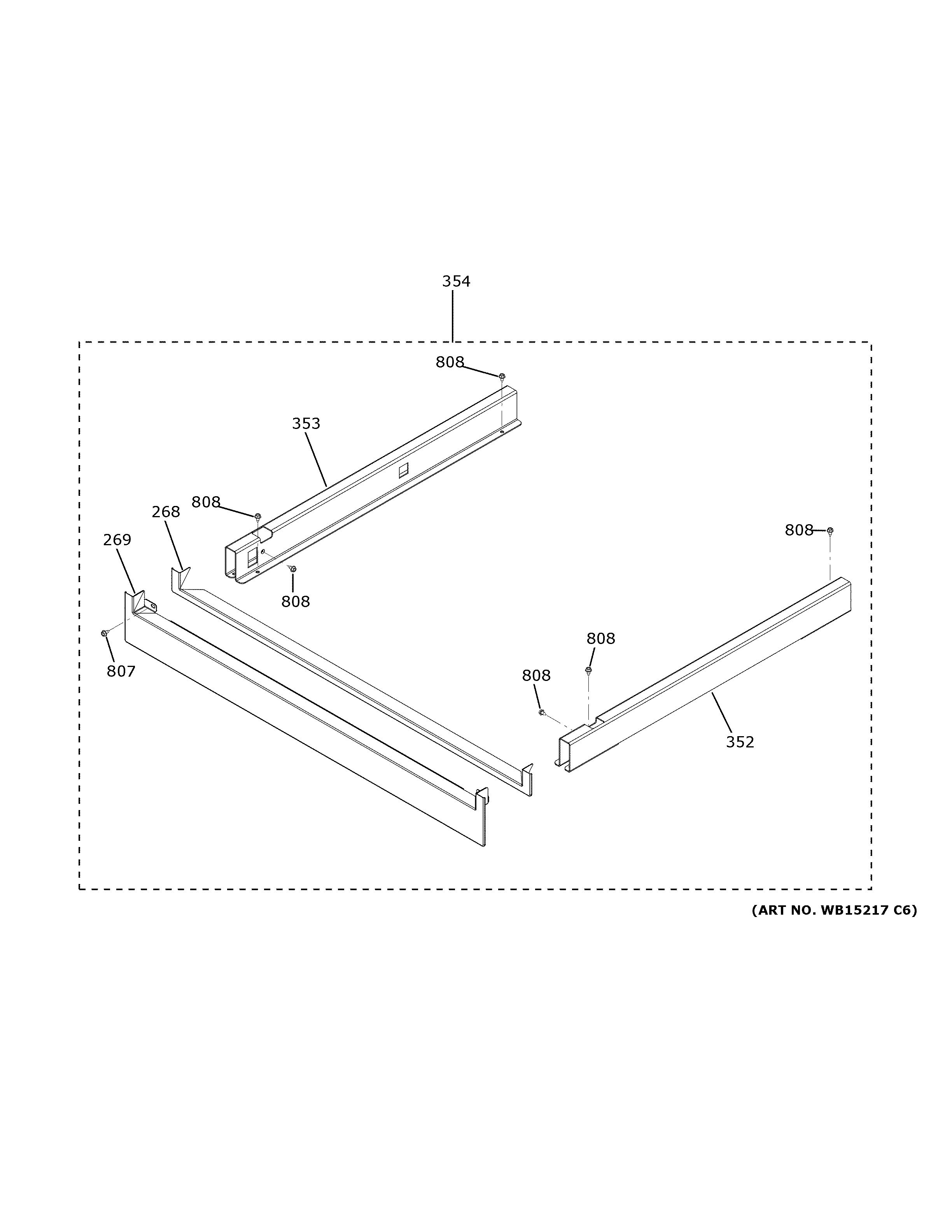

SELECT DIAGRAM
Browse Parts forJTD5000BN1TS Wall Ovens
- #599

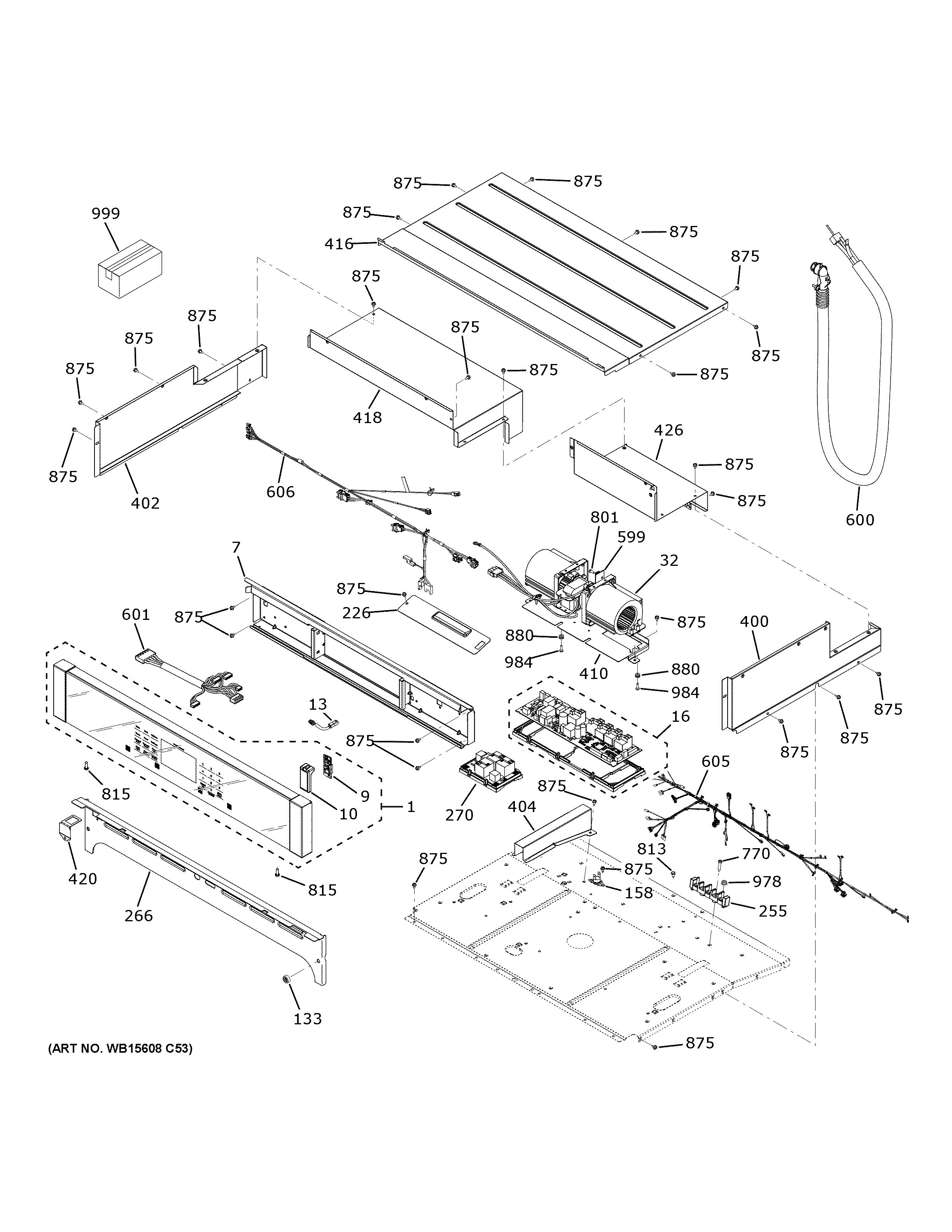

Control panel diagram
Wall oven cooling fan sensor boardPart #WB27T11463
This item is not returnable$52.15 |10% OFF Phone Price : $58.15In Stock - Wall oven temperature sensor
Part #WB21X10165
$22.31 |21% OFF Phone Price : $28.31In Stock - #32
Control panel diagram
Wall oven cooling fan assemblyPart #WB26X31060
$67.98 |8% OFF Phone Price : $73.98In Stock - Wall oven door lock assembly
Part #WB10X28391
$62.62 |9% OFF Phone Price : $68.62In Stock - #159

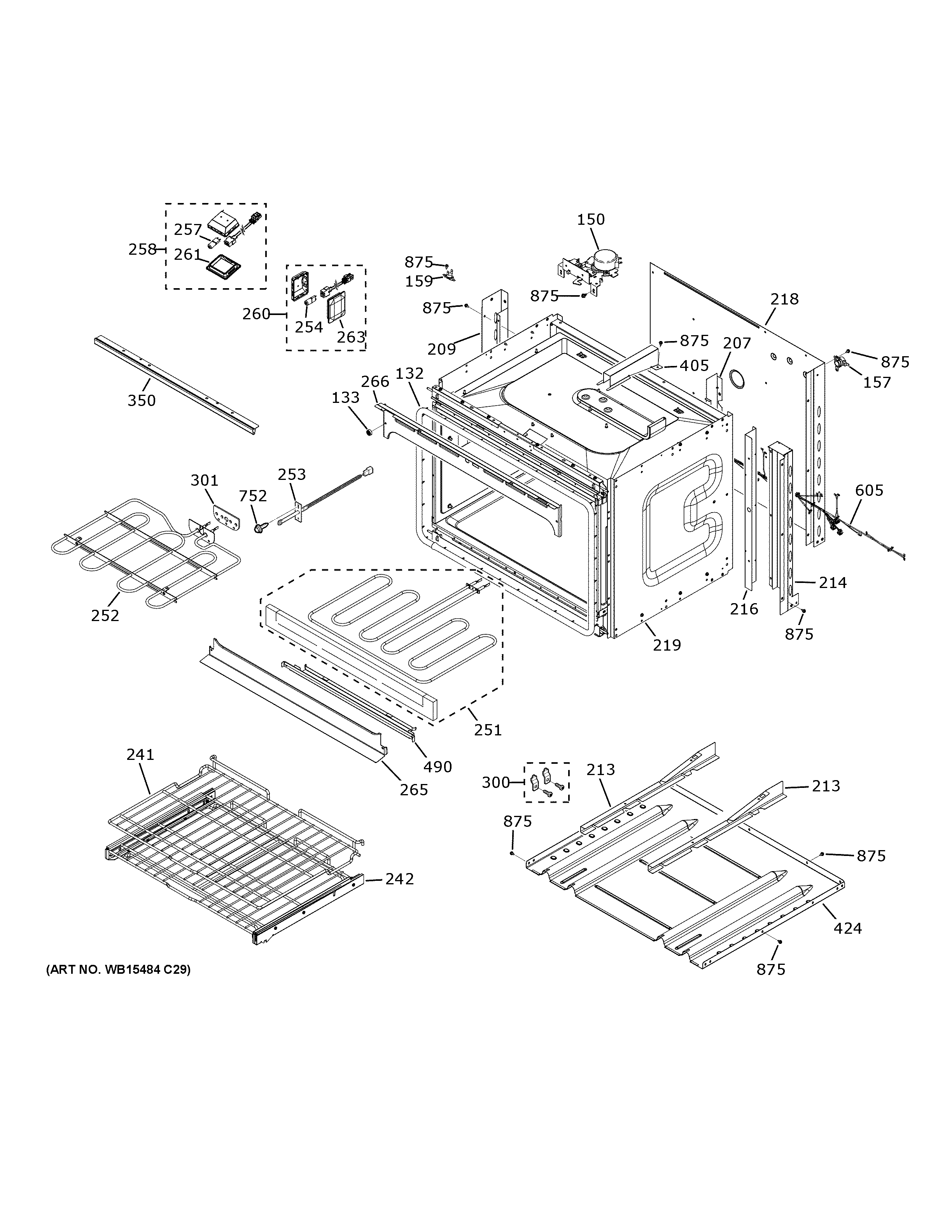

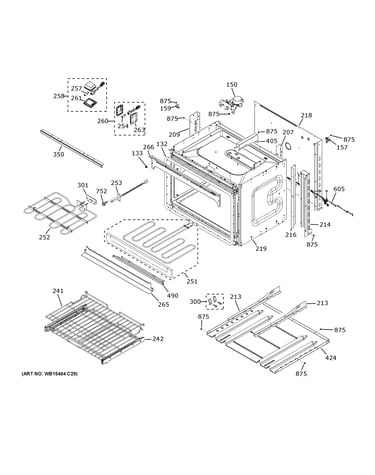

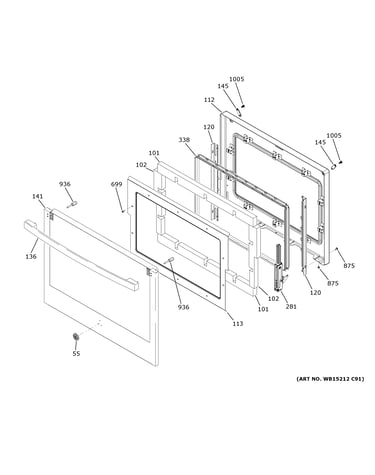

Lower oven diagram
Toaster oven temperature limit switchPart #WB24T10180
Replaced by #WB24X46907
?Manufacturer substitutionThis part replaces WB24T10180. Substitute parts can look different from the original.$38.59In Stock - #280

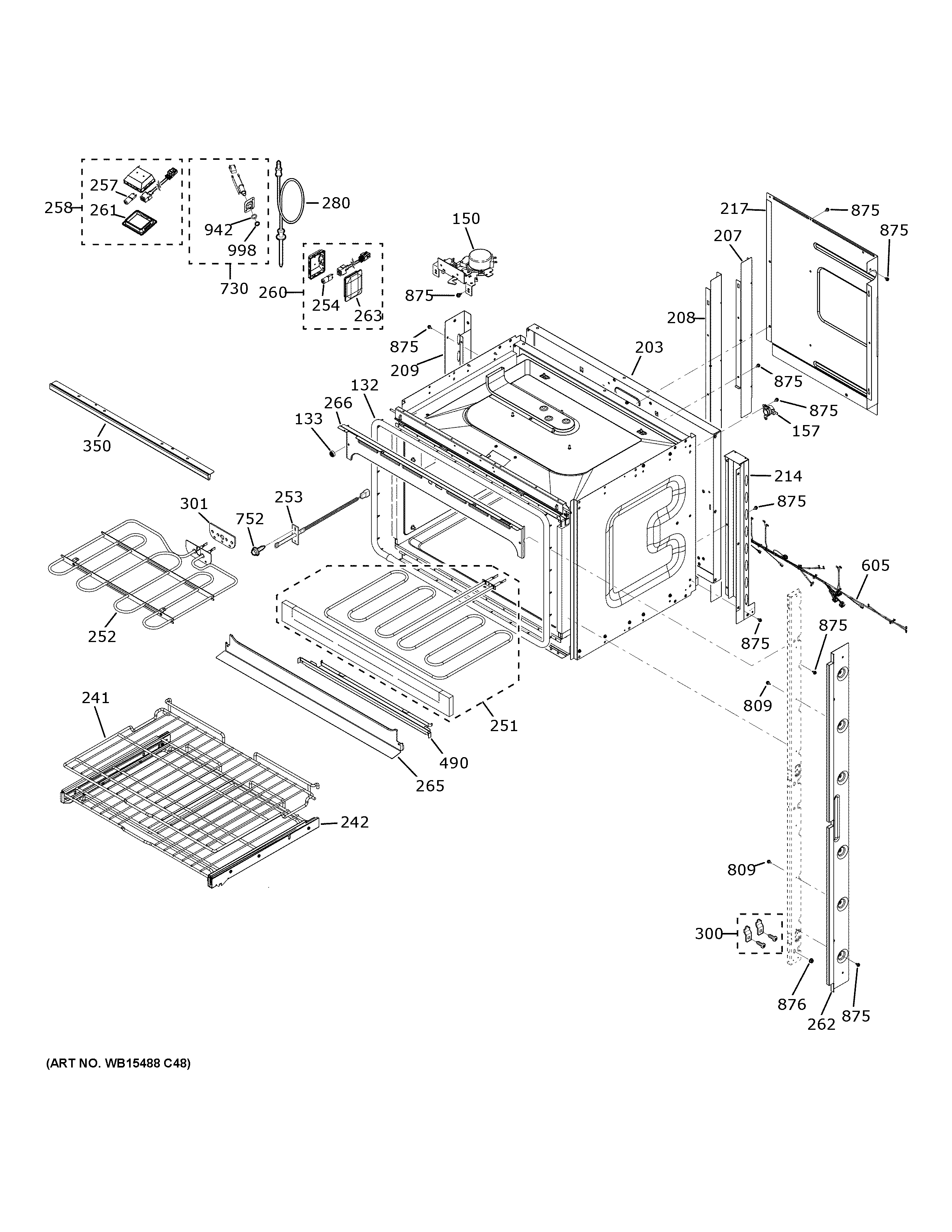

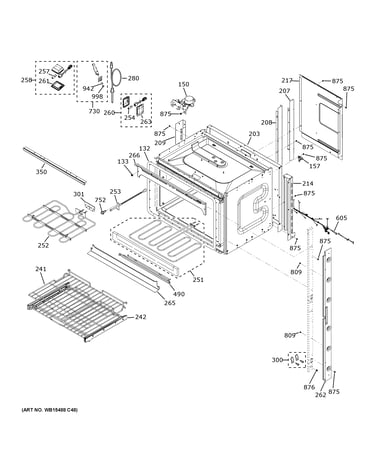

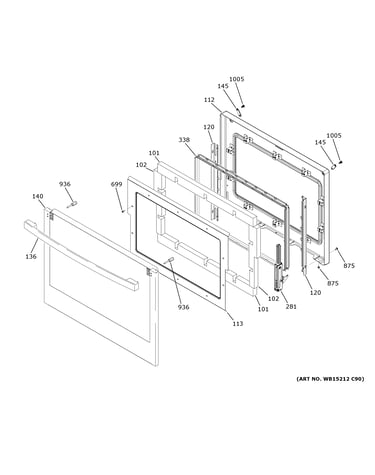

Upper oven diagram
Range oven meat probe sensorPart #WB20T10024
The manufacturer no longer makes this part, and there's no substitute part
- Wall oven bake element
Part #WB44X21667
$72.14 |8% OFF Phone Price : $78.14In Stock - Gasket
Part #WB35X26196
Replaced by #WB35X32825
?Manufacturer substitutionThis part replaces WB35X26196. Substitute parts can look different from the original.$42.29 |12% OFF Phone Price : $48.29In Stock - #270
Control panel diagram
Wall oven relay control boardPart #WB27X33083
This item is not returnable$154.81In Stock - #16
Control panel diagram
Control board asmPart #WB27X33080
Replaced by #WB27X36805
?Manufacturer substitutionThis part replaces WB27X33080. Substitute parts can look different from the original.This item is not returnable$197.56 |6% OFF Phone Price : $209.56In Stock
