Amana
Electric Cooktop

Model # FET270 Official Amana electric downdraft cooktop

Here are the diagrams and repair parts for Official Amana FET270 electric downdraft cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

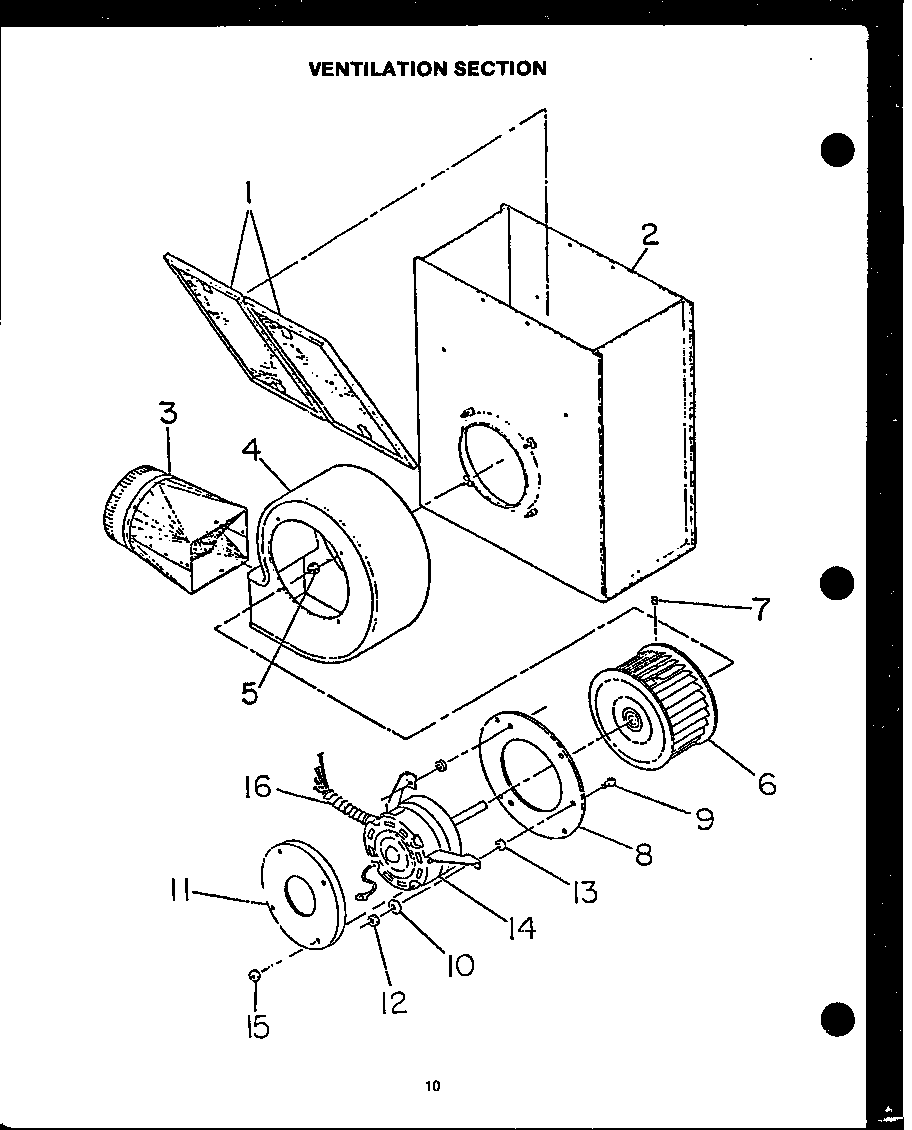

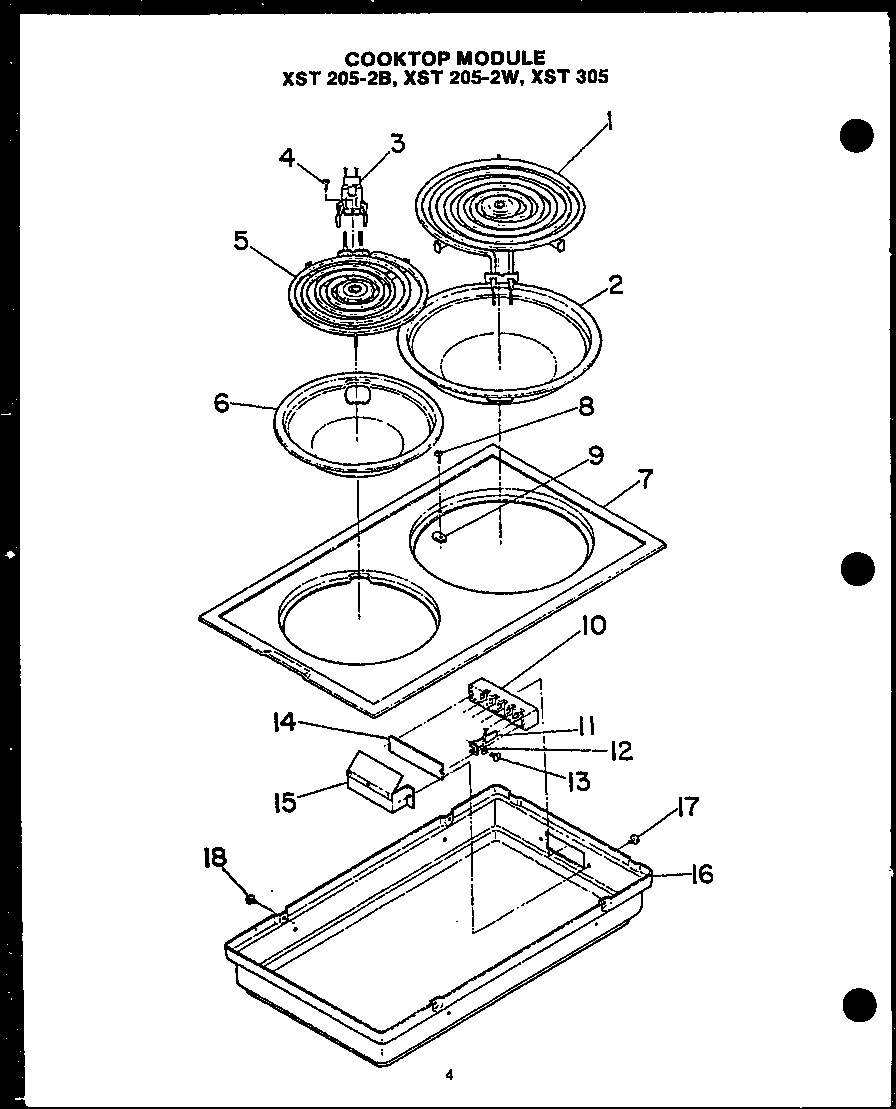

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |

Bracket, Receptacle Mounting 73-040965-00-0
Bracket, receptacle mounting

Part #73-040965-00-0

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Grill Pan Insert 88-054058-42-B
#3

Grille diagram

Cooktop grill pan insert

Part #88-054058-42-B

The manufacturer no longer makes this part, and there's no substitute part

Leaf Spring 08-061614-02-0
#15

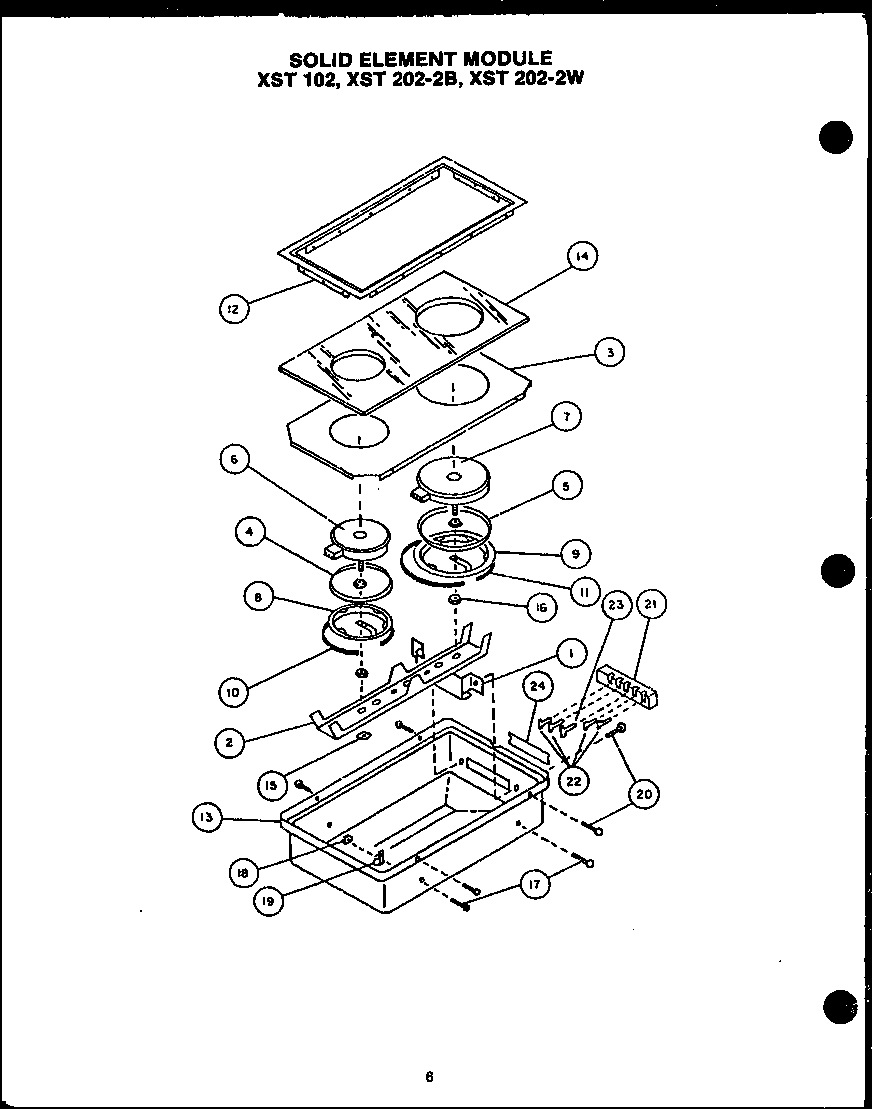

Solid element module diagram

Leaf spring

Part #08-061614-02-0

The manufacturer no longer makes this part, and there's no substitute part

Contact, Spade - Power (4) 67-52040-44-J
#11A

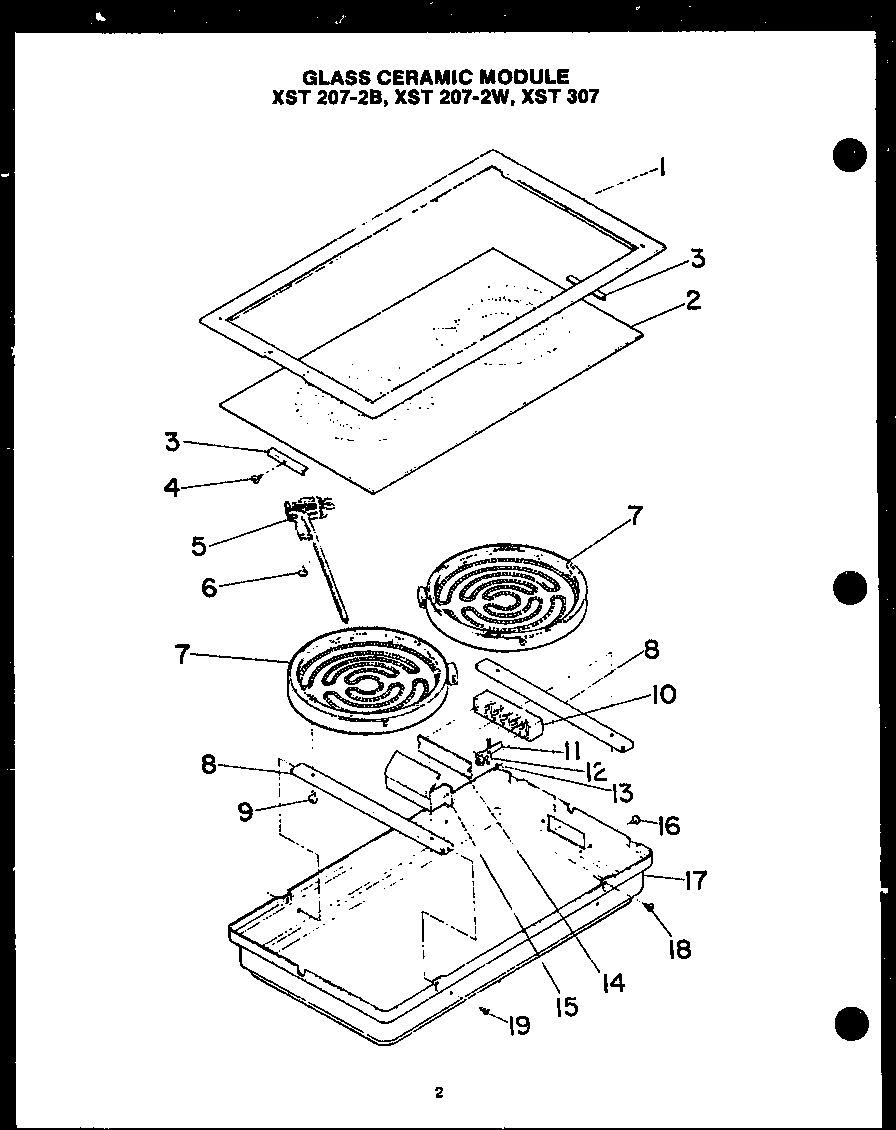

Glass ceramic module diagram

Contact, spade - power (4)

Part #67-52040-44-J

The manufacturer no longer makes this part, and there's no substitute part

Screw 01-041808-01-0
Screw

Part #01-041808-01-0

The manufacturer no longer makes this part, and there's no substitute part

Retainer, Glass (part Of Item 1) 73-040977-00-0
#3

Glass ceramic module diagram

Retainer, glass (part of item 1)

Part #73-040977-00-0

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light 32-042183-09-0
#10

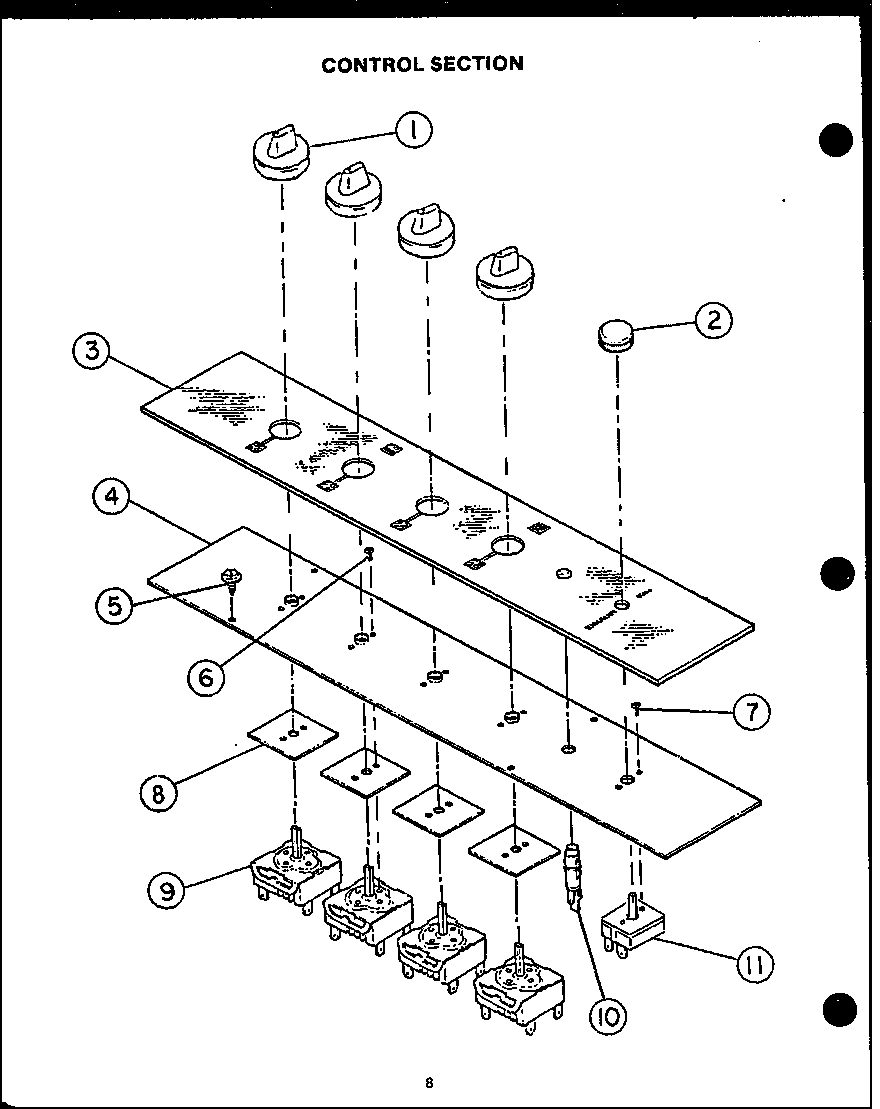

Control section diagram

Indicator light

Part #32-042183-09-0

The manufacturer no longer makes this part, and there's no substitute part

Speednut, Twin Type 01-041902-02-0
Speednut, twin type

Part #01-041902-02-0

The manufacturer no longer makes this part, and there's no substitute part

Main Top - Black Porcelain 51-300982-42-B
#1B

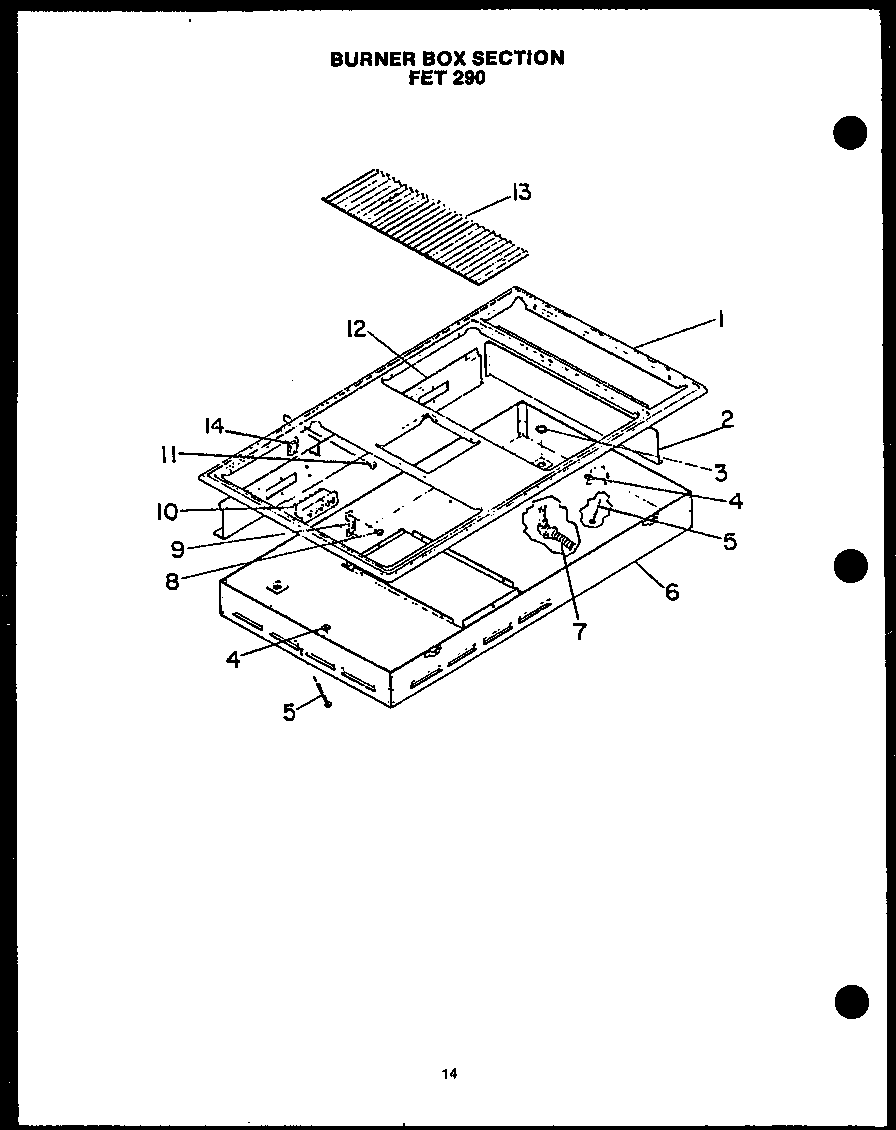

Burner box section (fet290) diagram

Main top - black porcelain

Part #51-300982-42-B

The manufacturer no longer makes this part, and there's no substitute part

Baffle 74-040851-00-0
#14

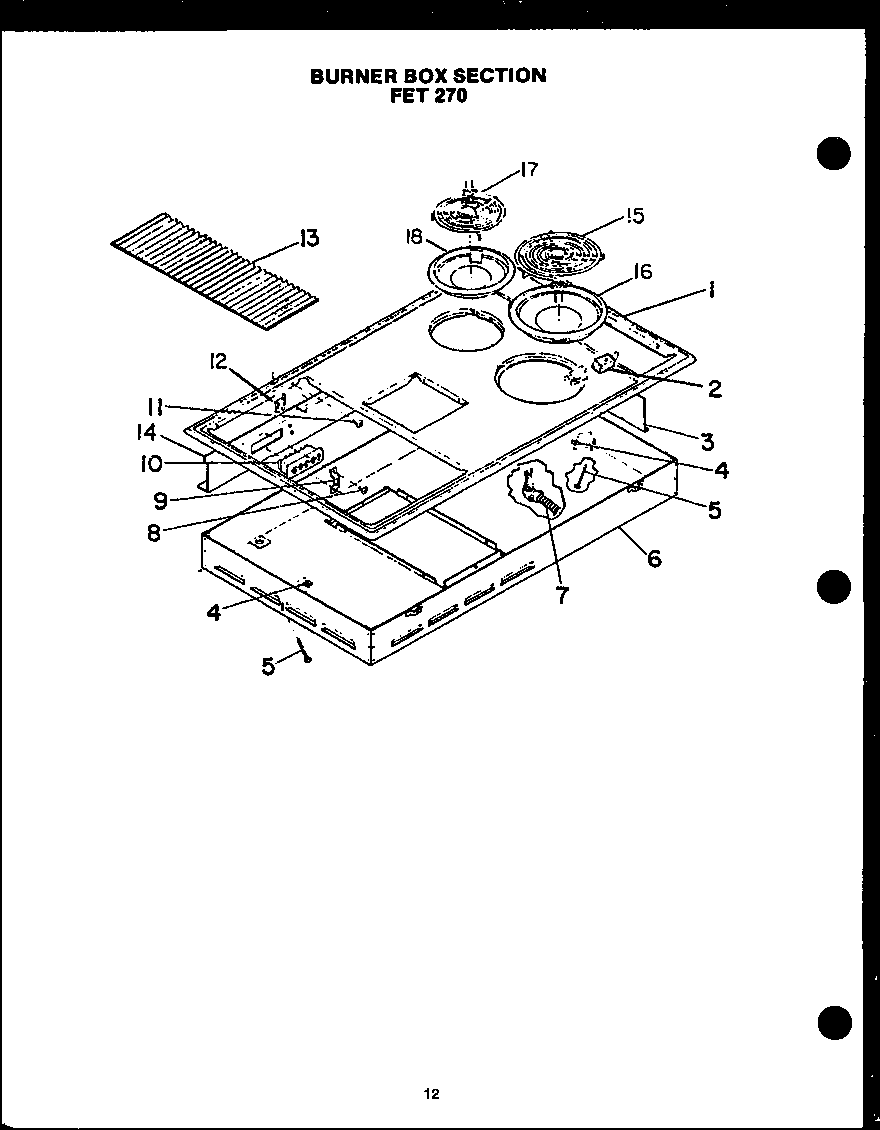

Burner box section (fet270) diagram

Baffle

Part #74-040851-00-0

The manufacturer no longer makes this part, and there's no substitute part
