Model # EHD191VKWR0 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool EHD191VKWR0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

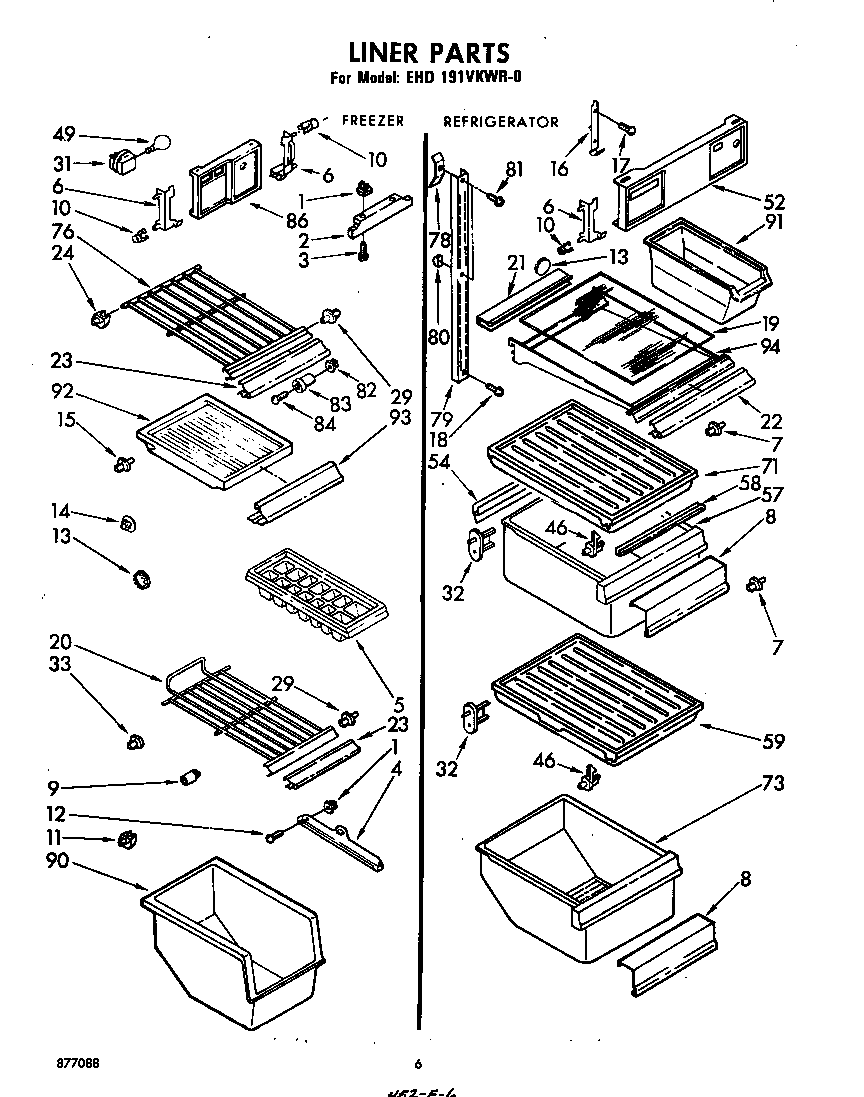

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 308 parts  |
Light Bulb 527949
Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Closure (white) 986759
#115

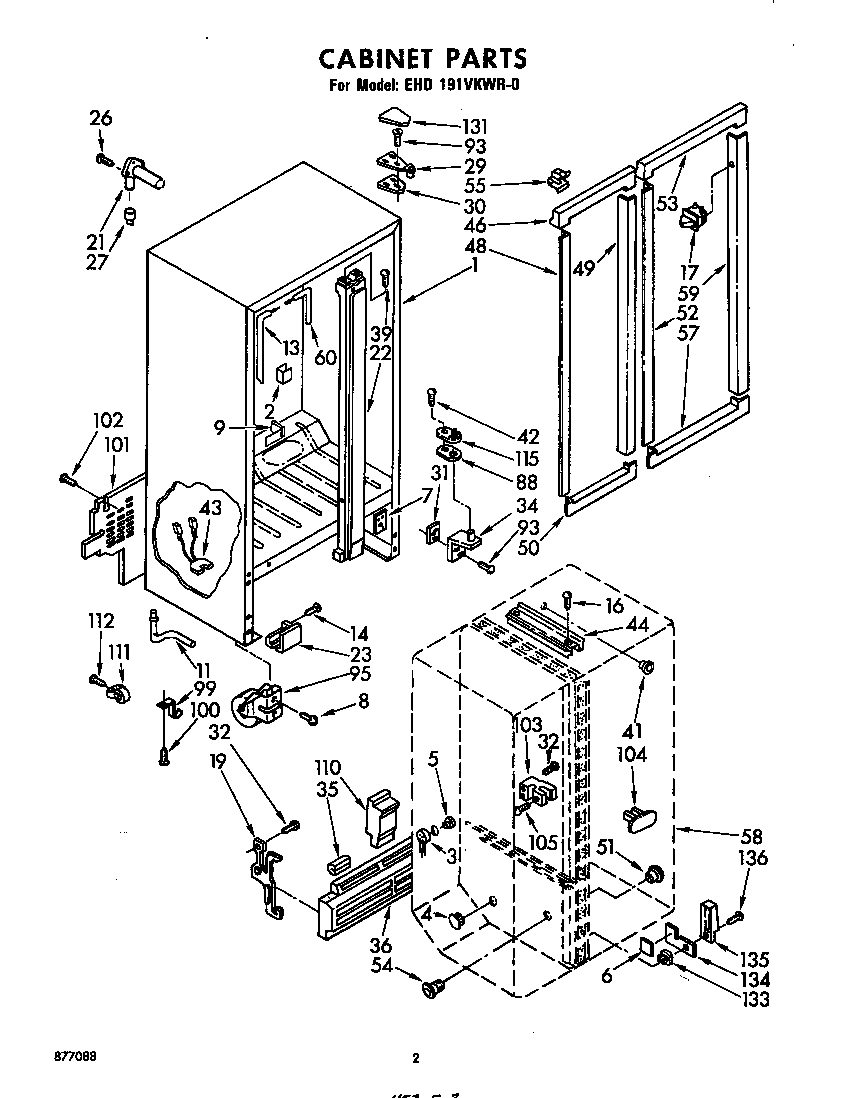

Cabinet diagram

Closure (white)

Part #986759

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 986759. Substitute parts can look different from the original.
BEST SELLER
$10.54 |
16% OFF Phone Price : $12.54
In Stock
Light Switch 549702
#17

Cabinet diagram

Light switch

Part #549702

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 549702. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Timer 851160
#17

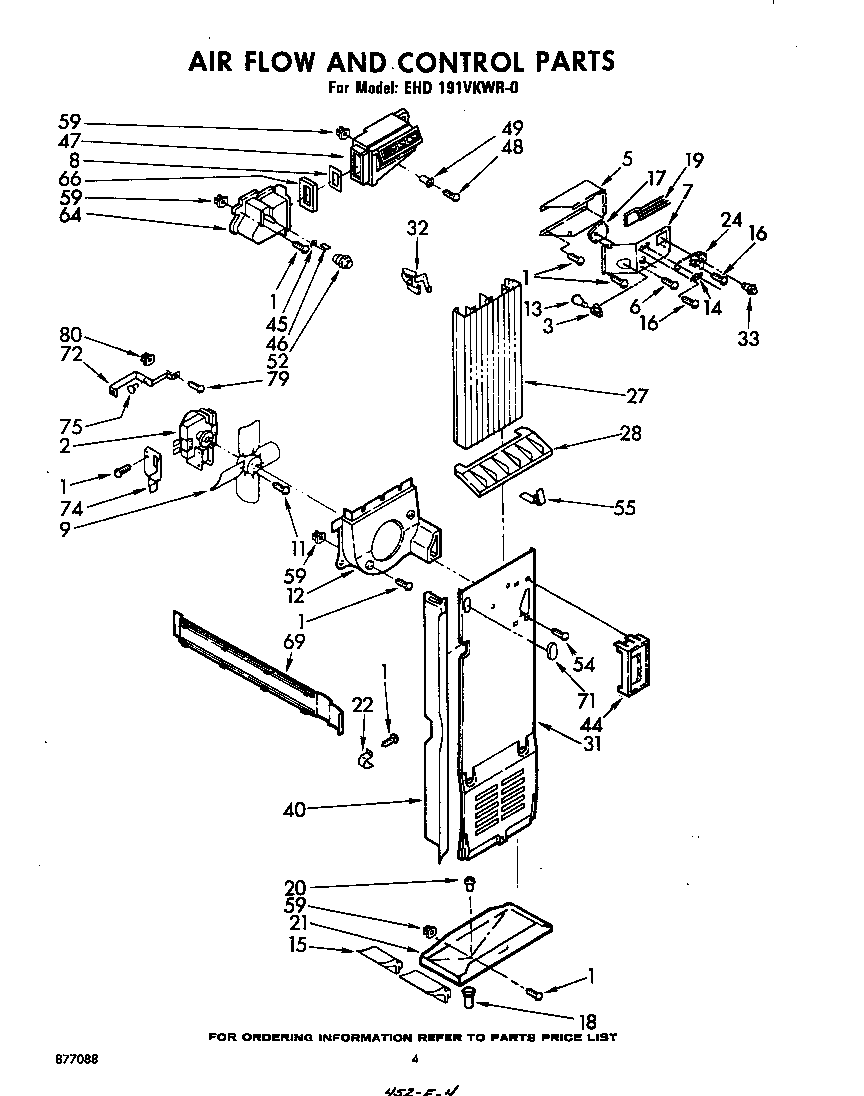

Airflow and control diagram

Timer

Part #851160

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 851160. Substitute parts can look different from the original.
BEST SELLER
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Refrigerator Timer 851406
#17A

Airflow and control diagram

Refrigerator timer

Part #851406

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 851406. Substitute parts can look different from the original.
BEST SELLER
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Drier Tube 978246
#60

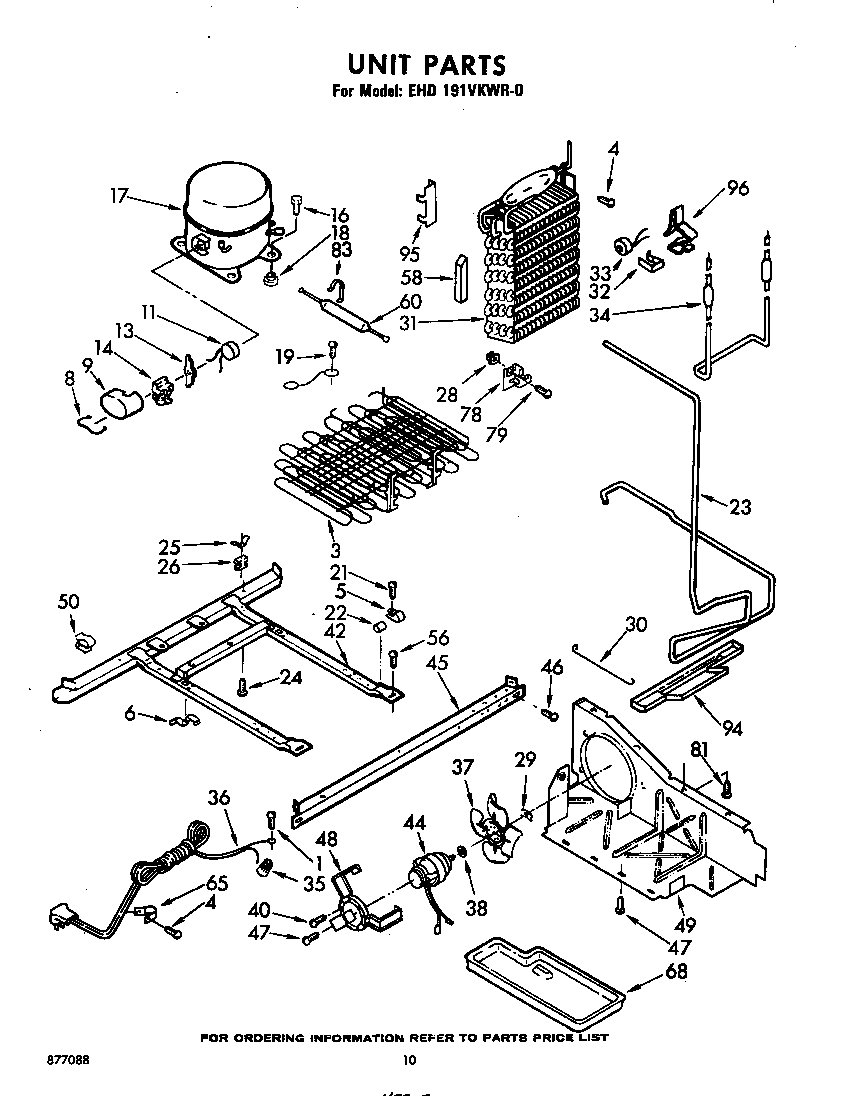

Unit diagram

Drier tube

Part #978246

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 978246. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Fan Motor 851618
#44

Unit diagram

Fan motor

Part #851618

Replaced by #833697

?
Manufacturer substitution
This part replaces 851618. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Fan Motor 851619
#44A

Unit diagram

Fan motor

Part #851619

Replaced by #833697

?
Manufacturer substitution
This part replaces 851619. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Closure (white) 986758
#11

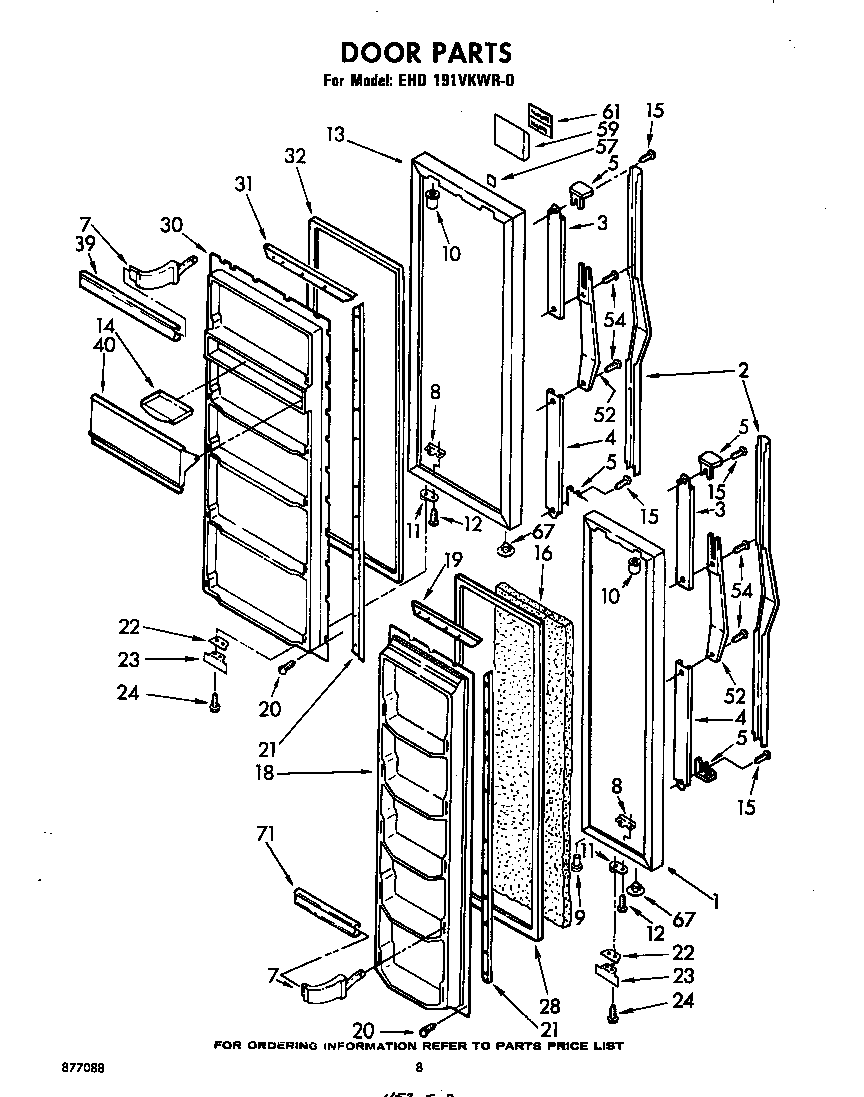

Door diagram

Closure (white)

Part #986758

Replaced by #4318165

?
Manufacturer substitution
This part replaces 986758. Substitute parts can look different from the original.
BEST SELLER
$13.51 |
13% OFF Phone Price : $15.51
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)
