Model # 2537888301B Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 2537888301B refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

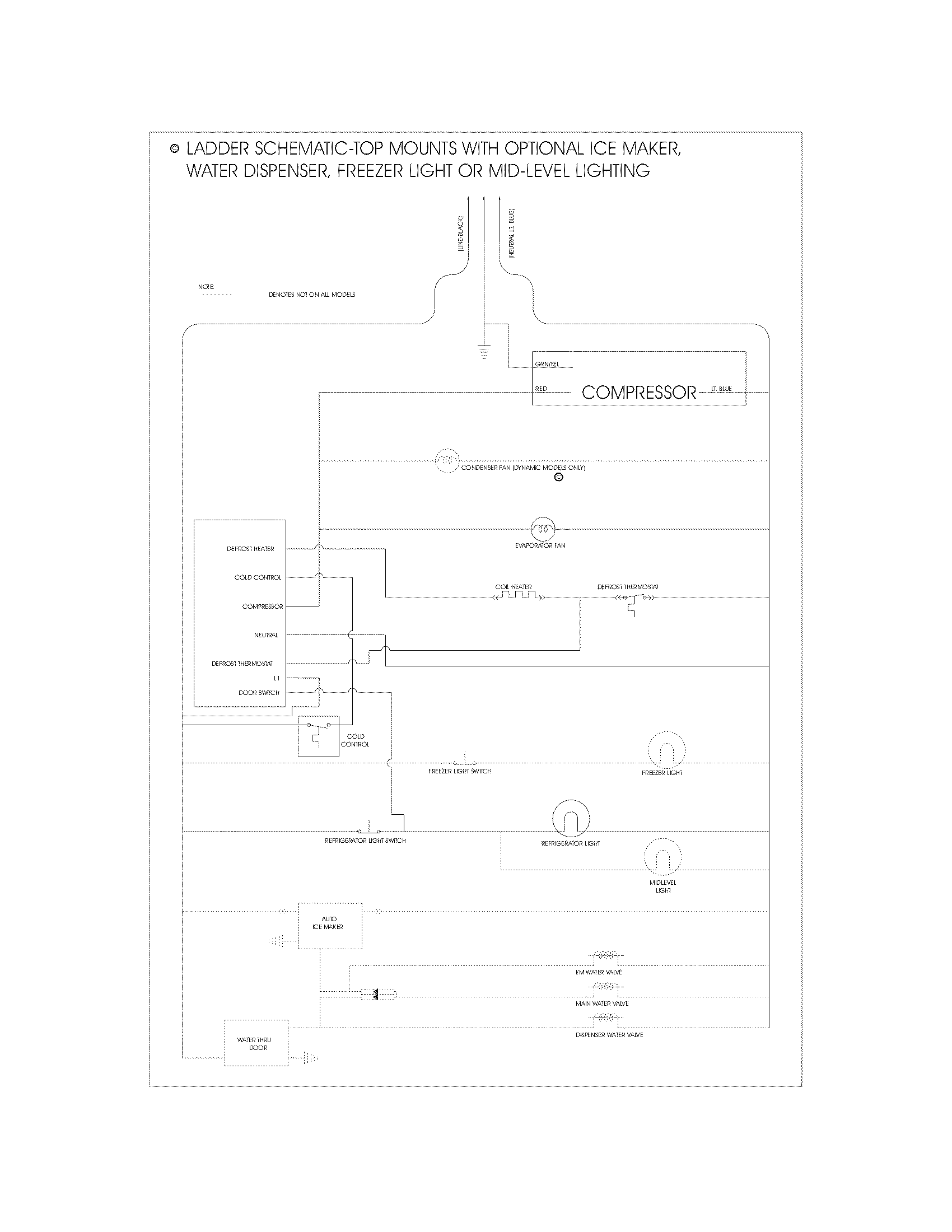

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
Refrigerator Ice Maker Assembly 241798201
#NI

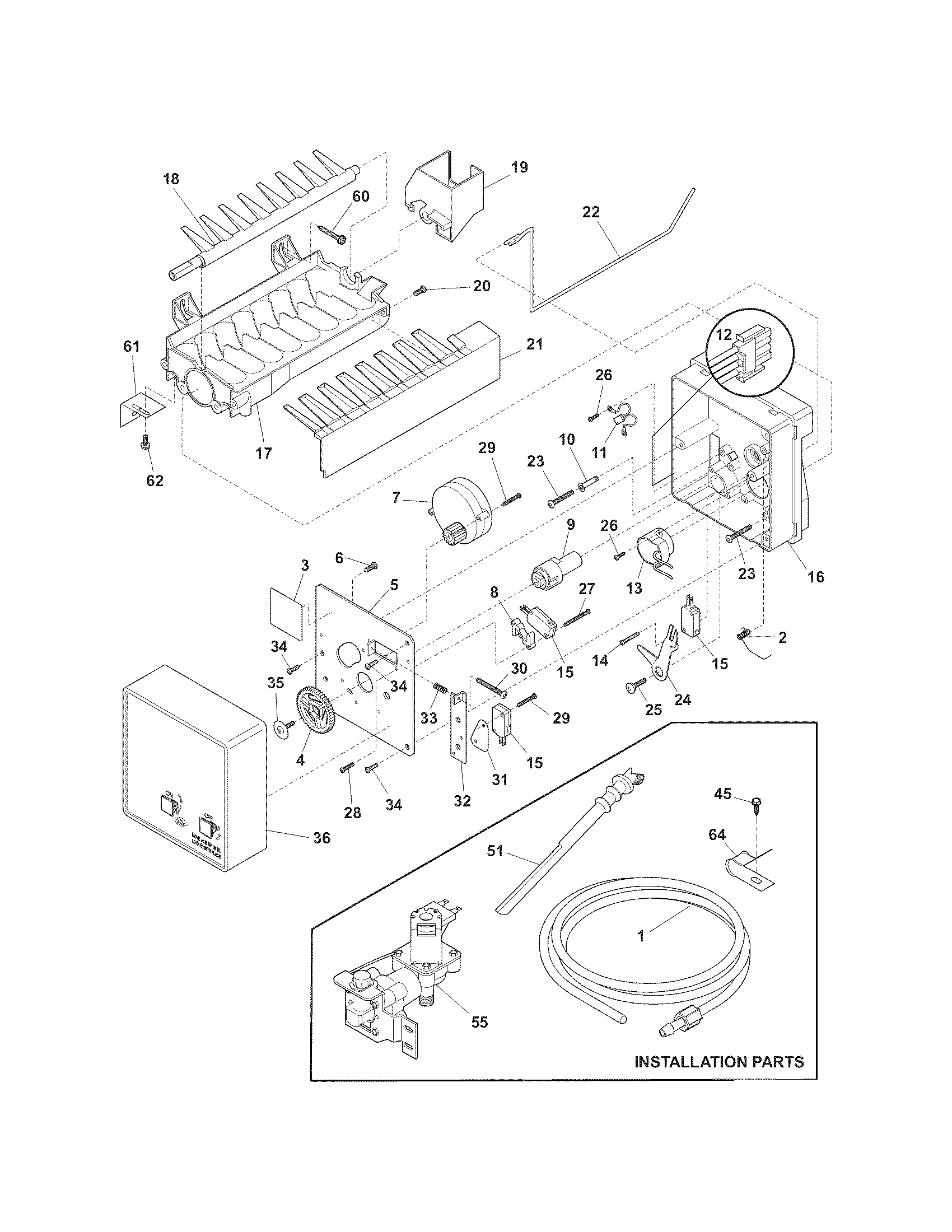

Ice maker diagram

Refrigerator ice maker assembly

Part #241798201

Replaced by #241798231

?
Manufacturer substitution
This part replaces 241798201. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Filter Drier 218944002
#4

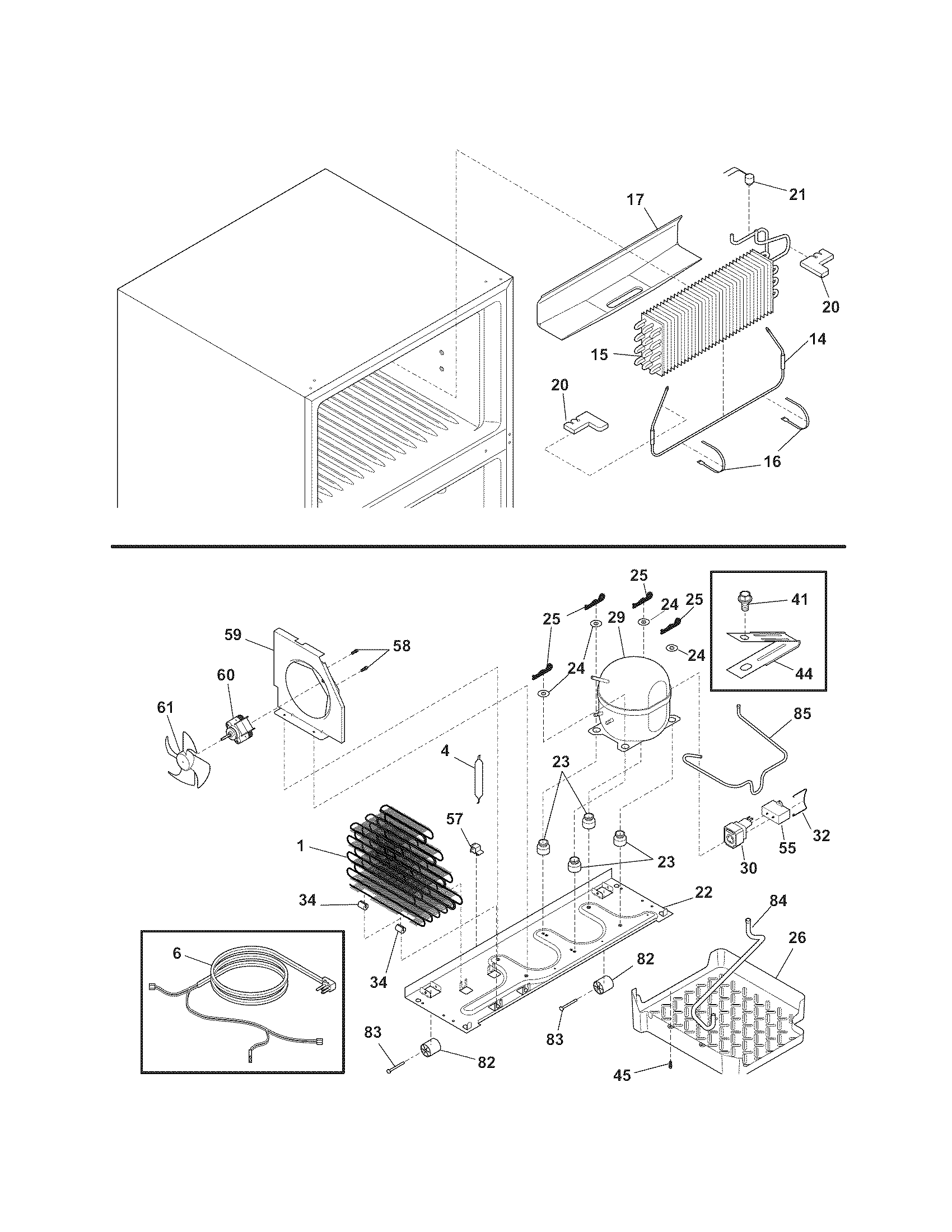

System diagram

Filter drier

Part #218944002

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944002. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Door Rack Support (240534901) - Refrigerator Shelving Part By Frigidaire 240534901
#4

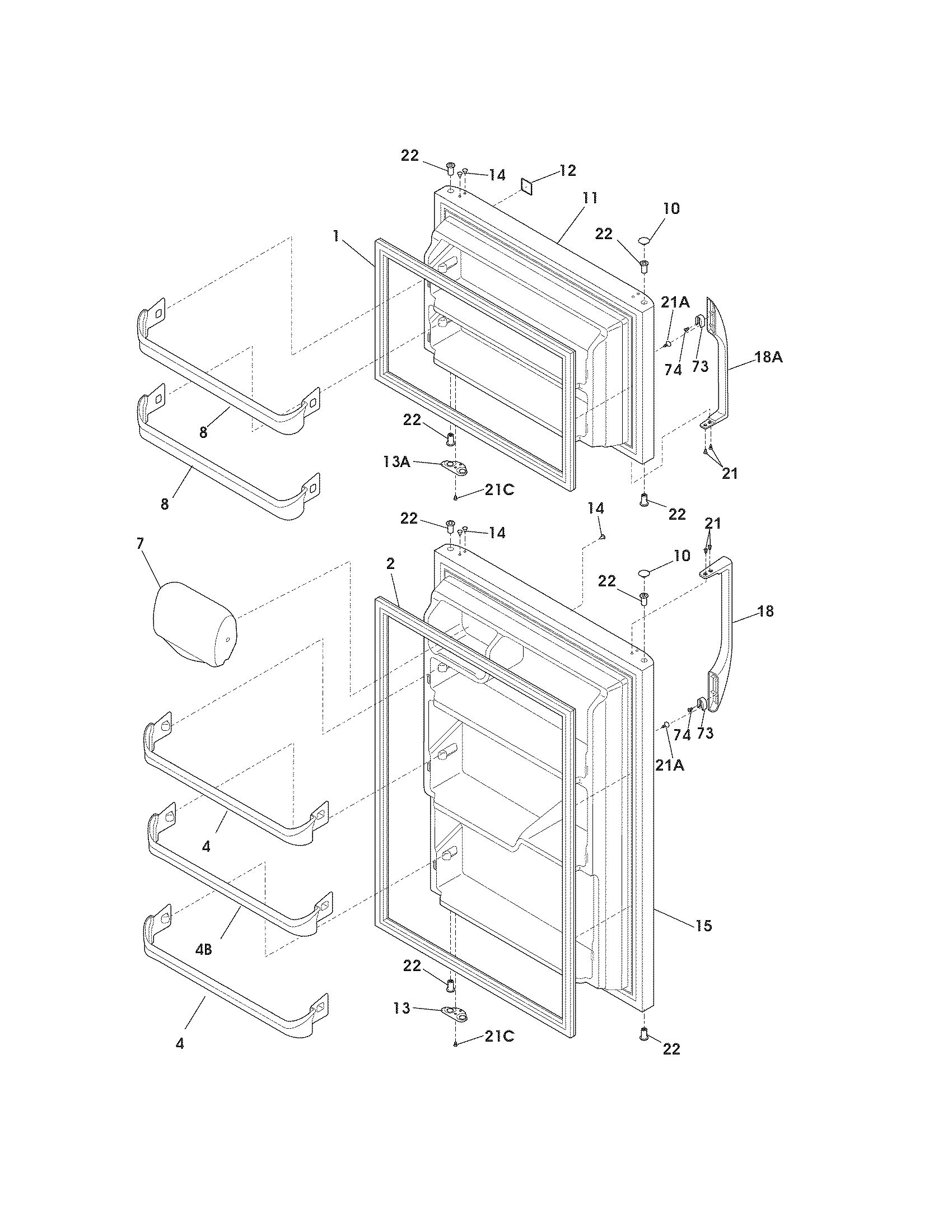

Doors diagram

Door rack support (240534901) - refrigerator shelving part by frigidaire

Part #240534901

BEST SELLER
$37.60 |
14% OFF Phone Price : $43.60
In Stock
Galaxy Refrigerator Door Shelf Rail 240534701
#4B

Doors diagram

Galaxy refrigerator door shelf rail

Part #240534701

BEST SELLER
$44.63 |
12% OFF Phone Price : $50.63
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

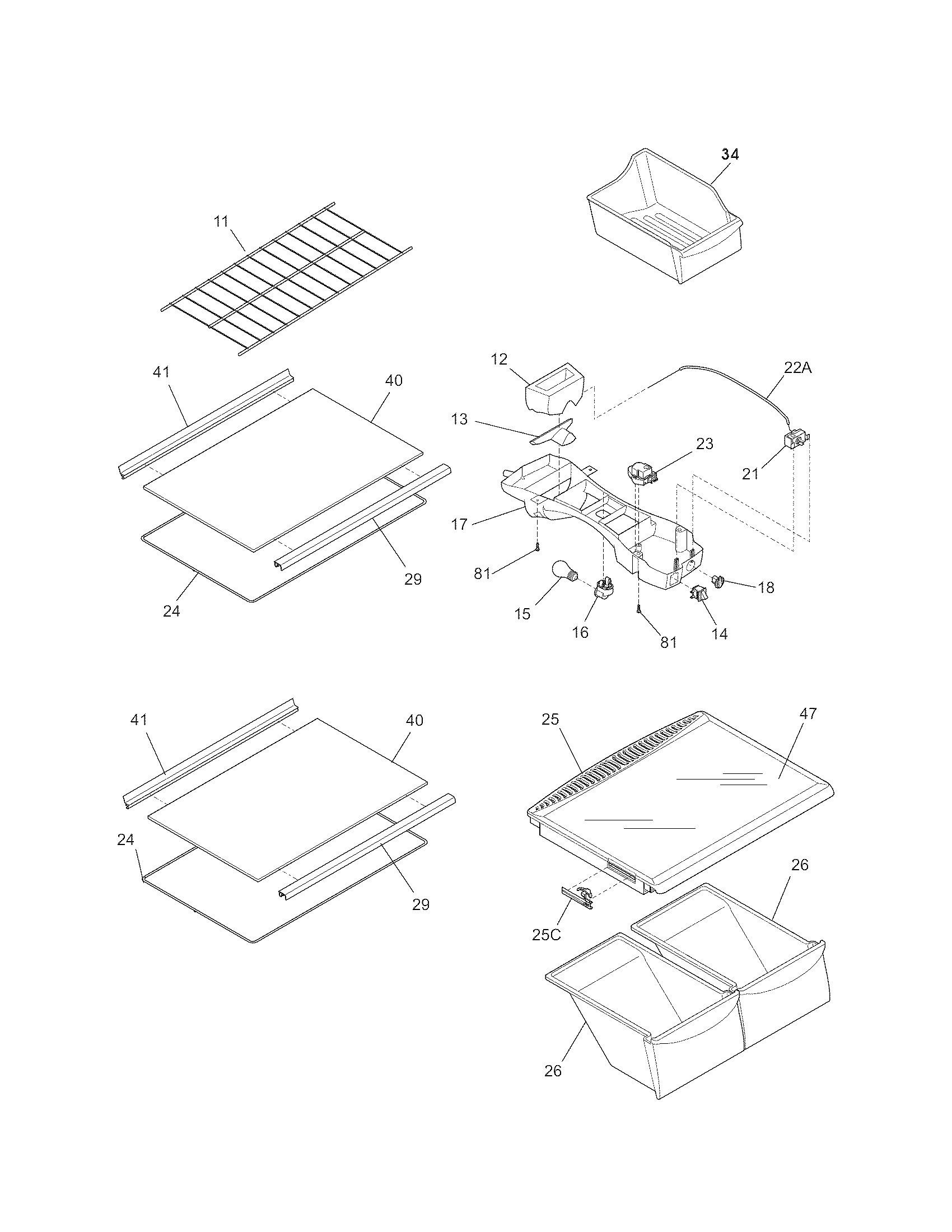

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Gasket 241872506
#2

Doors diagram

Refrigerator gasket

Part #241872506

Replaced by #241872513

?
Manufacturer substitution
This part replaces 241872506. Substitute parts can look different from the original.
BEST SELLER
$100.58 |
11% OFF Phone Price : $112.58
In Stock
Refrigerator Crisper Drawer Cover Insert (replaces 240350655, 241711220, 241711270, 297194400) 240350608
#47

Shelves diagram

Refrigerator crisper drawer cover insert (replaces 240350655, 241711220, 241711270, 297194400)

Part #240350608

BEST SELLER
$104.62 |
10% OFF Phone Price : $116.62
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

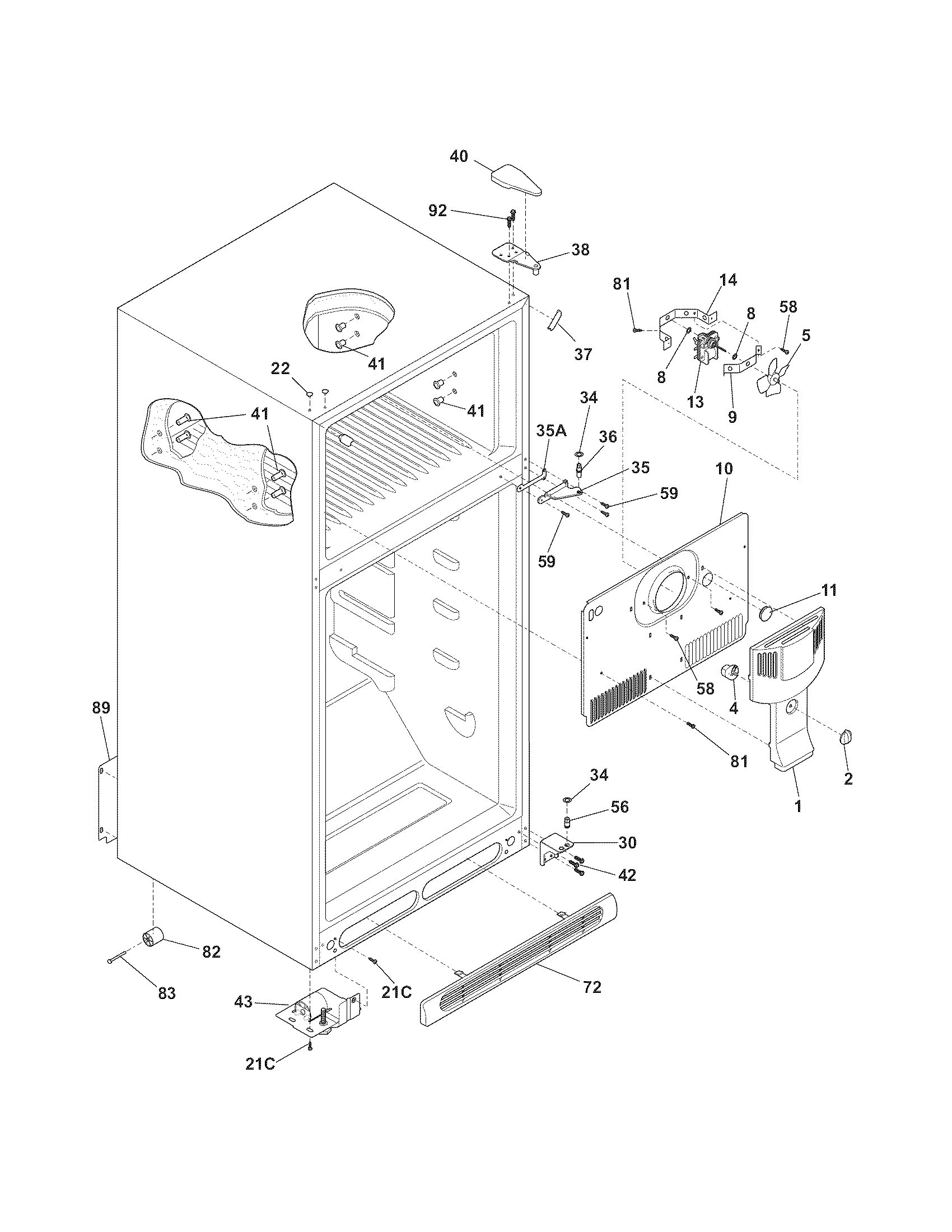

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Kenmore Elite Refrigerator Water Inlet Valve Assembly (replaces 241803703) 242252603
#55

Ice maker diagram

Kenmore elite refrigerator water inlet valve assembly (replaces 241803703)

Part #242252603

BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
Refrigerator Water Inlet Valve Assembly 241803701
#55

Ice maker diagram

Refrigerator water inlet valve assembly

Part #241803701

Replaced by #242252603

?
Manufacturer substitution
This part replaces 241803701. Substitute parts can look different from the original.
BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
