Model # YMH7140XFB2 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool YMH7140XFB2 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

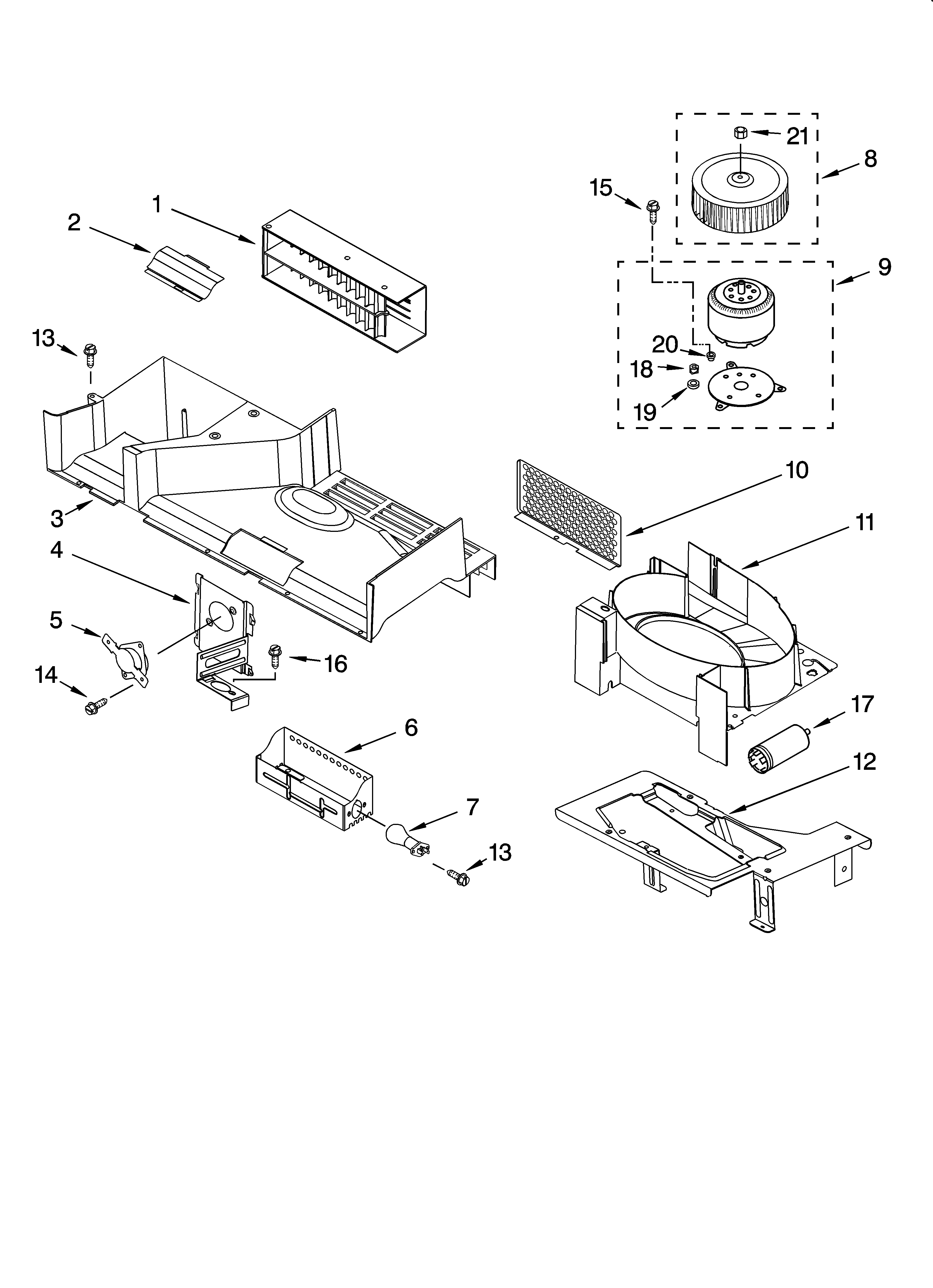

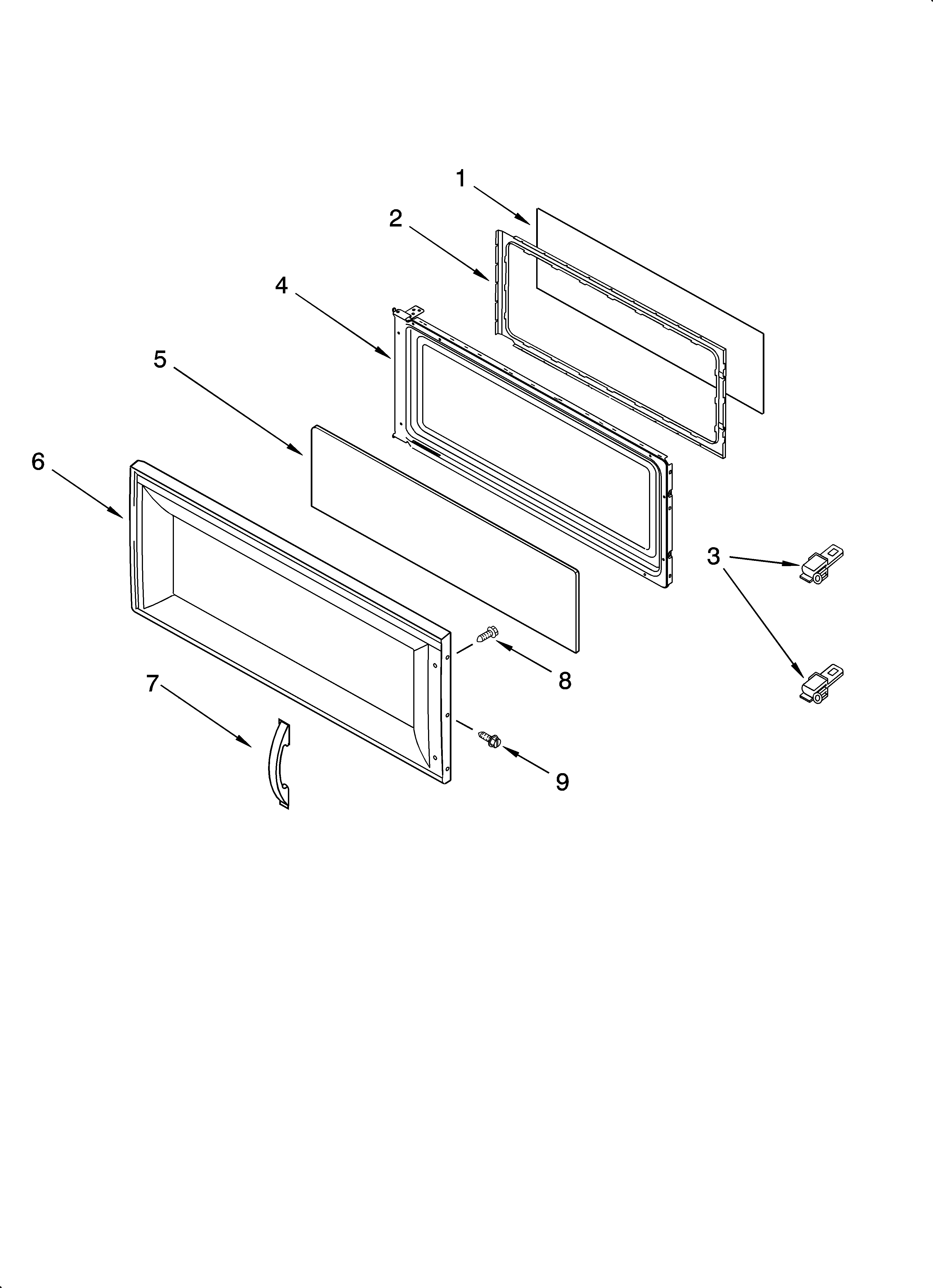

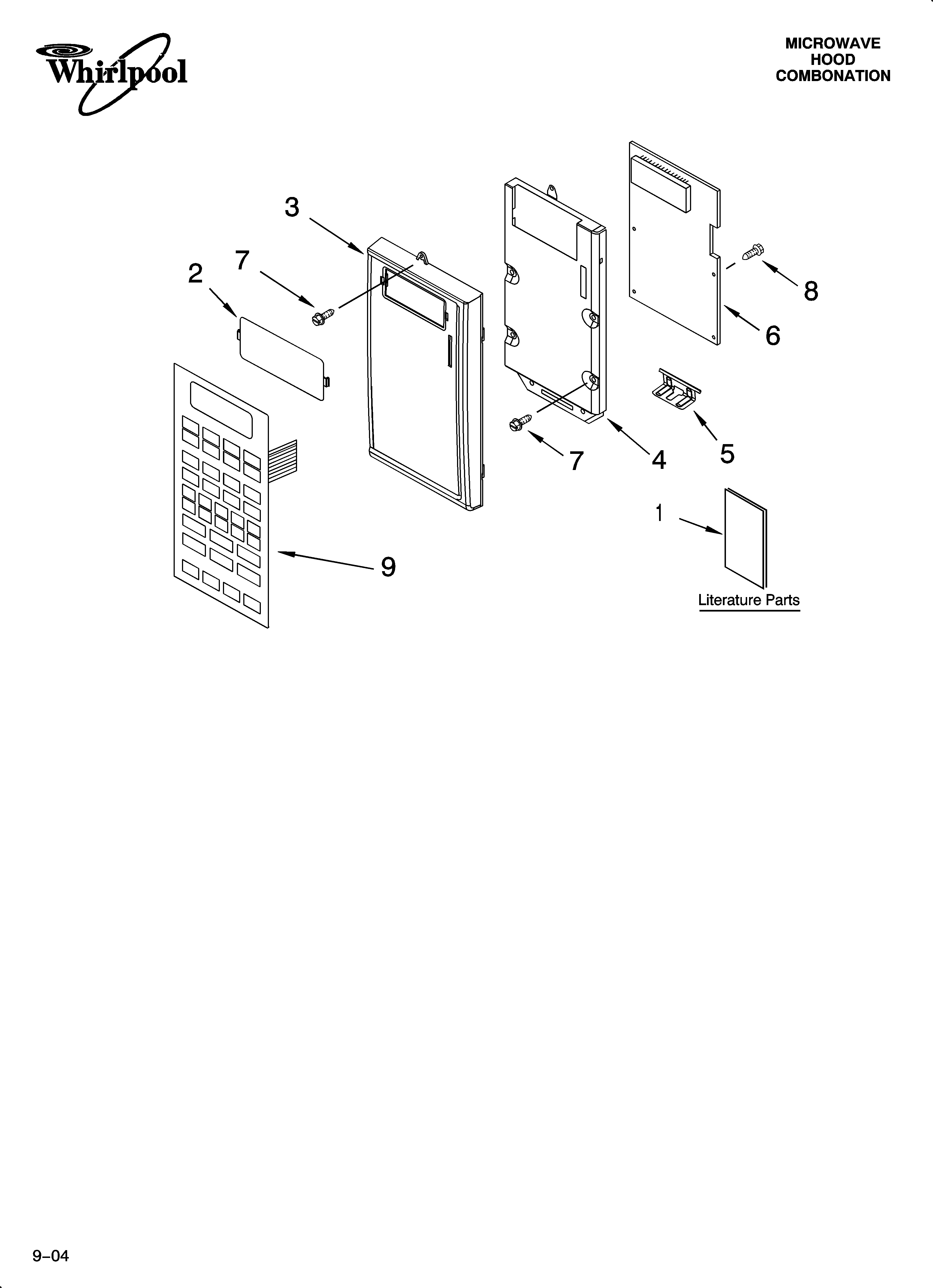

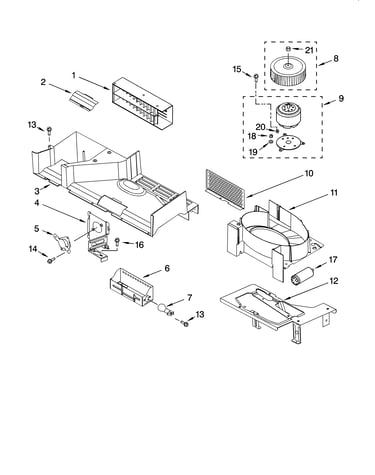

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Diode 4393600
#19

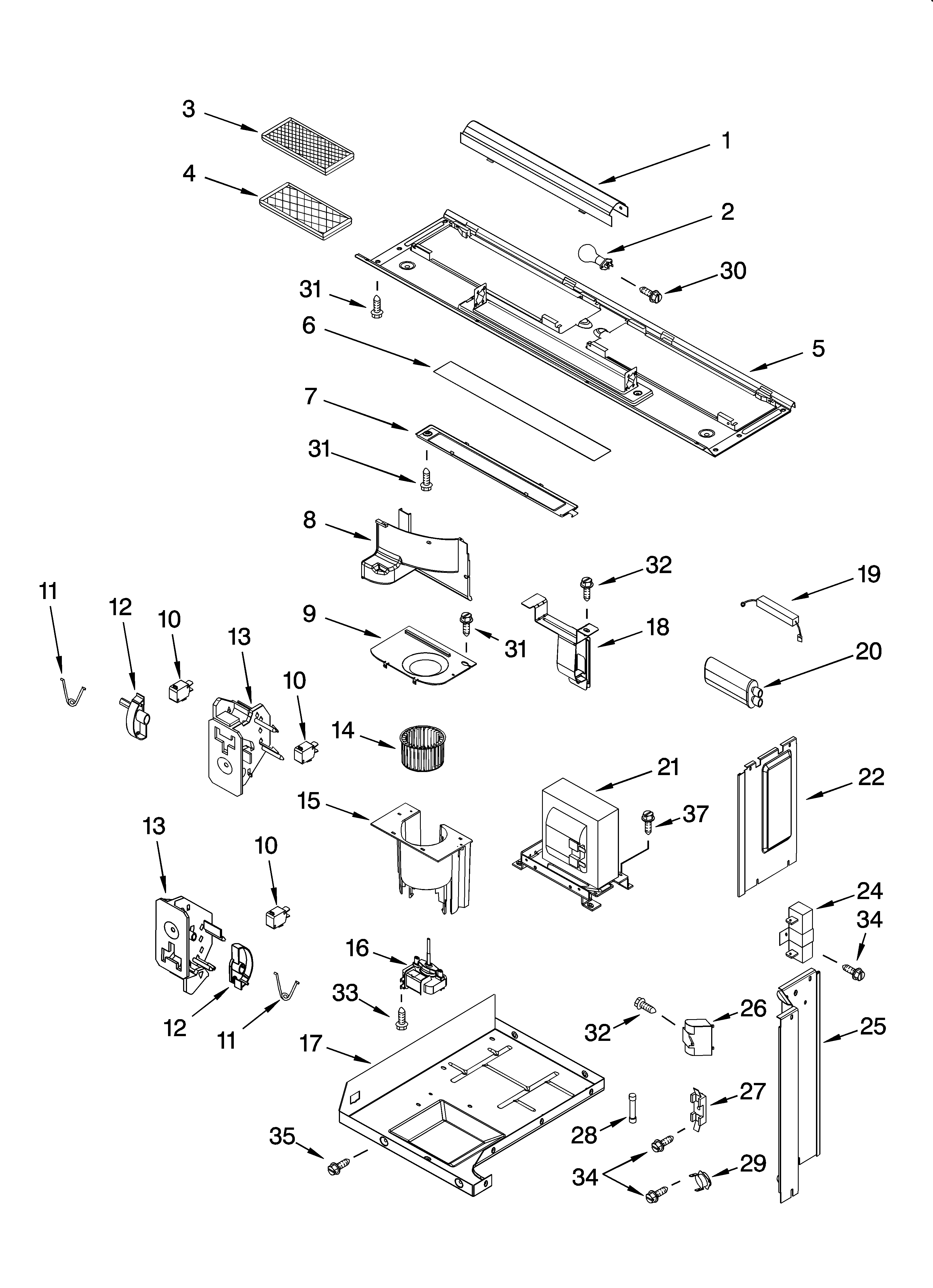

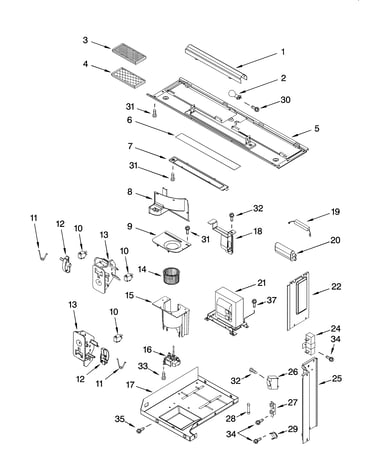

Interior and ventilation parts diagram

Diode

Part #4393600

Replaced by #W11256462

?
Manufacturer substitution
This part replaces 4393600. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Primary Switch 4393697
#10

Interior and ventilation parts diagram

Primary switch

Part #4393697

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4393697. Substitute parts can look different from the original.
BEST SELLER
$31.80 |
16% OFF Phone Price : $37.80
In Stock
Magnetron 8184306
#14

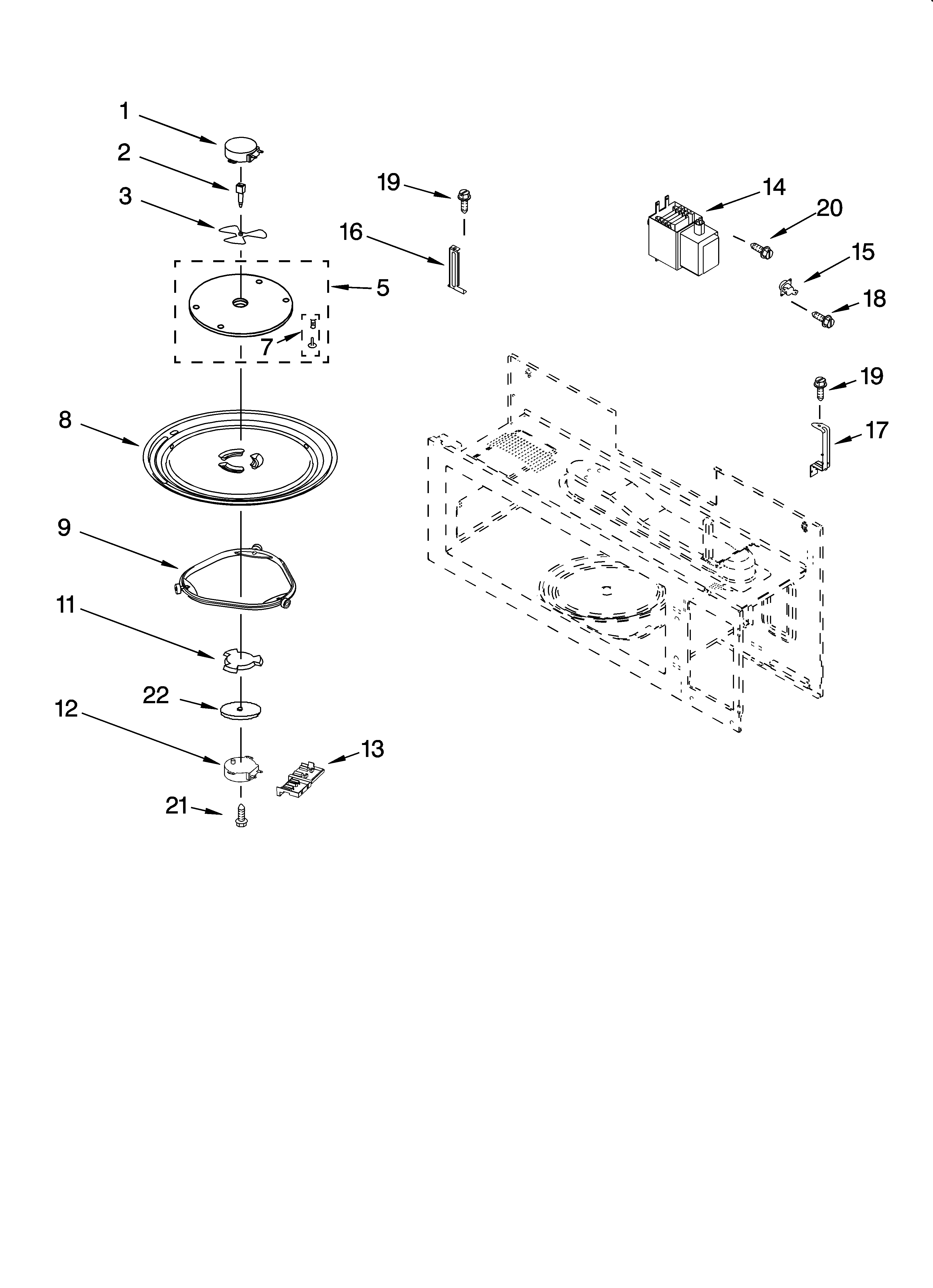

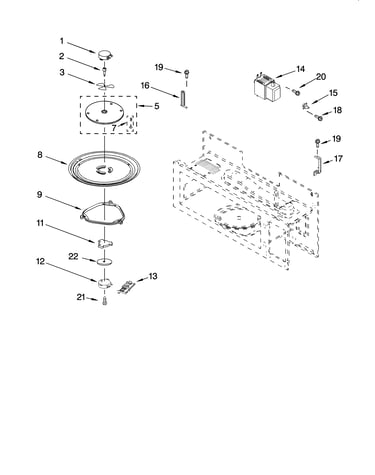

Magnetron and turntable parts diagram

Magnetron

Part #8184306

The manufacturer no longer makes this part, and there's no substitute part

Turntable Motor 8183953
#12

Magnetron and turntable parts diagram

Turntable motor

Part #8183953

Replaced by #W10642989

?
Manufacturer substitution
This part replaces 8183953. Substitute parts can look different from the original.
$69.48 |
8% OFF Phone Price : $75.48
In Stock
Microwave Vent Grille (replaces 8169463) 8183948
#8

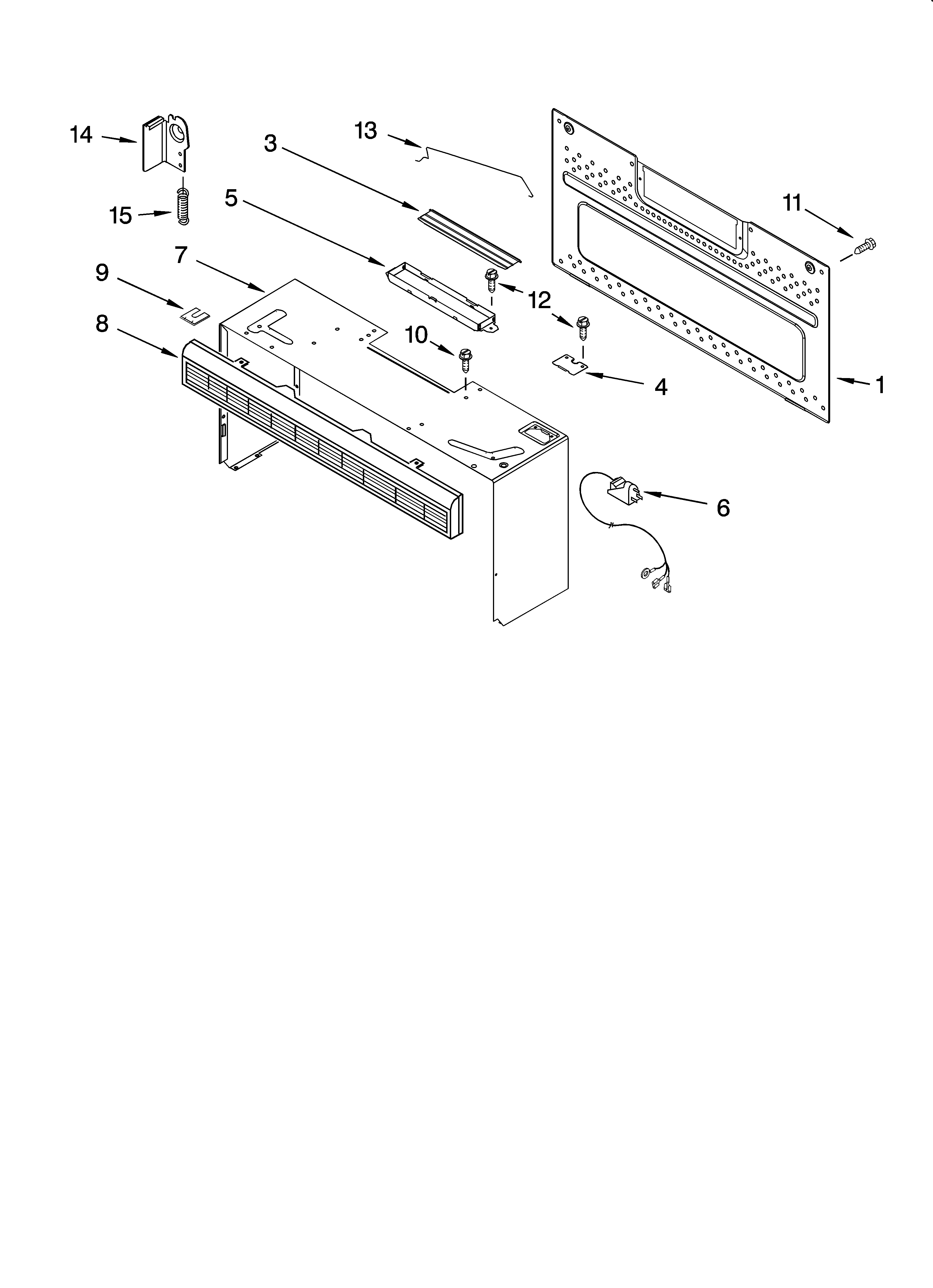

Cabinet and installation parts diagram

Microwave vent grille (replaces 8169463)

Part #8183948

$37.23 |
14% OFF Phone Price : $43.23
In Stock
Grease Filter 4393790
#4

Interior and ventilation parts diagram

Grease filter

Part #4393790

Replaced by #6802A

?
Manufacturer substitution
This part replaces 4393790. Substitute parts can look different from the original.
This item is not returnable
$22.99 |
21% OFF Phone Price : $28.99
In Stock
Ring Turn 8184102
#9

Magnetron and turntable parts diagram

Ring turn

Part #8184102

Replaced by #W11252182

?
Manufacturer substitution
This part replaces 8184102. Substitute parts can look different from the original.
$38.92 |
13% OFF Phone Price : $44.92
In Stock
Microwave Turntable Tray (replaces 8206226) 4393799
#8

Magnetron and turntable parts diagram

Microwave turntable tray (replaces 8206226)

Part #4393799

$52.95 |
10% OFF Phone Price : $58.95
In Stock
Capacitor 8184663
#20

Interior and ventilation parts diagram

Capacitor

Part #8184663

Replaced by #8206562

?
Manufacturer substitution
This part replaces 8184663. Substitute parts can look different from the original.
$89.44 |
6% OFF Phone Price : $95.44
In Stock
Microwave Vent Grille (replaces 4393778, 8169333, 8185106) 8183851
#8A

Cabinet and installation parts diagram

Microwave vent grille (replaces 4393778, 8169333, 8185106)

Part #8183851

$34.87 |
15% OFF Phone Price : $40.87
In Stock
