Model # 217592540 Official Craftsman 25-lb & 35-lb thrust electric boat motor

Here are the diagrams and repair parts for Official Craftsman 217592540 25-lb & 35-lb thrust electric boat motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

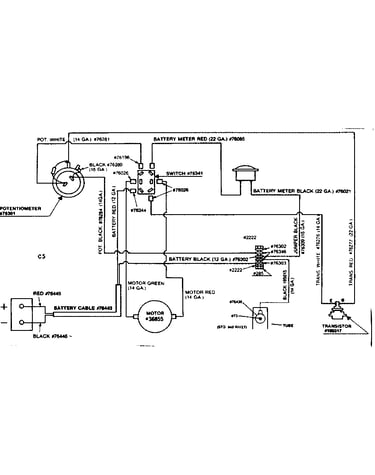

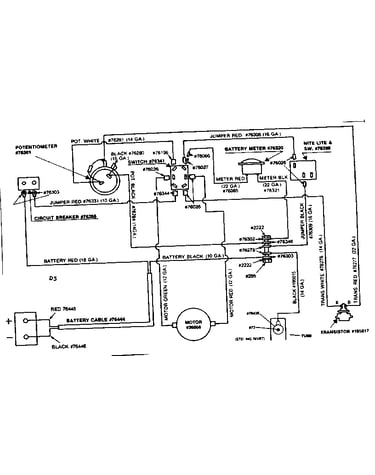

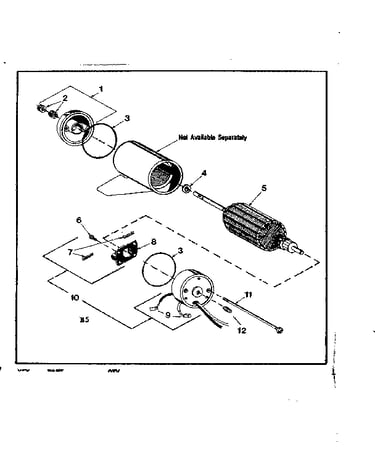

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 98 parts |

#46

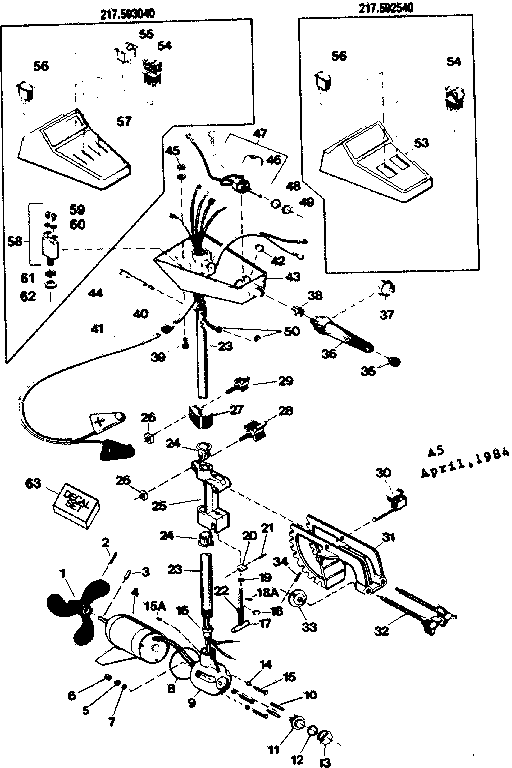

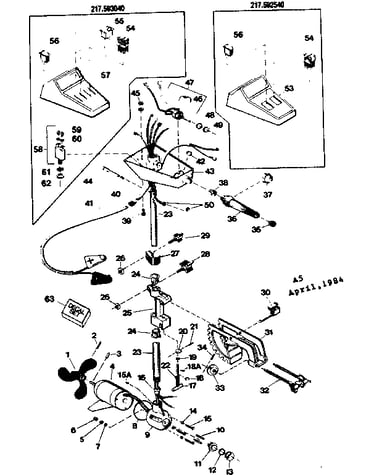

Troller assembly diagram

Resistor

Part #36571

The manufacturer no longer makes this part, and there's no substitute part

#54

Troller assembly diagram

Rocker switch

Part #76341

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Lead

Part #76021

The manufacturer no longer makes this part, and there's no substitute part

Cable as

Part #76444

The manufacturer no longer makes this part, and there's no substitute part

#30

Troller assembly diagram

Knob assembly

Part #36580

The manufacturer no longer makes this part, and there's no substitute part

#20

Troller assembly diagram

Knob

Part #76359

The manufacturer no longer makes this part, and there's no substitute part

#38

Troller assembly diagram

Sleeve

Part #66271

The manufacturer no longer makes this part, and there's no substitute part

217.586251 & 217.586270

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Troller assembly diagram

Spiral pin

Part #7111

The manufacturer no longer makes this part, and there's no substitute part

Troller assembly diagram

Motor el asm

Part #36855

The manufacturer no longer makes this part, and there's no substitute part
