GE
Top-Mount Refrigerator

Model # GTS18GBSBRBB Official GE refrigerator - s series

Here are the diagrams and repair parts for Official GE GTS18GBSBRBB refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Dryer Filter WR86X0096
#740

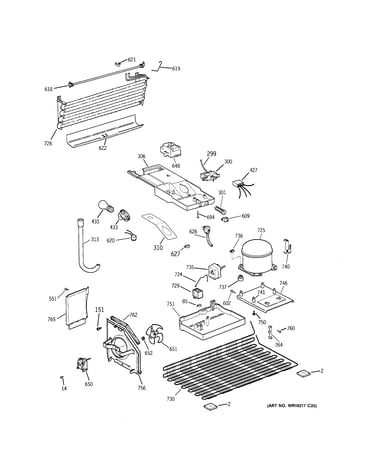

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Appliance Light Bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#435

Unit parts diagram

Appliance light bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Ac/dc Motor WR60X10138
#610

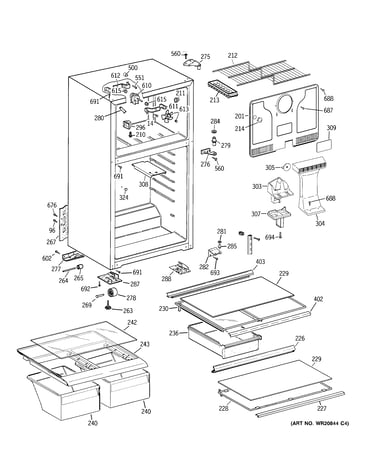

Cabinet diagram

Refrigerator ac/dc motor

Part #WR60X10138

Replaced by #WR60X31522

?
Manufacturer substitution
This part replaces WR60X10138. Substitute parts can look different from the original.
BEST SELLER
$64.75 |
8% OFF Phone Price : $70.75
In Stock
Comp. Repl. WR87X10153
#725

Unit parts diagram

Comp. repl.

Part #WR87X10153

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X10153. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Evaporator Fan Blade (replaces Wr60x10047, Wr60x10188) WR60X10204
#613

Cabinet diagram

Refrigerator evaporator fan blade (replaces wr60x10047, wr60x10188)

Part #WR60X10204

BEST SELLER
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Unit parts diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Evaporator Fan Motor Grommet WR02X12008
#615

Cabinet diagram

Refrigerator evaporator fan motor grommet

Part #WR02X12008

BEST SELLER
$19.32
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

Cabinet diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Refrigerator Door Shelf Rail (replaces Wr17x12916) WR17X11889
#19

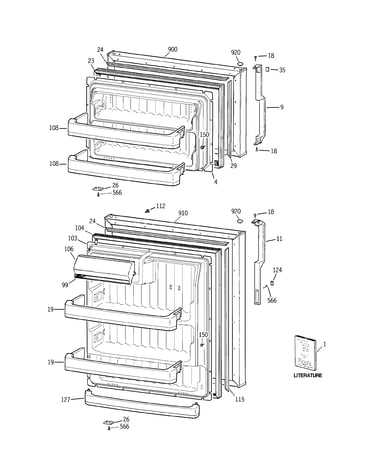

Doors diagram

Refrigerator door shelf rail (replaces wr17x12916)

Part #WR17X11889

BEST SELLER
$26.47 |
18% OFF Phone Price : $32.47
In Stock
5sp Overload WR08X10085
#735

Unit parts diagram

5sp overload

Part #WR08X10085

Replaced by #WR09X10107

?
Manufacturer substitution
This part replaces WR08X10085. Substitute parts can look different from the original.
BEST SELLER
$114.48 |
9% OFF Phone Price : $126.48
In Stock
