Model # JVM1320WD001 Official GE microwave

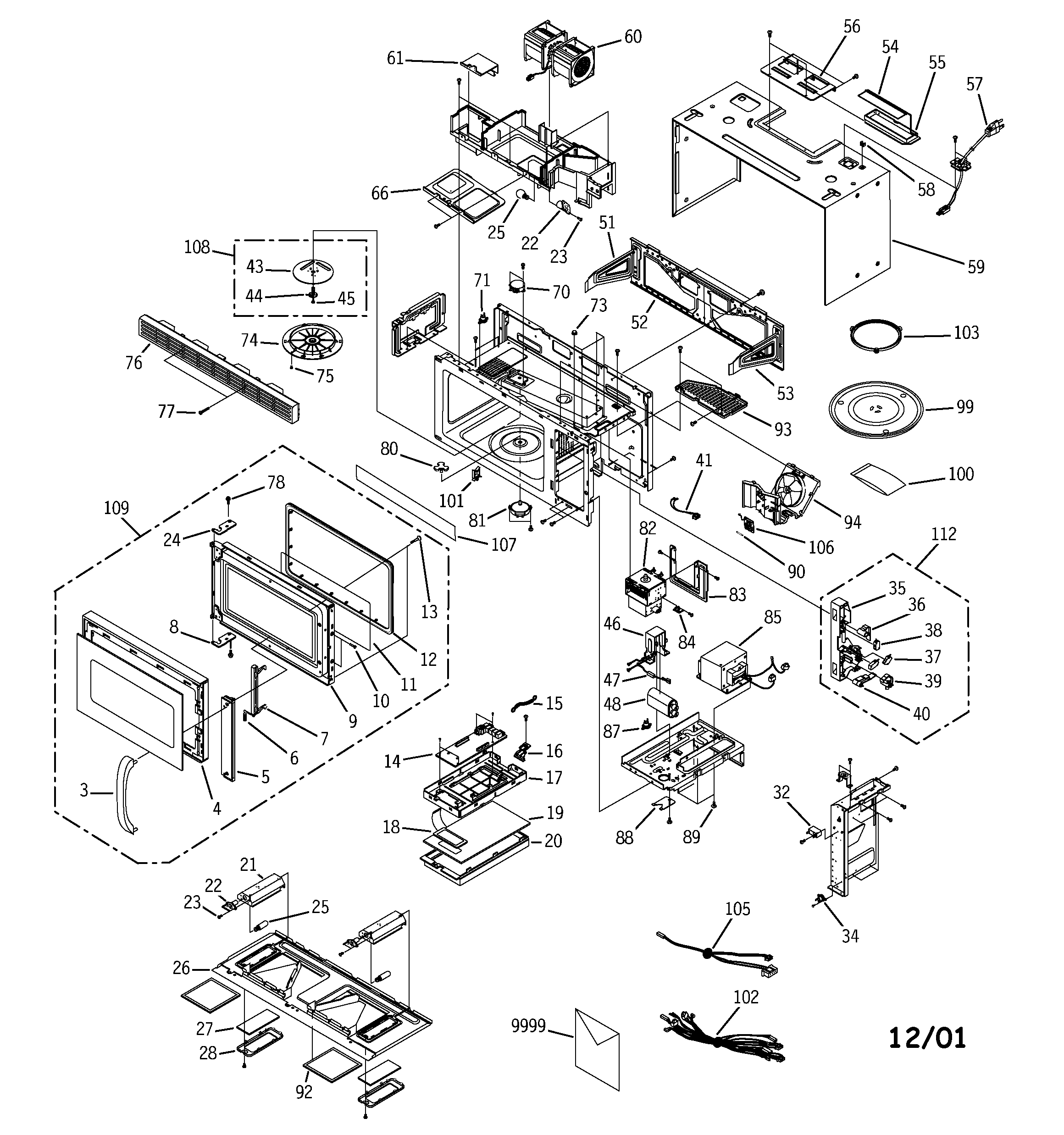

Here are the diagrams and repair parts for Official GE JVM1320WD001 microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJVM1320WD001 Microwave

  • Fuse Cartridge WB27X10474
    #90

    Microwave diagram

    Fuse cartridge

    Part #WB27X10474

    Replaced by #WB27X10928

    ?
    Manufacturer substitution
    This part replaces WB27X10474. Substitute parts can look different from the original.
    BEST SELLER
    $12.12
    14% OFF Phone Price : $14.12
    In Stock
  • Switch-micro WB24X0829
    #38

    Microwave diagram

    Switch-micro

    Part #WB24X0829

    Replaced by #WB24X829

    ?
    Manufacturer substitution
    This part replaces WB24X0829. Substitute parts can look different from the original.
    BEST SELLER
    $28.23
    22% OFF Phone Price : $36.39
    In Stock
  • Microwave High-voltage Diode WB27X1160
    #47

    Microwave diagram

    Microwave high-voltage diode

    Part #WB27X1160

    BEST SELLER
    $91.95
    6% OFF Phone Price : $97.95
    In Stock
  • Thermostat Switch WB27X0709
    #34

    Microwave diagram

    Thermostat switch

    Part #WB27X0709

    Replaced by #WB27X709

    ?
    Manufacturer substitution
    This part replaces WB27X0709. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $28.91
    17% OFF Phone Price : $34.91
    In Stock
  • Microwave Light Bulb WB36X10003
    #25

    Microwave diagram

    Microwave light bulb

    Part #WB36X10003

    This item is not returnable
    $13.78
    13% OFF Phone Price : $15.78
    In Stock
  • Therm-hood WB21X0535
    #87

    Microwave diagram

    Therm-hood

    Part #WB21X0535

    Replaced by #WB27X1127

    ?
    Manufacturer substitution
    This part replaces WB21X0535. Substitute parts can look different from the original.
    $35.93
    14% OFF Phone Price : $41.93
    In Stock
  • Air Filter WB06X10125
    #92

    Microwave diagram

    Air filter

    Part #WB06X10125

    Replaced by #WB6X486

    ?
    Manufacturer substitution
    This part replaces WB06X10125. Substitute parts can look different from the original.
    $69.90
    8% OFF Phone Price : $75.90
    In Stock
  • Microwave Vent Damper WB06X10129
    #54

    Microwave diagram

    Microwave vent damper

    Part #WB06X10129

    $65.55
    8% OFF Phone Price : $71.55
    In Stock
  • Hotpoint Installation 49-8699-3
    #9999

    Microwave diagram

    Hotpoint installation

    Part #49-8699-3

    This item is not returnable
    In Stock
  • Template 49-8729
    #9999

    Microwave diagram

    Template

    Part #49-8729

    This item is not returnable
    In Stock
