Thermador
Range Hood

Model # PH42HQS Official Thermador wall hood

Here are the diagrams and repair parts for Official Thermador PH42HQS wall hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Wire Assembly 19-11-749

#NI

All parts diagram

Wire assembly

Part #19-11-749

The manufacturer no longer makes this part, and there's no substitute part

Switch 19-11-815
#8

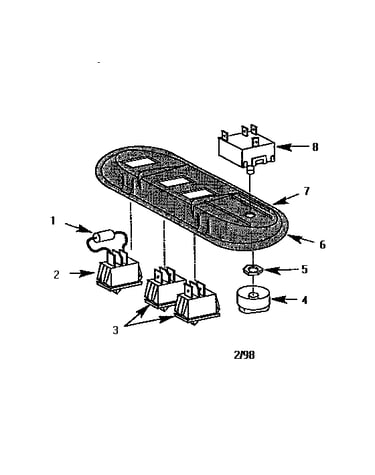

Switch assembly diagram

Switch

Part #19-11-815

The manufacturer no longer makes this part, and there's no substitute part

Lamp Housing 19-11-735-03
#7

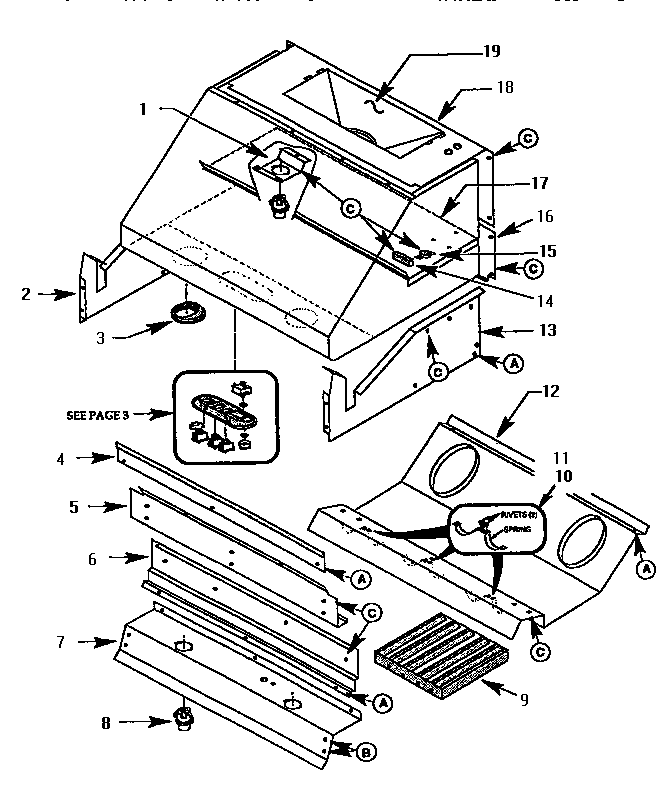

Model ph42hqs diagram

Lamp housing

Part #19-11-735-03

The manufacturer no longer makes this part, and there's no substitute part

Grease Channel 19-11-767-03
#5

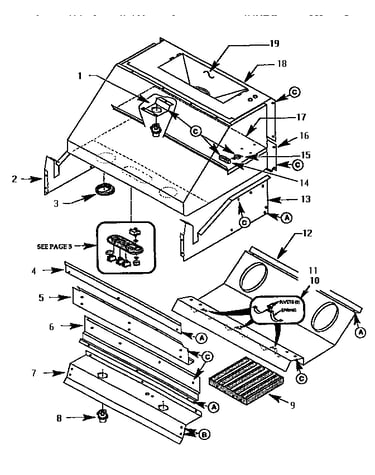

Model ph42hqs diagram

Grease channel

Part #19-11-767-03

The manufacturer no longer makes this part, and there's no substitute part

Backsplash Stiffener 19-11-920

#NI

All parts diagram

Backsplash stiffener

Part #19-11-920

The manufacturer no longer makes this part, and there's no substitute part

#6 X 1/2" Screw 14-91-026
#B

Model ph42hqs diagram

#6 x 1/2" screw

Part #14-91-026

The manufacturer no longer makes this part, and there's no substitute part

Top 19-11-729-03
#18

Model ph42hqs diagram

Top

Part #19-11-729-03

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block 14-61-341
#14

Model ph42hqs diagram

Terminal block

Part #14-61-341

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Socket (2) 19-11-734
#1

Model ph42hqs diagram

Bracket, socket (2)

Part #19-11-734

The manufacturer no longer makes this part, and there's no substitute part

42" Backsplash 19-11-922-03
#1

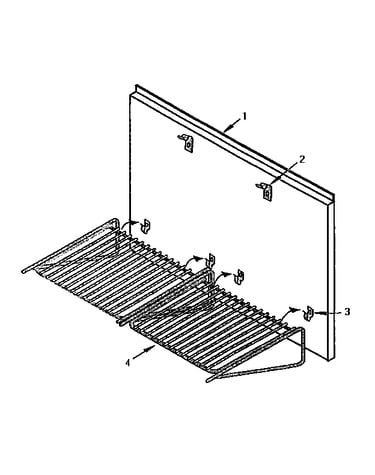

Keep hot shelf accessory diagram

42" backsplash

Part #19-11-922-03

The manufacturer no longer makes this part, and there's no substitute part
