Model # ZDW24YA Official GE wine chiller - y series
Here are the diagrams and repair parts for Official GE ZDW24YA wine chiller - y series, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
ZDW24YA Wine Chiller - Y Series
#5

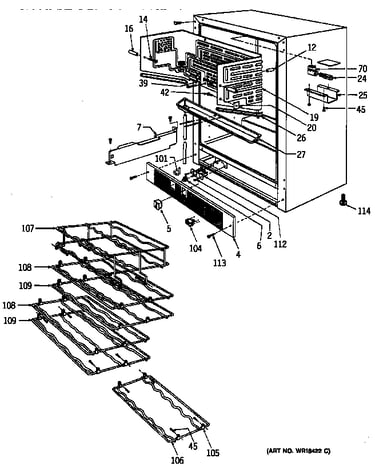

Cabinet parts diagram
Light switch
Part #WR23X193
Replaced by #WR23X37285
?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$50.19
In Stock
#72

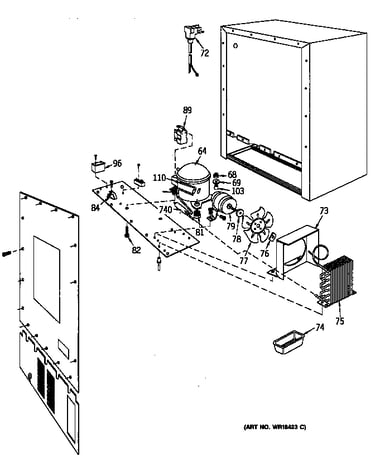

Unit parts diagram
Power cord
Part #WR23X108
Replaced by #WR23X10300
?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
#11

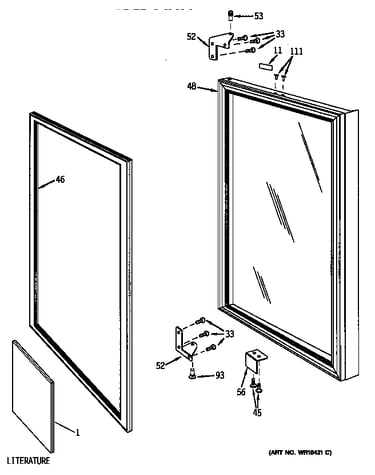

Door diagram
Ge nameplate
Part #WR4X10003
$26.49
In Stock
#1A
Door diagram
Ge owner's manual
Part #49-6915
$8.49
In Stock
#110
Unit parts diagram
Chg valve
Part #WR86X97
Replaced by #WJ56X61
?
Manufacturer substitution
This part replaces WR86X97. Substitute parts can look different from the original.
$23.46 |
20% OFF Phone Price : $29.46
In Stock
#740
Unit parts diagram
Refrigerator filter dryer
Part #WR86X96
Replaced by #WR86X25269
?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
$79.18 |
7% OFF Phone Price : $85.18
In Stock
#52
Door diagram
Hinge kit
Part #WR13X672
The manufacturer no longer makes this part, and there's no substitute part
#16
Cabinet parts diagram
Spacer
Part #WR2X8980
The manufacturer no longer makes this part, and there's no substitute part
#109
Cabinet parts diagram
Rack mid-b
Part #WR71X10009
The manufacturer no longer makes this part, and there's no substitute part
#42
Cabinet parts diagram
Screw
Part #WR1X1951
The manufacturer no longer makes this part, and there's no substitute part
