Model # JVM1540DM3BB Official GE microwave
Here are the diagrams and repair parts for Official GE JVM1540DM3BB microwave, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
JVM1540DM3BB Microwave
#50
Interior parts (1) diagram
Microwave high-voltage diode
Part #WB18X10449
Replaced by #WB27X35382
?
Manufacturer substitution
This part replaces WB18X10449. Substitute parts can look different from the original.
$9.51
In Stock
#1428
Interior parts (1) diagram
Microwave magnetron
Part #WB27X10927
$150.54 |
7% OFF Phone Price : $162.54
In Stock
#1438
Interior parts (1) diagram
Microwave high-voltage capacitor
Part #WB27X11096
$23.47
In Stock
#1446
Latch board parts diagram
Microwave door interlock switch
Part #WB24X10180
$11.20 |
15% OFF Phone Price : $13.20
In Stock
#1445
Latch board parts diagram
Microwave/hood monitor switch
Part #WB24X10181
This item is not returnable
$11.78 |
15% OFF Phone Price : $13.78
In Stock
#9001
Installation parts diagram
Microwave mounting plate (replaces wb56x10204)
Part #WB56X10669
Replaced by #WB56X35363
?
Manufacturer substitution
This part replaces WB56X10669. Substitute parts can look different from the original.
This item is not returnable
$20.80 |
22% OFF Phone Price : $26.80
In Stock
#110
Interior parts (1) diagram
Microwave thermal cut-off
Part #WB27X11100
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
#43
Interior parts (1) diagram
Microwave stirrer fan motor
Part #WB26X10240
$23.11 |
21% OFF Phone Price : $29.11
In Stock
#19

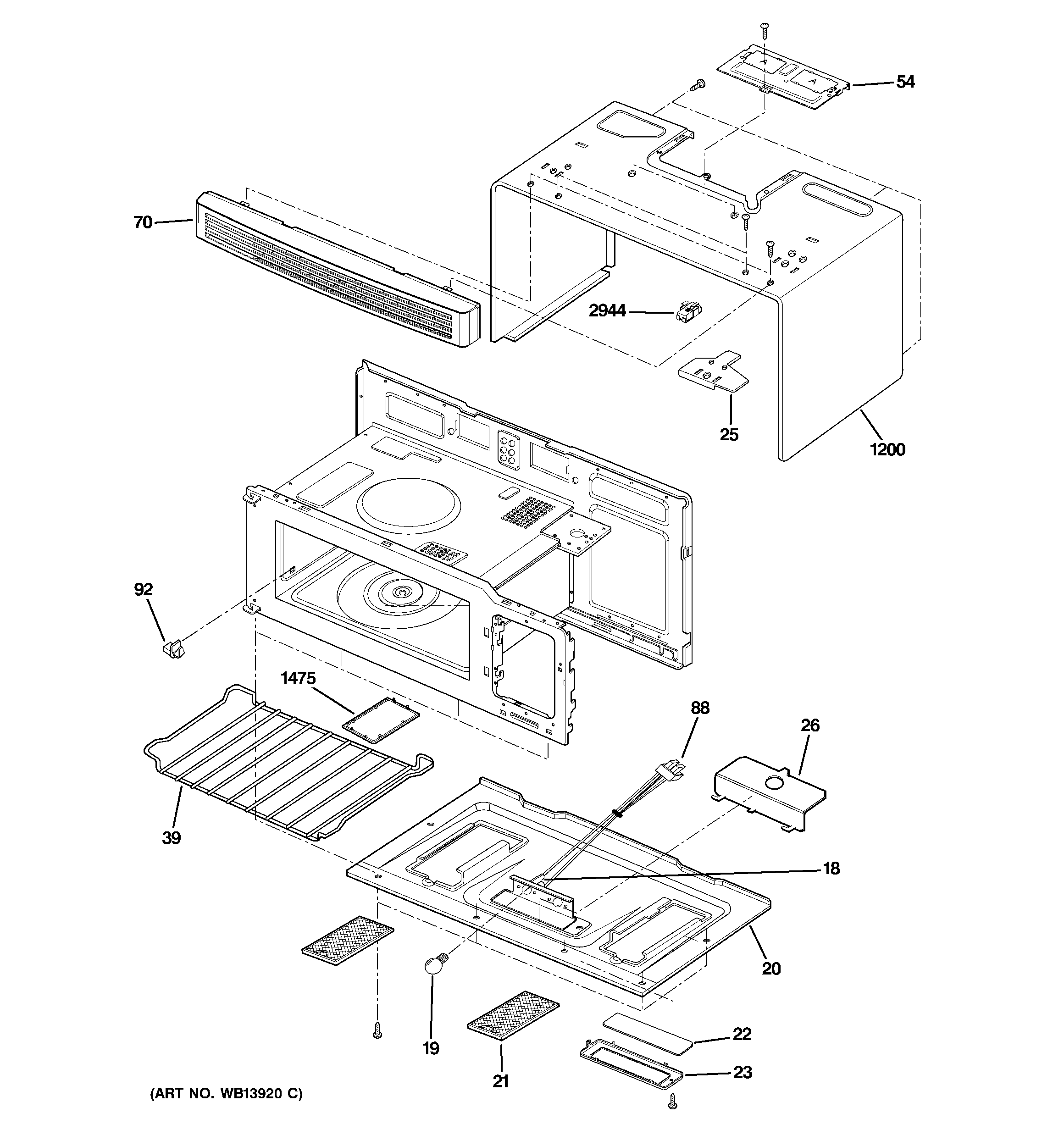

Oven cavity parts diagram
Microwave light bulb (replaces wb36x10292)
Part #WB36X10328
$22.95 |
21% OFF Phone Price : $28.95
In Stock
#1800

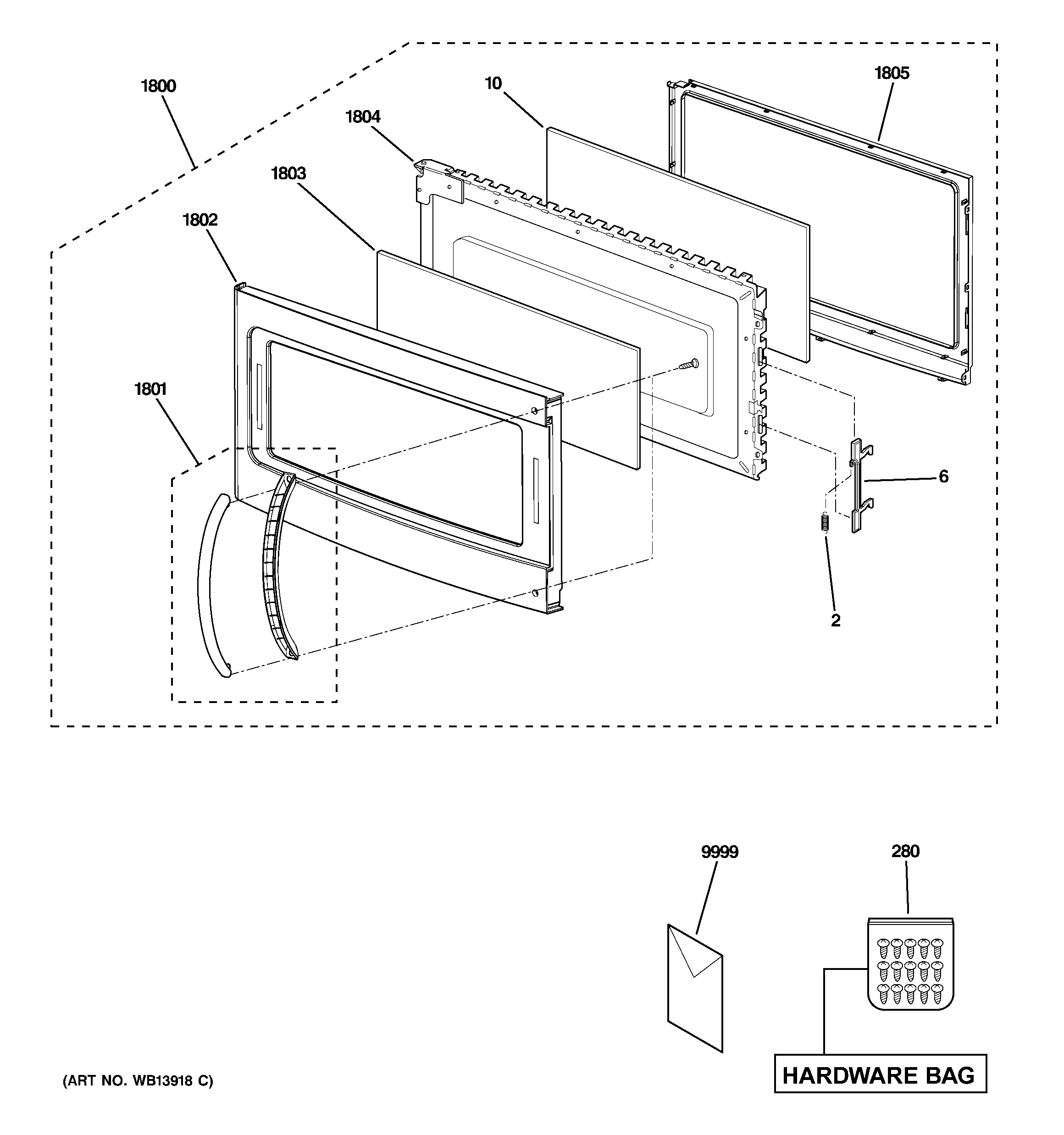

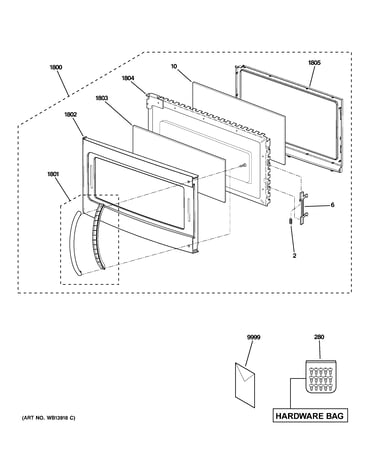

Door parts diagram
Door
Part #WB56X10703
Replaced by #WB56X24439
?
Manufacturer substitution
This part replaces WB56X10703. Substitute parts can look different from the original.
$129.45 |
8% OFF Phone Price : $141.45
In Stock
