Gas Cooktop

Model # ZGU36N6H1SS Official GE cooktop

Here are the diagrams and repair parts for Official GE ZGU36N6H1SS cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forZGU36N6H1SS Cooktops

  • Igniter WB02X10780
    #259

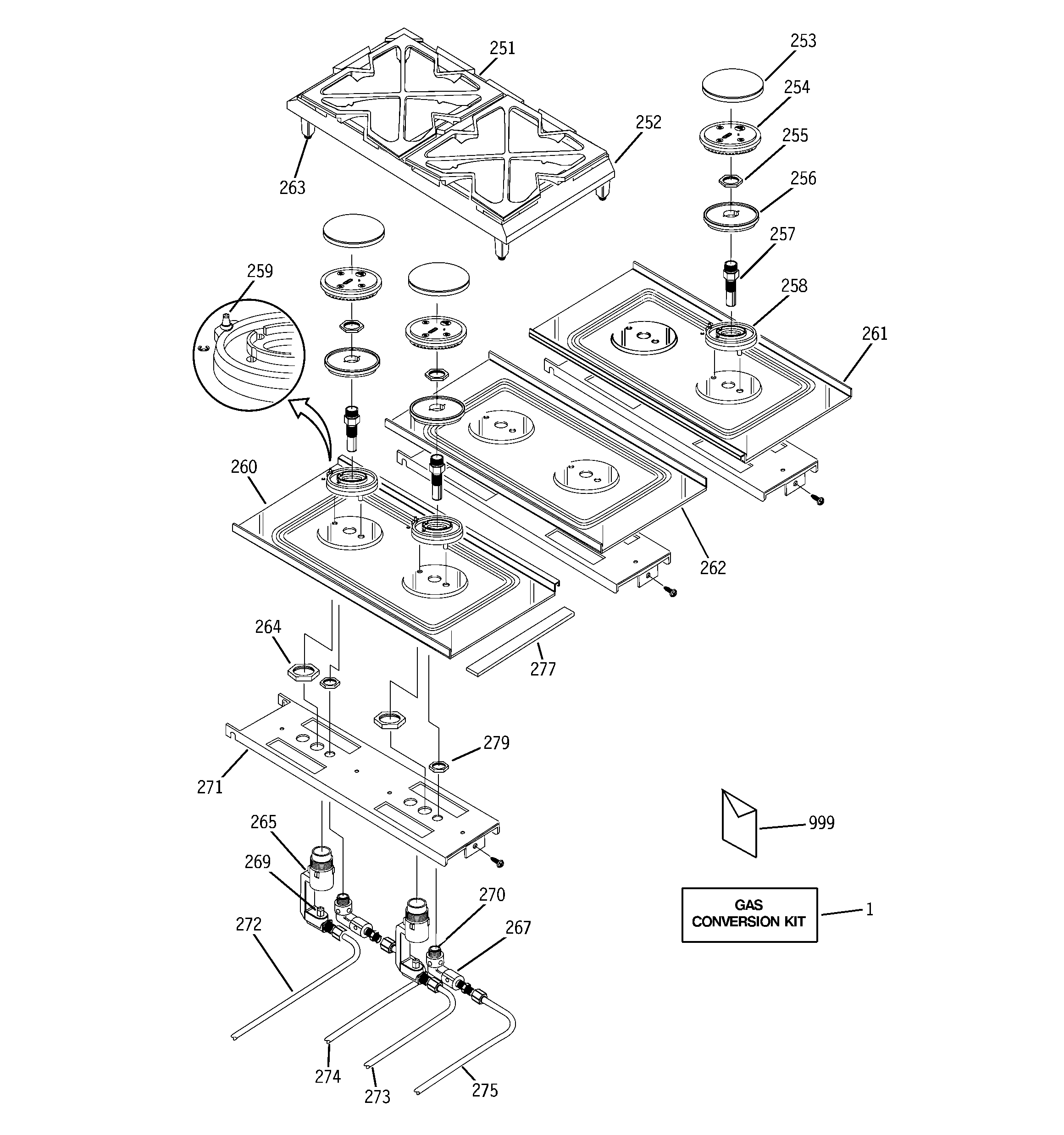

    Gas & burner parts diagram

    Igniter

    Part #WB02X10780

    Replaced by #WB02X10822

    ?
    Manufacturer substitution
    This part replaces WB02X10780. Substitute parts can look different from the original.
    $112.95
    10% OFF Phone Price : $124.95
    In Stock
  • Range Surface Burner Venturi Nozzle WB38X10080
    #257

    Gas & burner parts diagram

    Range surface burner venturi nozzle

    Part #WB38X10080

    This item is not returnable
    $31.82
    16% OFF Phone Price : $37.82
    In Stock
  • Range Surface Burner Cap WB32X10047
    #254

    Gas & burner parts diagram

    Range surface burner cap

    Part #WB32X10047

    Replaced by #WB16X27935

    ?
    Manufacturer substitution
    This part replaces WB32X10047. Substitute parts can look different from the original.
    $87.36
    6% OFF Phone Price : $93.36
    In Stock
  • Burner Pan L WB32X10055
    #261

    Gas & burner parts diagram

    Burner pan l

    Part #WB32X10055

    Replaced by #WB32X10072

    ?
    Manufacturer substitution
    This part replaces WB32X10055. Substitute parts can look different from the original.
    $199.42
    6% OFF Phone Price : $211.42
    In Stock
  • Clip Logo WR01X10300
    #382

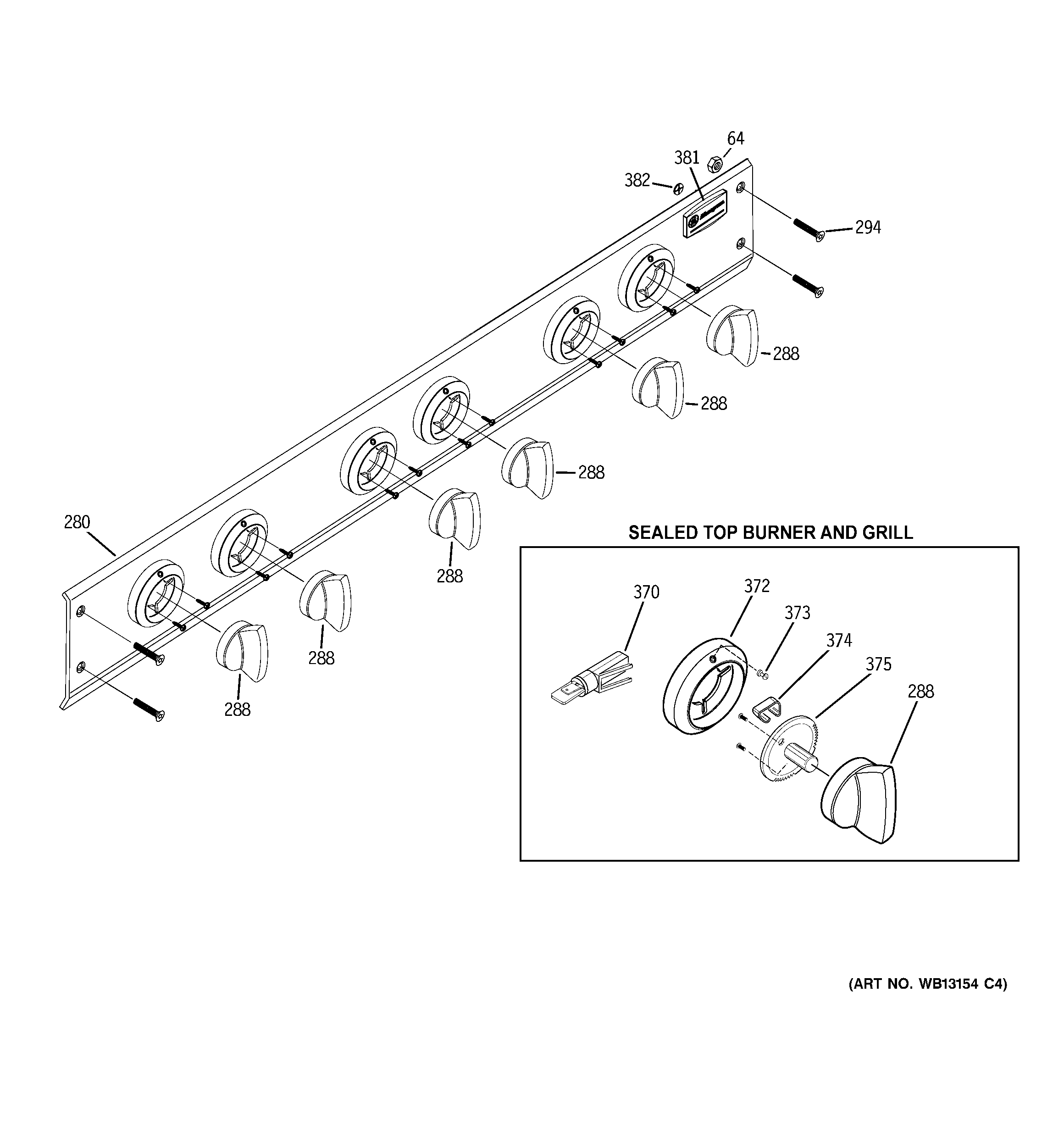

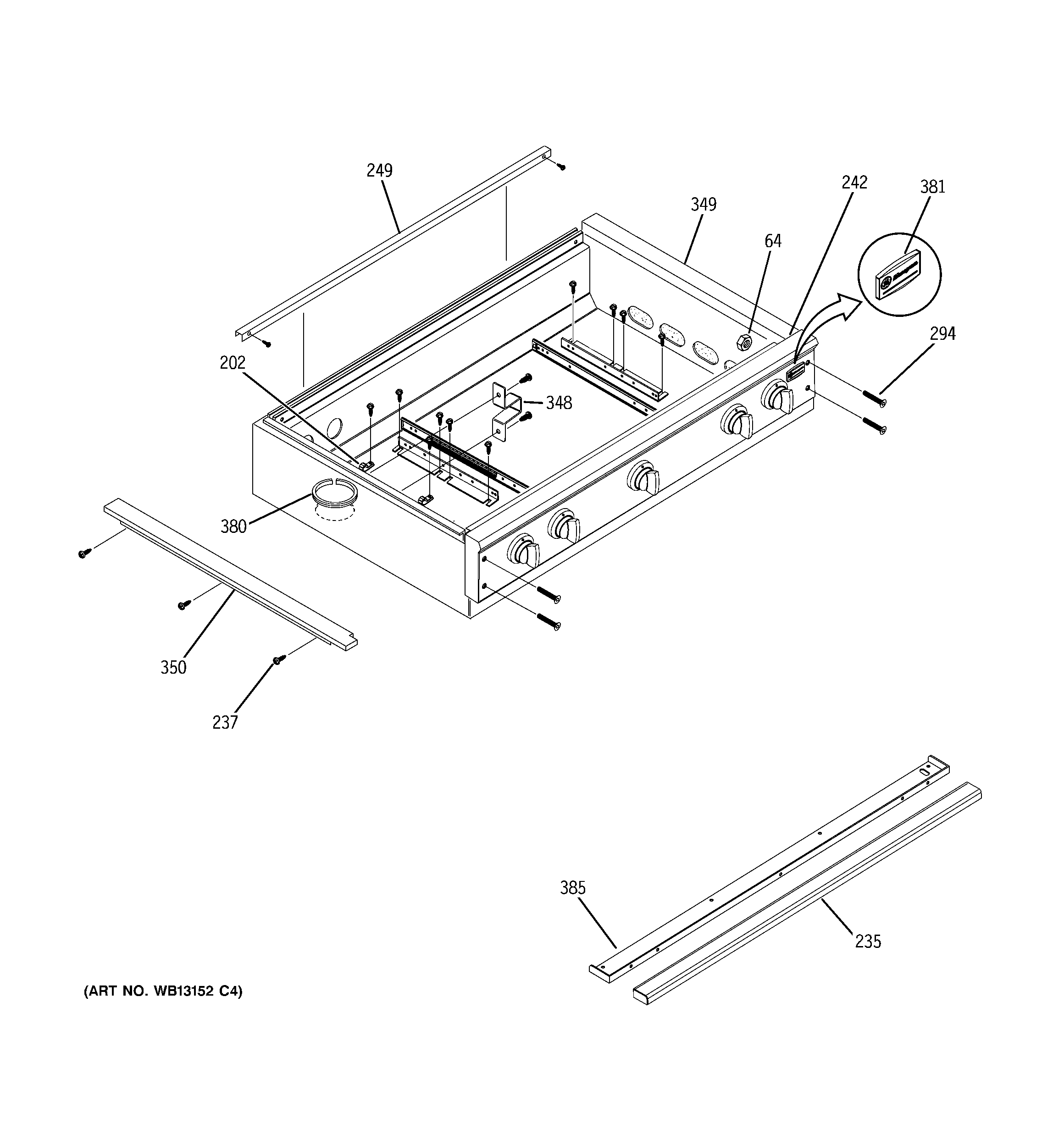

    Control panel diagram

    Clip logo

    Part #WR01X10300

    In Stock
  • Range Surface Burner Supply Tube, Front WB28X10065
    #273

    Gas & burner parts diagram

    Range surface burner supply tube, front

    Part #WB28X10065

    $48.74
    11% OFF Phone Price : $54.74
    In Stock
  • Burner Bracket WB02X11077
    #271

    Gas & burner parts diagram

    Burner bracket

    Part #WB02X11077

    In Stock
  • Lp/nat Conve WB49X10133
    #1

    Gas & burner parts diagram

    Lp/nat conve

    Part #WB49X10133

    In Stock
  • Manifold Assy 36n6fss WB28X10079
    #324

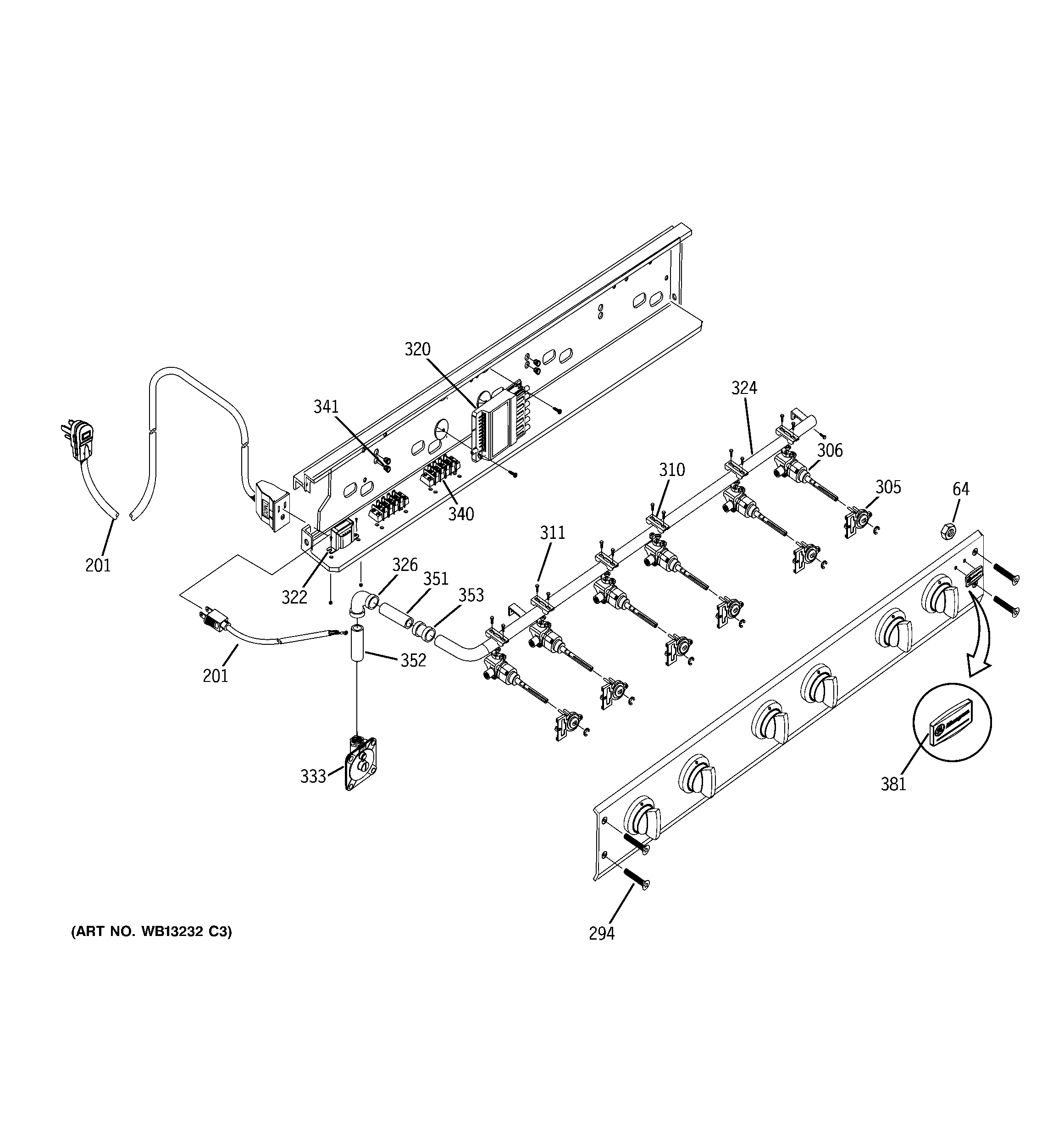

    Manifold assembly diagram

    Manifold assy 36n6fss

    Part #WB28X10079

    In Stock
  • Transformer WB27X10783
    #322

    Manifold assembly diagram

    Transformer

    Part #WB27X10783

    Replaced by #WB27X10905

    ?
    Manufacturer substitution
    This part replaces WB27X10783. Substitute parts can look different from the original.
    $108.65
    10% OFF Phone Price : $120.65
    In Stock
