Kenmore
Top-Mount Refrigerator

Model # 2536321201A Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 2536321201A refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

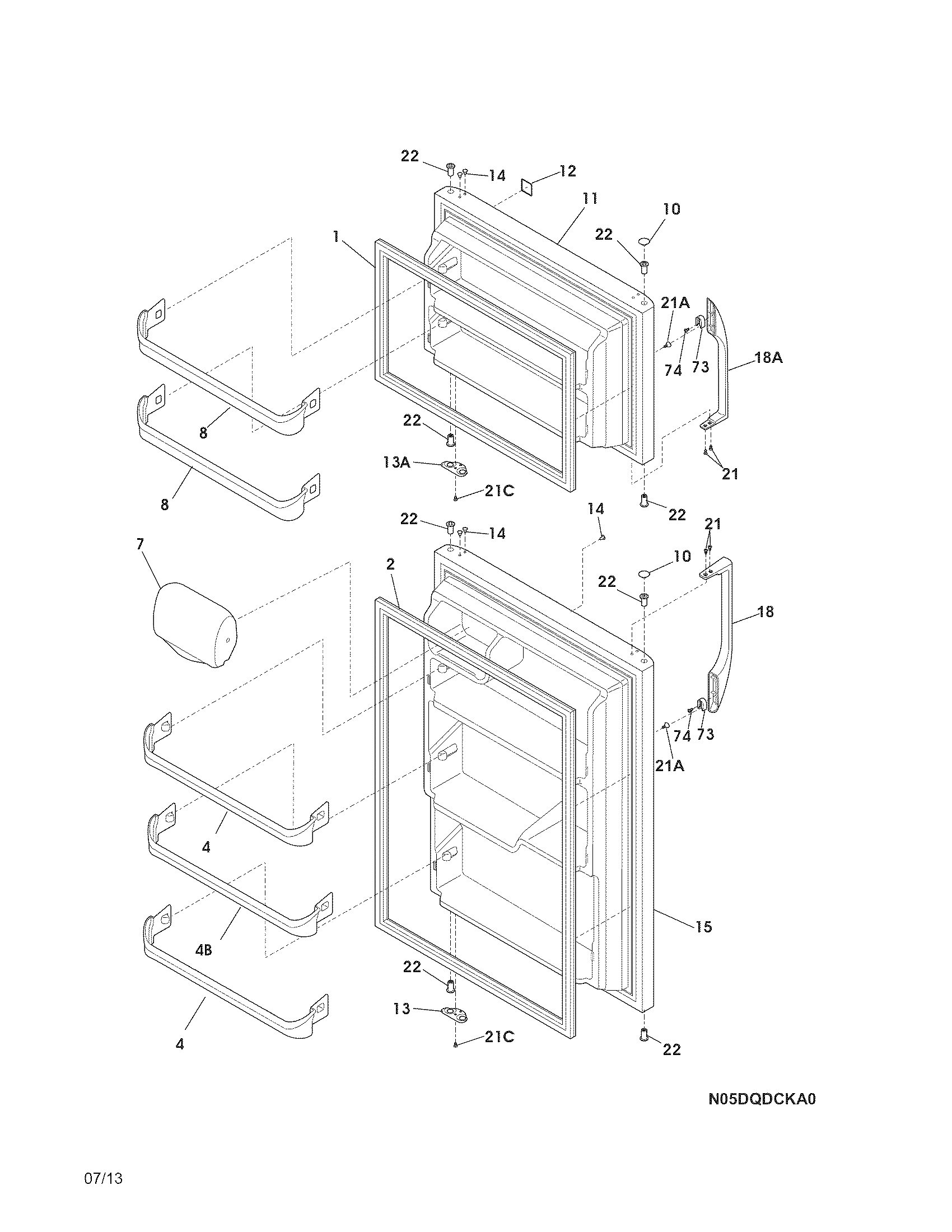

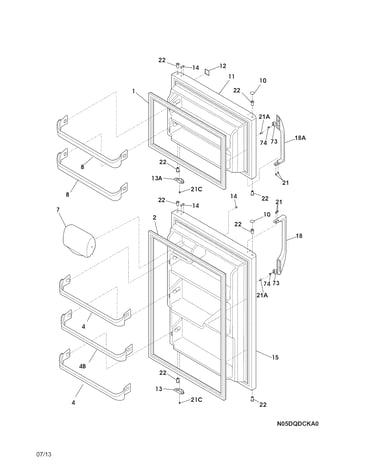

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Refrigerator Filter Dryer 242047603
#4

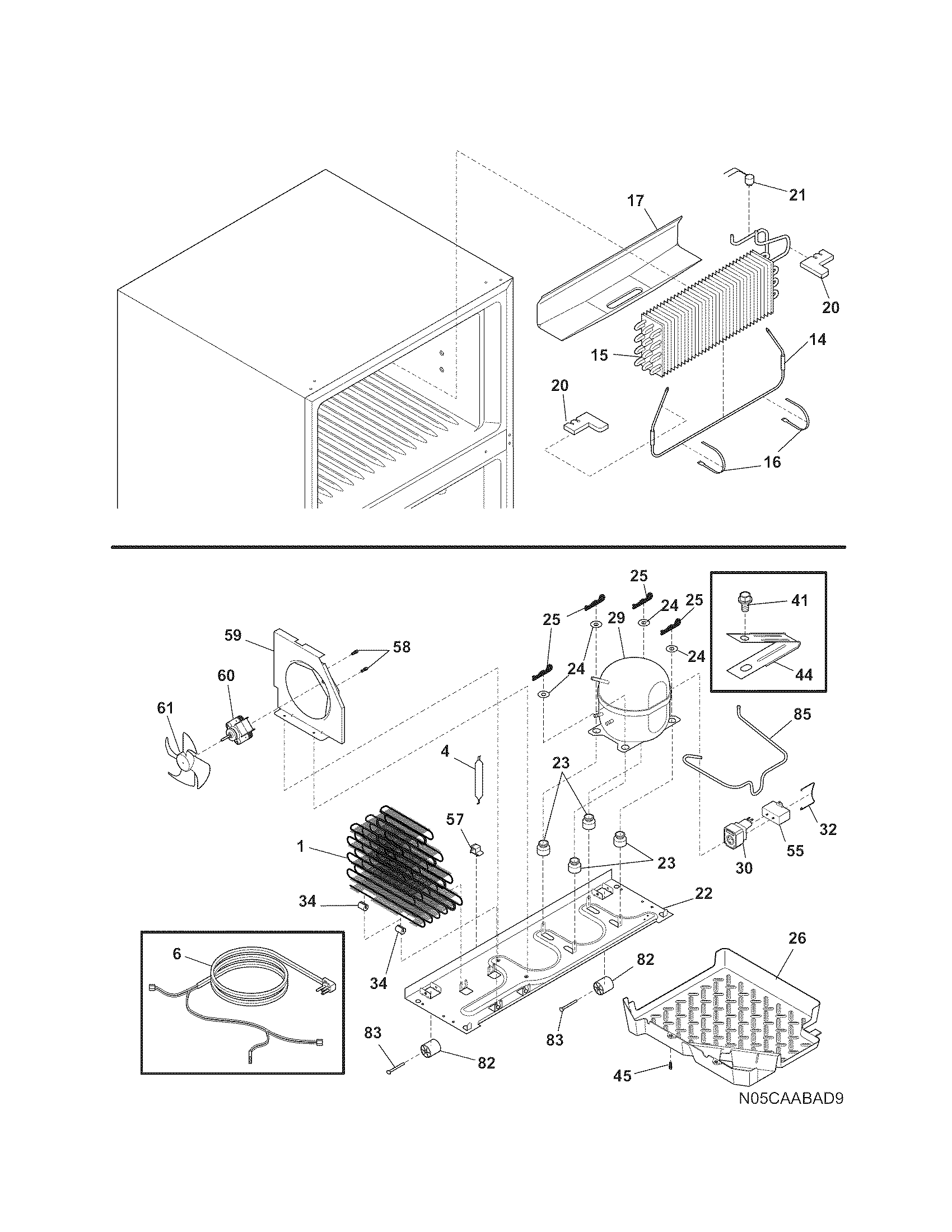

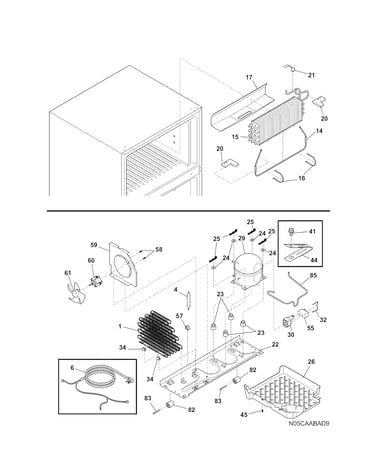

System diagram

Refrigerator filter dryer

Part #242047603

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047603. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

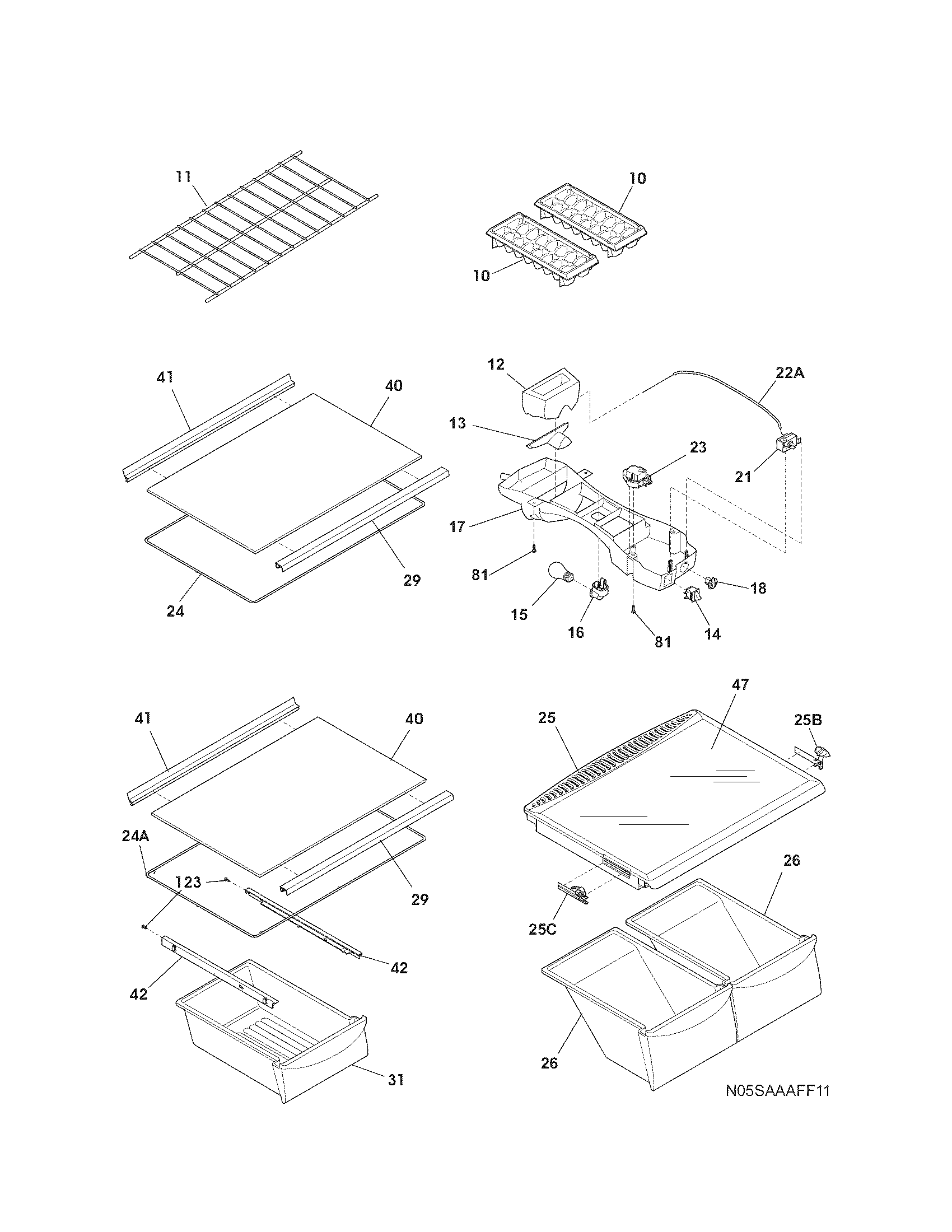

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Refrigerator Evaporator Fan Blade 5308000010
#5

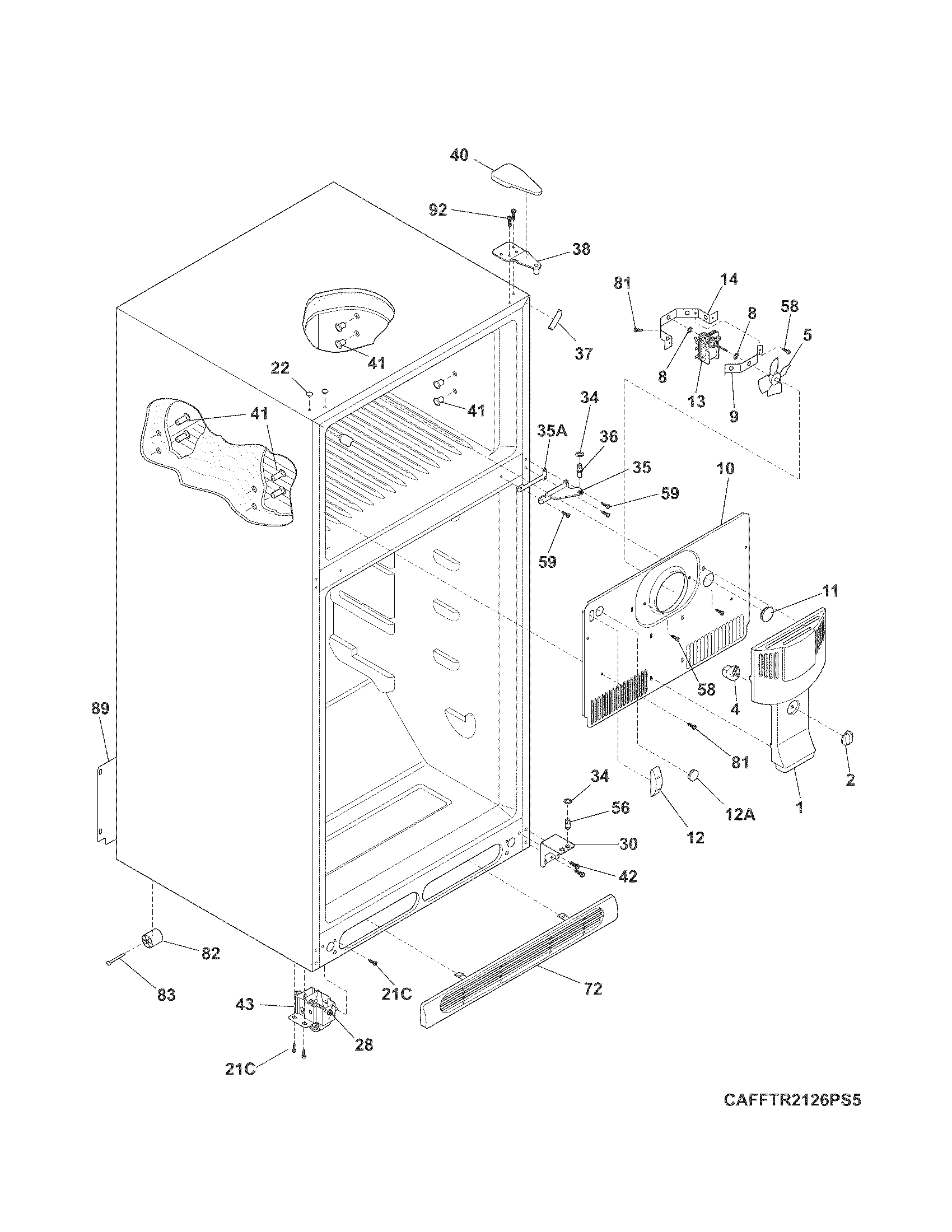

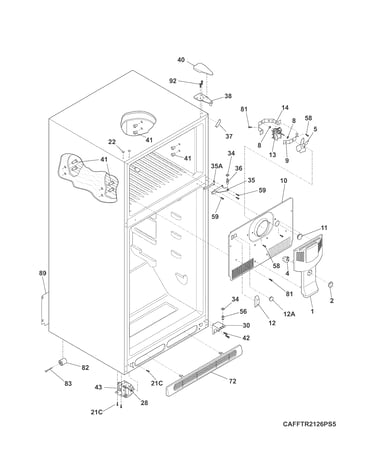

Cabinet diagram

Refrigerator evaporator fan blade

Part #5308000010

BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$35.37 |
15% OFF Phone Price : $41.37
In Stock
Refrigerator Temperature Control Thermostat 5304445058
#21

Shelves diagram

Refrigerator temperature control thermostat

Part #5304445058

Replaced by #241537103

?
Manufacturer substitution
This part replaces 5304445058. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$78.87 |
7% OFF Phone Price : $84.87
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Frigidaire Refrigerator Drawer Hanger, Left (replaces 240460401) 240530601
#42

Shelves diagram

Frigidaire refrigerator drawer hanger, left (replaces 240460401)

Part #240530601

BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Galaxy Refrigerator Shelf Trim (replaces 240357804) 240561502
#41

Shelves diagram

Galaxy refrigerator shelf trim (replaces 240357804)

Part #240561502

BEST SELLER
$49.07 |
11% OFF Phone Price : $55.07
In Stock
Refrigerator Defrost Bi-metal Thermostat 5303918634
#21

System diagram

Refrigerator defrost bi-metal thermostat

Part #5303918634

BEST SELLER
$29.04 |
17% OFF Phone Price : $35.04
In Stock
Refrigerator Meat Pan 240530803
#31

Shelves diagram

Refrigerator meat pan

Part #240530803

Replaced by #240530811

?
Manufacturer substitution
This part replaces 240530803. Substitute parts can look different from the original.
BEST SELLER
$139.89 |
8% OFF Phone Price : $151.89
In Stock
