Model # DWU6202AAE Official Maytag dishwasher

Here are the diagrams and repair parts for Official Maytag DWU6202AAE dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

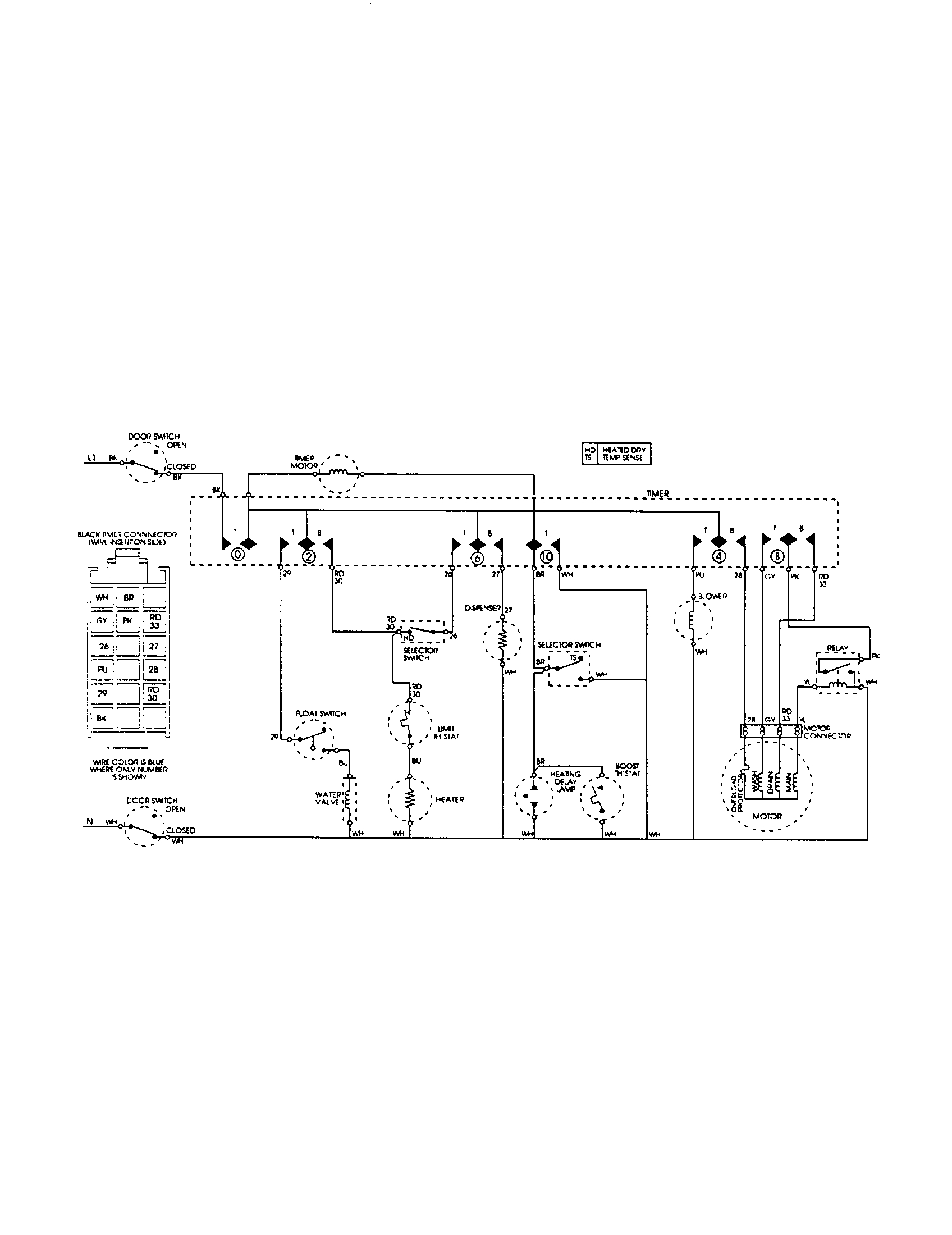

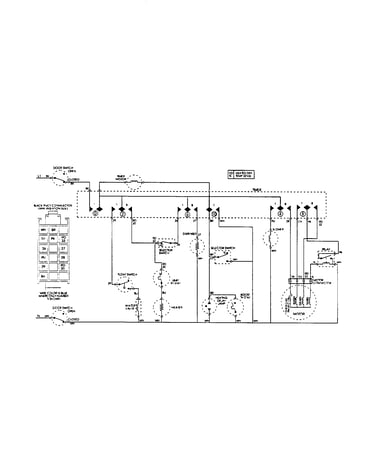

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Clamp Spring 911856
#3

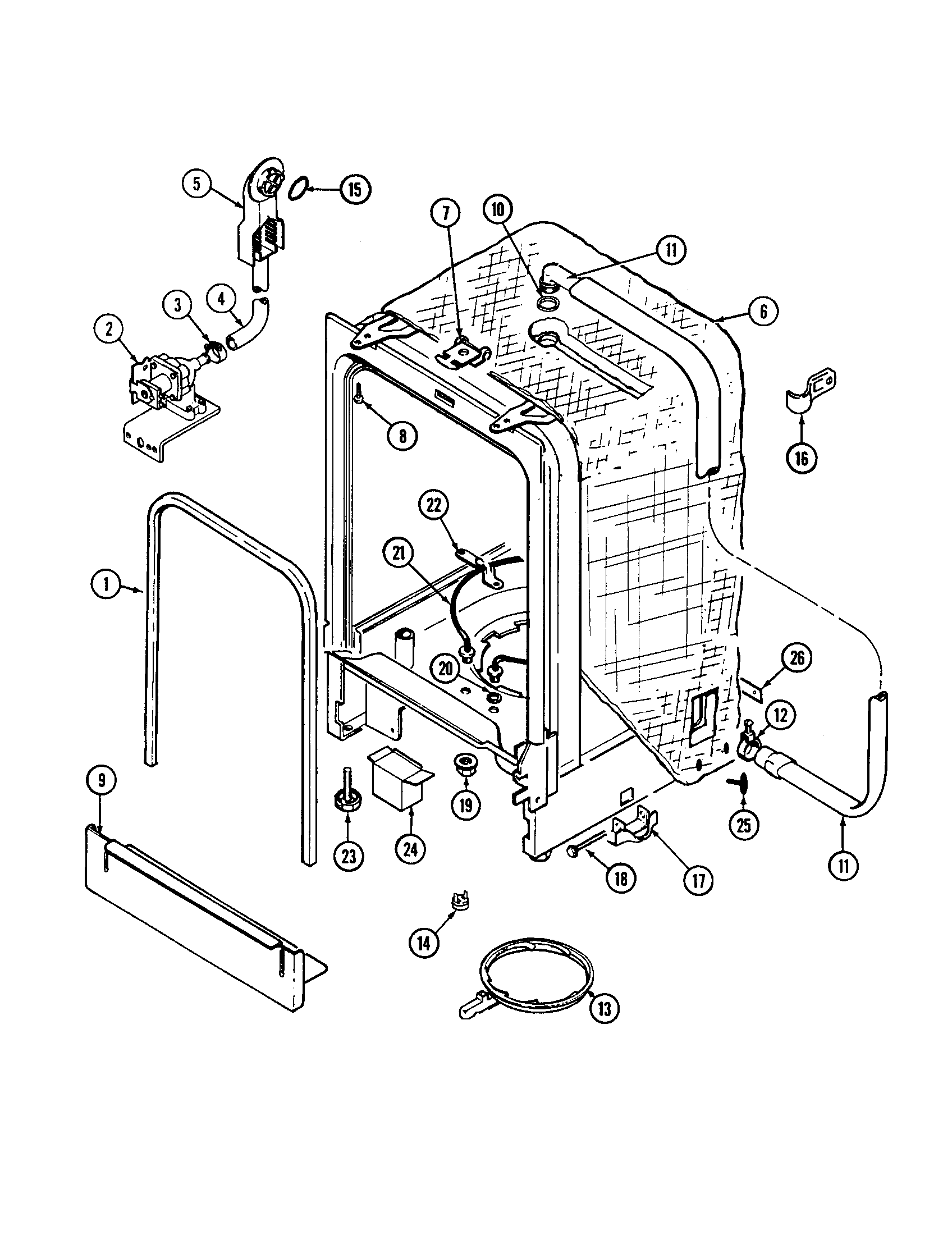

Tub diagram

Clamp spring

Part #911856

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 911856. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Plate Screw 912365
Plate screw

Part #912365

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 912365. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Door Screw 912620
#8A

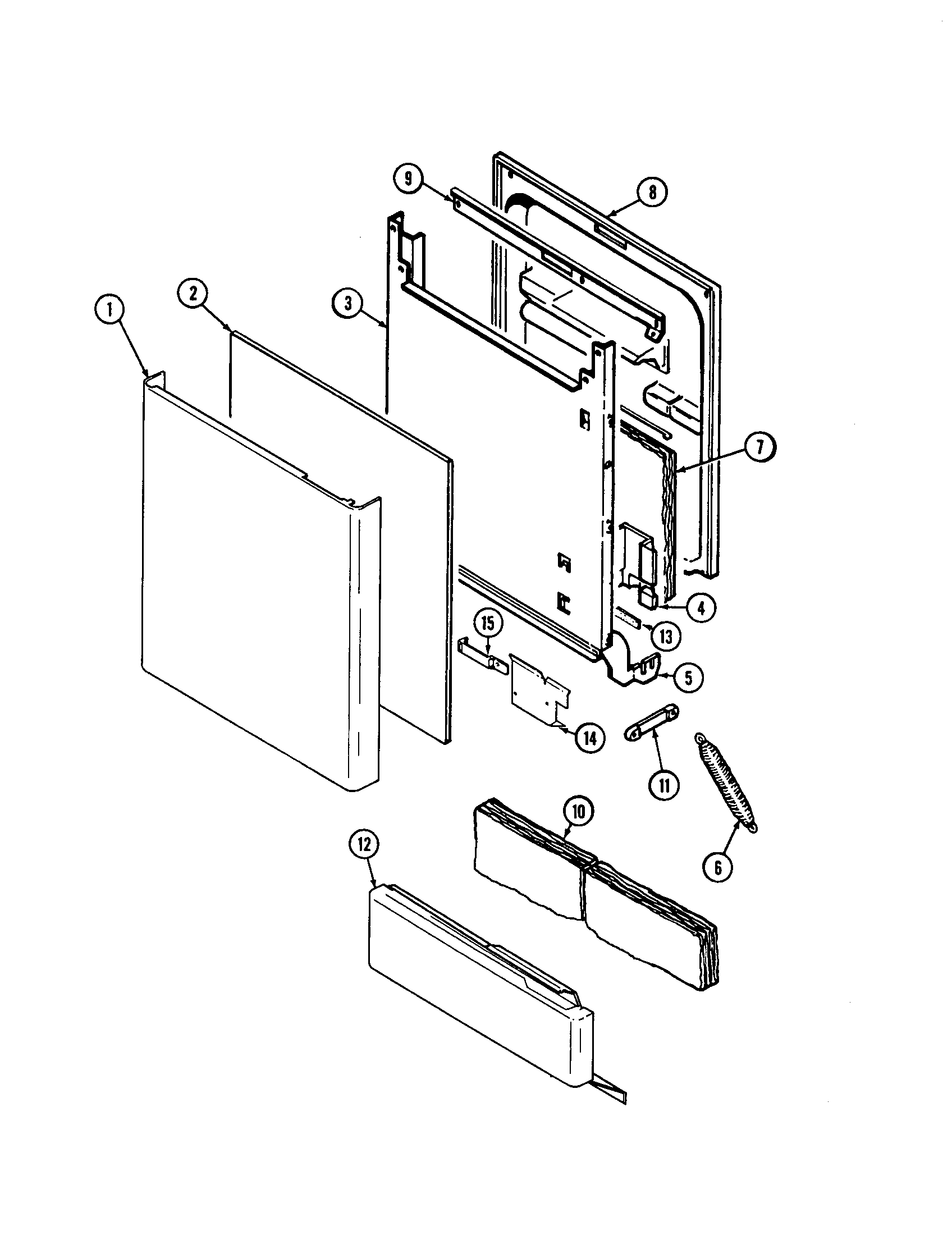

Door diagram

Door screw

Part #912620

Replaced by #WPY912620

?
Manufacturer substitution
This part replaces 912620. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Dishwasher Spray Arm 99001427
#2

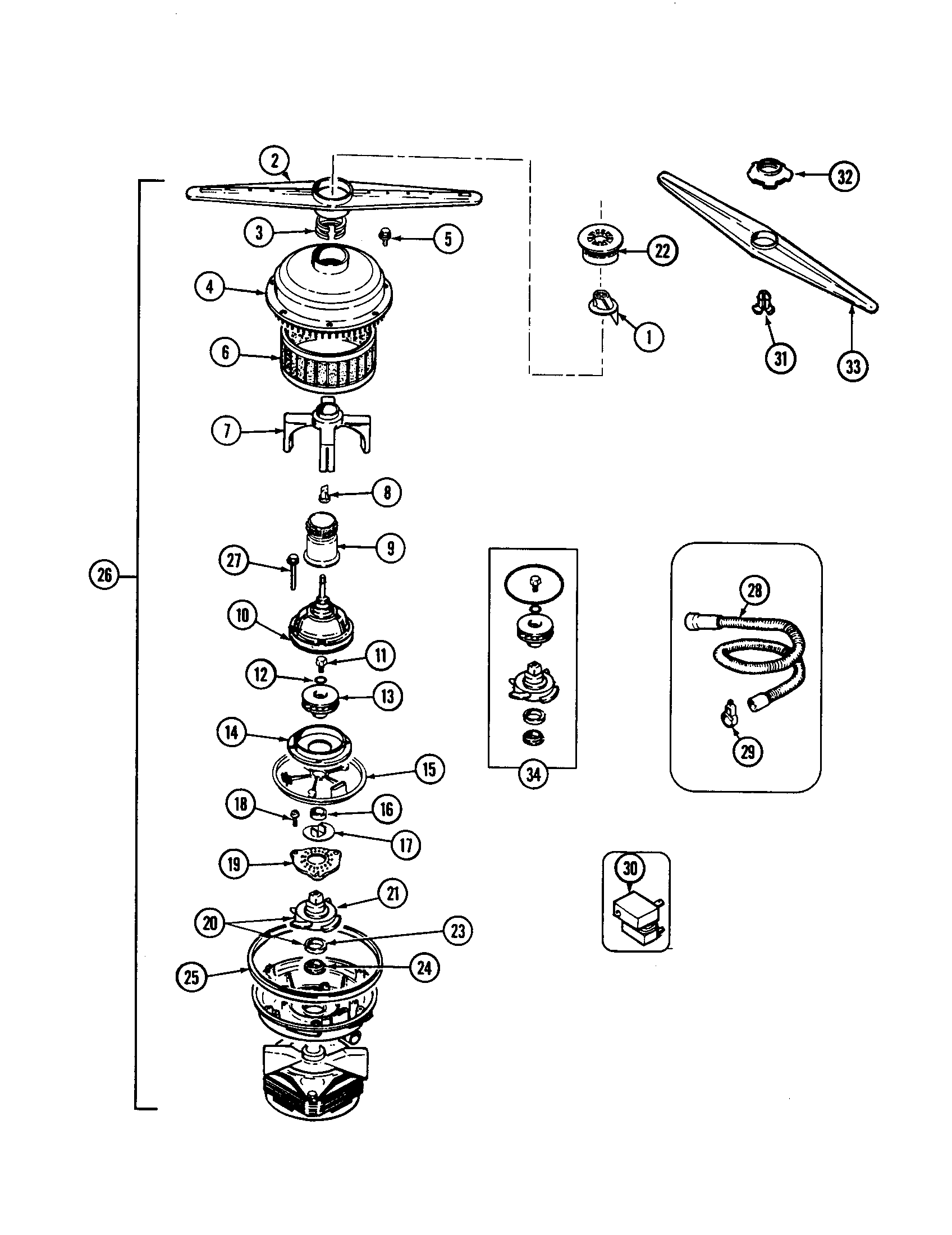

Pump and motor diagram

Dishwasher spray arm

Part #99001427

Replaced by #WP99001788

?
Manufacturer substitution
This part replaces 99001427. Substitute parts can look different from the original.
$53.71 |
10% OFF Phone Price : $59.71
In Stock
Dishwasher Water Inlet Valve 99001359
#2

Tub diagram

Dishwasher water inlet valve

Part #99001359

Replaced by #WP99001359

?
Manufacturer substitution
This part replaces 99001359. Substitute parts can look different from the original.
$36.79 |
14% OFF Phone Price : $42.79
In Stock
Door Holder 99001077
#5

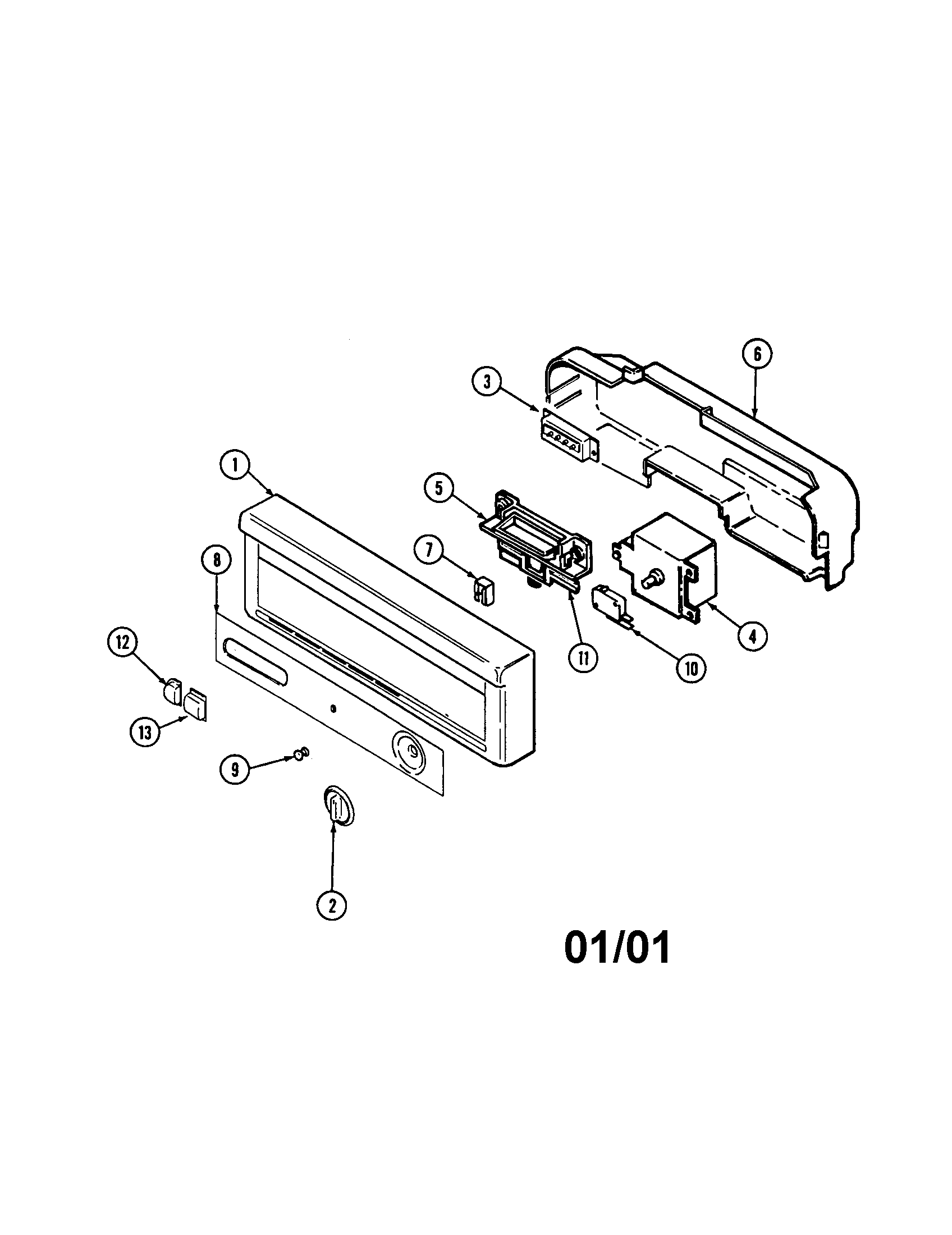

Control panel diagram

Door holder

Part #99001077

Replaced by #99002254

?
Manufacturer substitution
This part replaces 99001077. Substitute parts can look different from the original.
$57.92 |
9% OFF Phone Price : $63.92
In Stock
Water Switch 900882
#12

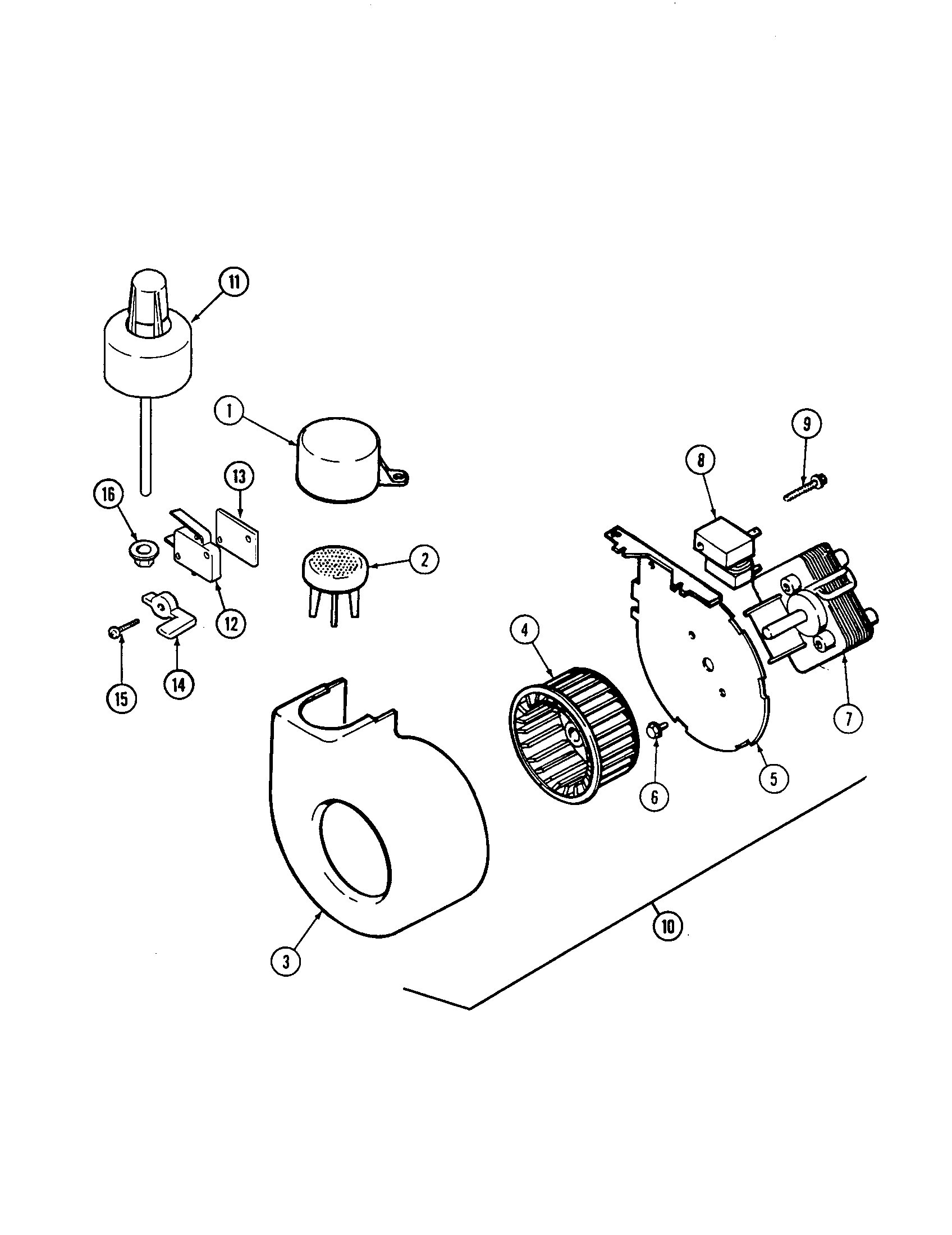

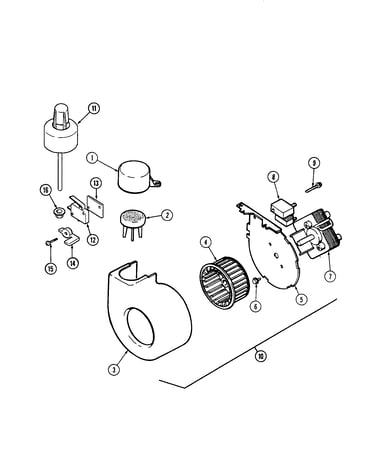

Blower/float/water level switch diagram

Water switch

Part #900882

Replaced by #WP99002560

?
Manufacturer substitution
This part replaces 900882. Substitute parts can look different from the original.
$31.76 |
16% OFF Phone Price : $37.76
In Stock
Door Switch 903086
#10

Control panel diagram

Door switch

Part #903086

Replaced by #99002254

?
Manufacturer substitution
This part replaces 903086. Substitute parts can look different from the original.
$57.92 |
9% OFF Phone Price : $63.92
In Stock
Rack Stop 912546
#7

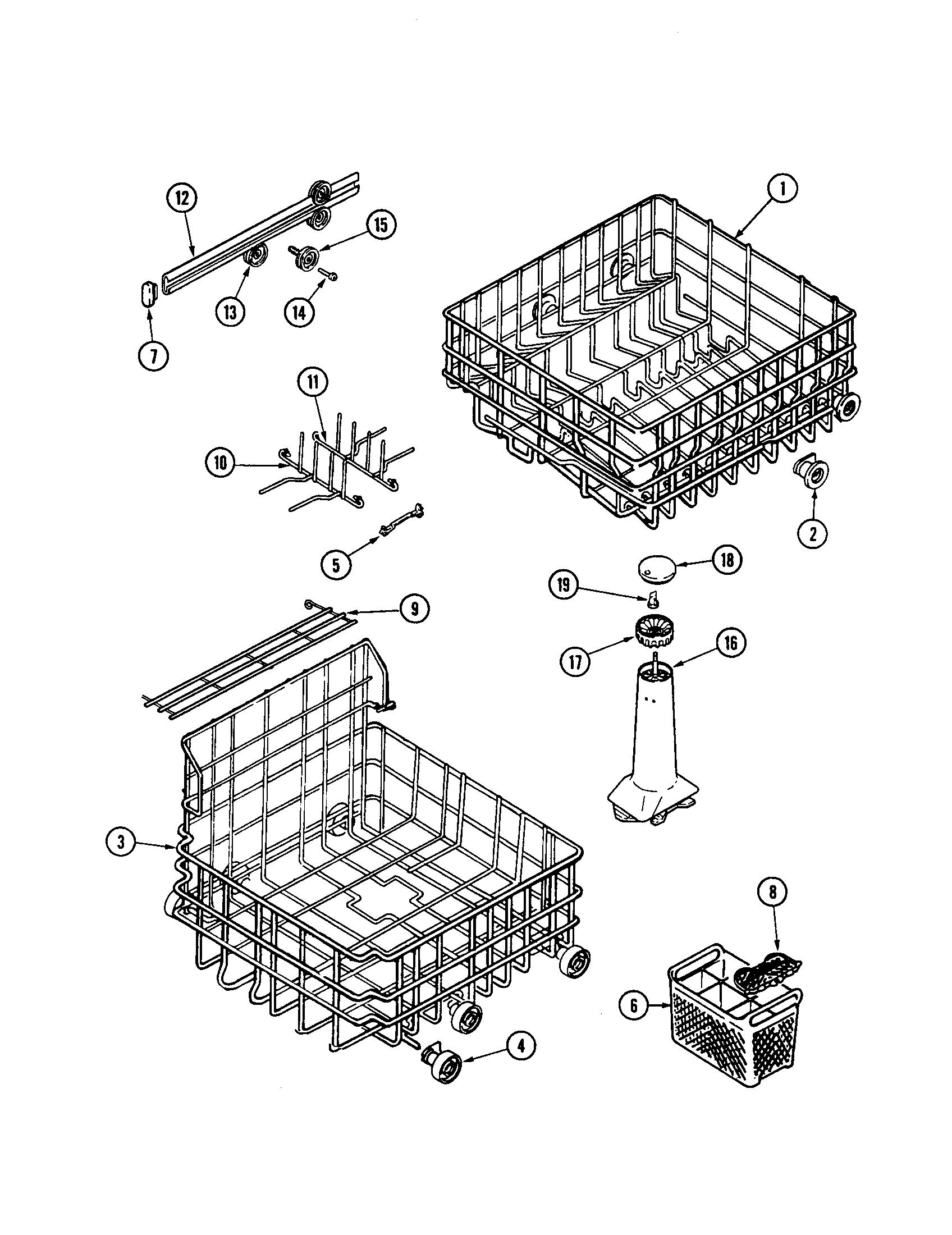

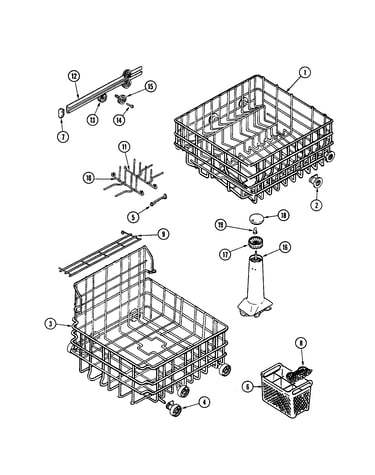

Track and racks diagram

Rack stop

Part #912546

Replaced by #WP99002135

?
Manufacturer substitution
This part replaces 912546. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Wax Motor 902899
#1

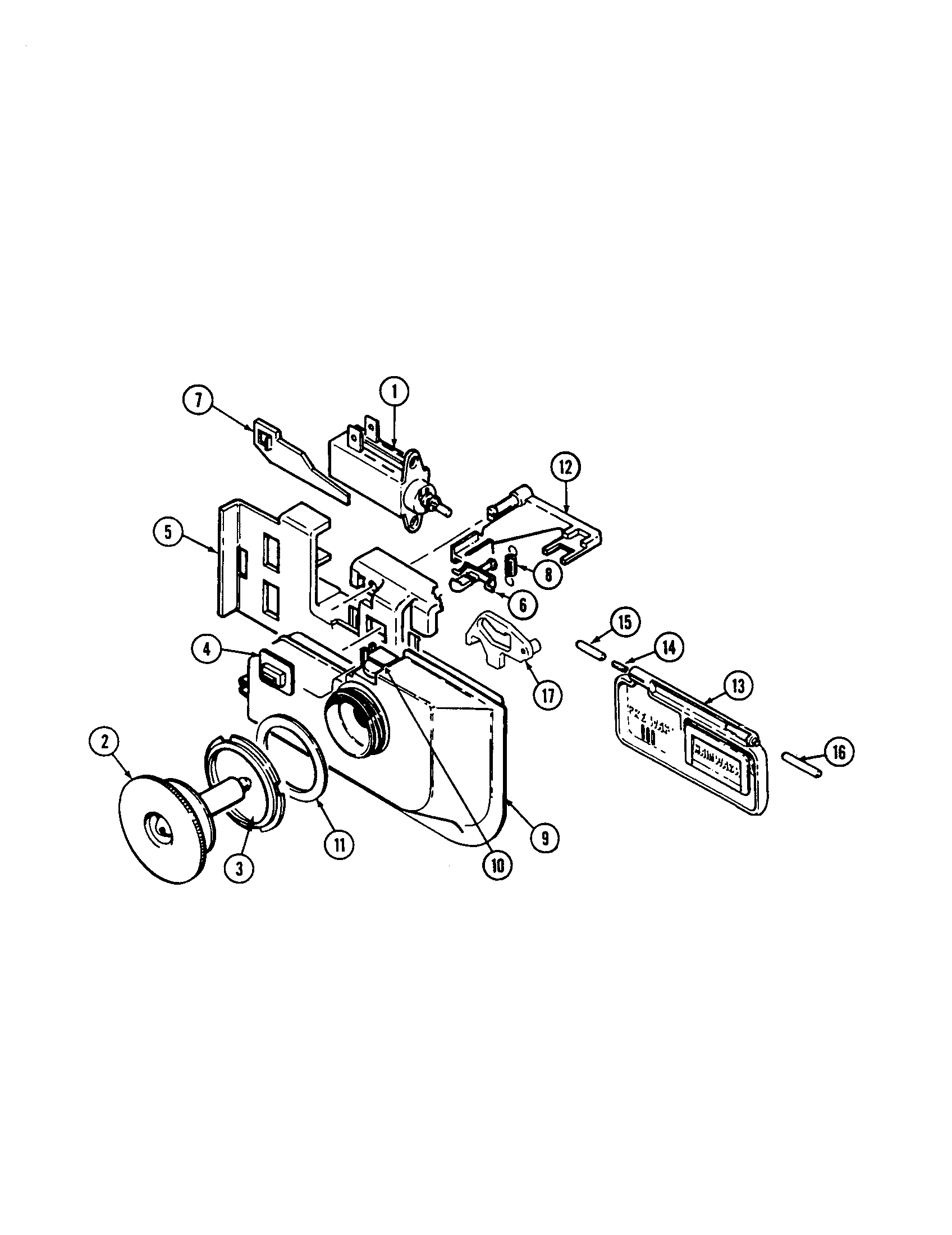

Rinse aid and soap dispenser diagram

Wax motor

Part #902899

Replaced by #WP902899

?
Manufacturer substitution
This part replaces 902899. Substitute parts can look different from the original.
$37.61 |
14% OFF Phone Price : $43.61
In Stock
