LG
Bottom-Mount Refrigerator

Model # LFC21770ST/03 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LFC21770ST-03 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

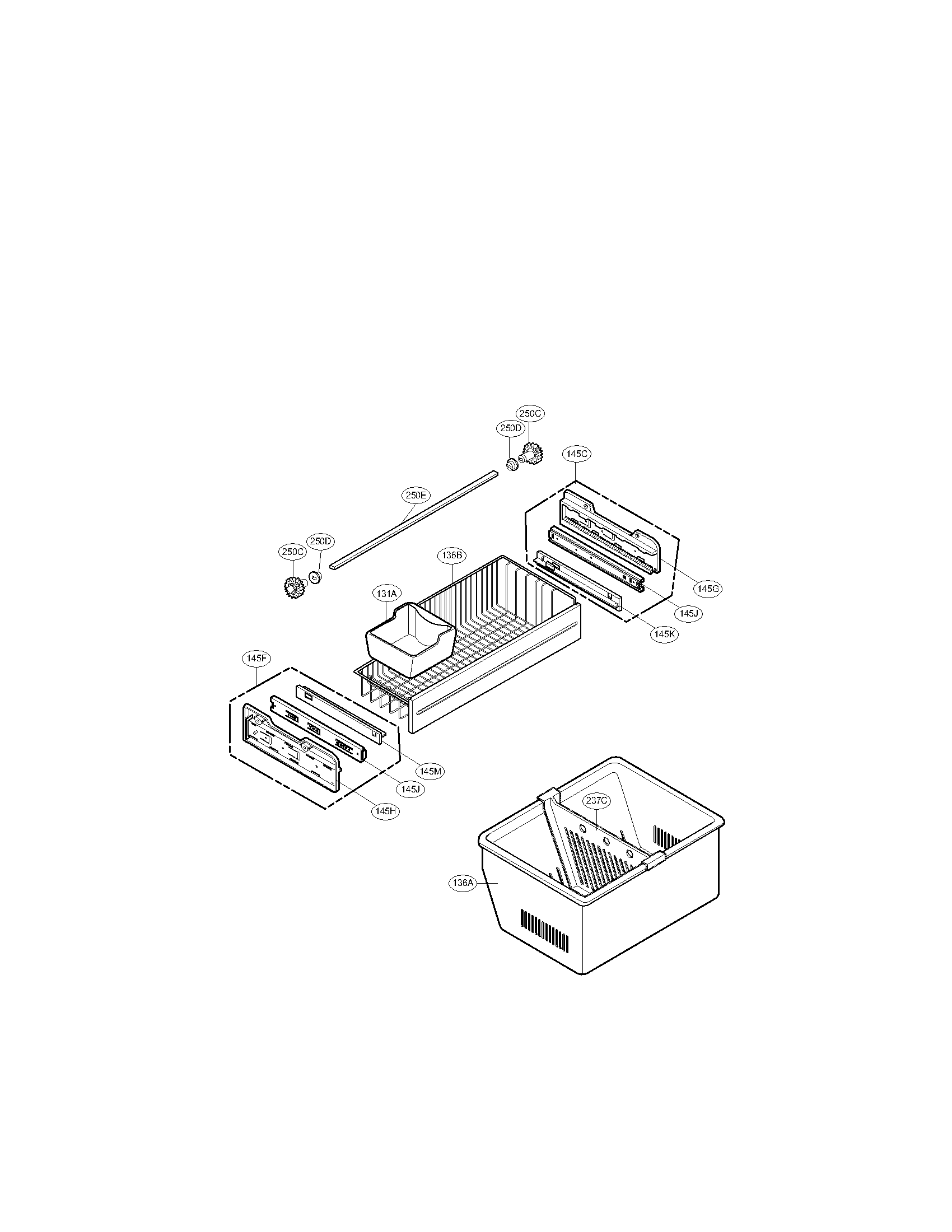

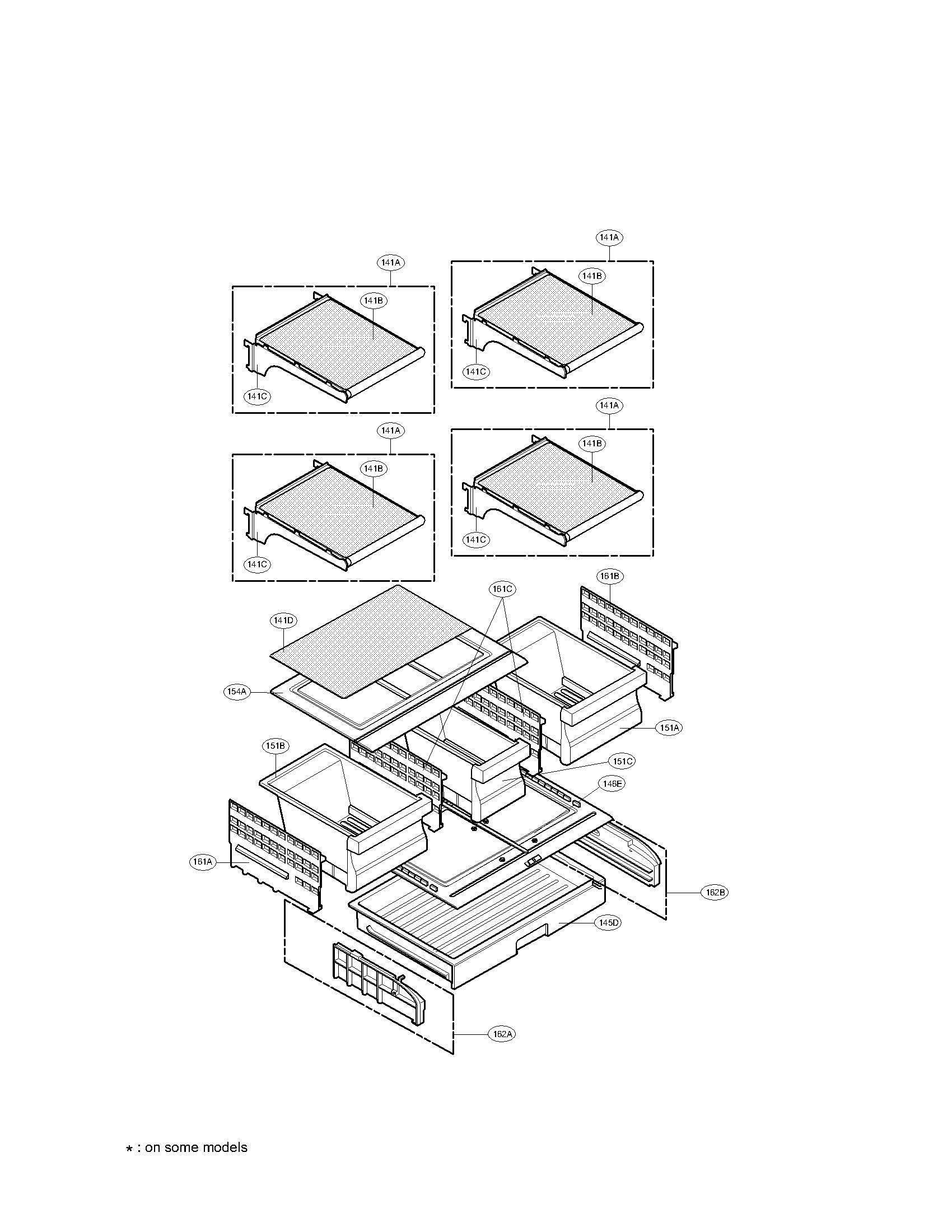

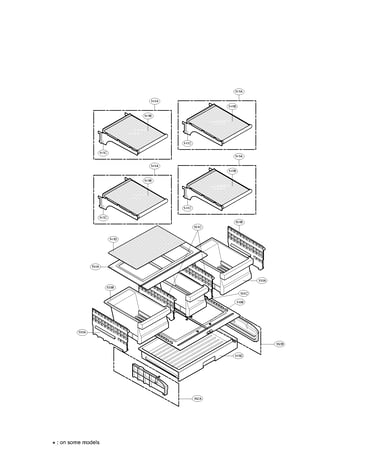

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Refrigerator Filter Dryer 5851JA2008U
#317A

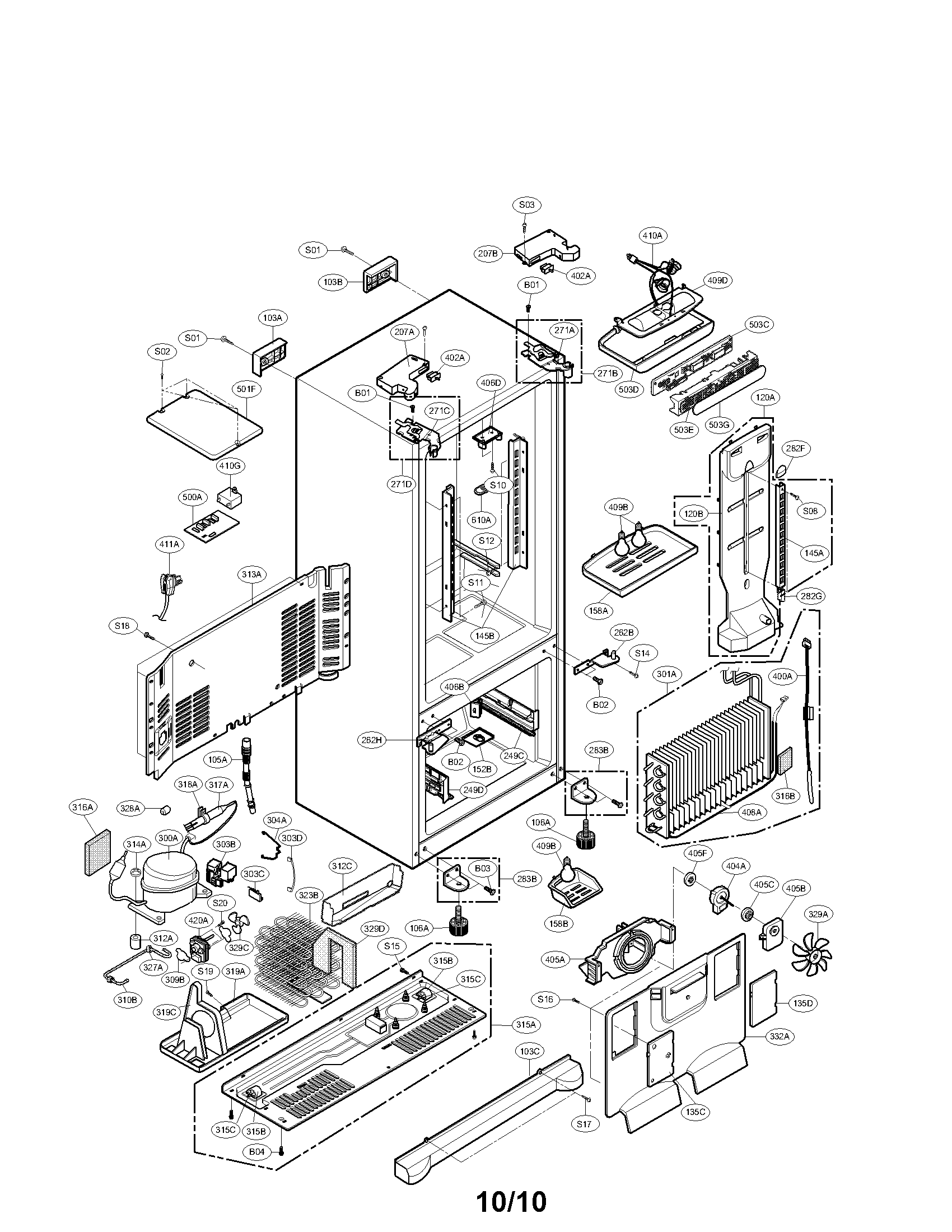

Case assembly parts diagram

Refrigerator filter dryer

Part #5851JA2008U

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2008U. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Refrigerator Door Switch (replaces 6600jb1004a) 6600JB1010A
#406B

Case assembly parts diagram

Refrigerator door switch (replaces 6600jb1004a)

Part #6600JB1010A

BEST SELLER
$21.71 |
22% OFF Phone Price : $27.71
In Stock
Refrigerator Compressor Process Tube (replaces 4j00977n) 4J00977P
#310B

Case assembly parts diagram

Refrigerator compressor process tube (replaces 4j00977n)

Part #4J00977P

BEST SELLER
This item is not returnable
$7.22 |
12% OFF Phone Price : $8.22
In Stock
Refrigerator Door Gasket MDS38201406
#203A

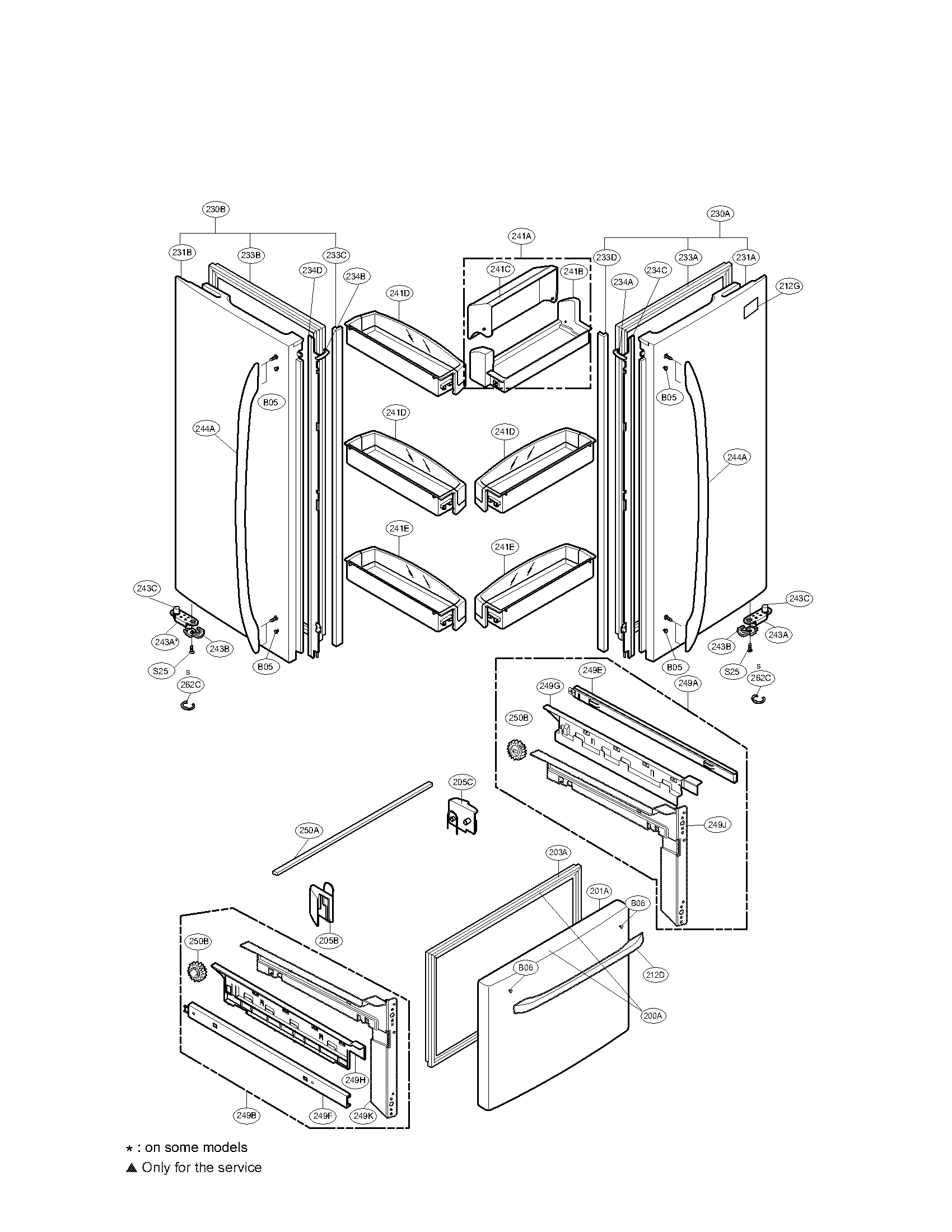

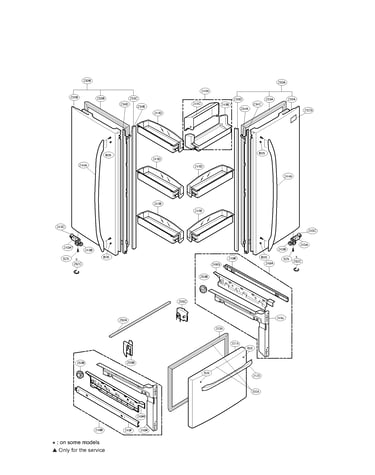

Door parts assembly diagram

Refrigerator door gasket

Part #MDS38201406

Replaced by #MDS64172919

?
Manufacturer substitution
This part replaces MDS38201406. Substitute parts can look different from the original.
BEST SELLER
$60.93 |
9% OFF Phone Price : $66.93
In Stock
Refrigerator Door Basket AAP36817401
#241D

Door parts assembly diagram

Refrigerator door basket

Part #AAP36817401

Replaced by #AAP73871501

?
Manufacturer substitution
This part replaces AAP36817401. Substitute parts can look different from the original.
BEST SELLER
$33.63 |
15% OFF Phone Price : $39.63
In Stock
Refrigerator Clamp 4930JA3034A
#318A

Case assembly parts diagram

Refrigerator clamp

Part #4930JA3034A

BEST SELLER
This item is not returnable
$7.22 |
12% OFF Phone Price : $8.22
In Stock
Refrigerator Condenser Coil ACG36653801
#323B

Case assembly parts diagram

Refrigerator condenser coil

Part #ACG36653801

Replaced by #ACG73964501

?
Manufacturer substitution
This part replaces ACG36653801. Substitute parts can look different from the original.
BEST SELLER
$151.95
In Stock
Refrigerator Defrost Heater (replaces 5300jk1005l) 5300JK1005D
#408A

Case assembly parts diagram

Refrigerator defrost heater (replaces 5300jk1005l)

Part #5300JK1005D

BEST SELLER
$72.05 |
8% OFF Phone Price : $78.05
In Stock
Refrigerator Door Handle Mounting Bolt 4620JJ2010C
Refrigerator door handle mounting bolt

Part #4620JJ2010C

Replaced by #MJB63190001

?
Manufacturer substitution
This part replaces 4620JJ2010C. Substitute parts can look different from the original.
BEST SELLER
$9.04 |
10% OFF Phone Price : $10.04
In Stock
Refrigerator Water Inlet Valve 5220JB2010A
#619A

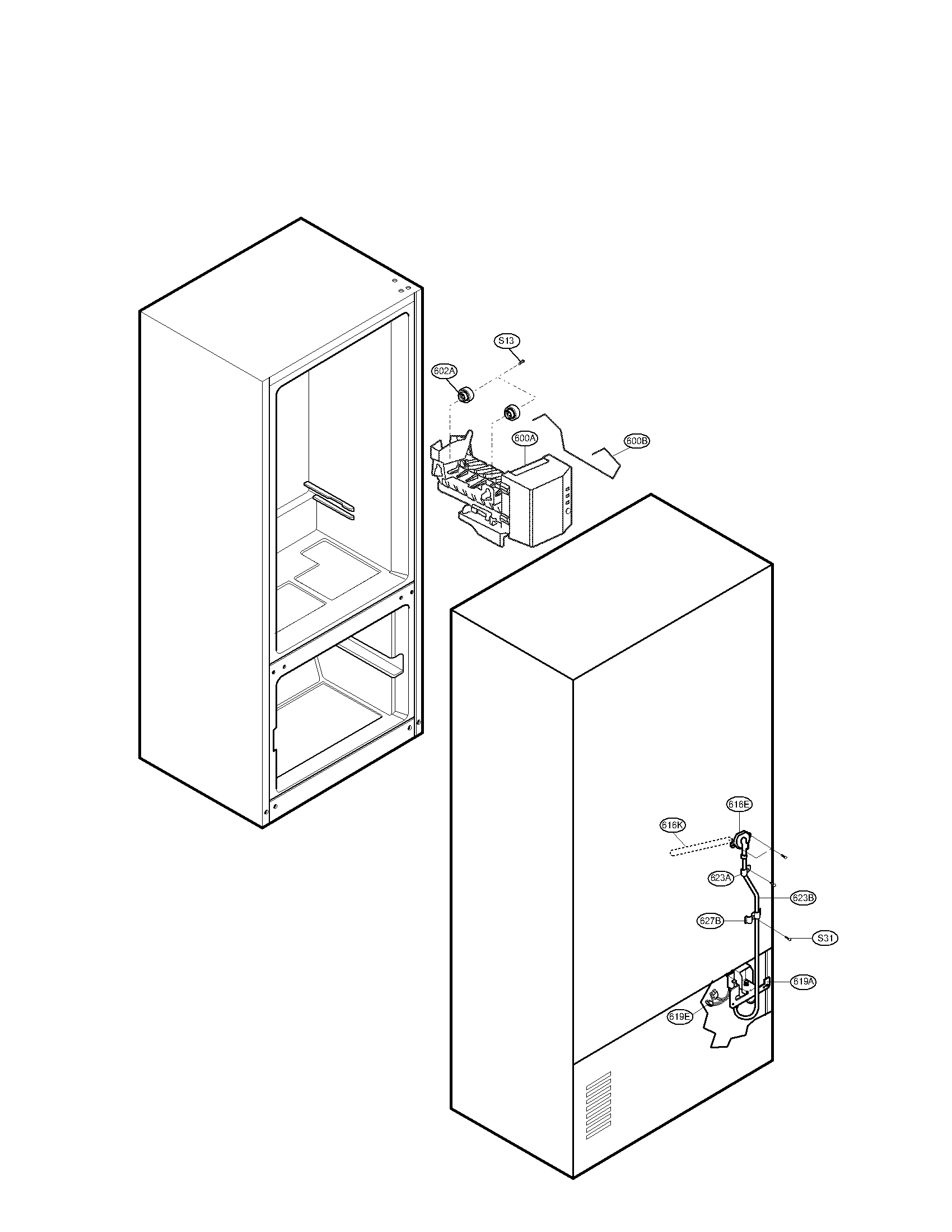

Water and ice maker part diagram

Refrigerator water inlet valve

Part #5220JB2010A

BEST SELLER
$47.53 |
11% OFF Phone Price : $53.53
In Stock
