Model # WTW7500GW3 Official Whirlpool washer
Here are the diagrams and repair parts for Official Whirlpool WTW7500GW3 washer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
WTW7500GW3 Washer
#19

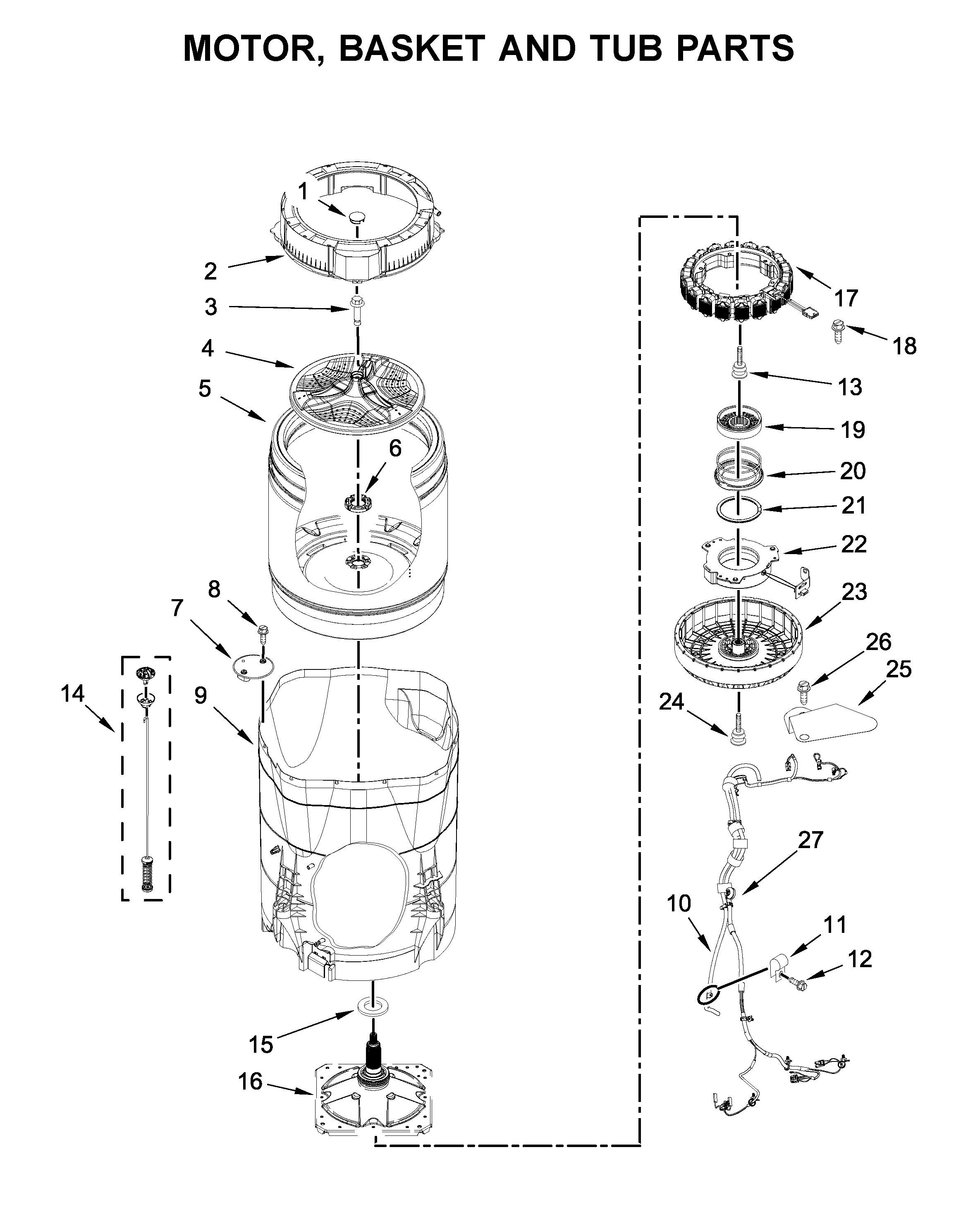

Motor, basket and tub parts diagram
Slider
Part #W10447975
Replaced by #W10734521
?
Manufacturer substitution
This part replaces W10447975. Substitute parts can look different from the original.
$30.12 |
17% OFF Phone Price : $36.12
In Stock
#20
Motor, basket and tub parts diagram
Spring support
Part #W10006494
Replaced by #W10734521
?
Manufacturer substitution
This part replaces W10006494. Substitute parts can look different from the original.
$30.12 |
17% OFF Phone Price : $36.12
In Stock
#21
Motor, basket and tub parts diagram
30mm spiral
Part #W10275082
Replaced by #W10734521
?
Manufacturer substitution
This part replaces W10275082. Substitute parts can look different from the original.
$30.12 |
17% OFF Phone Price : $36.12
In Stock
#22
Motor, basket and tub parts diagram
Clutch assembly
Part #W10817398
Replaced by #W10754448
?
Manufacturer substitution
This part replaces W10817398. Substitute parts can look different from the original.
$64.56 |
9% OFF Phone Price : $70.56
In Stock
#14

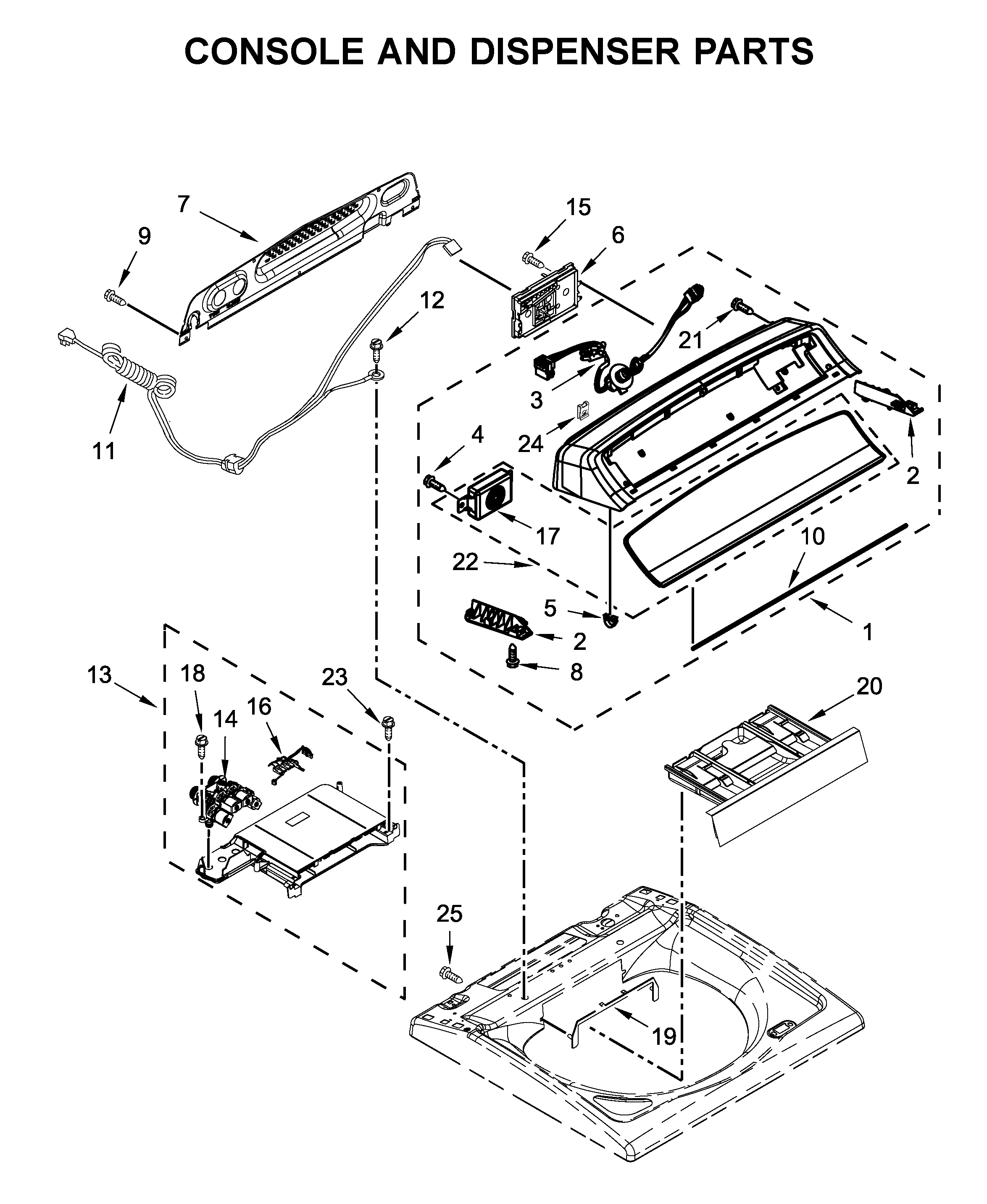

Console and dispenser parts diagram
Washer water inlet valve
Part #W11096267
Replaced by #W11165546
?
Manufacturer substitution
This part replaces W11096267. Substitute parts can look different from the original.
$54.70 |
10% OFF Phone Price : $60.70
In Stock
#16
Motor, basket and tub parts diagram
Drive assembly
Part #W10868473
Replaced by #W11393685
?
Manufacturer substitution
This part replaces W10868473. Substitute parts can look different from the original.
$181.09 |
6% OFF Phone Price : $193.09
In Stock
#14

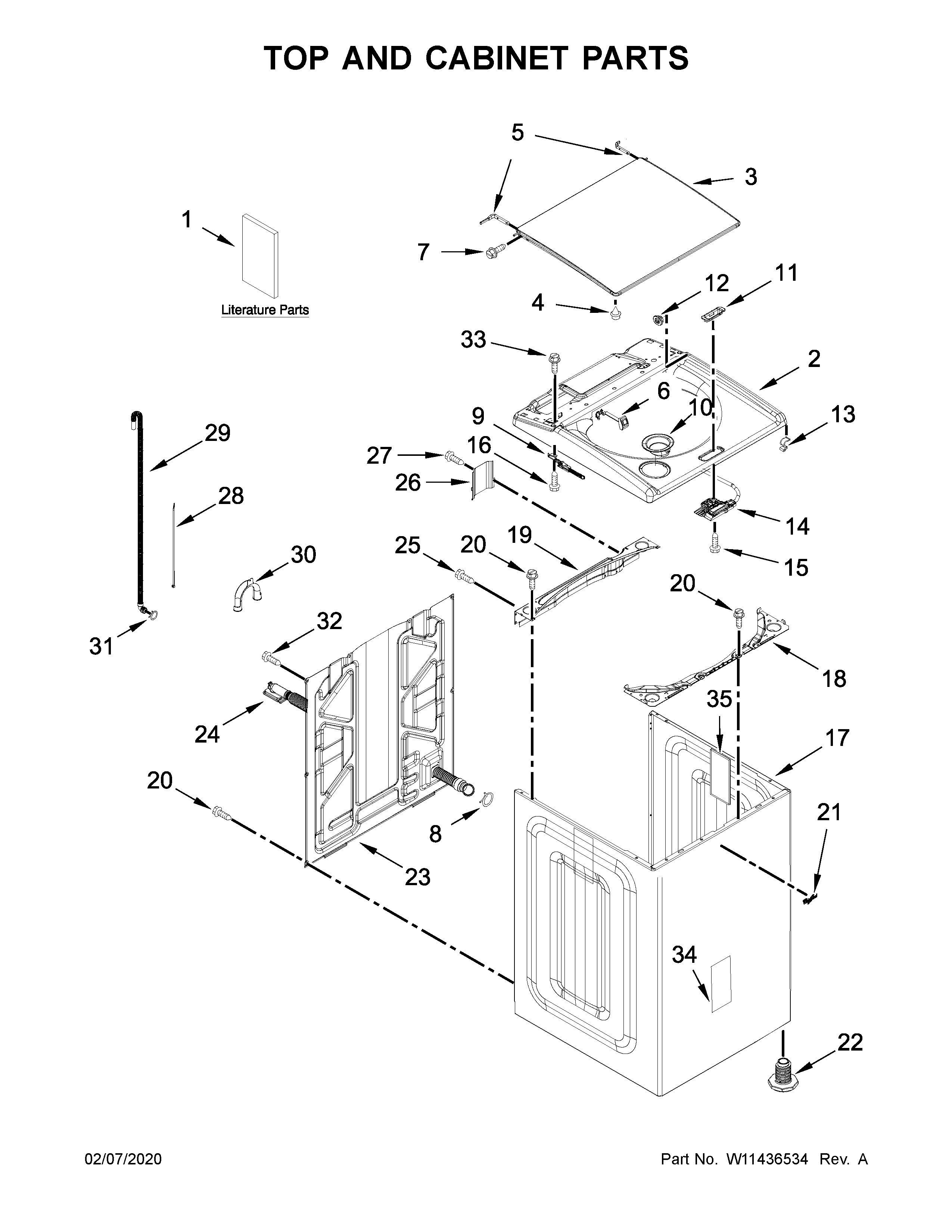

Top and cabinet parts diagram
Washer lid lock assembly
Part #W10787878
Replaced by #W10810403
?
Manufacturer substitution
This part replaces W10787878. Substitute parts can look different from the original.
$81.69 |
7% OFF Phone Price : $87.69
In Stock
#14
Motor, basket and tub parts diagram
Damper asm-v
Part #W11226784
Replaced by #W11130359
?
Manufacturer substitution
This part replaces W11226784. Substitute parts can look different from the original.
$71.81 |
8% OFF Phone Price : $77.81
In Stock
#1

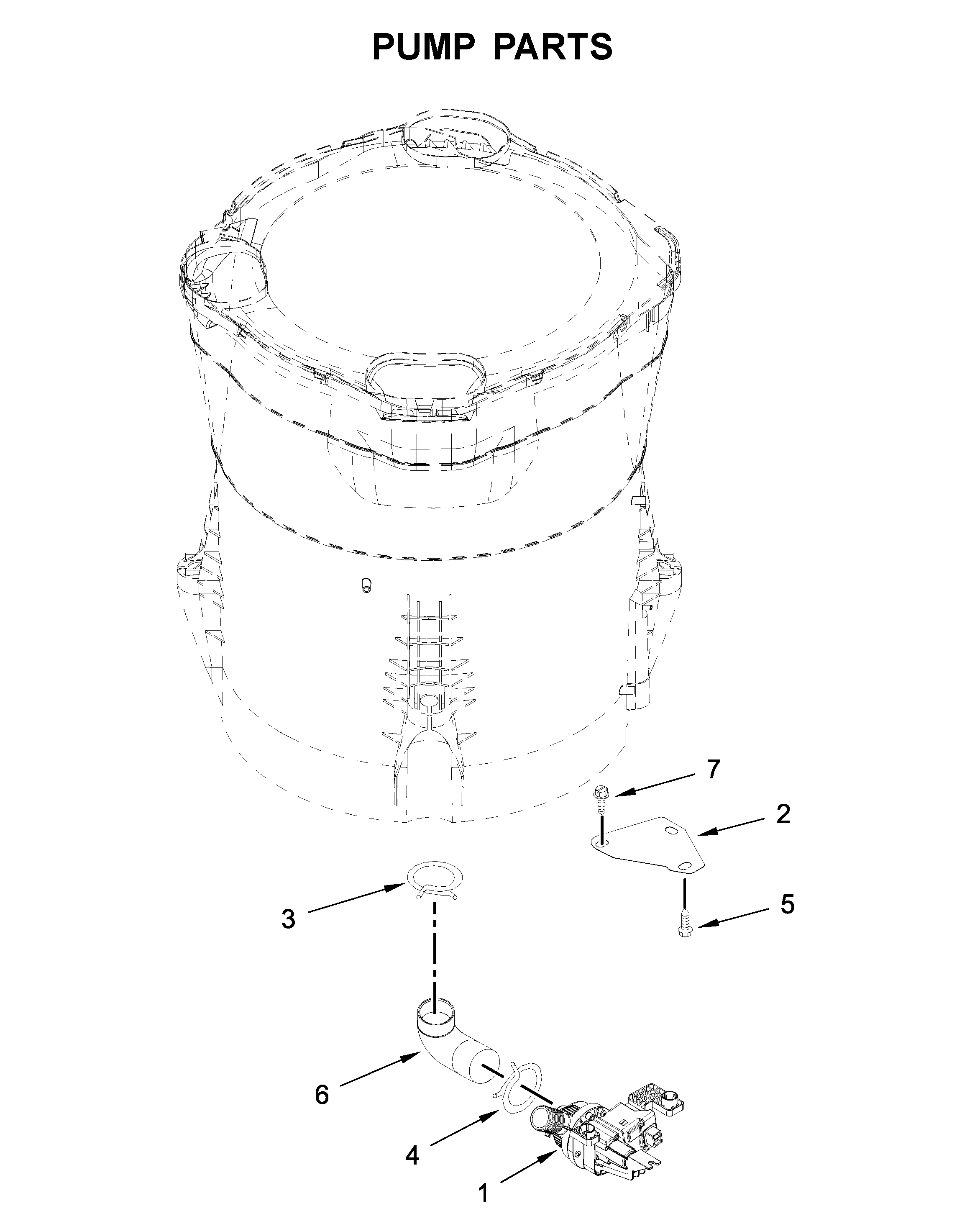

Pump parts diagram
Washer drain pump
Part #W10727777
Replaced by #W10876600
?
Manufacturer substitution
This part replaces W10727777. Substitute parts can look different from the original.
$93.89 |
6% OFF Phone Price : $99.89
In Stock
#NI

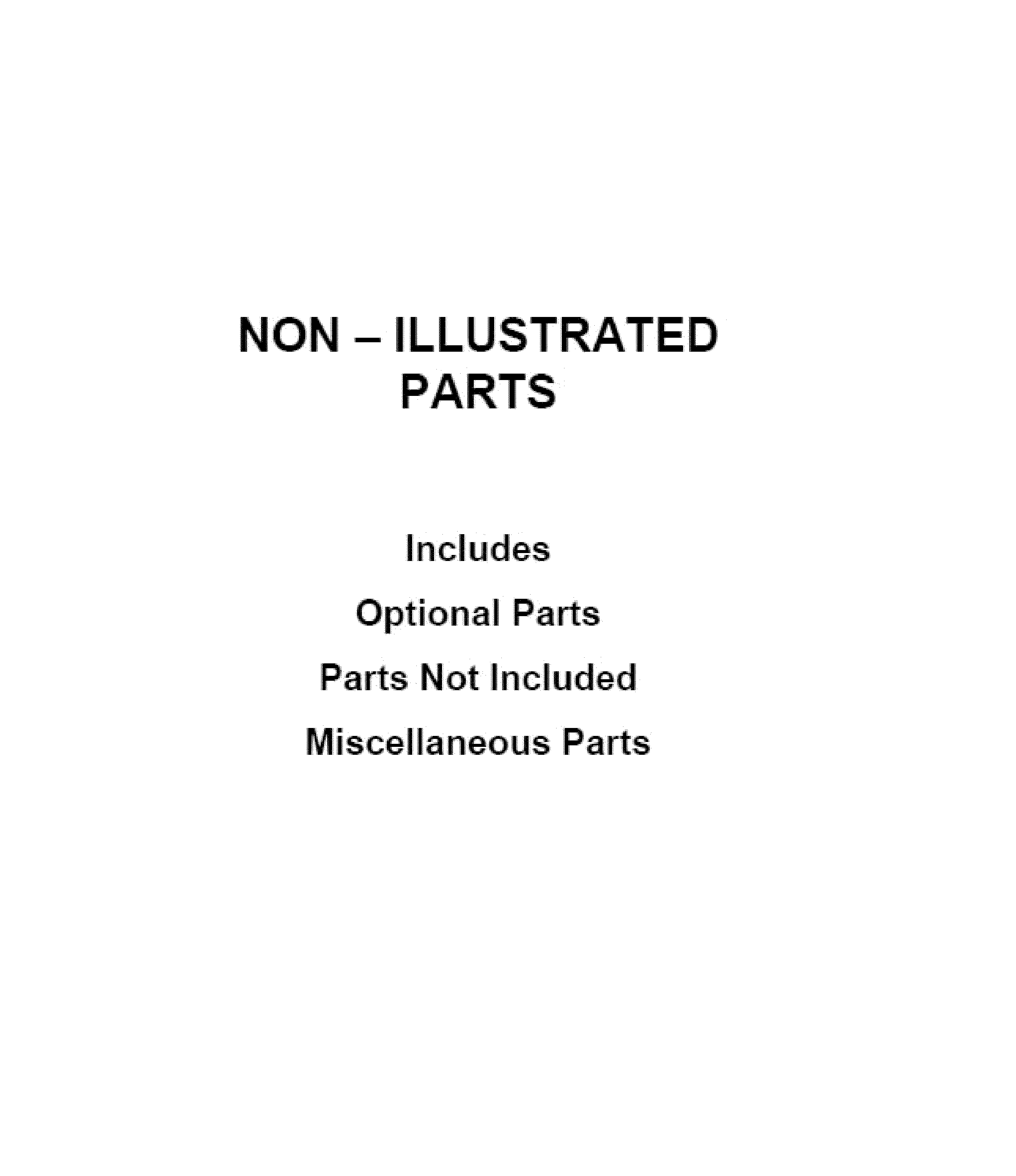

Optional parts (not included) diagram
Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)
Part #W10135699
Get free shipping with Automatic Reorder
$11.89 |
14% OFF Phone Price : $13.89
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $11.89 |14% OFF Phone Price : $13.89
- $8.29 |11% OFF Phone Price : $9.29
- $31.19 |16% OFF Phone Price : $37.19
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
