KitchenAid
Dishwasher

Model # KUDN230YWH0 Official KitchenAid undercounter dishwasher

Here are the diagrams and repair parts for Official KitchenAid KUDN230YWH0 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

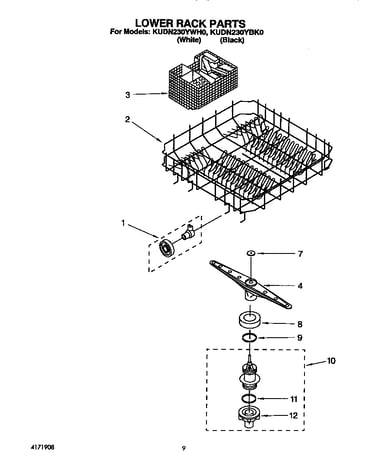

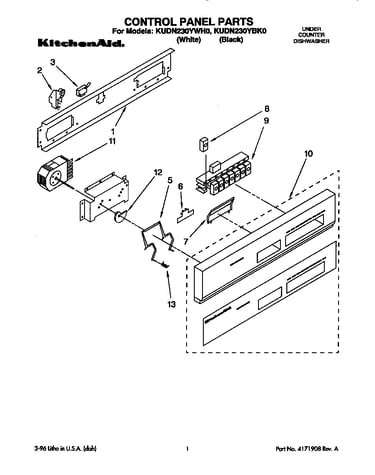

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Clamp 4171914
#28

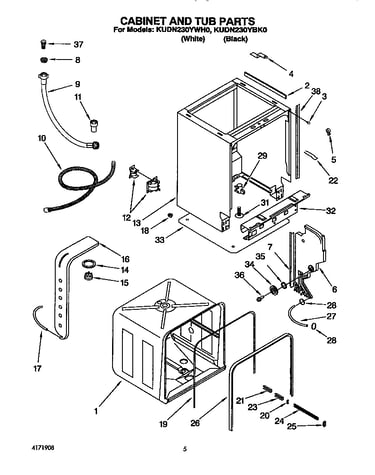

Cabinet and tub diagram

Clamp

Part #4171914

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 4171914. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp 596669
#52

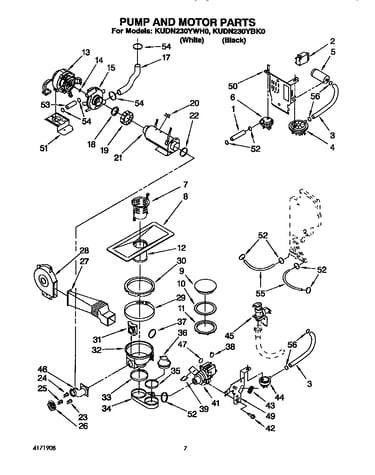

Pump and motor diagram

Clamp

Part #596669

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 596669. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Hose Clamp 285655
#54

Pump and motor diagram

Dishwasher hose clamp

Part #285655

This item is not returnable
$7.49
In Stock

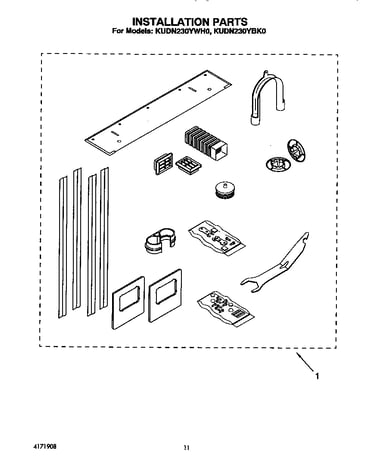

Installation Instructions LIT9741194

#NI

All parts diagram

Installation instructions

Part #LIT9741194

Replaced by #9741194

?
Manufacturer substitution
This part replaces LIT9741194. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Screw 4171969
#42

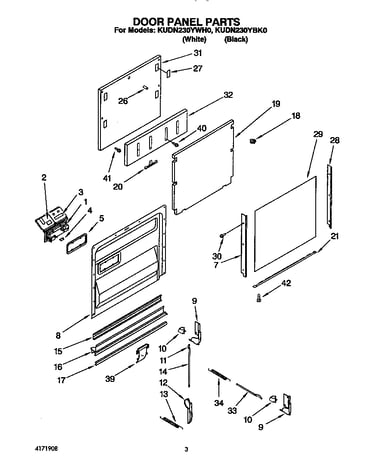

Door panel diagram

Screw

Part #4171969

Replaced by #4159425

?
Manufacturer substitution
This part replaces 4171969. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Cable 4171813
#18

Cabinet and tub diagram

Cable

Part #4171813

The manufacturer no longer makes this part, and there's no substitute part

Strap 4171814
#19

Cabinet and tub diagram

Strap

Part #4171814

The manufacturer no longer makes this part, and there's no substitute part

Toe Panel 4172006
#9B

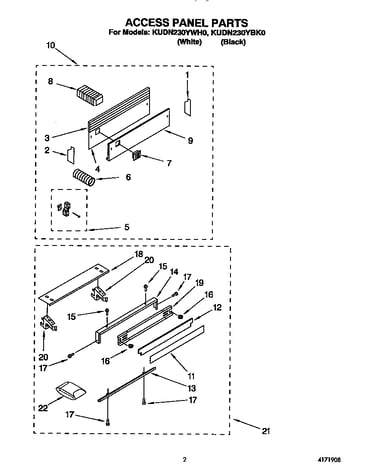

Access panel diagram

Toe panel

Part #4172006

The manufacturer no longer makes this part, and there's no substitute part

Clamp 616099
#22

Pump and motor diagram

Clamp

Part #616099

The manufacturer no longer makes this part, and there's no substitute part

Clip 4171976
#18

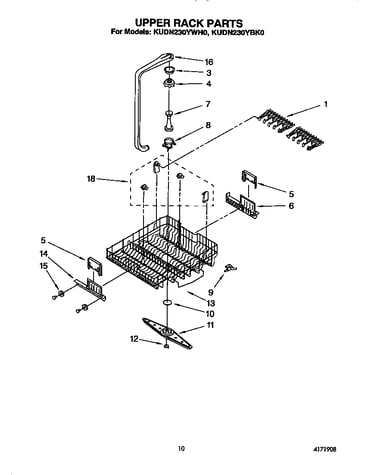

Upper rack diagram

Clip

Part #4171976

The manufacturer no longer makes this part, and there's no substitute part
