Model # 217590020 Official Craftsman 20-speed electric fishing motor

Here are the diagrams and repair parts for Official Craftsman 217590020 20-speed electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Oil Seal 26329
#46

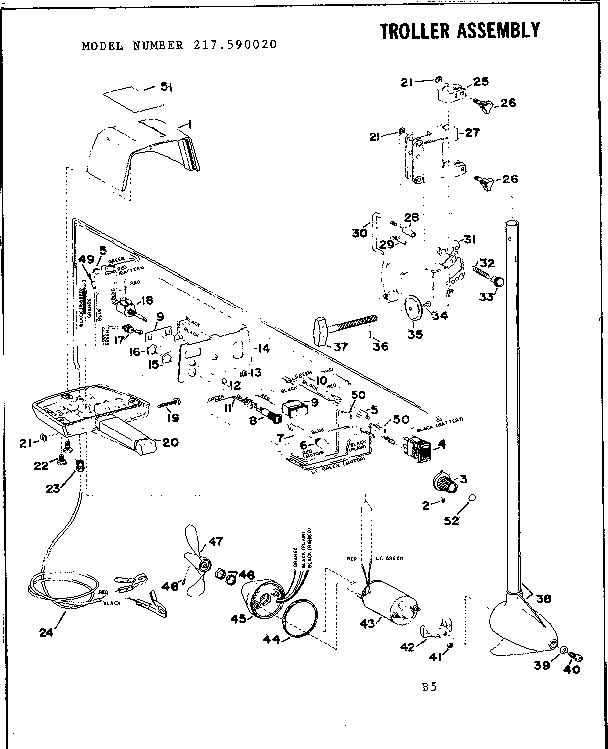

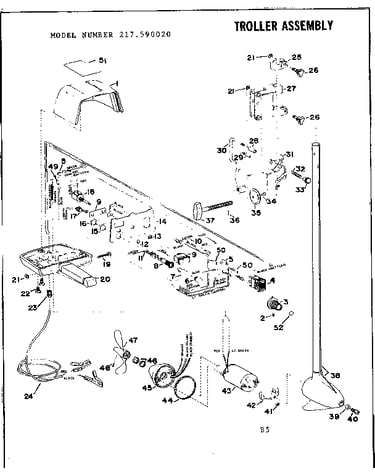

Troller assembly diagram

Oil seal

Part #26329

The manufacturer no longer makes this part, and there's no substitute part

Screw 557
#19

Troller assembly diagram

Screw

Part #557

The manufacturer no longer makes this part, and there's no substitute part

Pin 7092
#28

Troller assembly diagram

Pin

Part #7092

The manufacturer no longer makes this part, and there's no substitute part

C-ring 26480
#3

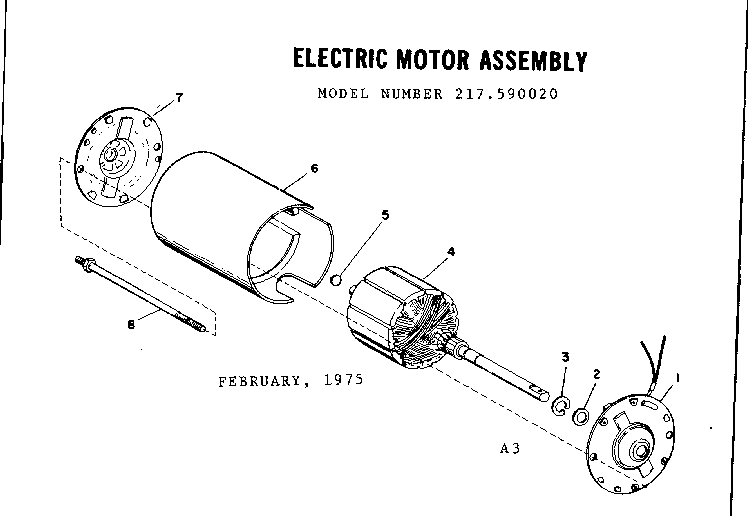

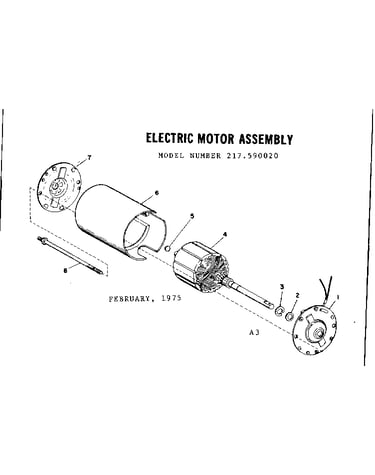

Electric motor assembly diagram

C-ring

Part #26480

The manufacturer no longer makes this part, and there's no substitute part

Battery Wire 76045
#24

Troller assembly diagram

Battery wire

Part #76045

The manufacturer no longer makes this part, and there's no substitute part

Nut 3212
#12

Troller assembly diagram

Nut

Part #3212

The manufacturer no longer makes this part, and there's no substitute part

Knob 76033
#3

Troller assembly diagram

Knob

Part #76033

The manufacturer no longer makes this part, and there's no substitute part

Knob 26405
#33

Troller assembly diagram

Knob

Part #26405

The manufacturer no longer makes this part, and there's no substitute part

Nut 2008
#41

Troller assembly diagram

Nut

Part #2008

The manufacturer no longer makes this part, and there's no substitute part

Potentiometer 76072
#18

Troller assembly diagram

Potentiometer

Part #76072

The manufacturer no longer makes this part, and there's no substitute part
