CONFIRM THE PART FITS
Part Information

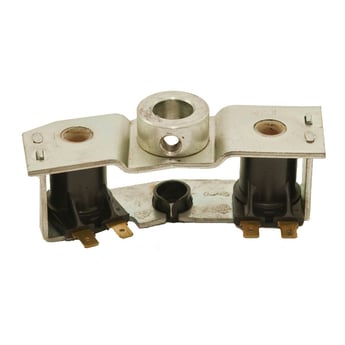

This wigwag (part number 84867) is for washers.
Wigwag 84867 shifts the transmission in and out of the spin and wash cycles.
Unplug the washer before installing this part. Wear work gloves to protect your hands.
Frequently Used Together
- $11.91 |14% OFF Phone Price : $13.91
- $47.88 |11% OFF Phone Price : $53.88
- $8.40 |11% OFF Phone Price : $9.40
- $25.76 |19% OFF Phone Price : $31.76
- $14.42 |12% OFF Phone Price : $16.42
- $42.72 |12% OFF Phone Price : $48.72
- $78.01 |7% OFF Phone Price : $84.01
- $38.72 |13% OFF Phone Price : $44.72
- $8.40 |11% OFF Phone Price : $9.40
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #110365948 Kenmore laundry appliance | 110365948 | Gearcase/transmission |
| Model #11084534 Kenmore home | 11084534 | Gearcase and brake |
| Model #11072665120 Kenmore washer | 11072665120 | Gearcase/transmission |
| Model #110364446 Kenmore home | 110364446 | Gearcase/transmission |
| Model #11072665220 Kenmore washer | 11072665220 | Gearcase/transmission |
| Model #110364494 Kenmore home | 110364494 | Gearcase/transmission |
| Model #11072665620 Kenmore washer | 11072665620 | Gearcase/transmission |
| Model #110364443 Kenmore home | 110364443 | Gearcase/transmission |
| Model #110364760 Kenmore laundry appliance | 110364760 | Gearcase/transmission |
| Model #11072665420 Kenmore washer | 11072665420 | Gearcase/transmission |
Reviews
Hard to install.

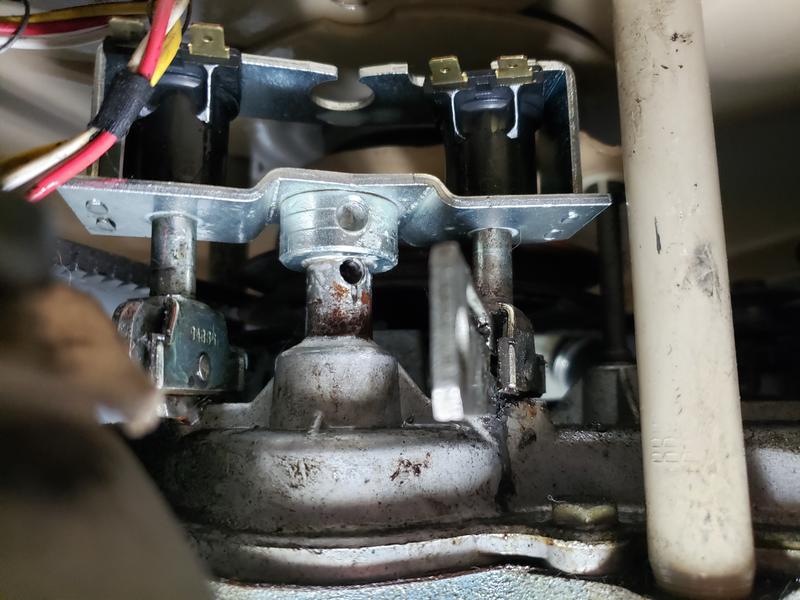

My machine is over 30 years old. Shaft that wigwag mounts on was rusted. It was hard to get it off. set screw was hard to break loose. wigwag was hard to break loose from the shaft. Once everything was "loose" I still had to tip the machine toward the front so I could under and hammer the wigwag off of the shaft. New wigwag was equally hard to get back on down the shaft even after I sanded the rust off of the shaft. I ended up using a wood prybar to put pressure on top of wigwag while I rotated the wigwag back and forth on the shaft. Washer is working now. Would not spin. no special tools required just a lot of time. my washer Kenmore 70 series 110.82374110. original wigwag p/n 35999. I bought p/n 84867. Sears said it would not work with my model. Internet said they were the same. It looks the same and is working. Sears had the best price by far.
mzar, rockwall tx
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- More than 2 hours
Yes, I would recommend this to a friend
Simple fix
This was a simple repair. My washing machine is very old glad I was still able to get the part to fix it. I depend on Sears products.
whoever, McEwen Tn.
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Part fits older belt-drive Kenmore washer
Part needs to be pressed onto shaft - I used a screw clamp. Make sure you have setscrew hole aligned properly with shaft hole before pressing. This process is greatly simplified if you first remove transmission. Removing transmission is time-consuming (about one hour if you've never done it before).
gkallio, Oregon
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
