Model # 66575849002 Official Kenmore gas range
Here are the diagrams and repair parts for Official Kenmore 66575849002 gas range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

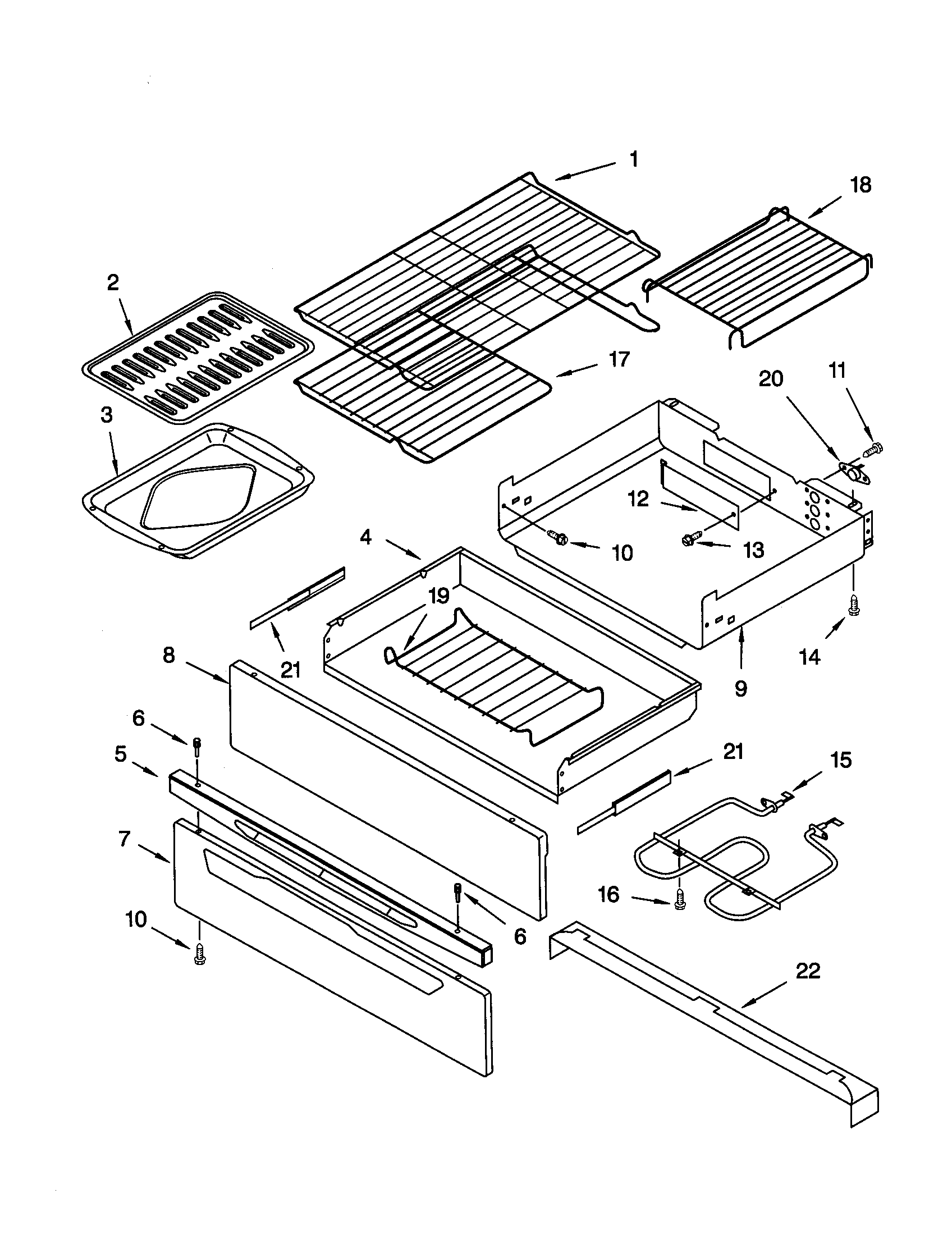

SELECT DIAGRAM
Browse Parts for66575849002 Ranges
- #14

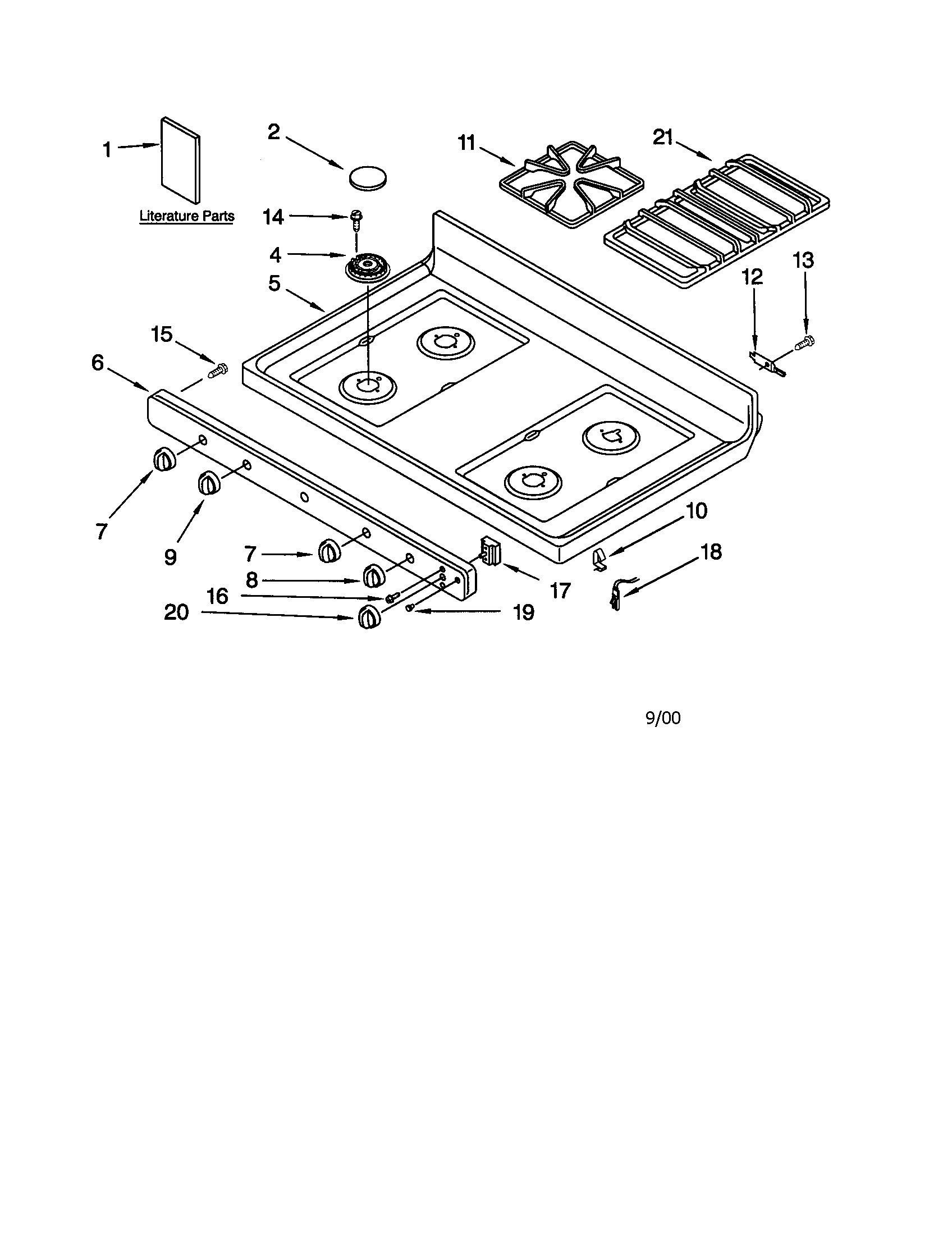

Cooktop diagram
ScrewPart #3400701
Replaced by #WP3368921
?Manufacturer substitutionThis part replaces 3400701. Substitute parts can look different from the original.This item is not returnable$2.83 |44% OFF Was : $5.05In Stock - #16

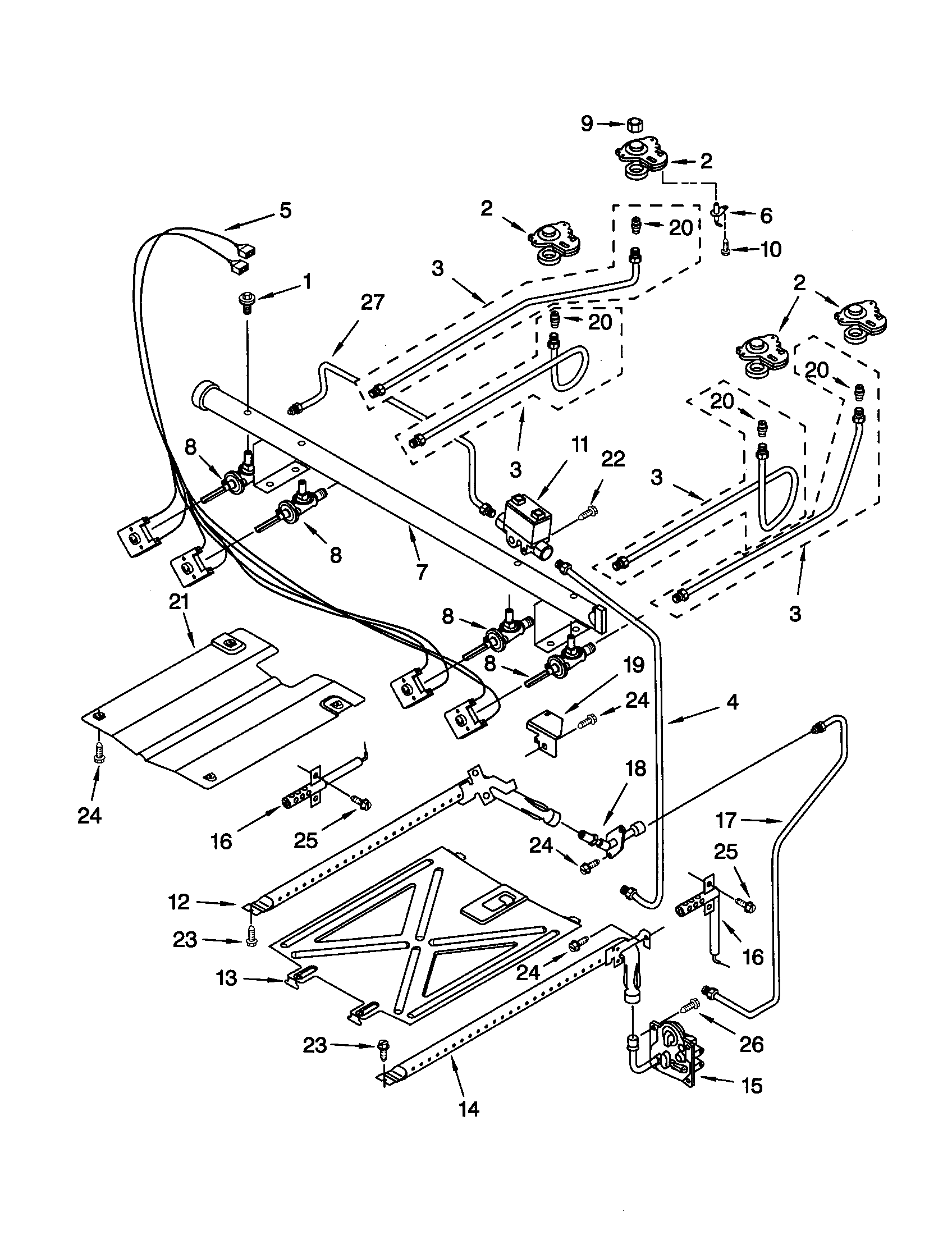

Manifold diagram
Range oven igniterPart #8054129
Replaced by #WP8054129
?Manufacturer substitutionThis part replaces 8054129. Substitute parts can look different from the original.$84.02 |7% OFF Phone Price : $90.02In Stock - #5

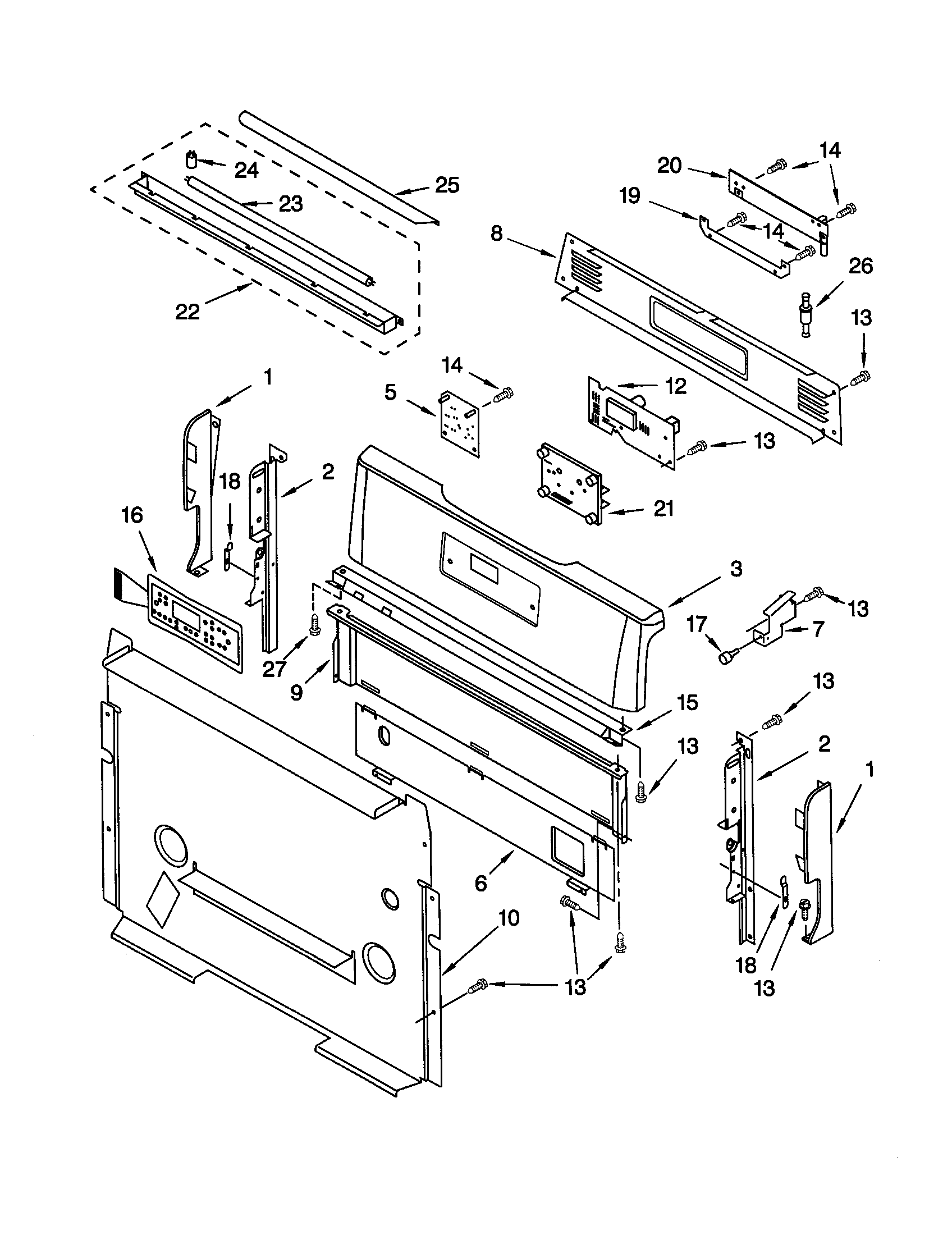

Control panel diagram
Spark modulePart #8273970
Replaced by #WPW10331686
?Manufacturer substitutionThis part replaces 8273970. Substitute parts can look different from the original.$202.57 |6% OFF Phone Price : $214.57In Stock - #48

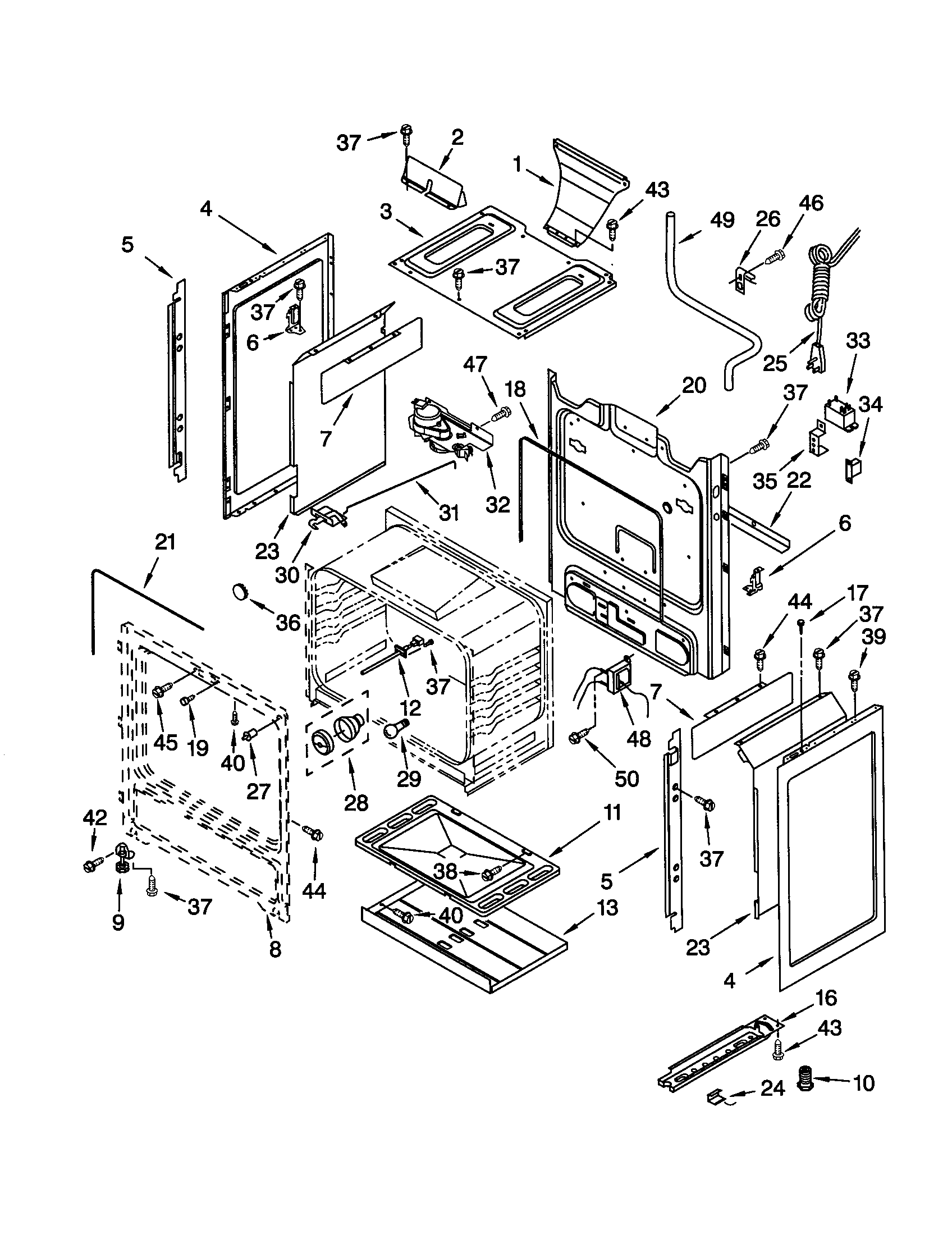

Chassis diagram
TransformerPart #8273972
Replaced by #WPW10331686
?Manufacturer substitutionThis part replaces 8273972. Substitute parts can look different from the original.$202.57 |6% OFF Phone Price : $214.57In Stock - Screw
Part #3196176
Replaced by #W11233072
?Manufacturer substitutionThis part replaces 3196176. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - #29
Chassis diagram
Light bulbPart #311255
Replaced by #8009
?Manufacturer substitutionThis part replaces 311255. Substitute parts can look different from the original.This item is not returnable$12.57 |14% OFF Phone Price : $14.57In Stock - Screw
Part #3196178
Replaced by #W11233072
?Manufacturer substitutionThis part replaces 3196178. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - #5

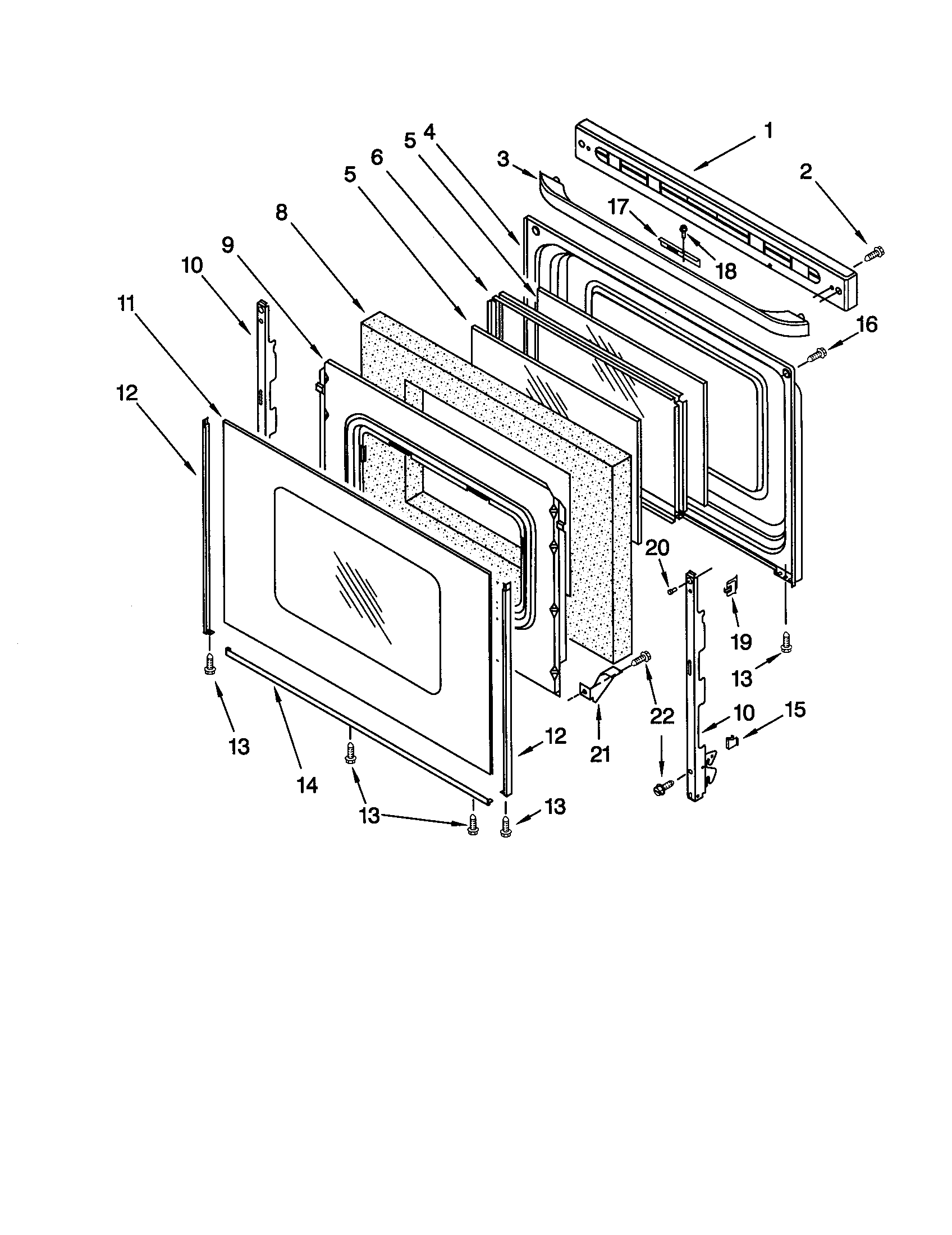

Door diagram
Range oven door inner glassPart #8053948
Replaced by #WP8053948
?Manufacturer substitutionThis part replaces 8053948. Substitute parts can look different from the original.$95.52 |11% OFF Phone Price : $107.52In Stock - #15
Manifold diagram
RegulatorPart #8054079
Replaced by #WPW10293048
?Manufacturer substitutionThis part replaces 8054079. Substitute parts can look different from the original.$327.22 |$12.00 OFF Phone Price : $339.22In Stock - #28
Chassis diagram
Light socketPart #3176512
Replaced by #W11594027
?Manufacturer substitutionThis part replaces 3176512. Substitute parts can look different from the original.$62.81 |9% OFF Phone Price : $68.81In Stock
