Whirlpool
Top-Mount Refrigerator

Model # W6TXNWFWT00 Official Whirlpool top-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool W6TXNWFWT00 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

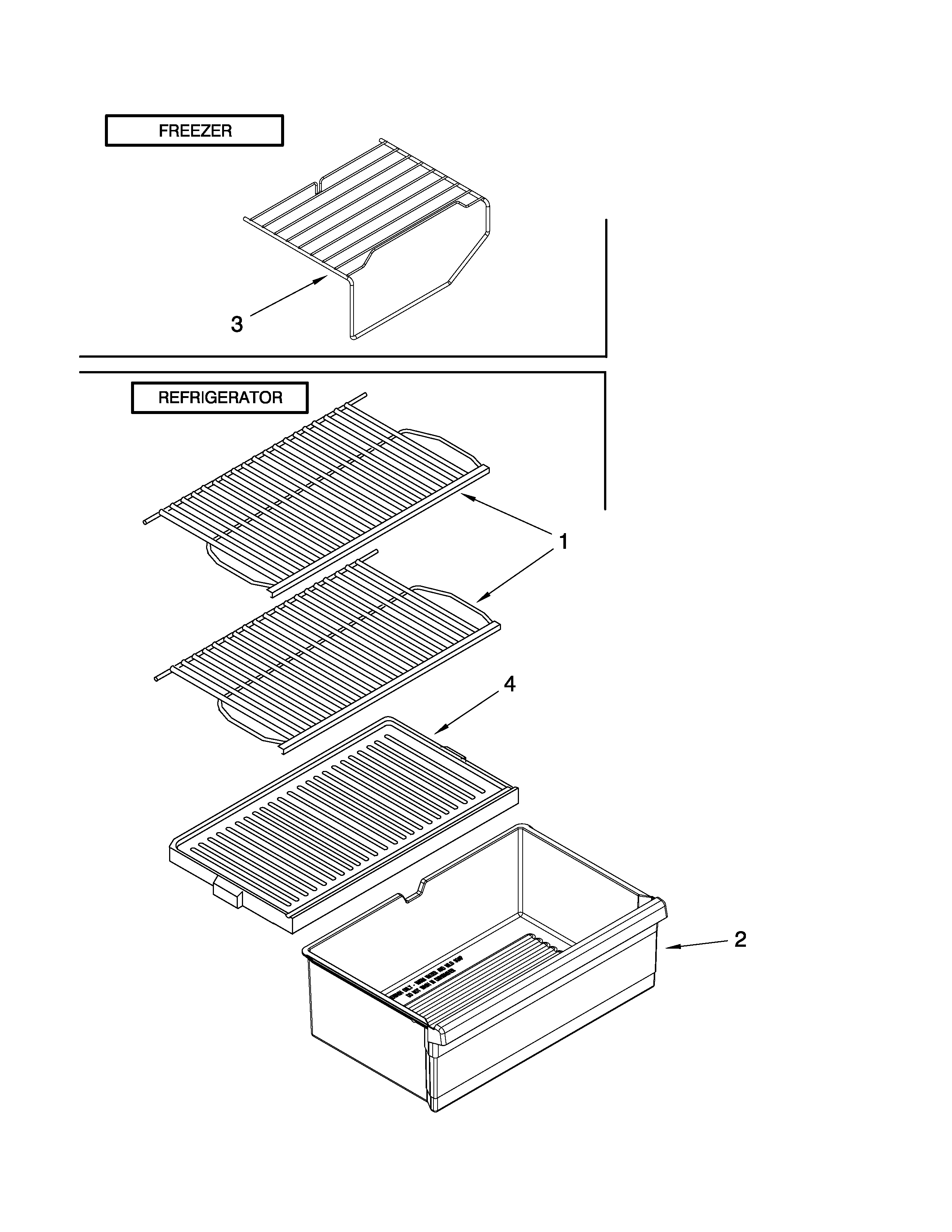

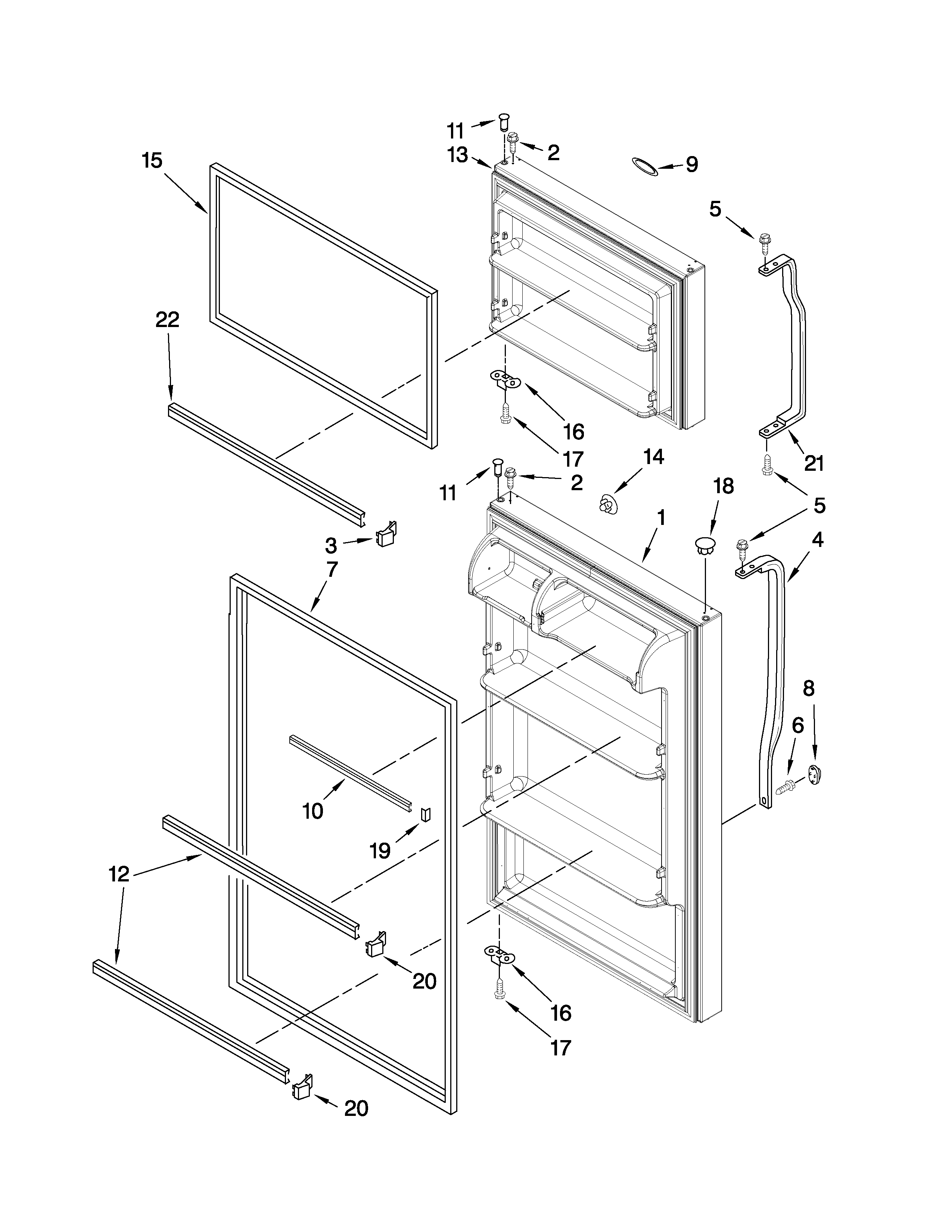

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |

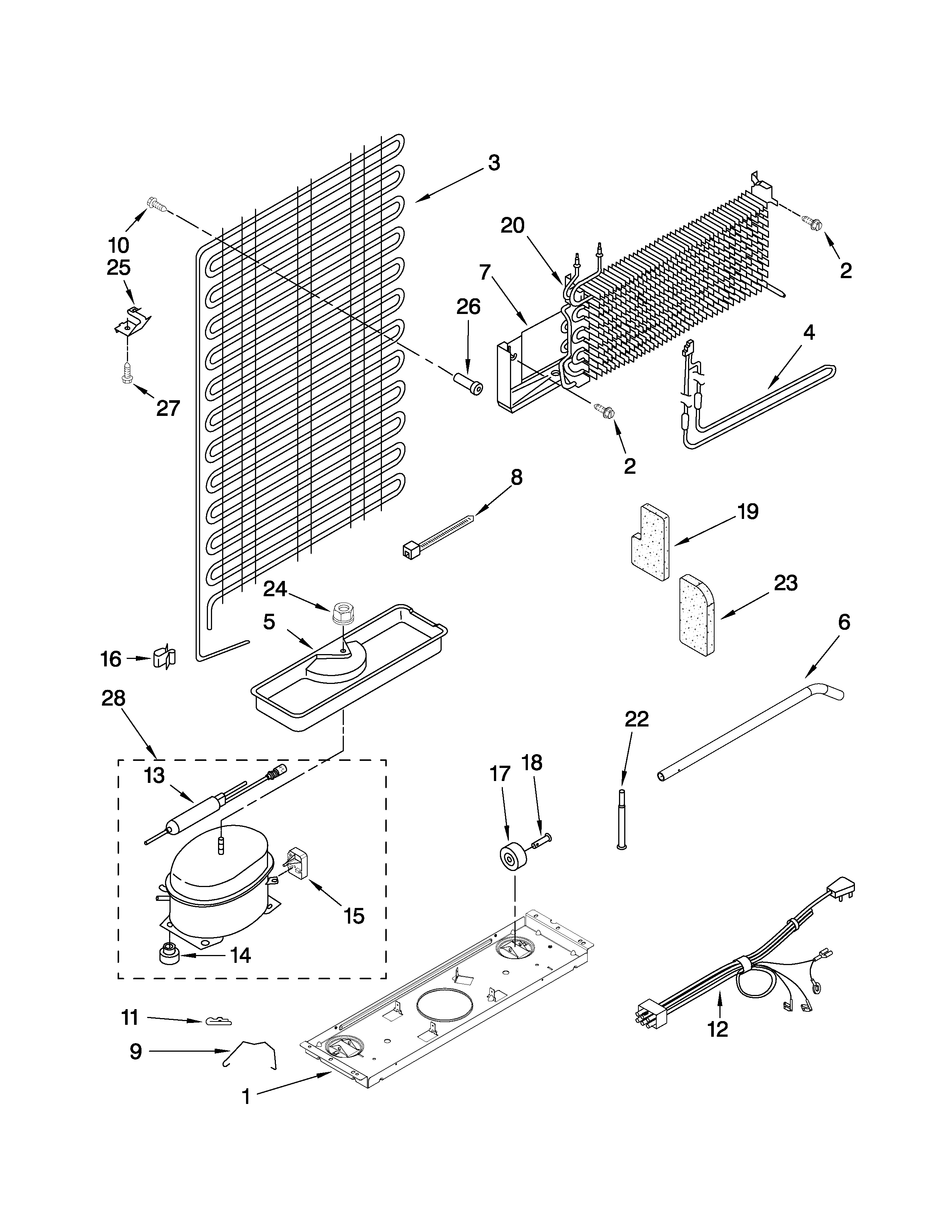

Drier W/dye 2317845
#13A

Unit parts diagram

Drier w/dye

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock

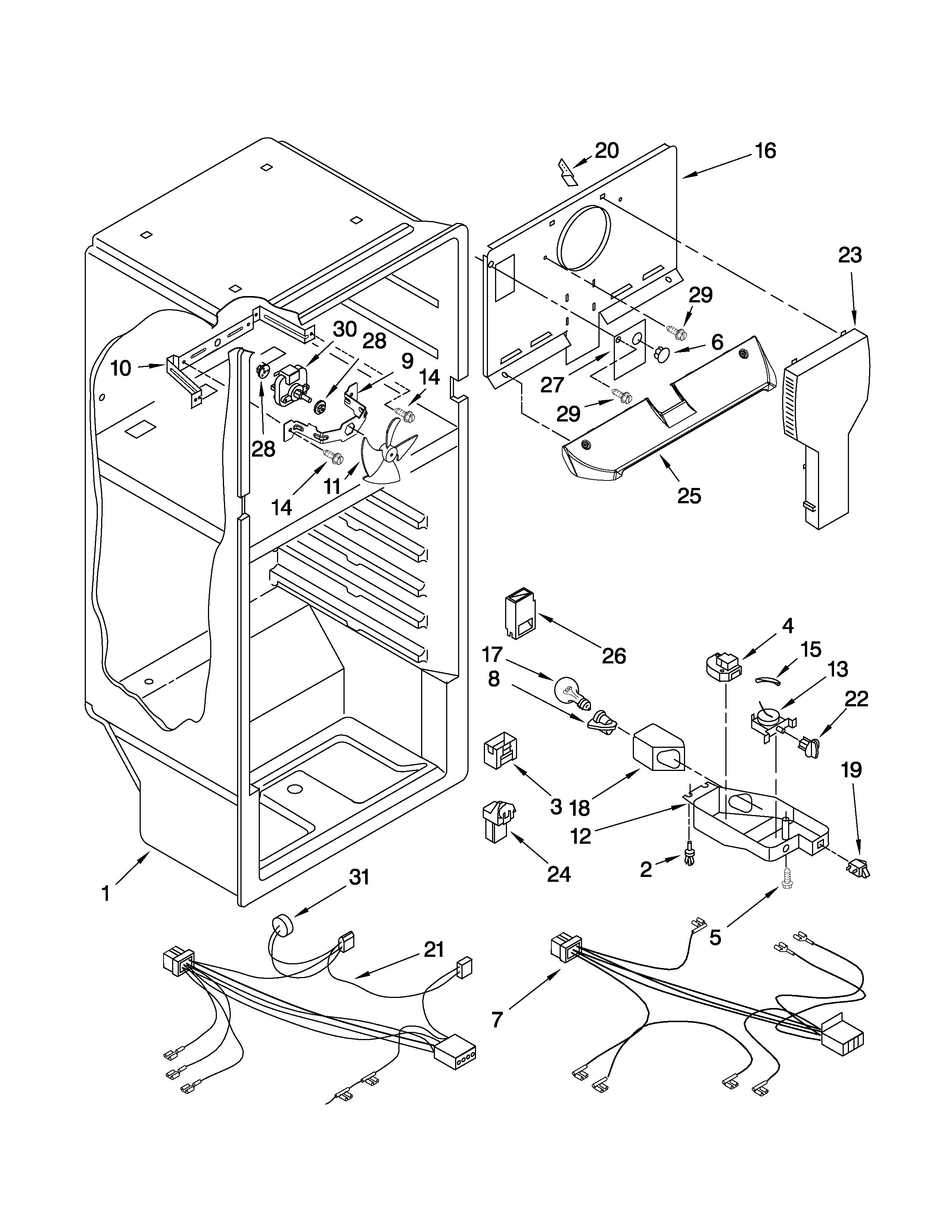

Refrigerator Defrost Bi-metal 2266067
#31

Liner parts diagram

Refrigerator defrost bi-metal

Part #2266067

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2266067. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Bulb-light 2252970
#17

Liner parts diagram

Bulb-light

Part #2252970

Replaced by #40A15

?
Manufacturer substitution
This part replaces 2252970. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Switch 1118894
#19

Liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Timer 2188371
#4

Liner parts diagram

Refrigerator timer

Part #2188371

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 2188371. Substitute parts can look different from the original.
BEST SELLER
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Drier Tube 2320731
#13

Unit parts diagram

Drier tube

Part #2320731

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2320731. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Compressor 2320132
#28

Unit parts diagram

Refrigerator compressor

Part #2320132

Replaced by #W10309988

?
Manufacturer substitution
This part replaces 2320132. Substitute parts can look different from the original.
BEST SELLER
$285.83 |
6% OFF Was : $304.56
In Stock
Ice Maker 2155469
#NI

Optional parts diagram

Ice maker

Part #2155469

Replaced by #W11510803

?
Manufacturer substitution
This part replaces 2155469. Substitute parts can look different from the original.
BEST SELLER
$108.60 |
10% OFF Phone Price : $120.60
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock

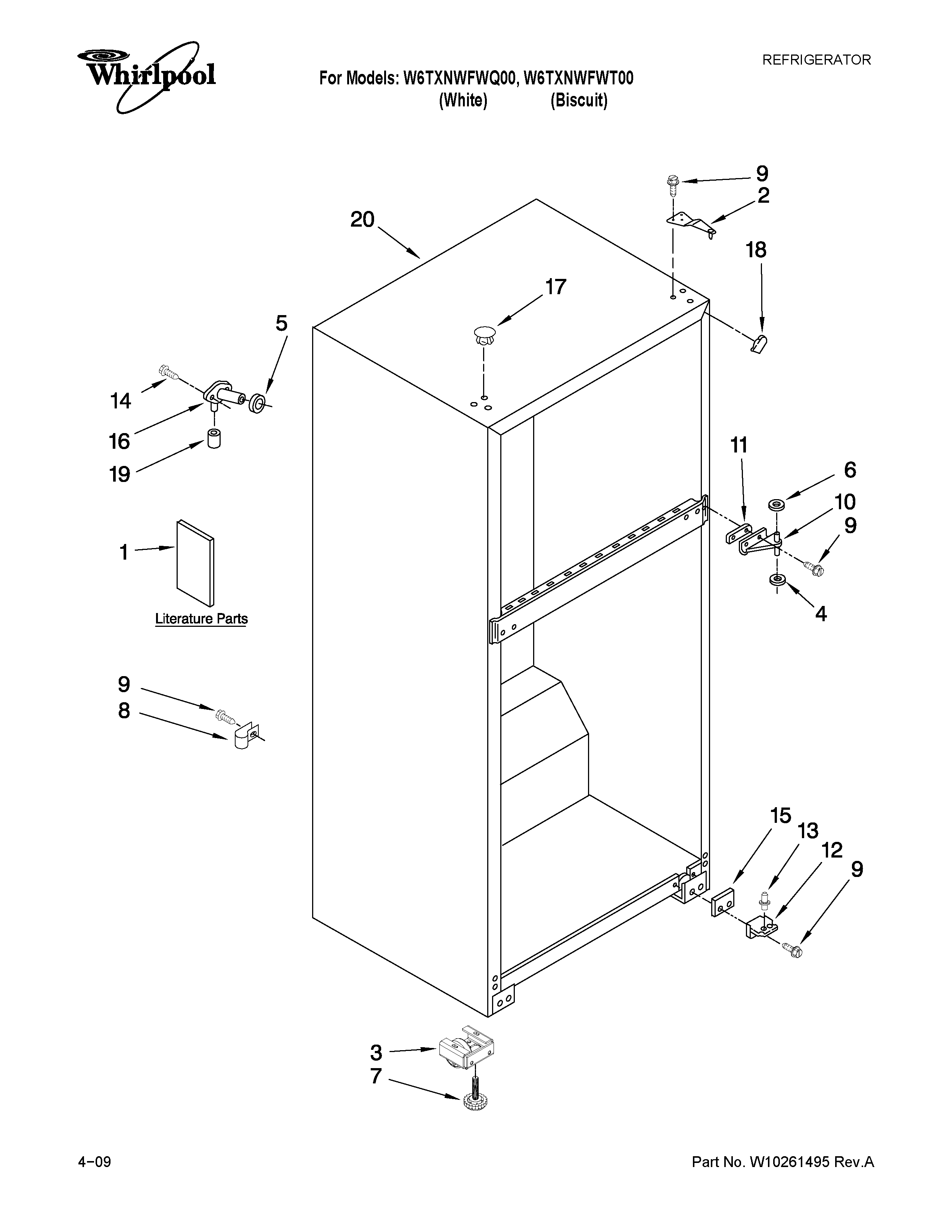

Refrigerator Washer 487576
#6

Cabinet parts diagram

Refrigerator washer

Part #487576

Replaced by #WP487576

?
Manufacturer substitution
This part replaces 487576. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
