Front-Engine Lawn Tractor

Model # 91725950 Official Craftsman front-engine lawn tractor

Here are the diagrams and repair parts for Official Craftsman 91725950 front-engine lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

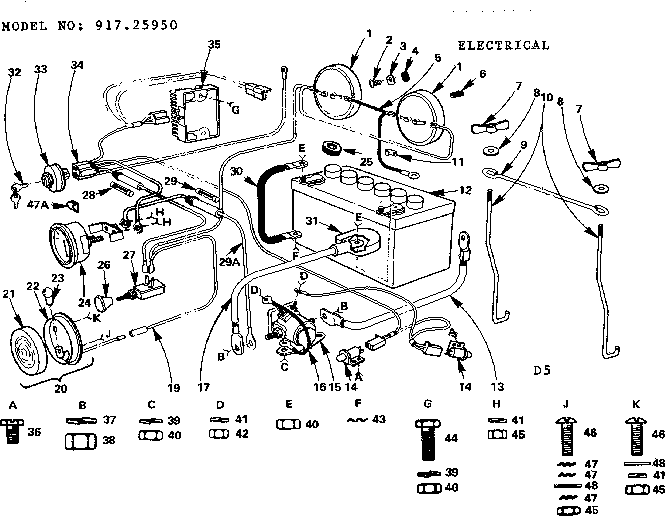

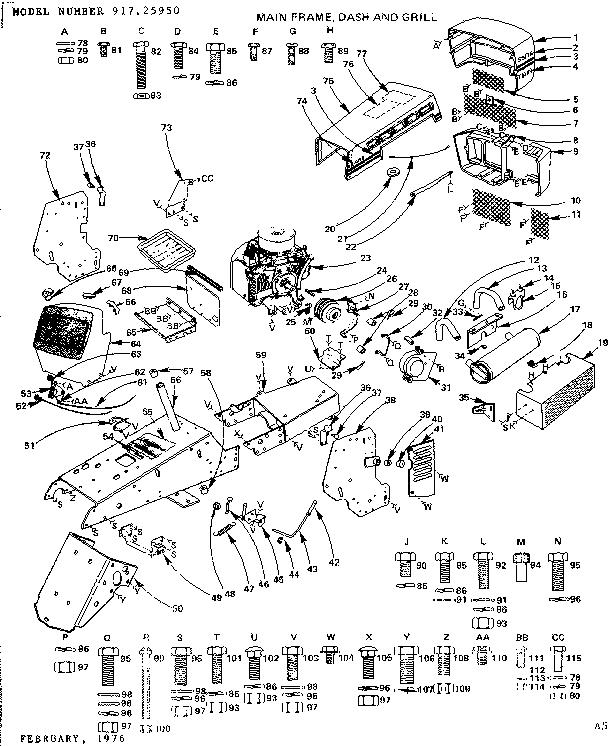

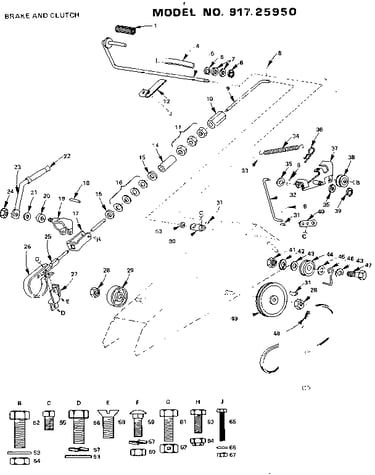

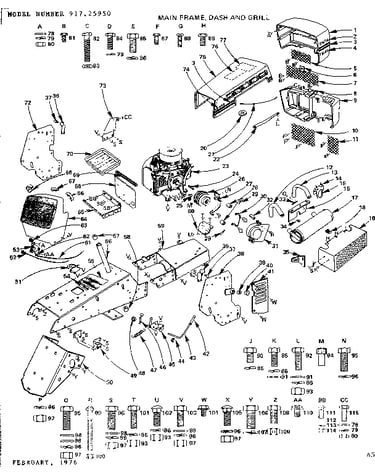

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 297 parts  |
Filter 7741R
#44

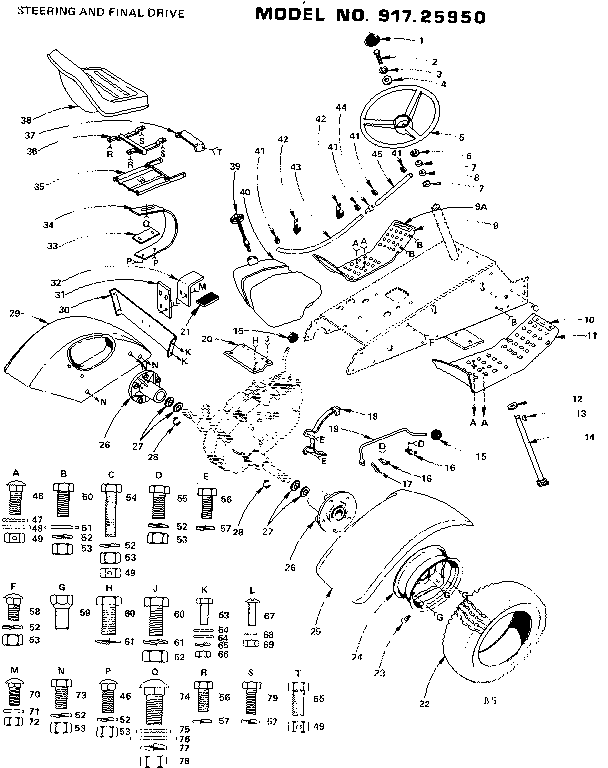

16 twin-garden tractor/steering and final drive diagram

Filter

Part #7741R

Replaced by #84001895

?
Manufacturer substitution
This part replaces 7741R. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Ring 5845R
#28

16 twin-garden tractor/steering and final drive diagram

Ring

Part #5845R

Replaced by #812000029

?
Manufacturer substitution
This part replaces 5845R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
E-ring 5000P
#1

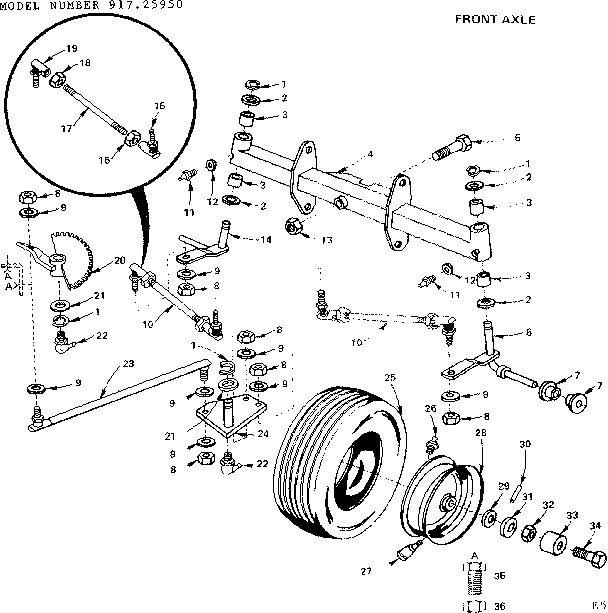

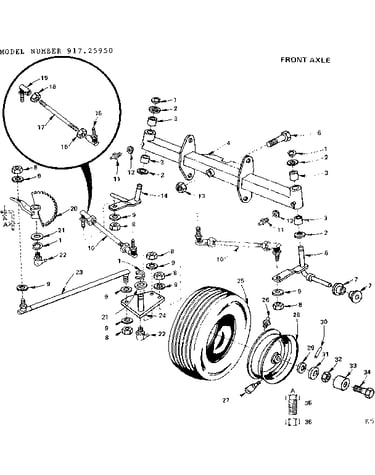

16 twin-garden tractor/front axle diagram

E-ring

Part #5000P

Replaced by #812000029

?
Manufacturer substitution
This part replaces 5000P. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Battery 5111H3
#12

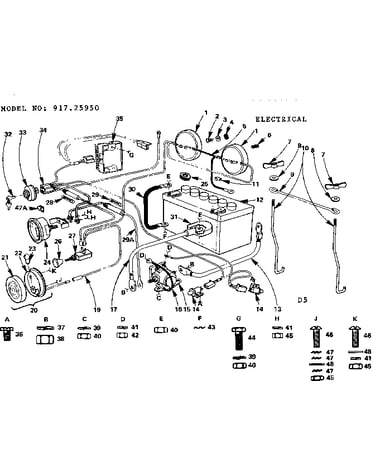

16 twin-garden tractor diagram

Battery

Part #5111H3

The manufacturer no longer makes this part, and there's no substitute part

Tire 2169R
#25

16 twin-garden tractor/front axle diagram

Tire

Part #2169R

Replaced by #532122075

?
Manufacturer substitution
This part replaces 2169R. Substitute parts can look different from the original.
BEST SELLER
$71.47 |
8% OFF Phone Price : $77.47
In Stock
Wizard Lawn Tractor Axle Flange Bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, P-1246, P-1622) 9040H
#7

16 twin-garden tractor/front axle diagram

Wizard lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)

Part #9040H

Replaced by #532009040

?
Manufacturer substitution
This part replaces 9040H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Flat Washer 1528P
#2

16 twin-garden tractor/front axle diagram

Flat washer

Part #1528P

Replaced by #819272016

?
Manufacturer substitution
This part replaces 1528P. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hitch Pin, 2-pack 4939M
Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Wheel 2892R
#28

16 twin-garden tractor/front axle diagram

Wheel

Part #2892R

Replaced by #532148736

?
Manufacturer substitution
This part replaces 2892R. Substitute parts can look different from the original.
$122.29 |
9% OFF Phone Price : $134.29
In Stock
Battery Cable 2753R
#30

16 twin-garden tractor diagram

Battery cable

Part #2753R

Replaced by #532004207

?
Manufacturer substitution
This part replaces 2753R. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
