Model # 502456330 Official Sears 24" girls' 5-speed spyder bicycle

Here are the diagrams and repair parts for Official Sears 502456330 24" girls' 5-speed spyder bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Brake Shoe Set 2870
#3

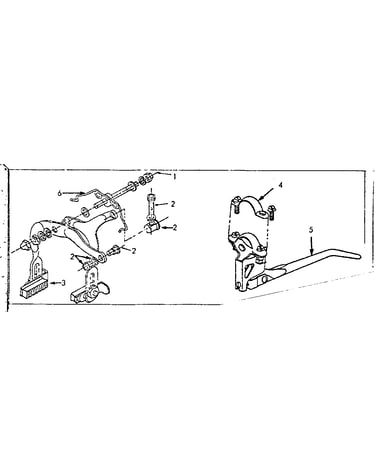

Front & rear caliper hand brake replacement parts diagram

Brake shoe set

Part #2870

The manufacturer no longer makes this part, and there's no substitute part

Frnt Hub Set 9850-12

#NI

All parts diagram

Frnt hub set

Part #9850-12

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 27522
#7

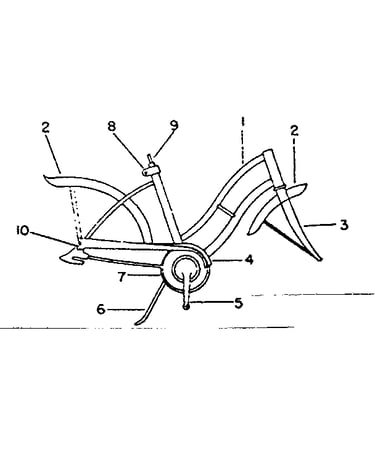

Frame assembly diagram

Sprocket

Part #27522

The manufacturer no longer makes this part, and there's no substitute part

Lower Holder 2422
#34

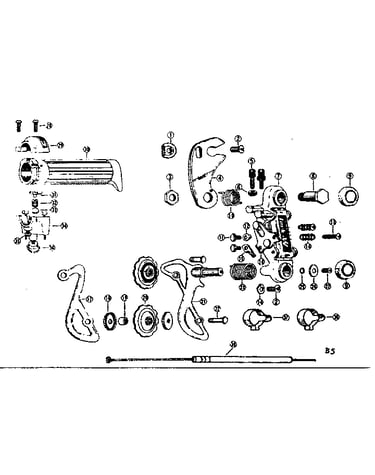

Lark w derailleur and twist grip diagram

Lower holder

Part #2422

The manufacturer no longer makes this part, and there's no substitute part

Cable 2864

#NI

All parts diagram

Cable

Part #2864

The manufacturer no longer makes this part, and there's no substitute part

Spring 2507
#10

Lark w derailleur and twist grip diagram

Spring

Part #2507

The manufacturer no longer makes this part, and there's no substitute part

Axle Nut 10272-12

#NI

All parts diagram

Axle nut

Part #10272-12

The manufacturer no longer makes this part, and there's no substitute part

Bolt Spacer 2868
#1B

Front & rear caliper hand brake replacement parts diagram

Bolt spacer

Part #2868

The manufacturer no longer makes this part, and there's no substitute part

Complete Hub 27789
#14C

Shimano for rear hub diagram

Complete hub

Part #27789

The manufacturer no longer makes this part, and there's no substitute part

Cone RHB3
#8

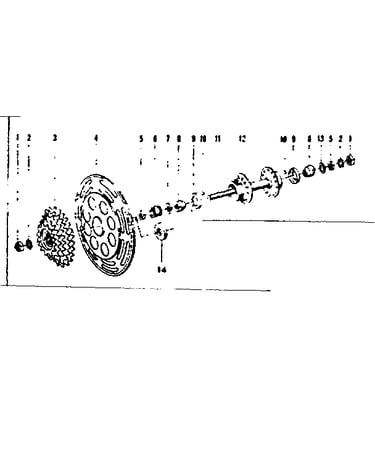

Shimano for rear hub diagram

Cone

Part #RHB3

The manufacturer no longer makes this part, and there's no substitute part
