Kenmore
Handheld Vacuum

Model # 61372 Official Kenmore dustbuster vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 61372 dustbuster vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |

Kenmore Housing Assembly 720367-09
#10

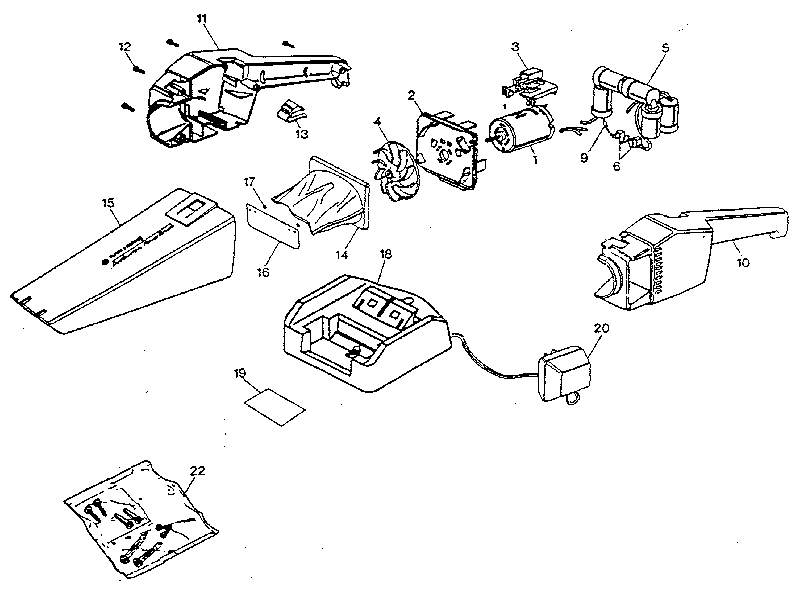

Unit parts diagram

Kenmore housing assembly

Part #720367-09

The manufacturer no longer makes this part, and there's no substitute part

Diode 91480-02
#9

Unit parts diagram

Diode

Part #91480-02

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Motor Module 168344-01
#2

Unit parts diagram

Black & decker motor module

Part #168344-01

The manufacturer no longer makes this part, and there's no substitute part

Hardware Bag 133385-00
#22

Unit parts diagram

Hardware bag

Part #133385-00

The manufacturer no longer makes this part, and there's no substitute part

Bowl 682098-15
#15

Unit parts diagram

Bowl

Part #682098-15

The manufacturer no longer makes this part, and there's no substitute part

(use Item 10) Housing, Cover Half N/P
(use item 10) housing, cover half

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Screw 143062-02
#12

Unit parts diagram

Screw

Part #143062-02

The manufacturer no longer makes this part, and there's no substitute part

Charger 681435-47
#20

Unit parts diagram

Charger

Part #681435-47

The manufacturer no longer makes this part, and there's no substitute part

Latch 133358-05
#13

Unit parts diagram

Latch

Part #133358-05

The manufacturer no longer makes this part, and there's no substitute part

Contact 168095-00
#6

Unit parts diagram

Contact

Part #168095-00

The manufacturer no longer makes this part, and there's no substitute part
