Troybilt
Gas Line Trimmer

Model # 41ADT25C766 Official Troybilt trimmer

Here are the diagrams and repair parts for Official Troybilt 41ADT25C766 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Hose 791-683947B
#9

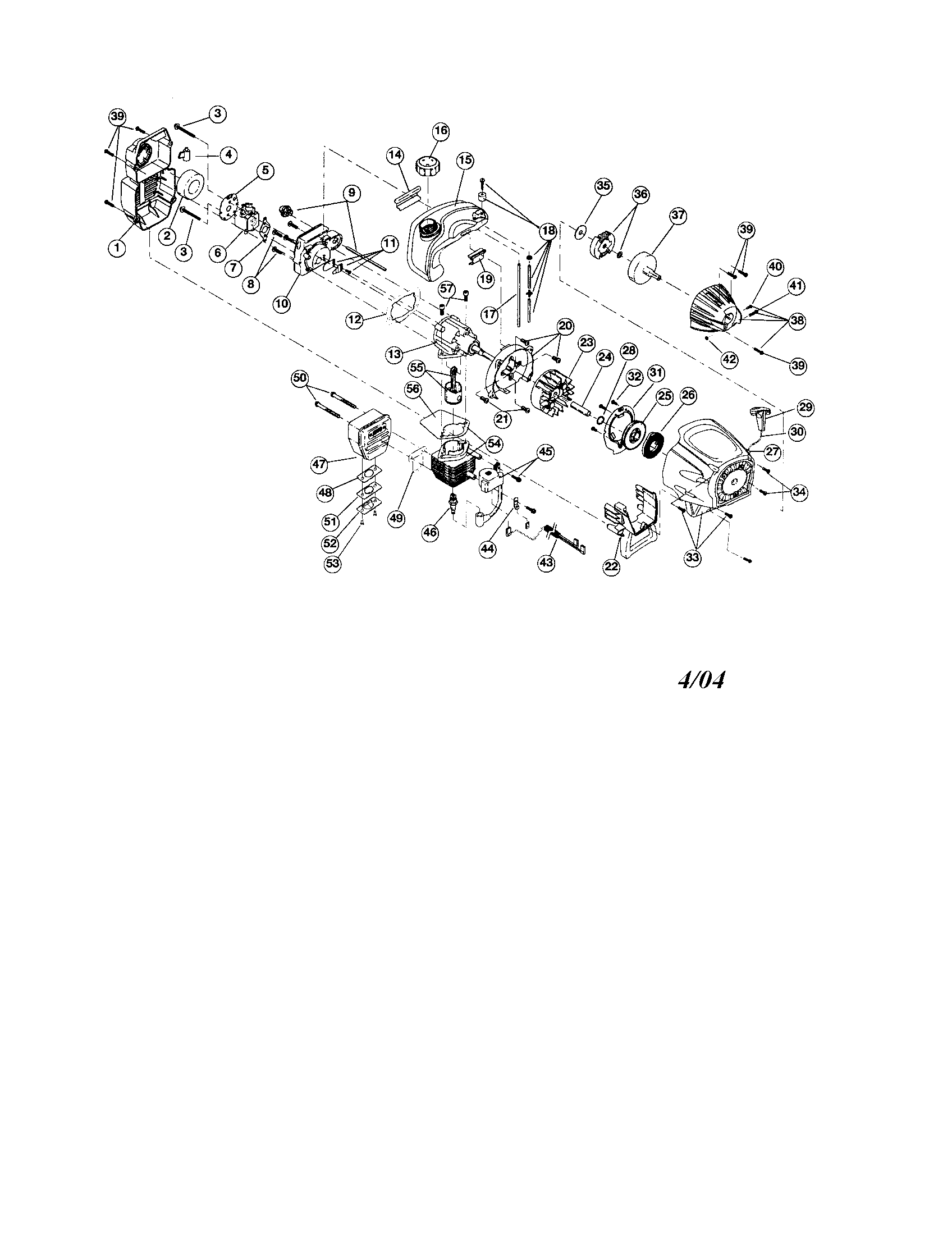

Engine parts diagram

Hose

Part #791-683947B

Replaced by #791-683974B

?
Manufacturer substitution
This part replaces 791-683947B. Substitute parts can look different from the original.
$31.56 |
16% OFF Phone Price : $37.56
In Stock
Rope Guide 753-1200
#27

Engine parts diagram

Rope guide

Part #753-1200

$20.63
In Stock
Line Trimmer Handle 791-182167
#9

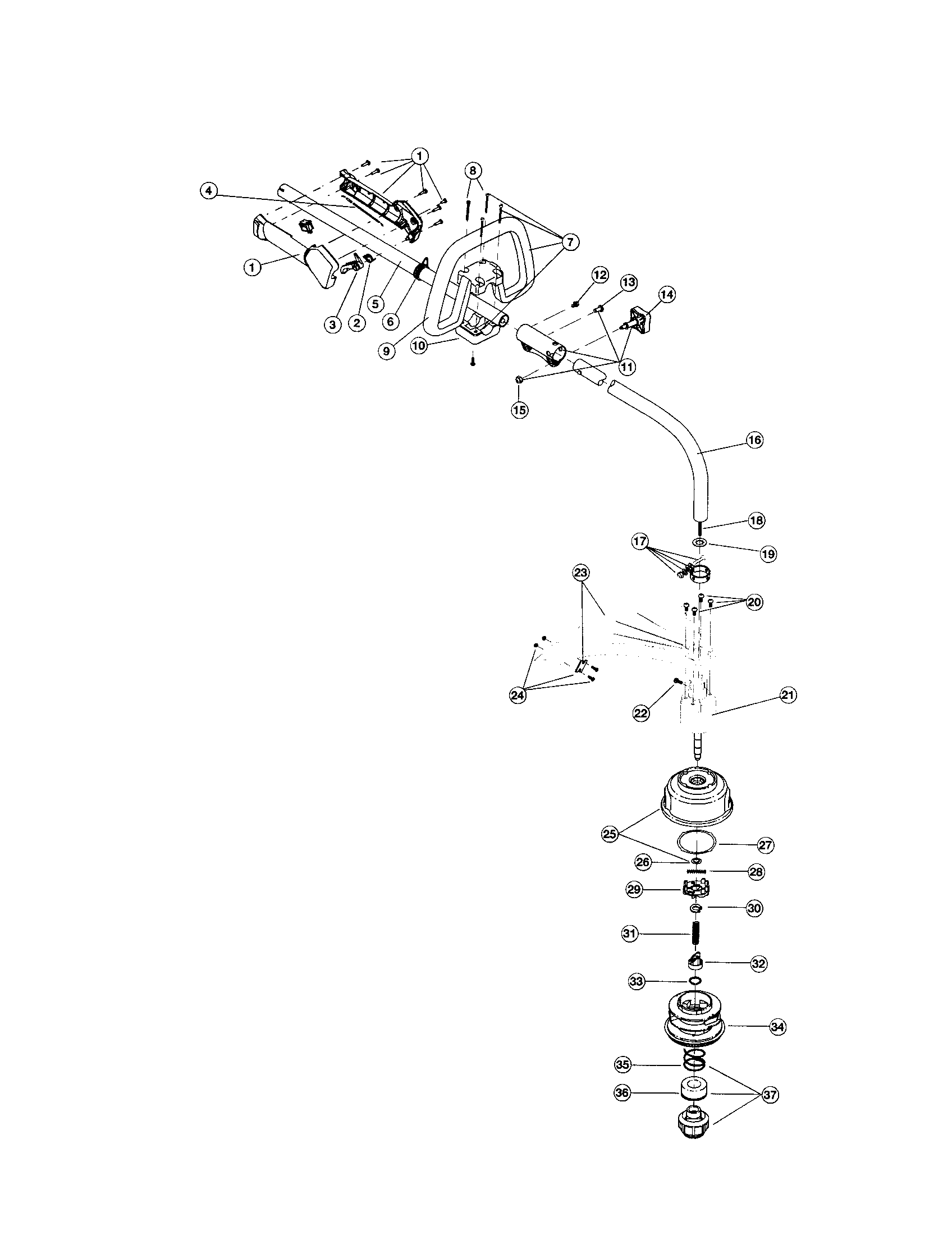

Boom and trimmer diagram

Line trimmer handle

Part #791-182167

$102.80
In Stock
Bolt Assembly 791-181617
#13

Boom and trimmer diagram

Bolt assembly

Part #791-181617

The manufacturer no longer makes this part, and there's no substitute part

Bolt 791-182723
#57

Engine parts diagram

Bolt

Part #791-182723

The manufacturer no longer makes this part, and there's no substitute part

Bump Knob 791-181468B
#37

Boom and trimmer diagram

Bump knob

Part #791-181468B

The manufacturer no longer makes this part, and there's no substitute part

Align Pin 791-180217
#42

Engine parts diagram

Align pin

Part #791-180217

The manufacturer no longer makes this part, and there's no substitute part

Gasket 791-181069

#NI02

All parts diagram

Gasket

Part #791-181069

The manufacturer no longer makes this part, and there's no substitute part

Spring 791-181531
#31

Boom and trimmer diagram

Spring

Part #791-181531

The manufacturer no longer makes this part, and there's no substitute part

Screw 791-181862
#34

Engine parts diagram

Screw

Part #791-181862

The manufacturer no longer makes this part, and there's no substitute part
