Whirlpool
Countertop Microwave

Model # MT9114SFB1 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MT9114SFB1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

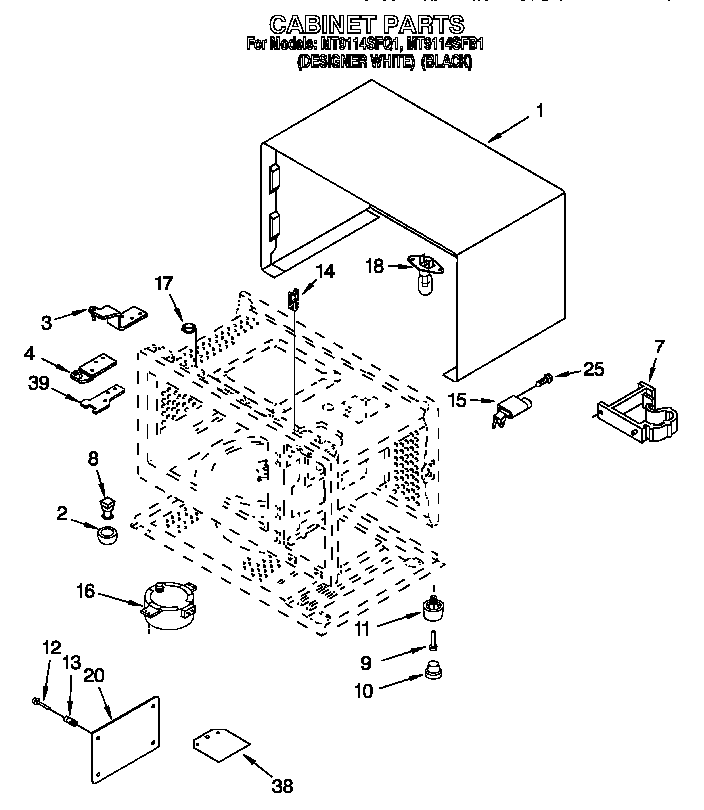

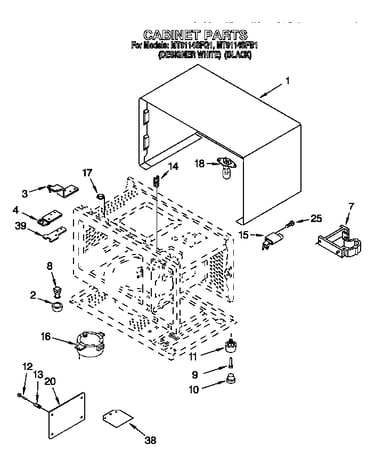

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Monitor Switch 4393598
#24

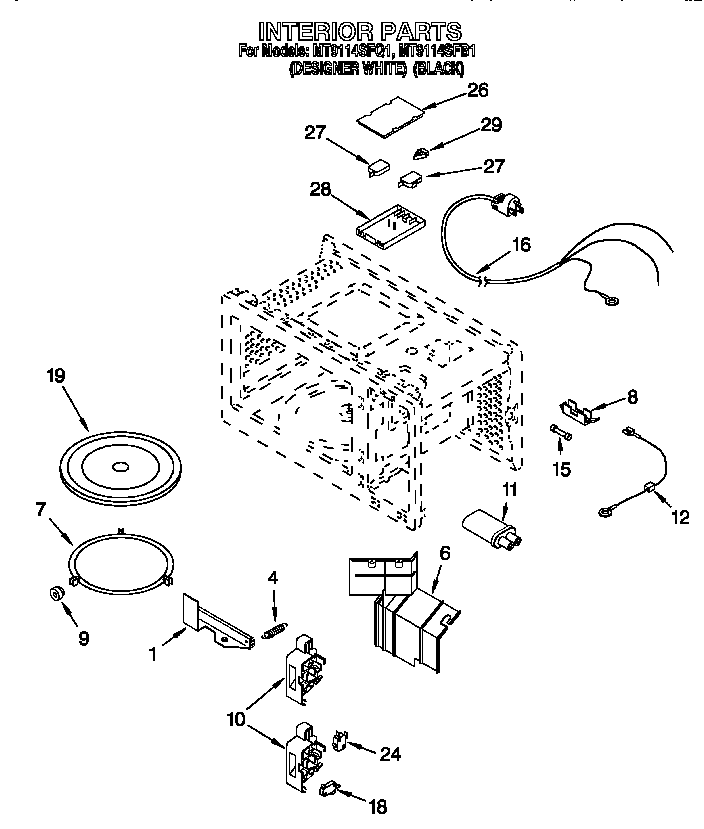

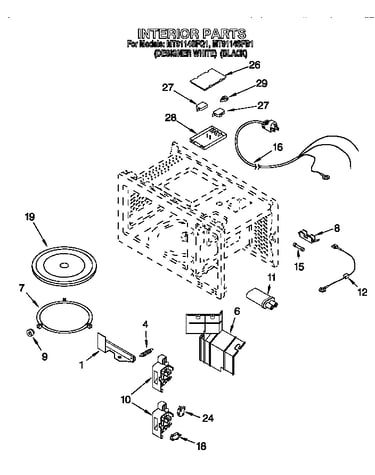

Interior diagram

Monitor switch

Part #4393598

Replaced by #W10269458

?
Manufacturer substitution
This part replaces 4393598. Substitute parts can look different from the original.
BEST SELLER
$22.73 |
21% OFF Phone Price : $28.73
In Stock
Switch 4393881
#27

Interior diagram

Switch

Part #4393881

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4393881. Substitute parts can look different from the original.
BEST SELLER
$30.85 |
16% OFF Phone Price : $36.85
In Stock
Thermal Fuse 4393308
#15

Interior diagram

Thermal fuse

Part #4393308

Replaced by #W11707984

?
Manufacturer substitution
This part replaces 4393308. Substitute parts can look different from the original.
$23.80
In Stock
Primary Switch 4393599
#18

Interior diagram

Primary switch

Part #4393599

Replaced by #W10211974

?
Manufacturer substitution
This part replaces 4393599. Substitute parts can look different from the original.
$31.20 |
16% OFF Phone Price : $37.20
In Stock
Door Latch 4393340
#14

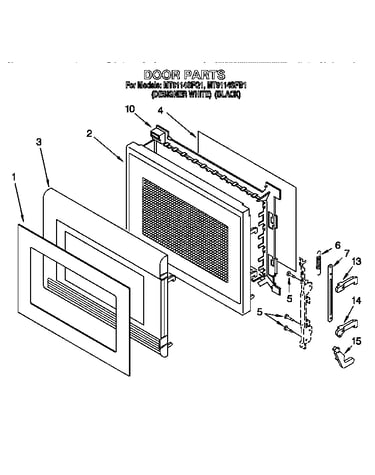

Door diagram

Door latch

Part #4393340

The manufacturer no longer makes this part, and there's no substitute part

Interlock 4393571
#10

Interior diagram

Interlock

Part #4393571

The manufacturer no longer makes this part, and there's no substitute part

Door Latch 4393341
#13

Door diagram

Door latch

Part #4393341

The manufacturer no longer makes this part, and there's no substitute part

Door Baffle 4393636
#1

Door diagram

Door baffle

Part #4393636

The manufacturer no longer makes this part, and there's no substitute part

Blake-fan 8169357
#5

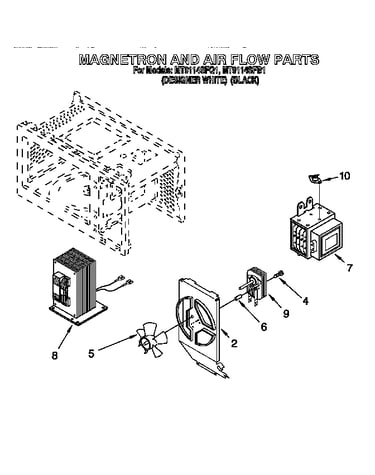

Magnetron and air flow diagram

Blake-fan

Part #8169357

The manufacturer no longer makes this part, and there's no substitute part

Microcomputer 4393637
#7

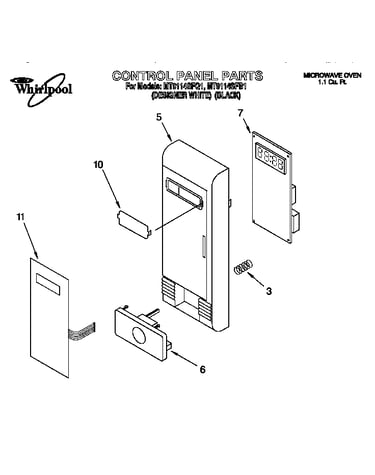

Control panel diagram

Microcomputer

Part #4393637

The manufacturer no longer makes this part, and there's no substitute part
