Craftsman
Router

Model # 315269210 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315269210 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

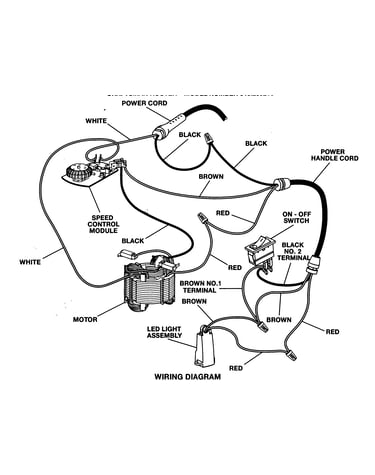

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Router Wrench 982889-001
#23

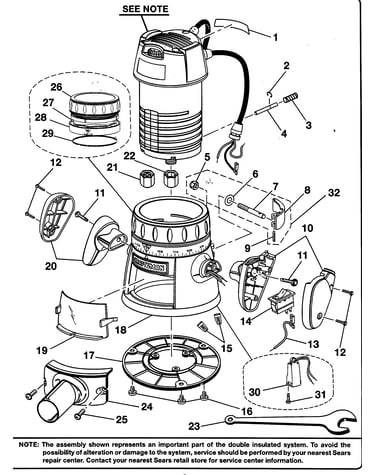

Base assy diagram

Router wrench

Part #982889-001

The manufacturer no longer makes this part, and there's no substitute part

Shield 982966-001
#19

Base assy diagram

Shield

Part #982966-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 998586-001
#16

Base assy diagram

Screw

Part #998586-001

The manufacturer no longer makes this part, and there's no substitute part

Sheet 983000-028R
#NI

Base assy diagram

Sheet

Part #983000-028R

The manufacturer no longer makes this part, and there's no substitute part

Brush & Sprg 610784-064
#8

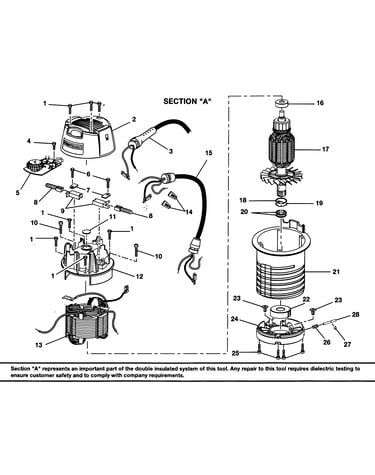

Motor assy diagram

Brush & sprg

Part #610784-064

The manufacturer no longer makes this part, and there's no substitute part

Spring 984673-001
#27

Base assy diagram

Spring

Part #984673-001

The manufacturer no longer makes this part, and there's no substitute part

Sub-base 612191-004
#17

Base assy diagram

Sub-base

Part #612191-004

The manufacturer no longer makes this part, and there's no substitute part

Lock Spring 982716-001
Lock spring

Part #982716-001

The manufacturer no longer makes this part, and there's no substitute part

Connector 623173-006
Connector

Part #623173-006

The manufacturer no longer makes this part, and there's no substitute part

Clamp 617800-002
#7

Motor assy diagram

Clamp

Part #617800-002

The manufacturer no longer makes this part, and there's no substitute part
