Model # 153331513 Official Kenmore water heater
Here are the diagrams and repair parts for Official Kenmore 153331513 water heater, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for153331513 Water Heaters
- #18

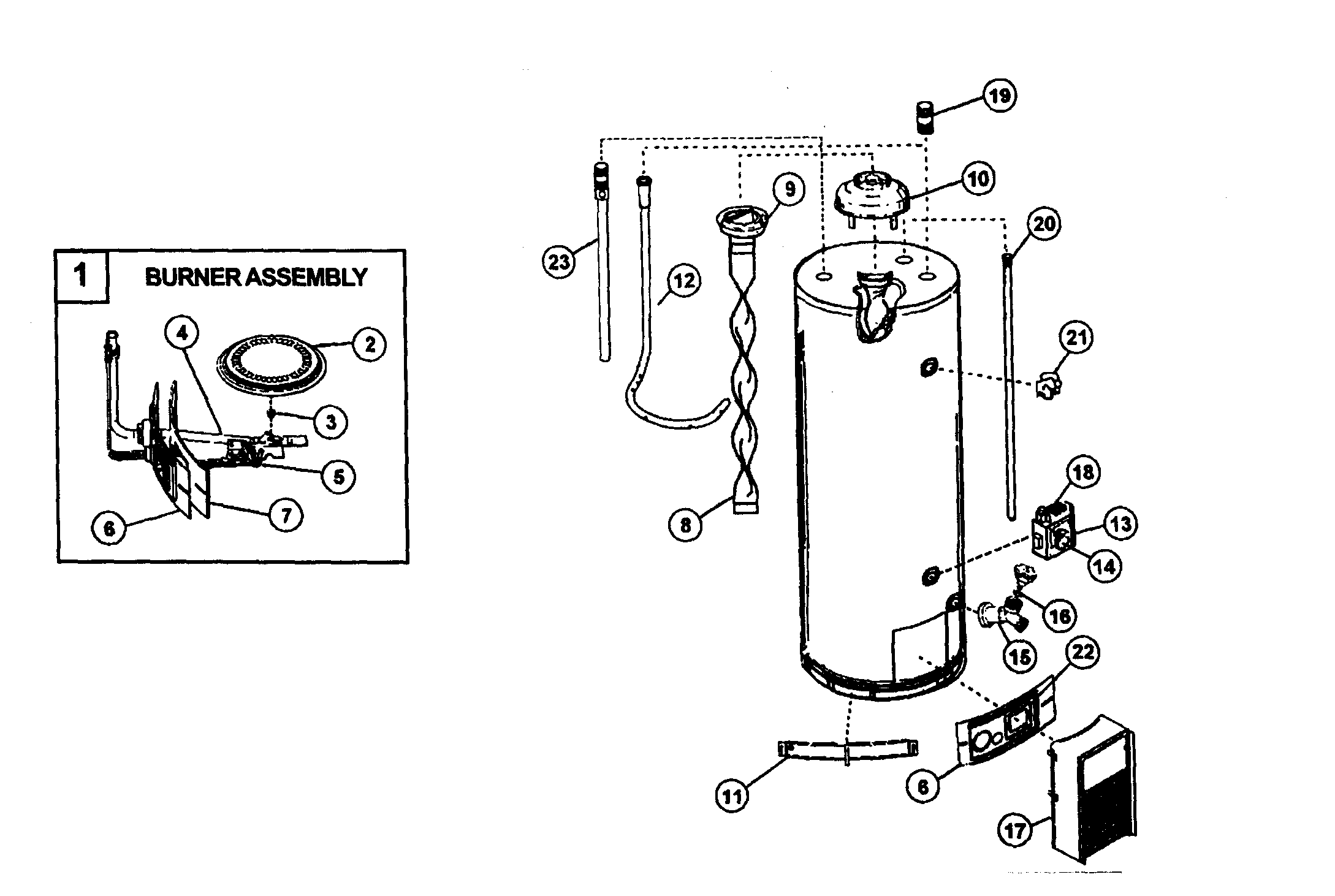

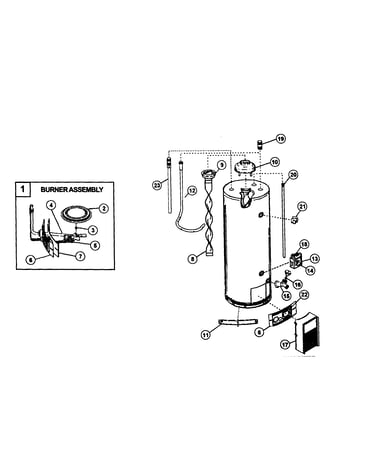

Water heater diagram
Water heater igniterPart #9003410
$18.60 |10% OFF Phone Price : $20.60In Stock - #20
Water heater diagram
Anode rodPart #9003413
Replaced by #100108660
?Manufacturer substitutionThis part replaces 9003413. Substitute parts can look different from the original.$94.16 |6% OFF Phone Price : $100.16Back Order - #15
Water heater diagram
ValvePart #9003464
Replaced by #100108269
?Manufacturer substitutionThis part replaces 9003464. Substitute parts can look different from the original.$27.93In Stock - #13
Water heater diagram
Water heater gas valve assemblyPart #F145-1293
The manufacturer no longer makes this part, and there's no substitute part
- #21
Water heater diagram
Wheelers water heater temperature and pressure relief valvePart #9000728
Replaced by #100108455
?Manufacturer substitutionThis part replaces 9000728. Substitute parts can look different from the original.$68.78In Stock - #5
Water heater diagram
Water heater pilot assemblyPart #9003521
Replaced by #100109286
?Manufacturer substitutionThis part replaces 9003521. Substitute parts can look different from the original.$223.07In Stock - #7
Water heater diagram
Ao smith water heater manifold door gasketPart #9003401
Replaced by #100109214
?Manufacturer substitutionThis part replaces 9003401. Substitute parts can look different from the original.$54.78Back Order - #16
Water heater diagram
Kenmore elite water heater washerPart #9001584
Replaced by #100108603
?Manufacturer substitutionThis part replaces 9001584. Substitute parts can look different from the original.$47.29Back Order - #4
Water heater diagram
Water heater burner tubePart #9003520
$32.89In Stock - #2
Water heater diagram
Water heater burnerPart #9003385
Replaced by #100109206
?Manufacturer substitutionThis part replaces 9003385. Substitute parts can look different from the original.$80.22In Stock
