Frigidaire
Top-Mount Refrigerator

Model # FRT16ICRHZ4 Official Frigidaire top-mount refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRT16ICRHZ4 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

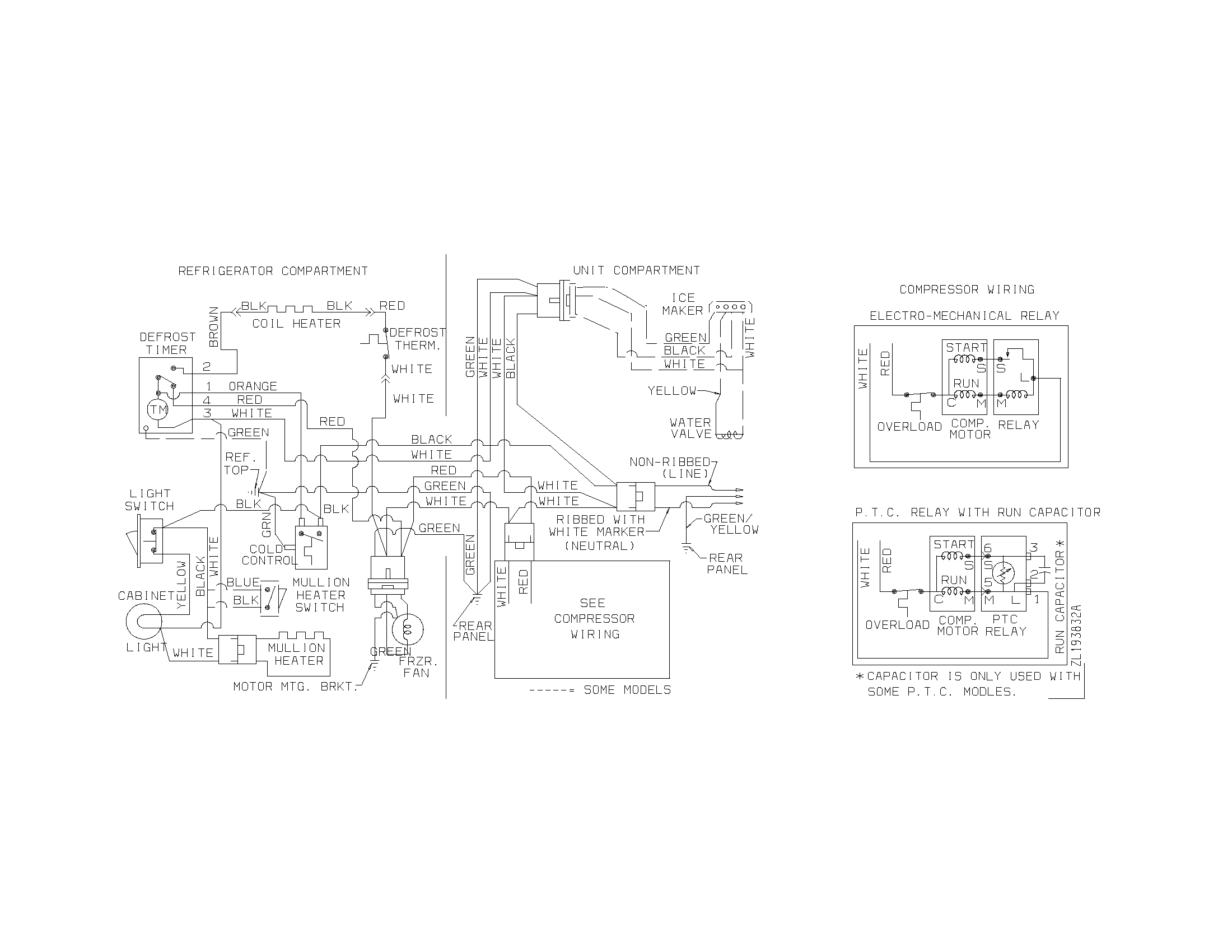

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 208 parts  |
Refrigerator Filter Drier 218944001
#4

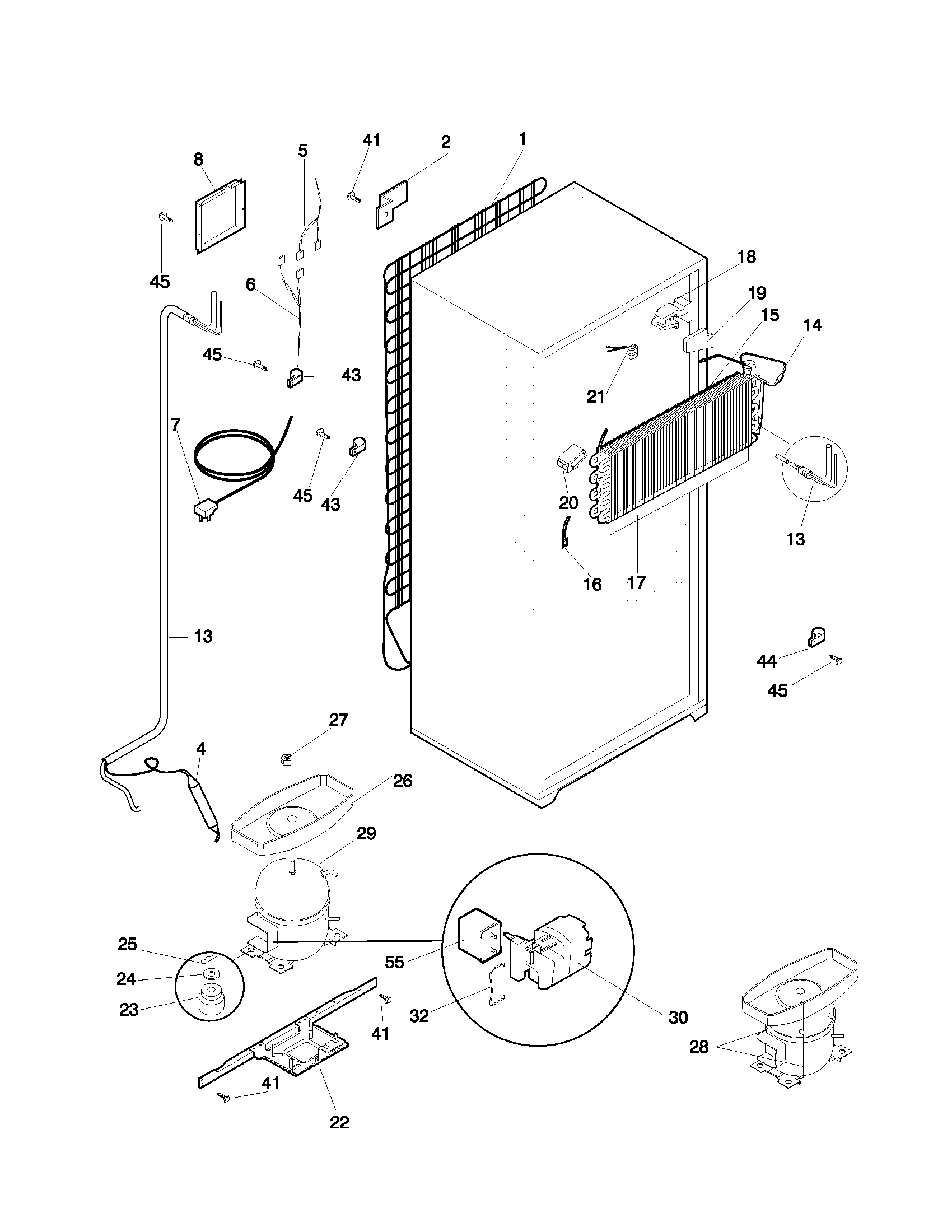

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

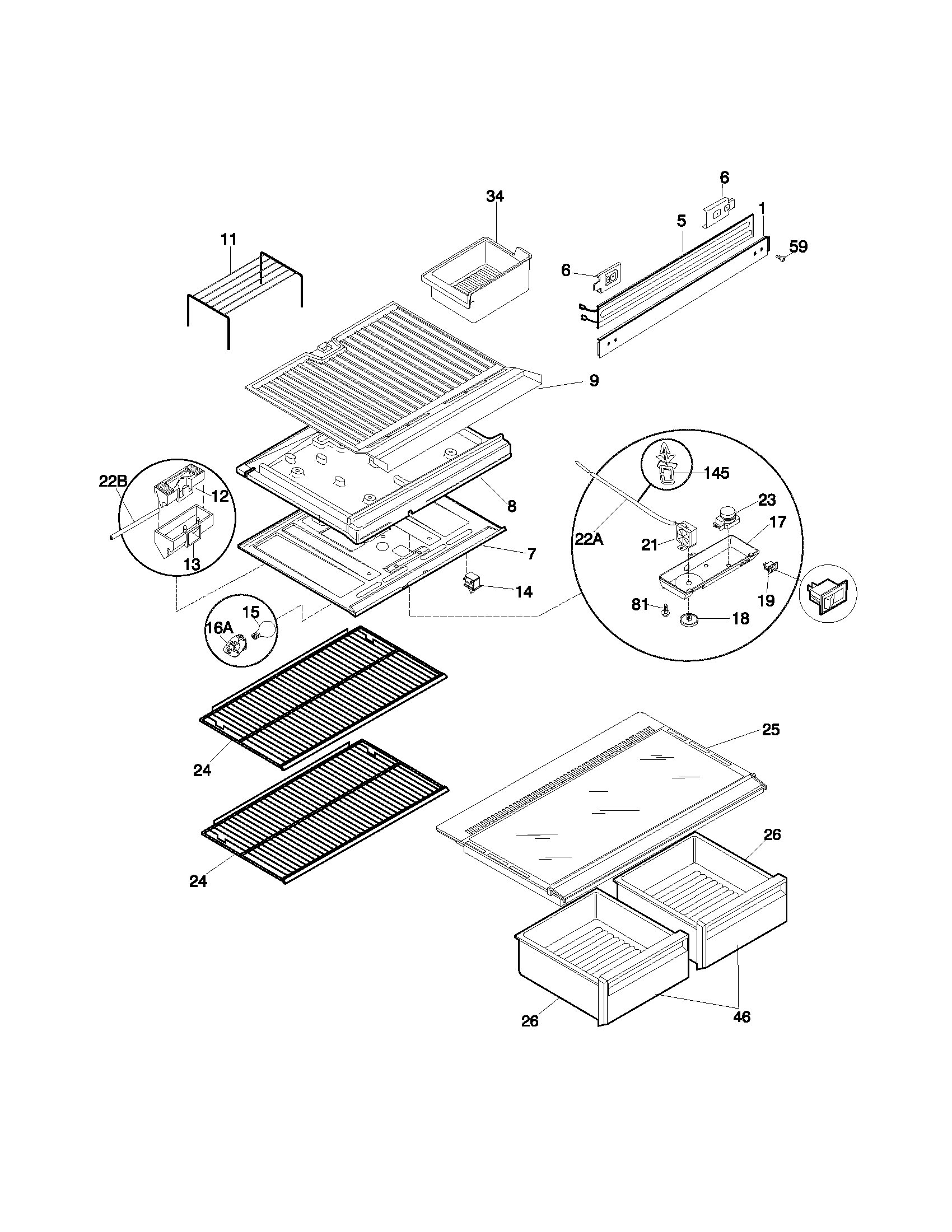

Shelves diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Fan Blade 218649000
#5

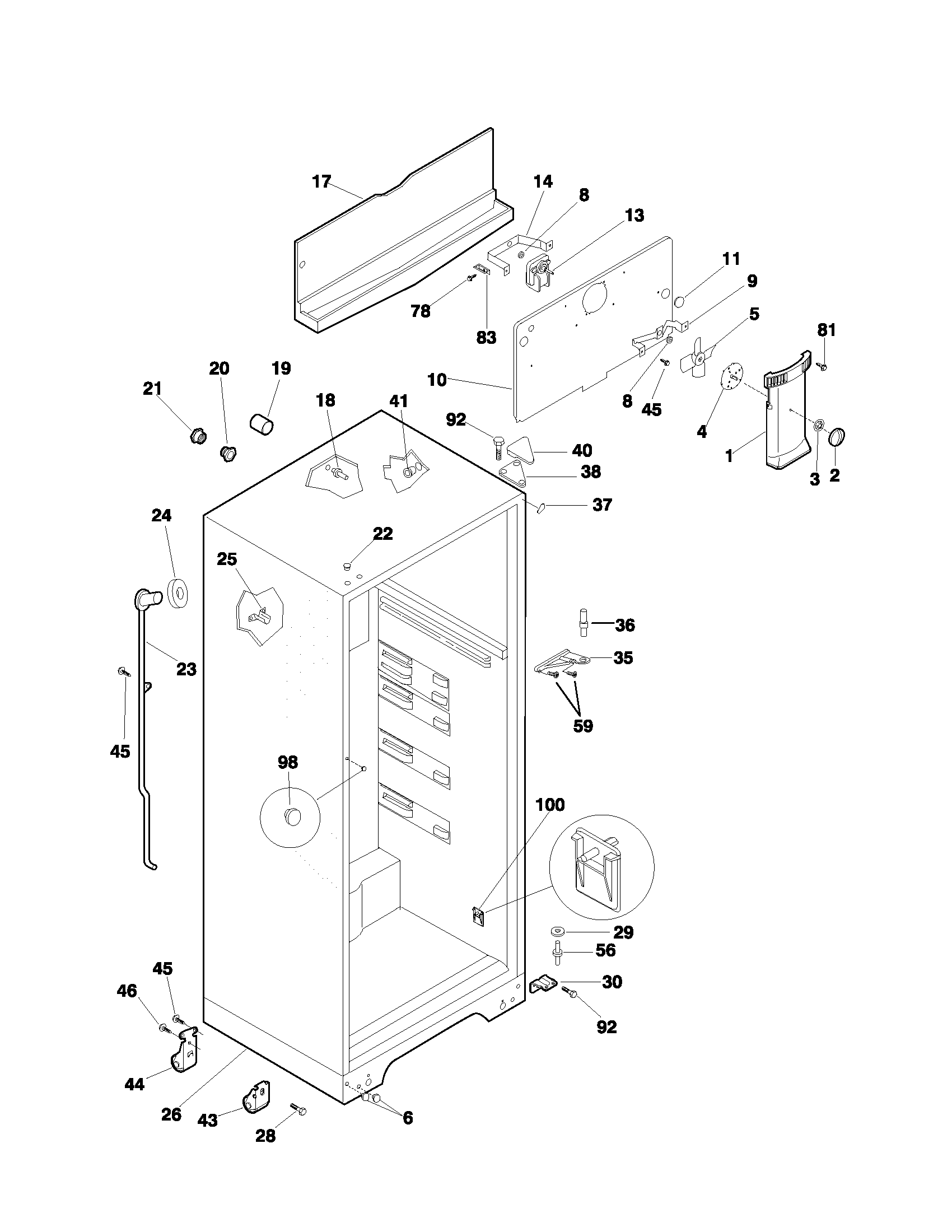

Cabinet diagram

Refrigerator fan blade

Part #218649000

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 218649000. Substitute parts can look different from the original.
BEST SELLER
$39.93 |
13% OFF Phone Price : $45.93
In Stock
Thermostat 218969902
#21

System diagram

Thermostat

Part #218969902

Replaced by #297216600

?
Manufacturer substitution
This part replaces 218969902. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Refrigerator Compressor 218973601
#29

System diagram

Refrigerator compressor

Part #218973601

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 218973601. Substitute parts can look different from the original.
BEST SELLER
$363.07 |
$12.00 OFF Phone Price : $375.07
In Stock
Chest Freezer Run Capacitor 218909901
#55

System diagram

Chest freezer run capacitor

Part #218909901

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 218909901. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Ice Maker Mold 5303320545
#17

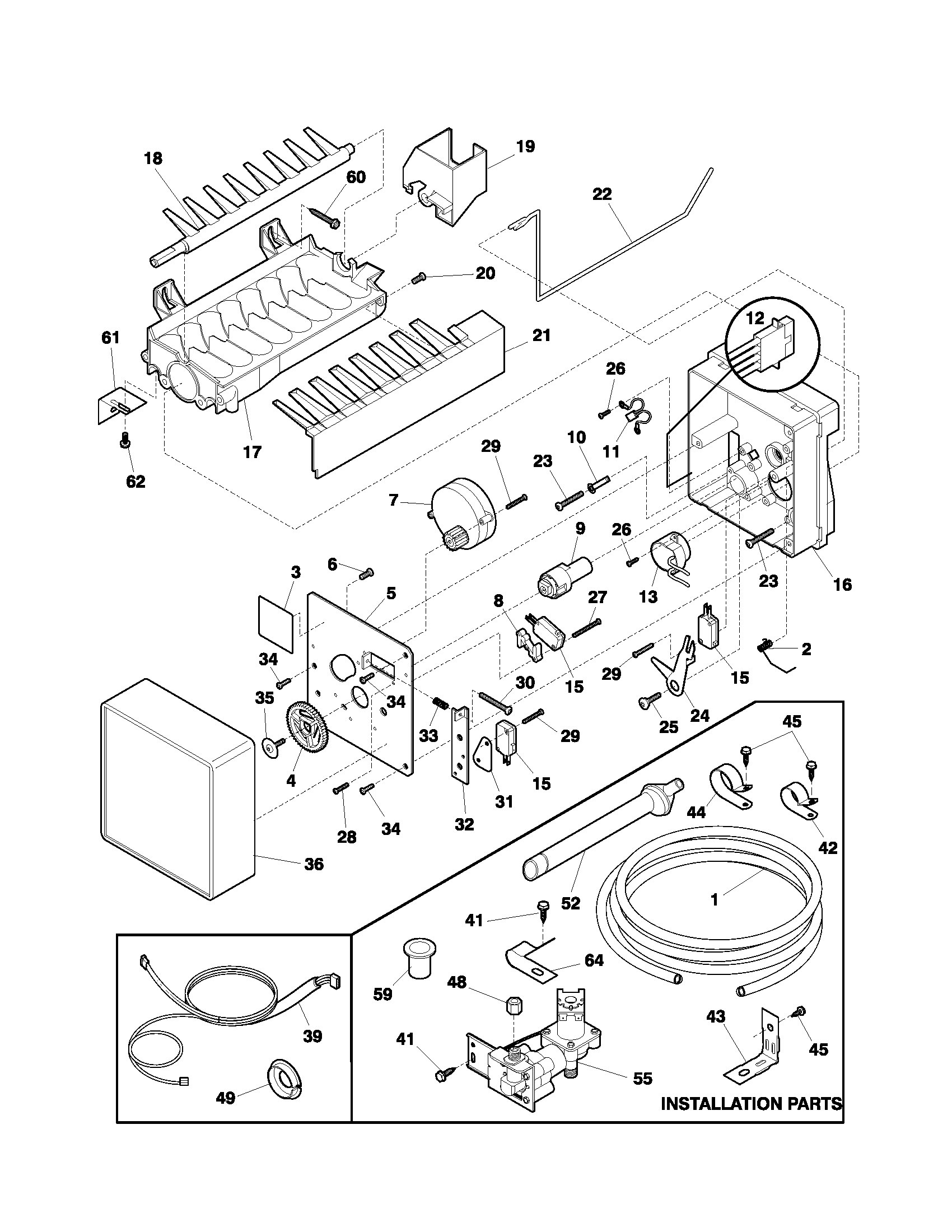

Ice maker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Refrigerator Strap 5308000110
#16

System diagram

Refrigerator strap

Part #5308000110

BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Kelvinator Freezer Door Handle Mounting Block (replaces 218396701) 218396700
#73

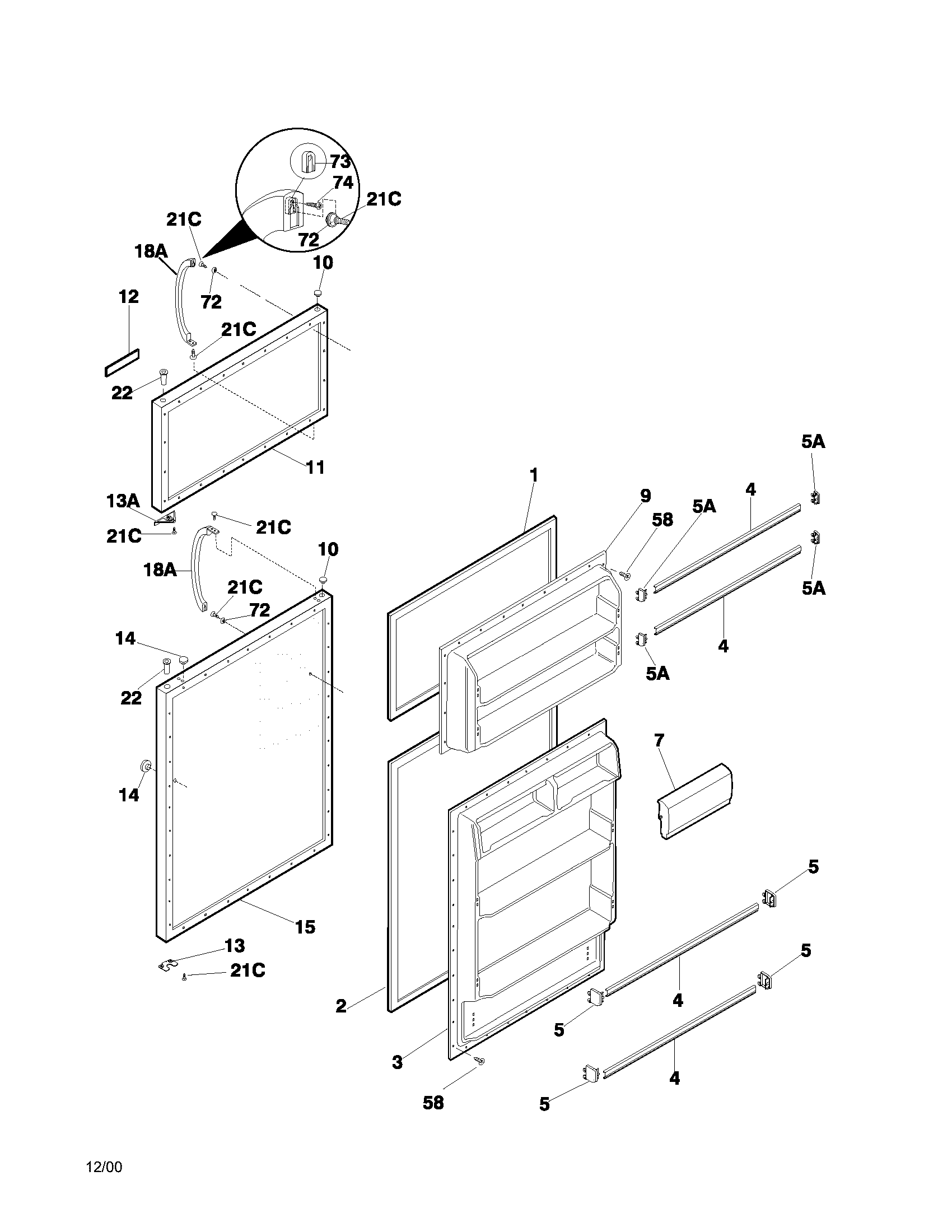

Door diagram

Kelvinator freezer door handle mounting block (replaces 218396701)

Part #218396700

$36.46 |
14% OFF Phone Price : $42.46
In Stock
Refrigerator Door Bin Support 215267701
#5

Door diagram

Refrigerator door bin support

Part #215267701

This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
