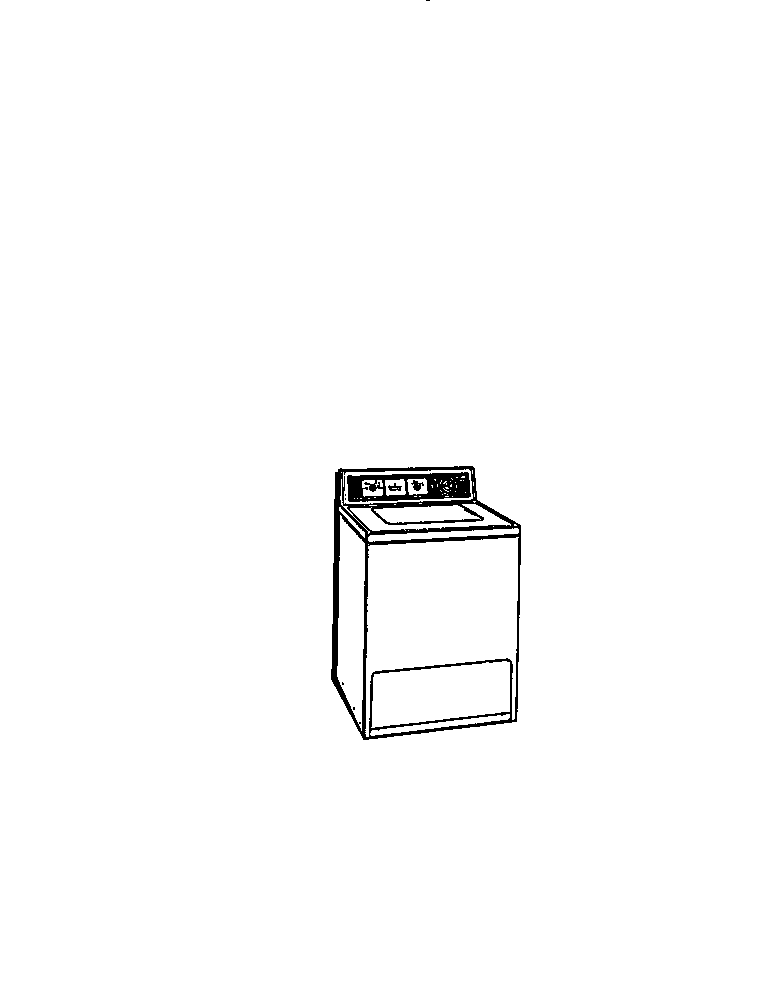

Model # AW800A0T Official Kelvinator washer - k1780-33
Here are the diagrams and repair parts for Official Kelvinator AW800A0T washer - k1780-33, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts forAW800A0T Washer - K1780-33
- #10

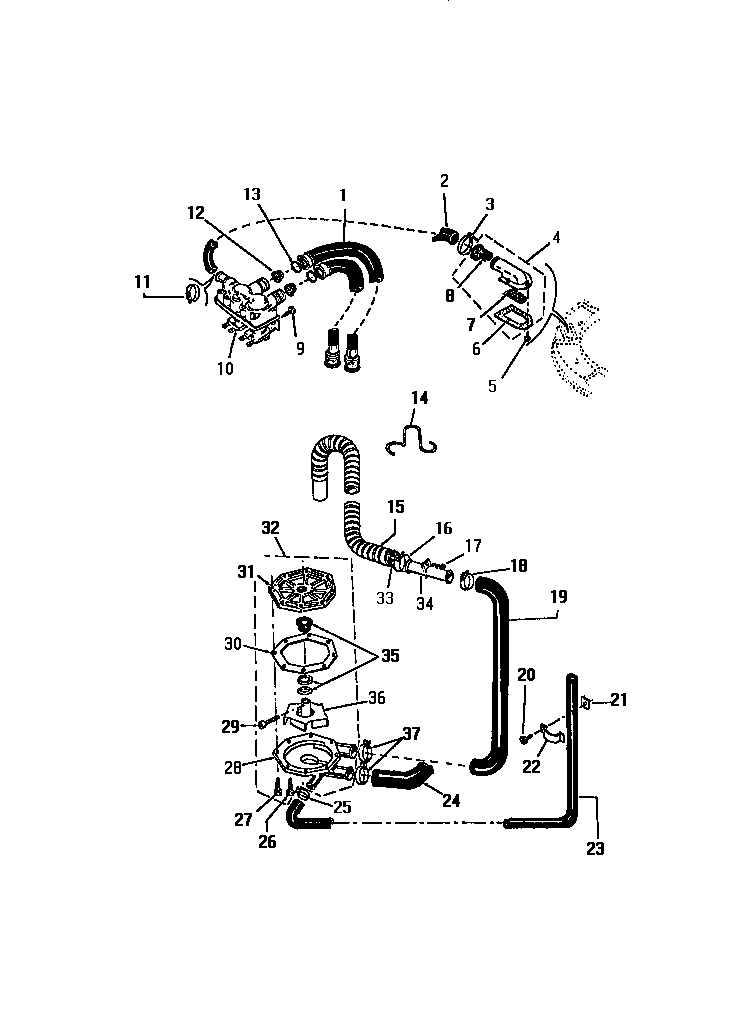

Pump, hoses diagram
Water valvePart #F136404-000
Replaced by #134190200
?Manufacturer substitutionThis part replaces F136404-000. Substitute parts can look different from the original.$126.82 |9% OFF Phone Price : $138.82In Stock - #27

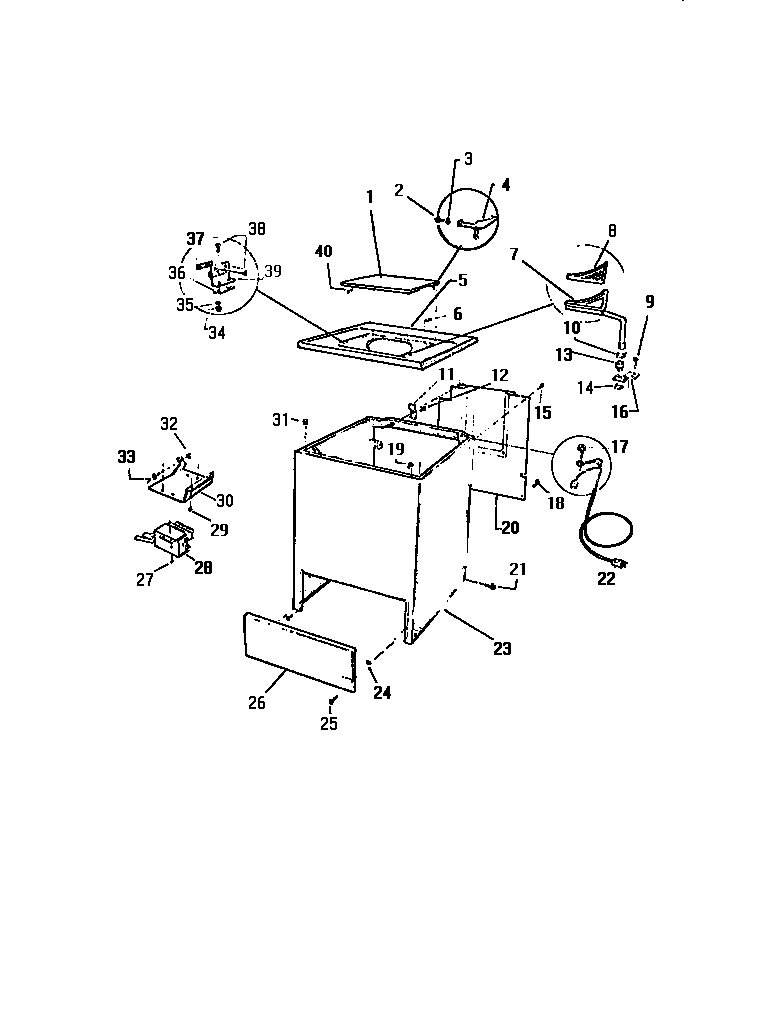

Tubs, base diagram
WasherPart #F132835-000
Replaced by #5308002401
?Manufacturer substitutionThis part replaces F132835-000. Substitute parts can look different from the original.$20.74 |22% OFF Phone Price : $26.74In Stock #NI

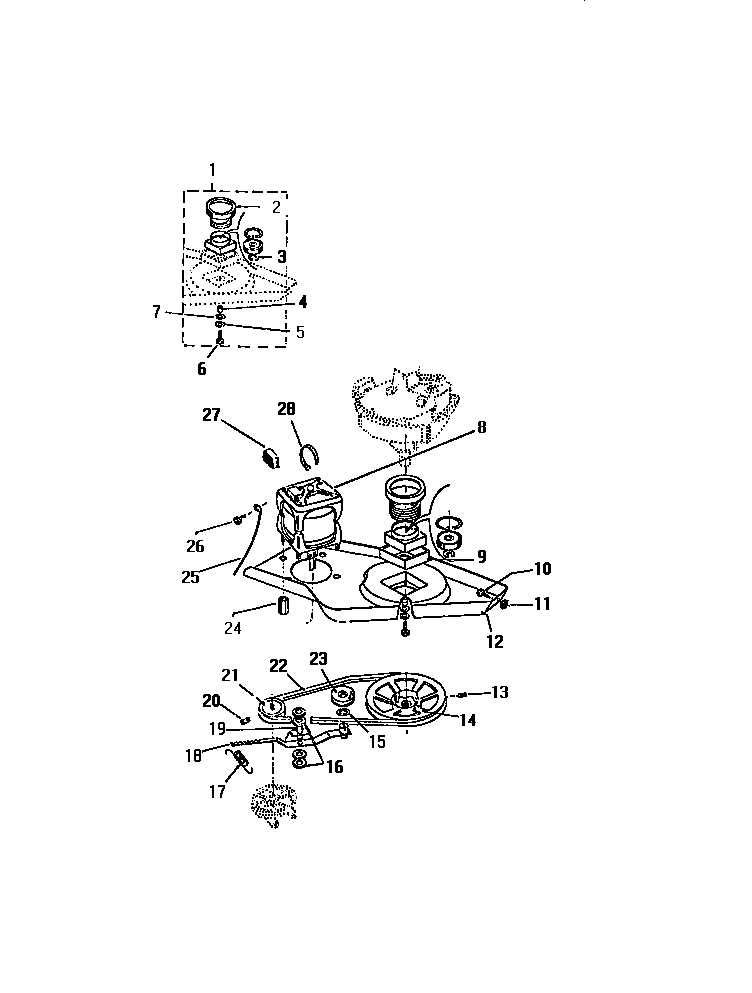

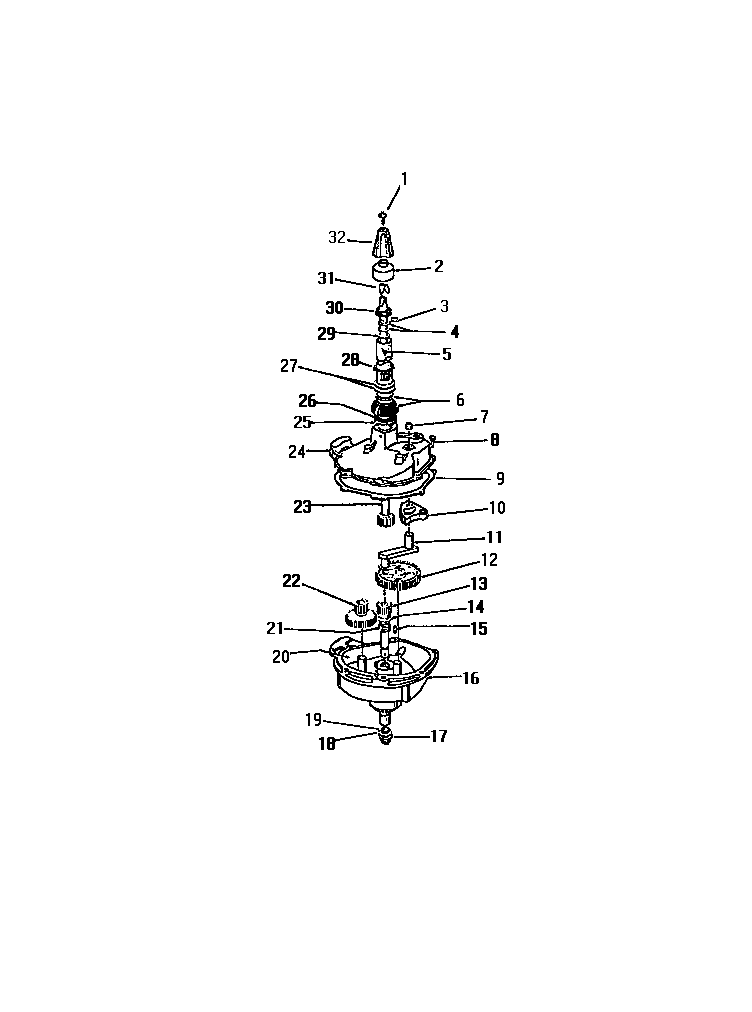

All parts diagram
Spray paint (white)Part #F94566-10
Replaced by #5303321319
?Manufacturer substitutionThis part replaces F94566-10. Substitute parts can look different from the original.This item is not returnable$15.15 |12% OFF Phone Price : $17.15In Stock- #39

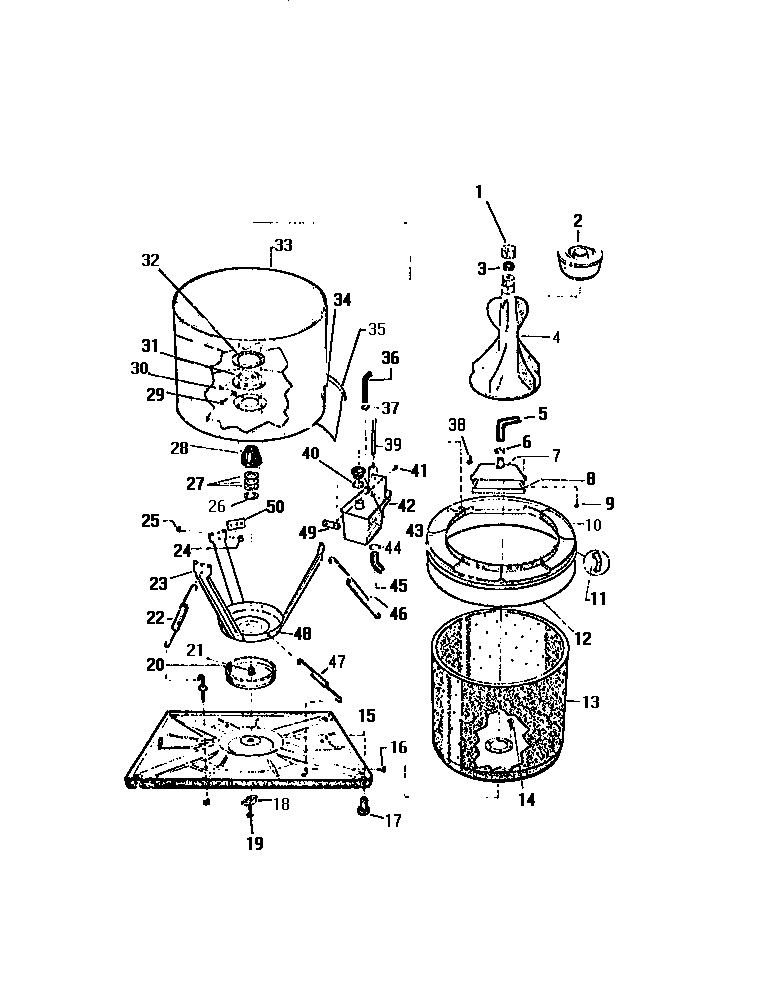

Tubs, base diagram
Pressure tubePart #F077199-008
Replaced by #5304401845
?Manufacturer substitutionThis part replaces F077199-008. Substitute parts can look different from the original.$50.79 |11% OFF Phone Price : $56.79In Stock - #29

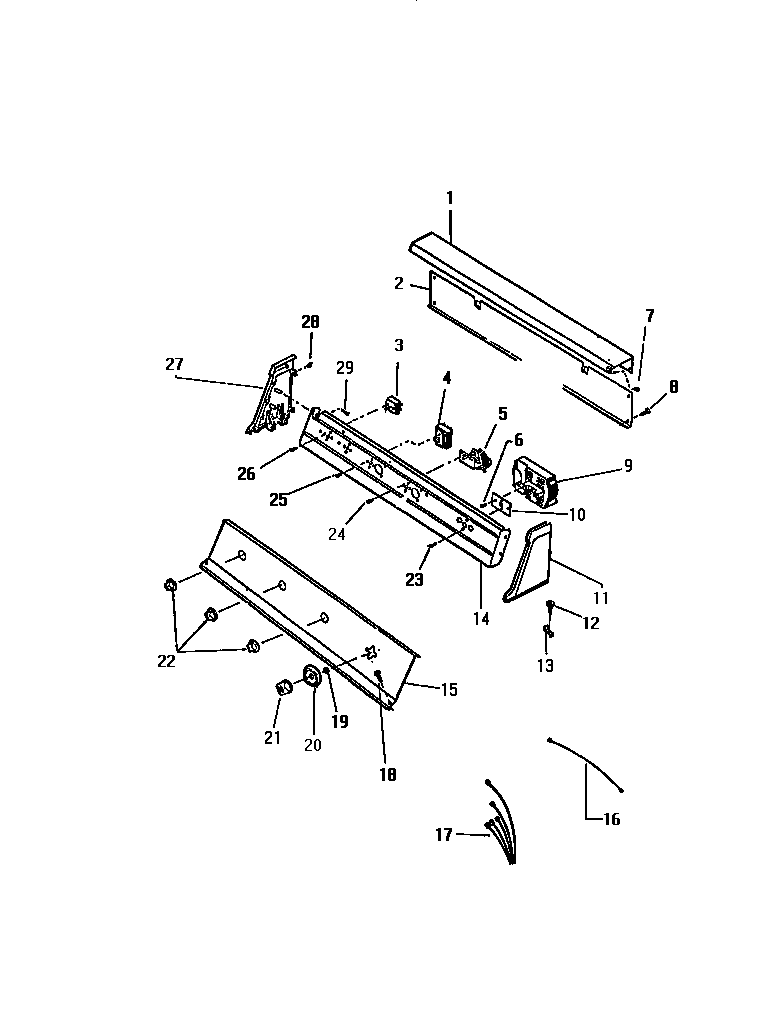

Console & controls diagram
ScrewPart #F137858-000
Replaced by #131205100
?Manufacturer substitutionThis part replaces F137858-000. Substitute parts can look different from the original.$15.72 |11% OFF Phone Price : $17.72In Stock - #12
Console & controls diagram
ScrewPart #F062942-000
Replaced by #131243800
?Manufacturer substitutionThis part replaces F062942-000. Substitute parts can look different from the original.$9.20 |10% OFF Phone Price : $10.20In Stock #NI
All parts diagram
Spray paingPart #F94566-50
Replaced by #350956
?Manufacturer substitutionThis part replaces F94566-50. Substitute parts can look different from the original.This item is not returnable$25.27 |19% OFF Phone Price : $31.27In Stock- Trim screw bracket
Part #F139524-000
Replaced by #5303015671
?Manufacturer substitutionThis part replaces F139524-000. Substitute parts can look different from the original.This item is not returnable$3.74In Stock - #26
Pump, hoses diagram
ScrewPart #F078716-000
Replaced by #5304401796
?Manufacturer substitutionThis part replaces F078716-000. Substitute parts can look different from the original.This item is not returnable$4.26In Stock - #22A
Cabinet, top panel diagram
BushingPart #F136328-000
Replaced by #5303209428
?Manufacturer substitutionThis part replaces F136328-000. Substitute parts can look different from the original.$19.71In Stock
