Jenn-Air
Dishwasher

Model # JDB9600CWX0 Official Jenn-Air dishwasher

Here are the diagrams and repair parts for Official Jenn-Air JDB9600CWX0 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

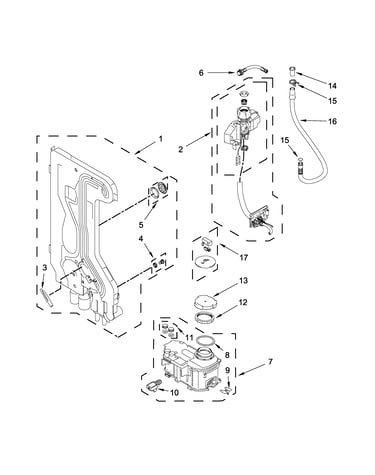

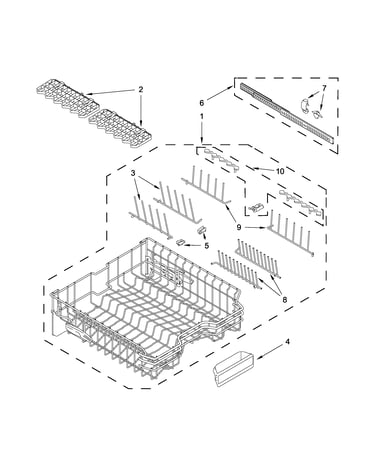

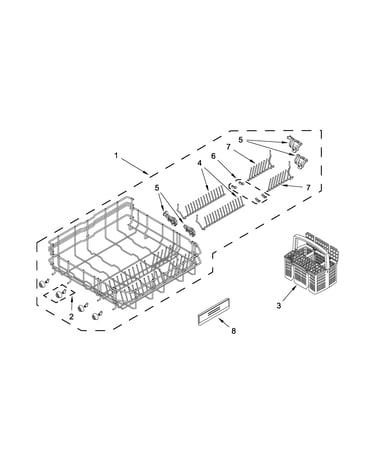

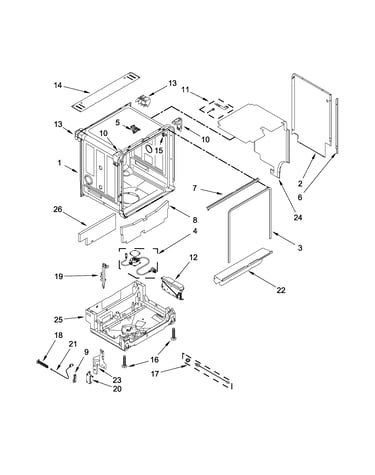

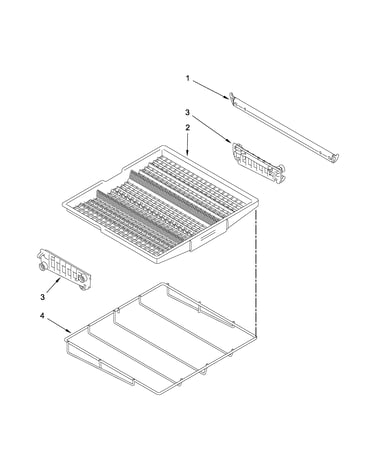

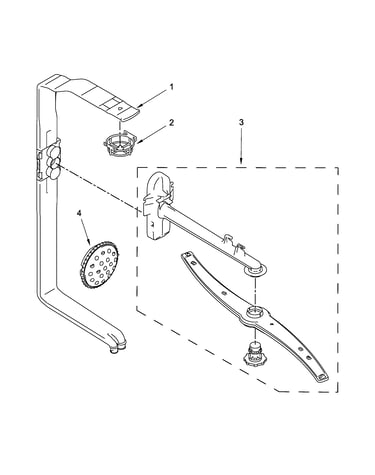

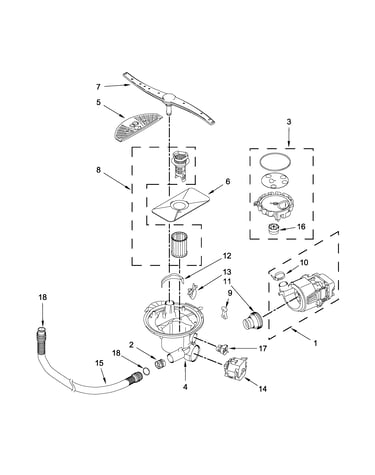

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Dishwasher Screw W10348409
#11

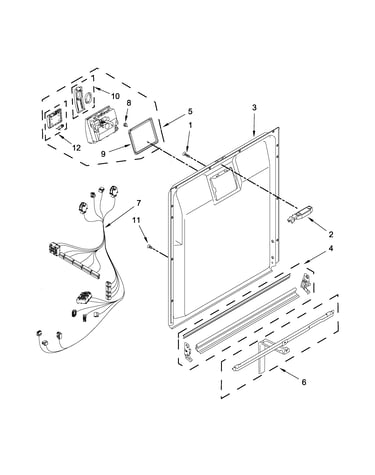

Inner door and latch parts diagram

Dishwasher screw

Part #W10348409

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces W10348409. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Paint (white) 350930
#NI

Optional parts (not included) diagram

Paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Touch-up Paint 4392899
#NI

Optional parts (not included) diagram

Touch-up paint

Part #4392899

Replaced by #4392899

?
Manufacturer substitution
This part replaces 4392899. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Dishwasher Dishrack Vinyl Touch-up Paint 676453
#NI

Optional parts (not included) diagram

Dishwasher dishrack vinyl touch-up paint

Part #676453

Replaced by #WP676453

?
Manufacturer substitution
This part replaces 676453. Substitute parts can look different from the original.
$20.76 |
22% OFF Phone Price : $26.76
In Stock
Appliance Spray Paint (biscuit) (replaces 22002901) 4392901
#NI

Optional parts (not included) diagram

Appliance spray paint (biscuit) (replaces 22002901)

Part #4392901

This item is not returnable
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Dishwasher Moisture Barrier Kit 4396277
#NI

Optional parts (not included) diagram

Dishwasher moisture barrier kit

Part #4396277

This item is not returnable
$18.04 |
10% OFF Phone Price : $20.04
In Stock
Dishwasher Dishrack Tine Tip Repair Kit (white) 4396838
#NI

Optional parts (not included) diagram

Dishwasher dishrack tine tip repair kit (white)

Part #4396838

Replaced by #4396838RC

?
Manufacturer substitution
This part replaces 4396838. Substitute parts can look different from the original.
$35.81 |
14% OFF Phone Price : $41.81
In Stock
Spray (black) 285006
#NI

Optional parts (not included) diagram

Spray (black)

Part #285006

Replaced by #285006

?
Manufacturer substitution
This part replaces 285006. Substitute parts can look different from the original.
This item is not returnable
$28.89 |
17% OFF Phone Price : $34.89
In Stock
Magic Chef Dishwasher Dishrack Vinyl Touch-up Paint, 4-oz (silver Atlantis) 4396853
#NI

Optional parts (not included) diagram

Magic chef dishwasher dishrack vinyl touch-up paint, 4-oz (silver atlantis)

Part #4396853

This item is not returnable
$26.09 |
19% OFF Phone Price : $32.09
In Stock
