Model # 502455280 Official Sears 24" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502455280 24" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

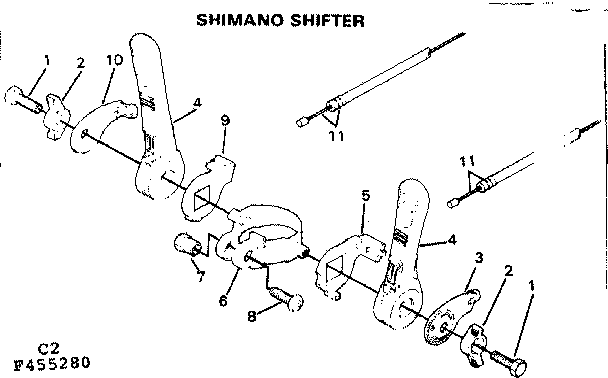

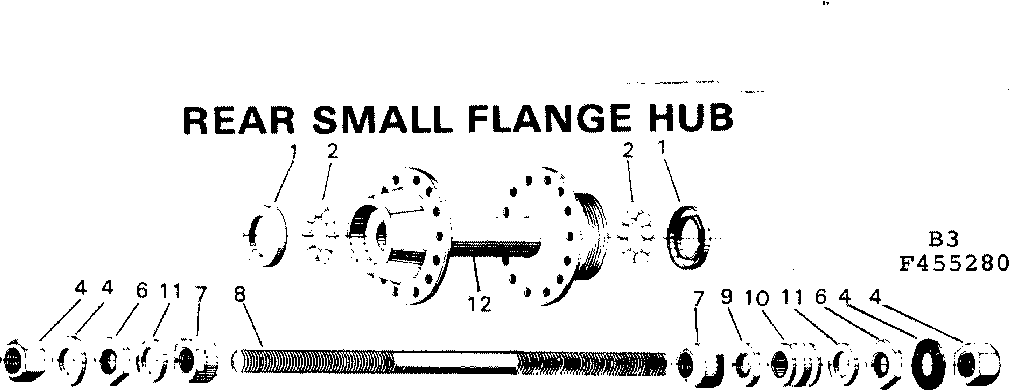

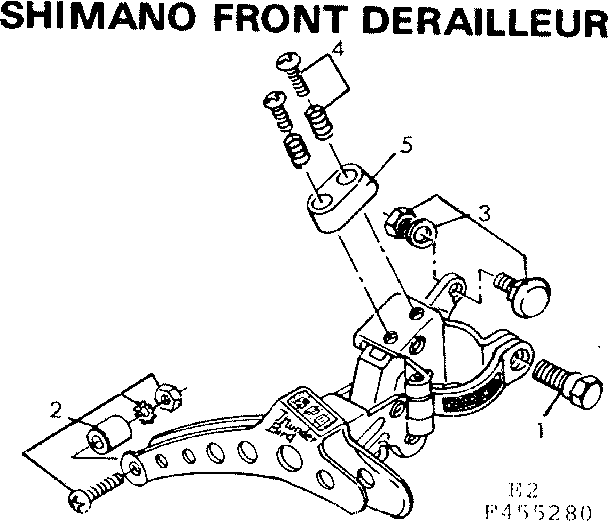

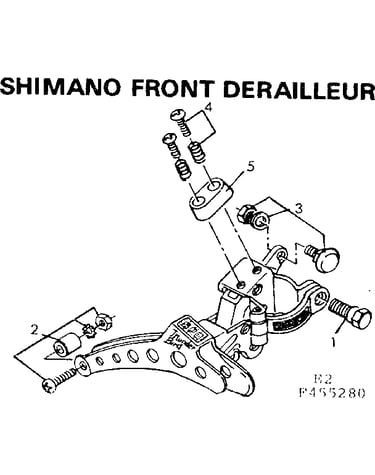

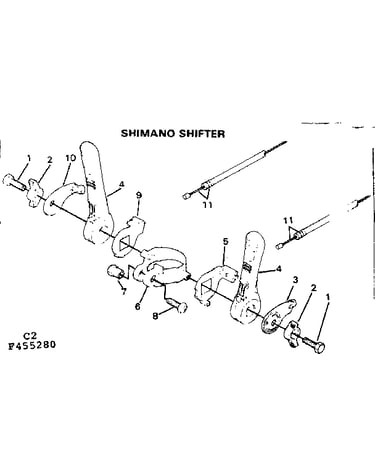

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Axle Mx 303520
#11

Unit parts diagram

Axle mx

Part #303520

The manufacturer no longer makes this part, and there's no substitute part

Skylark 302806
Skylark

Part #302806

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697
#2

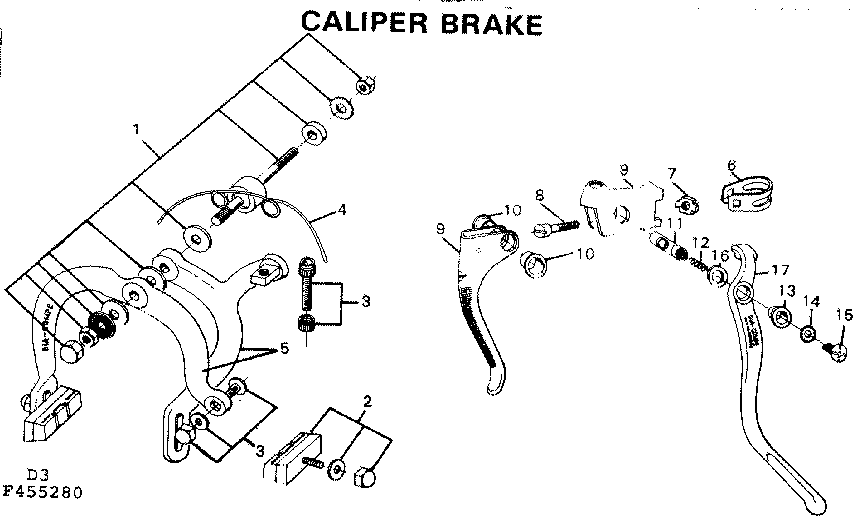

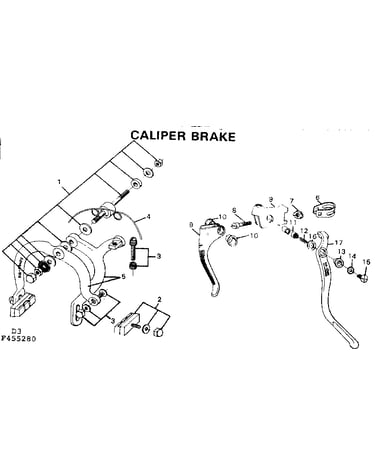

Caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Fork 27168BAK
#8

Unit parts diagram

Fork

Part #27168BAK

The manufacturer no longer makes this part, and there's no substitute part

Brake 304255

#NI

All parts diagram

Brake

Part #304255

The manufacturer no longer makes this part, and there's no substitute part

Screw 300501
#8

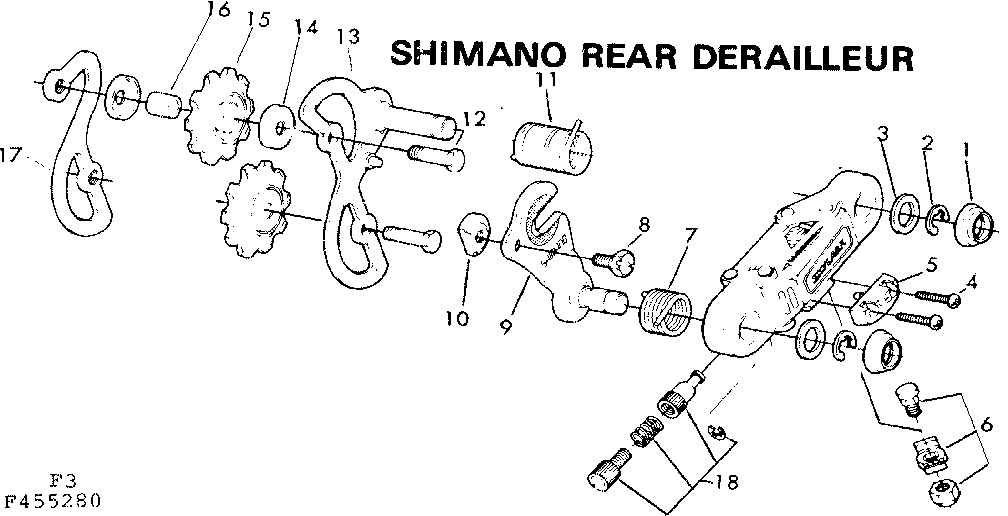

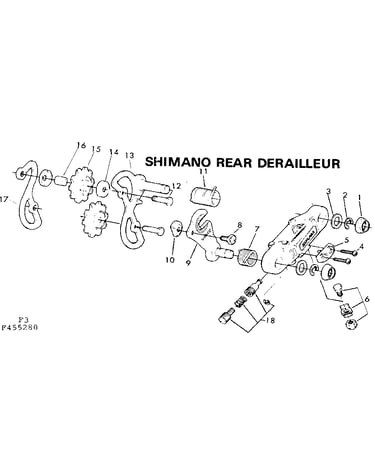

Shimano rear derailleur diagram

Screw

Part #300501

The manufacturer no longer makes this part, and there's no substitute part

Pulley Bolt 300905
#12

Shimano rear derailleur diagram

Pulley bolt

Part #300905

The manufacturer no longer makes this part, and there's no substitute part

Chain 27506
#18

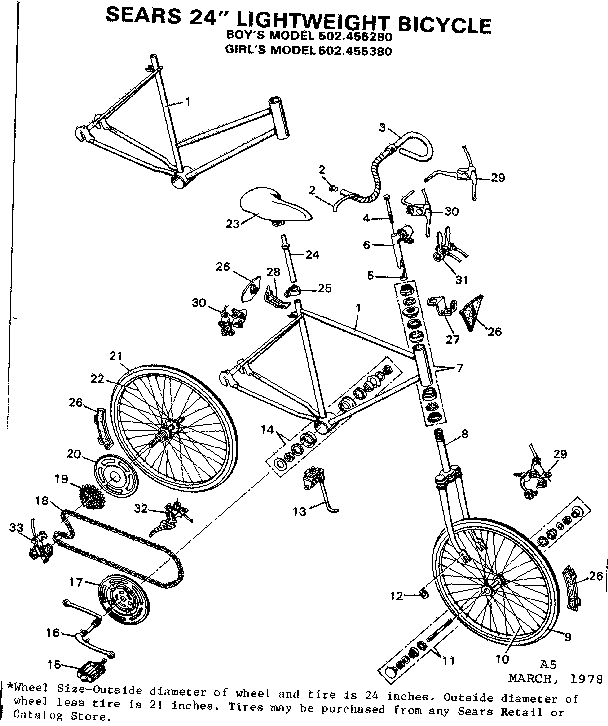

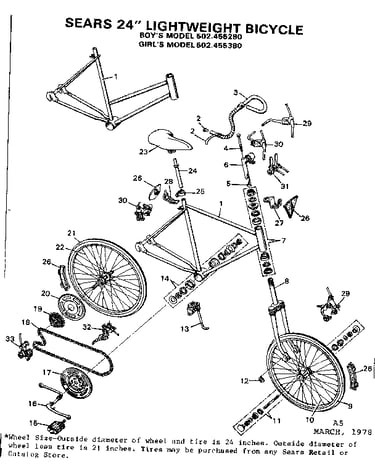

Unit parts diagram

Chain

Part #27506

The manufacturer no longer makes this part, and there's no substitute part

Lever Assembly 304244

#NI

All parts diagram

Lever assembly

Part #304244

The manufacturer no longer makes this part, and there's no substitute part

Screw 304238
#15

Caliper brake diagram

Screw

Part #304238

The manufacturer no longer makes this part, and there's no substitute part
