GE
Compact Refrigerator

Model # WMR04GAVCBB Official GE refrigerator

Here are the diagrams and repair parts for Official GE WMR04GAVCBB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Refrigerator Freezer Compartment Door WR37X10015
#20

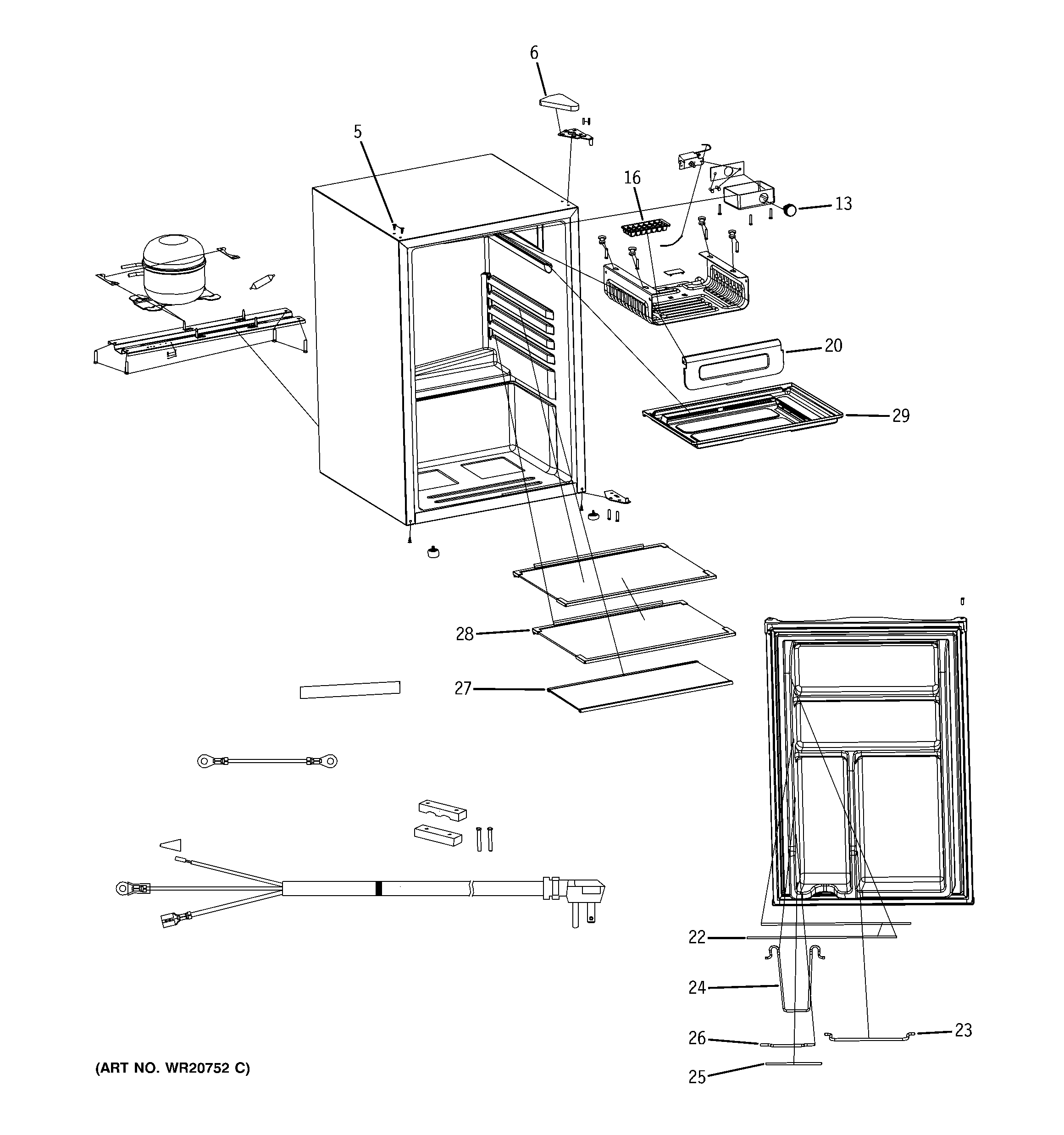

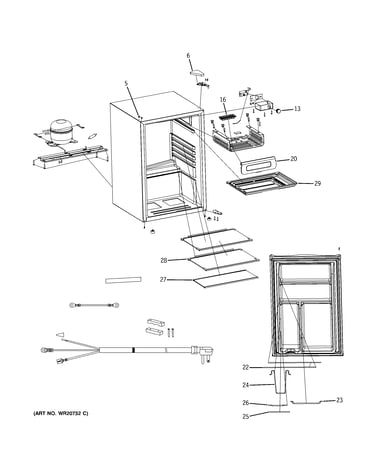

Refrigerator parts diagram

Refrigerator freezer compartment door

Part #WR37X10015

$12.09 |
14% OFF Phone Price : $14.09
In Stock
Refrigerator Plug WR02X12864
#5

Refrigerator parts diagram

Refrigerator plug

Part #WR02X12864

The manufacturer no longer makes this part, and there's no substitute part

Half Width D WR17X12633
#25

Refrigerator parts diagram

Half width d

Part #WR17X12633

The manufacturer no longer makes this part, and there's no substitute part

Half Width W WR17X12833
#23

Refrigerator parts diagram

Half width w

Part #WR17X12833

The manufacturer no longer makes this part, and there's no substitute part

Full Width W WR17X12832
#22

Refrigerator parts diagram

Full width w

Part #WR17X12832

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Control Knob WR02X12866
#13

Refrigerator parts diagram

Refrigerator control knob

Part #WR02X12866

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Glass Shelf WR71X10936
#27

Refrigerator parts diagram

Refrigerator glass shelf

Part #WR71X10936

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Glass Shelf WR71X10935
#28

Refrigerator parts diagram

Refrigerator glass shelf

Part #WR71X10935

The manufacturer no longer makes this part, and there's no substitute part

Top Hinge Co WR02X12865
#6

Refrigerator parts diagram

Top hinge co

Part #WR02X12865

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Can Rack Bar WR17X12631
#26

Refrigerator parts diagram

Refrigerator can rack bar

Part #WR17X12631

The manufacturer no longer makes this part, and there's no substitute part
