Model # JVM1350WW02 Official GE microwave

Here are the diagrams and repair parts for Official GE JVM1350WW02 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Switch WB24X801
#1446

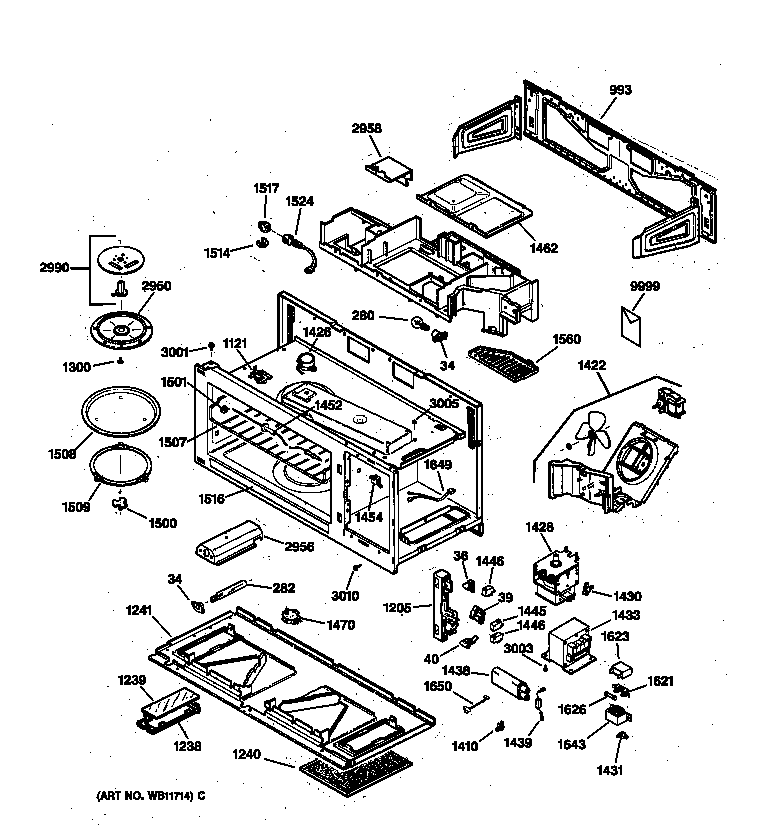

Base, stirrer & electronics diagram

Switch

Part #WB24X801

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X801. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Switch WB24X800
#1445

Base, stirrer & electronics diagram

Switch

Part #WB24X800

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X800. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Diode WB27X944
#1439

Base, stirrer & electronics diagram

Diode

Part #WB27X944

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X944. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Microwave Magnetron (replaces Wb27x10475) WB27X10017
#1428

Base, stirrer & electronics diagram

Microwave magnetron (replaces wb27x10475)

Part #WB27X10017

BEST SELLER
$189.81 |
6% OFF Phone Price : $201.81
In Stock
1/2 Siz Lamp WB36X936
#282

Base, stirrer & electronics diagram

1/2 siz lamp

Part #WB36X936

Replaced by #WB36X10003

?
Manufacturer substitution
This part replaces WB36X936. Substitute parts can look different from the original.
This item is not returnable
$13.60 |
13% OFF Phone Price : $15.60
In Stock
Microwave/hood Lamp WB2X4235
#280

Base, stirrer & electronics diagram

Microwave/hood lamp

Part #WB2X4235

Replaced by #WB36X10003

?
Manufacturer substitution
This part replaces WB2X4235. Substitute parts can look different from the original.
This item is not returnable
$13.60 |
13% OFF Phone Price : $15.60
In Stock
Lamp Socket WB8X310
#34

Base, stirrer & electronics diagram

Lamp socket

Part #WB8X310

Replaced by #WB08X10016

?
Manufacturer substitution
This part replaces WB8X310. Substitute parts can look different from the original.
This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Hldr Sens WB6X385
#1514

Base, stirrer & electronics diagram

Hldr sens

Part #WB6X385

Replaced by #WB6X549

?
Manufacturer substitution
This part replaces WB6X385. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Crystal L WB36X945
#1239

Base, stirrer & electronics diagram

Crystal l

Part #WB36X945

Replaced by #WB36X10071

?
Manufacturer substitution
This part replaces WB36X945. Substitute parts can look different from the original.
This item is not returnable
$16.70 |
11% OFF Phone Price : $18.70
In Stock
Handle WB15X335
#1801

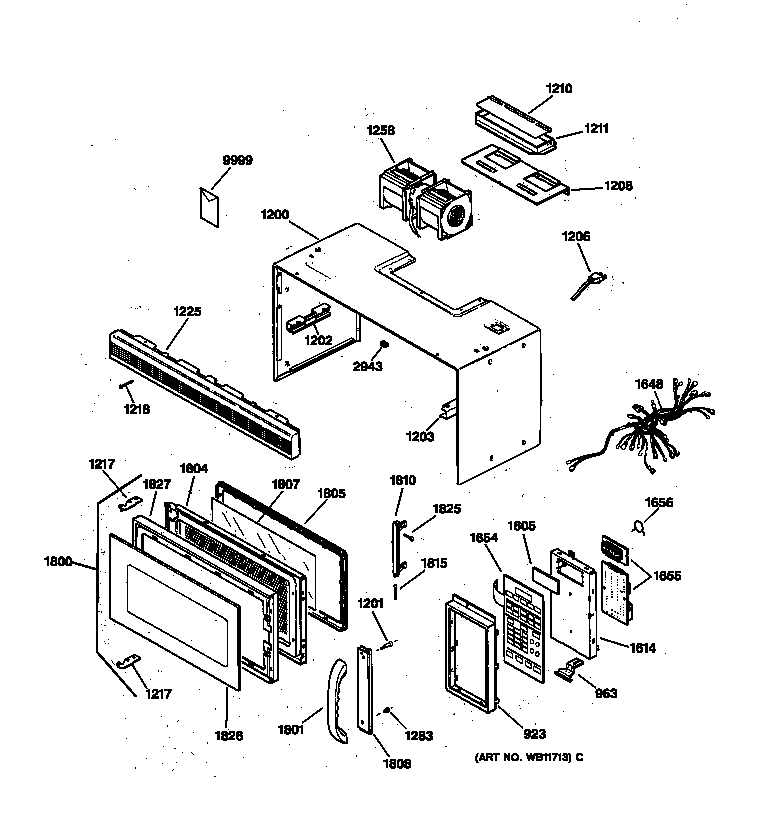

Case, door & controls diagram

Handle

Part #WB15X335

The manufacturer no longer makes this part, and there's no substitute part
