Williams
Wall Heater

Model # 22DV-3B NAT Official Williams wall furnace

Here are the diagrams and repair parts for Official Williams 22DV-3B-NAT wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Box Cover 6A23
#32

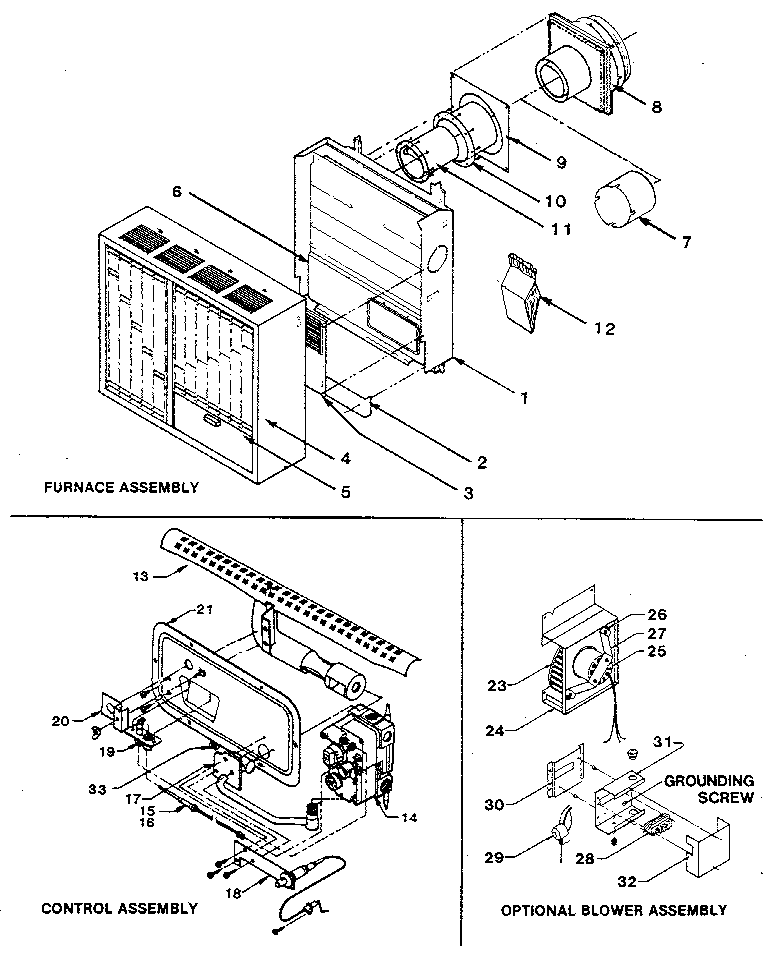

Williams gravity direct vent wall furnace diagram

Box cover

Part #6A23

The manufacturer no longer makes this part, and there's no substitute part

Extn Assy 8A51
#11

Williams gravity direct vent wall furnace diagram

Extn assy

Part #8A51

The manufacturer no longer makes this part, and there's no substitute part

Spacer Plate 8B64
#8

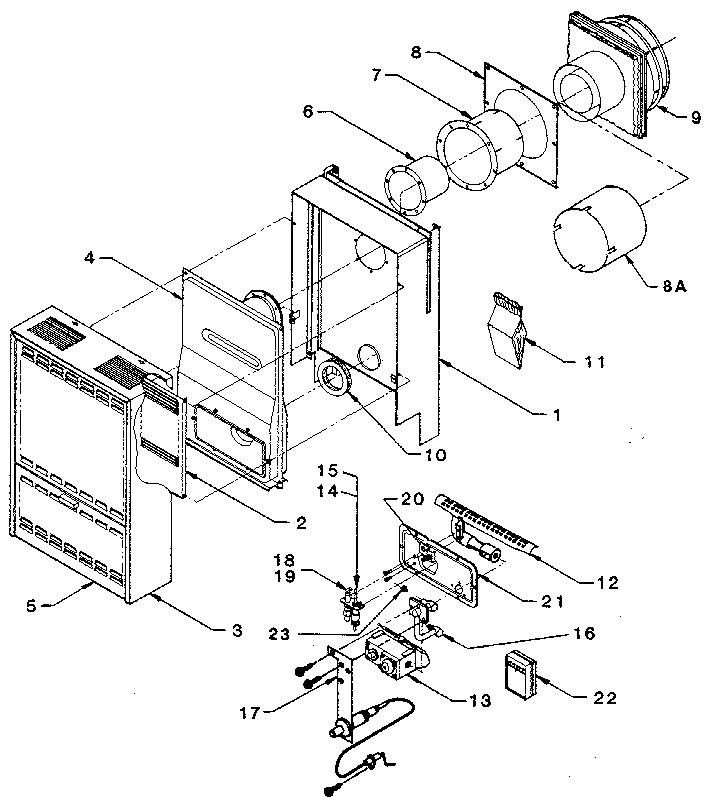

Cabinet and body assembly diagram

Spacer plate

Part #8B64

The manufacturer no longer makes this part, and there's no substitute part

Cover Plate 6B25
#2

Williams gravity direct vent wall furnace diagram

Cover plate

Part #6B25

The manufacturer no longer makes this part, and there's no substitute part

Support 6A93
#27

Williams gravity direct vent wall furnace diagram

Support

Part #6A93

The manufacturer no longer makes this part, and there's no substitute part

Casing 8B62
#1

Cabinet and body assembly diagram

Casing

Part #8B62

The manufacturer no longer makes this part, and there's no substitute part

Bracket 6A24
#30

Williams gravity direct vent wall furnace diagram

Bracket

Part #6A24

The manufacturer no longer makes this part, and there's no substitute part

Valve P295300A
Valve

Part #P295300A

The manufacturer no longer makes this part, and there's no substitute part

Switch Box 6B33
#31

Williams gravity direct vent wall furnace diagram

Switch box

Part #6B33

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel P130700
#23

Williams gravity direct vent wall furnace diagram

Blower wheel

Part #P130700

The manufacturer no longer makes this part, and there's no substitute part
