Kenmore Elite
Electric Cooktop

Model # 79041289001 Official Kenmore Elite cooktop

Here are the diagrams and repair parts for Official Kenmore Elite 79041289001 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

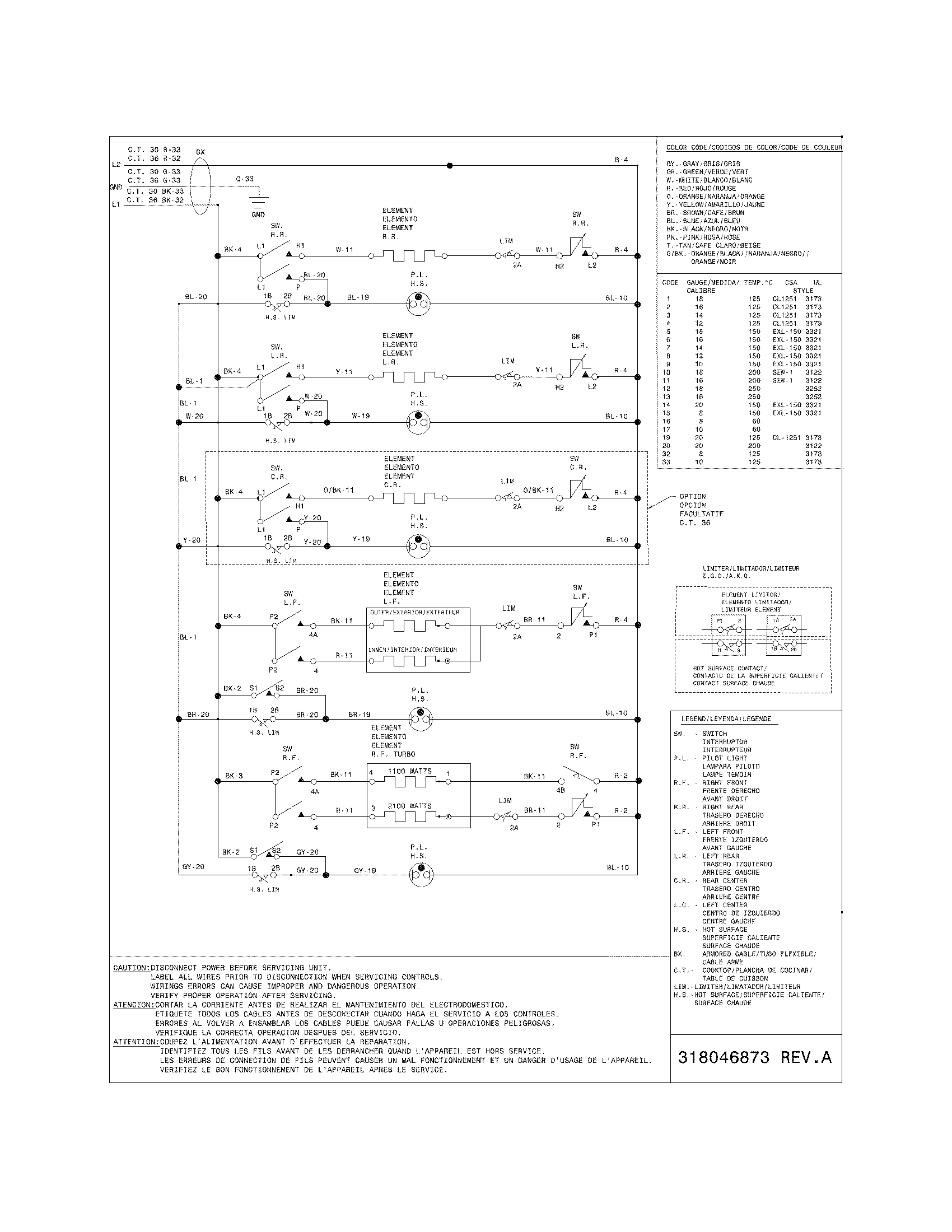

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Range Radiant Surface Element 316530000
#15C

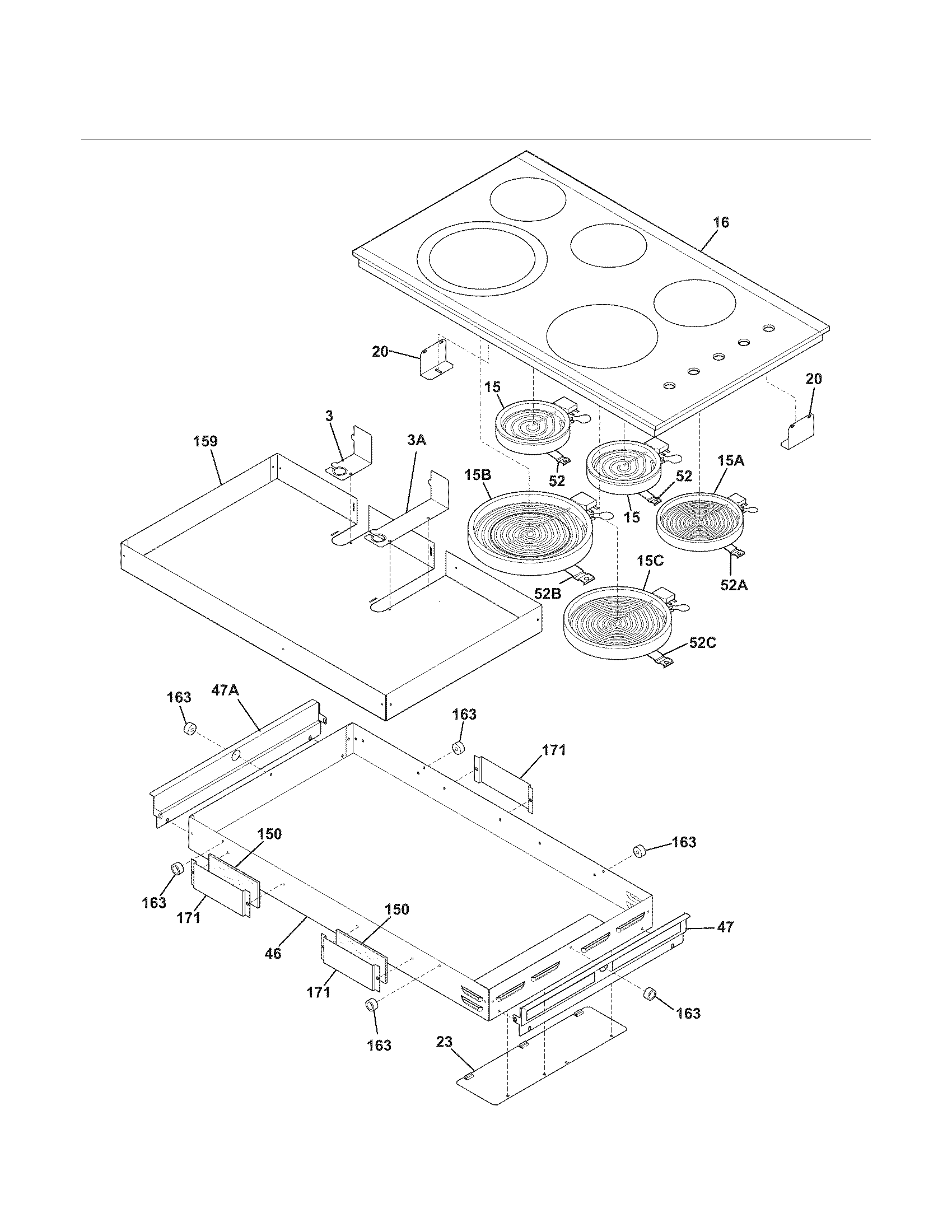

Mian top/surface units diagram

Range radiant surface element

Part #316530000

Replaced by #316530001

?
Manufacturer substitution
This part replaces 316530000. Substitute parts can look different from the original.
BEST SELLER
$158.22 |
7% OFF Phone Price : $170.22
In Stock
Range Surface Element Control Switch (replaces 318220011, 318369609) 318293824
#54

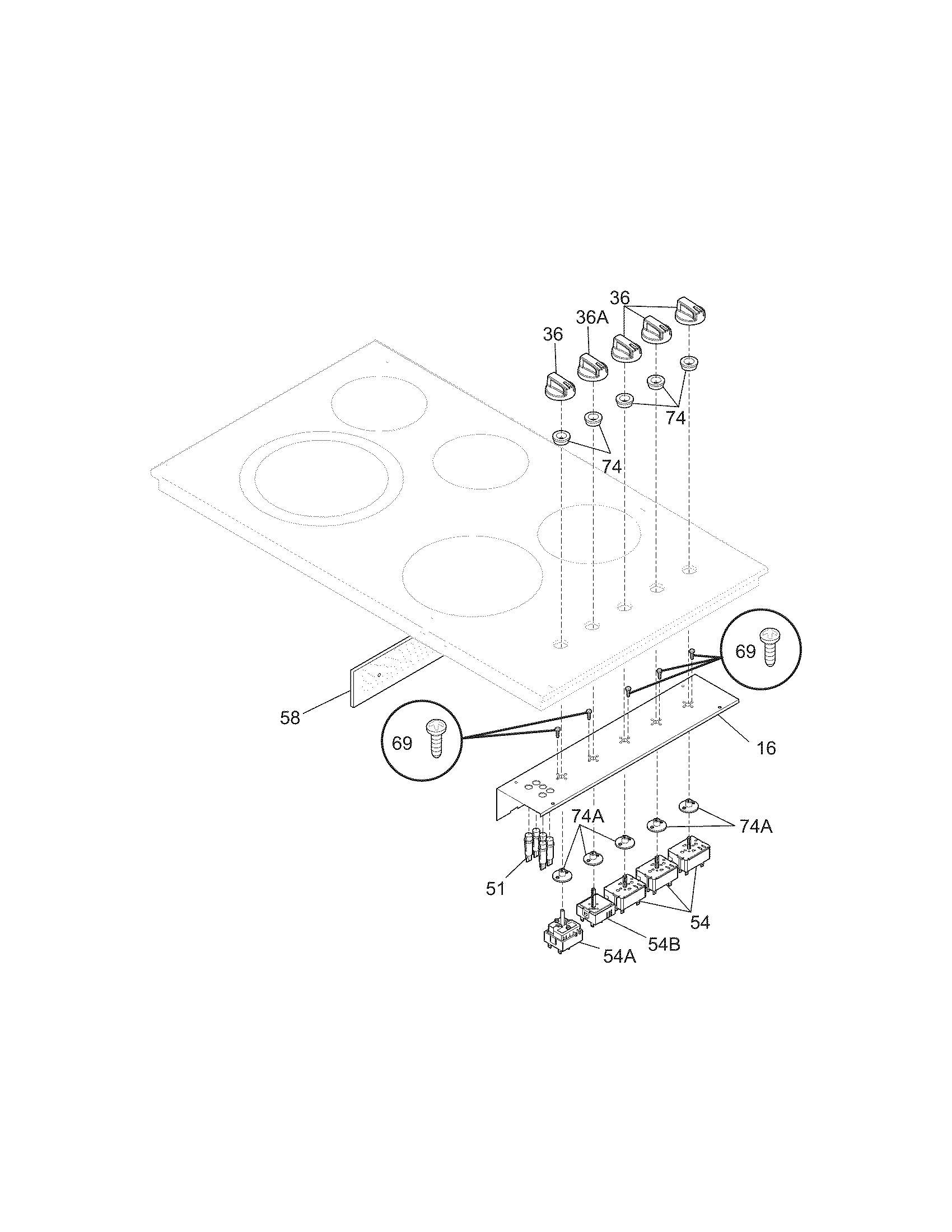

Control panel diagram

Range surface element control switch (replaces 318220011, 318369609)

Part #318293824

BEST SELLER
$70.51 |
8% OFF Phone Price : $76.51
In Stock
Range Radiant Surface Element, 6.5-in 316282103
#15B

Mian top/surface units diagram

Range radiant surface element, 6.5-in

Part #316282103

$208.42 |
5% OFF Phone Price : $220.42
In Stock
Electrolux Appliance Stainless Steel Cleaner, 1-oz 316136900
#NI

Mian top/surface units diagram

Electrolux appliance stainless steel cleaner, 1-oz

Part #316136900

$22.75 |
21% OFF Phone Price : $28.75
In Stock
Cooktop Element Control Knob Bushing 318146010
#74A

Control panel diagram

Cooktop element control knob bushing

Part #318146010

$18.86
In Stock
Range Screw, #10-24 X 0.375-in 08011955
#NI

Control panel diagram

Range screw, #10-24 x 0.375-in

Part #08011955

Replaced by #5303311174

?
Manufacturer substitution
This part replaces 08011955. Substitute parts can look different from the original.
This item is not returnable
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Crosley Range Surface Element Mounting Spring, 3,000-watt 318122010
#52C

Mian top/surface units diagram

Crosley range surface element mounting spring, 3,000-watt

Part #318122010

$45.71
In Stock
Range Screw 5303323140
#NI

Mian top/surface units diagram

Range screw

Part #5303323140

$11.17
In Stock
Cooktop Cover 318371420
#3

Mian top/surface units diagram

Cooktop cover

Part #318371420

$10.51
In Stock
Range Surface Element Control Switch (replaces 903097-9050) 318191000
#54B

Control panel diagram

Range surface element control switch (replaces 903097-9050)

Part #318191000

$67.09 |
8% OFF Phone Price : $73.09
In Stock
