Model # KBFN506ESS06 Official KitchenAid bottom-mount refrigerator

Here are the diagrams and repair parts for Official KitchenAid KBFN506ESS06 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

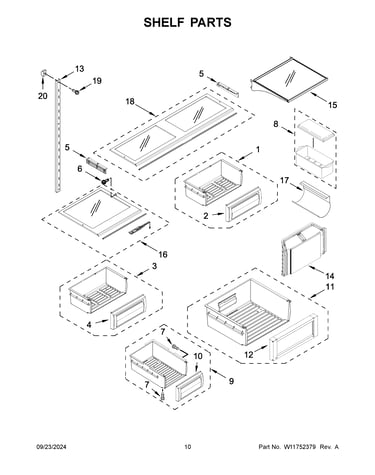

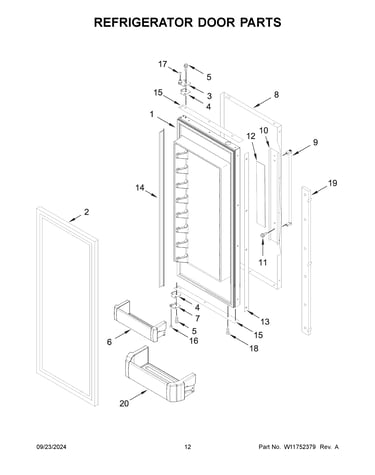

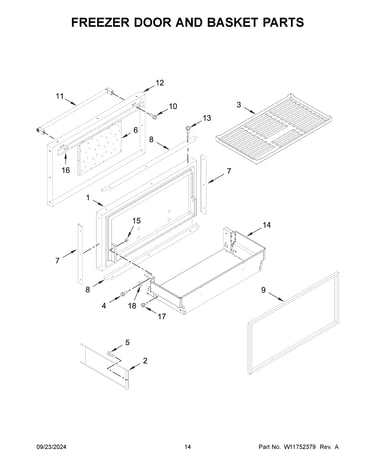

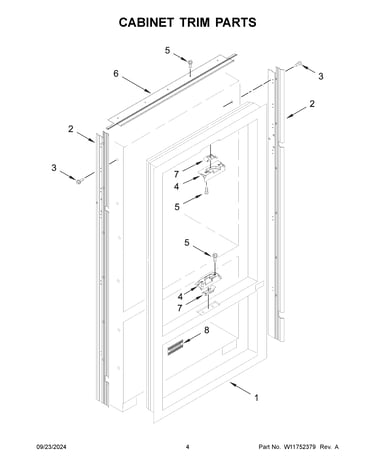

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 283 parts  |
Refrigerator Filter W10121146
#26

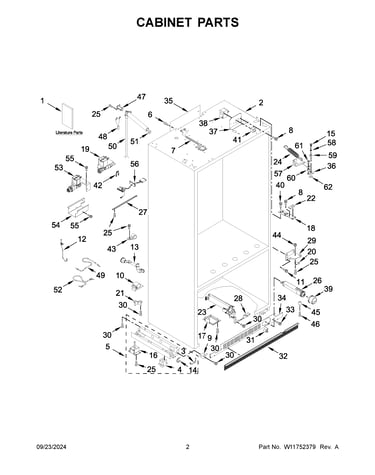

Cabinet parts diagram

Refrigerator filter

Part #W10121146

Replaced by #EDR3RXD1

?
Manufacturer substitution
This part replaces W10121146. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Air Filter W10315189
#18

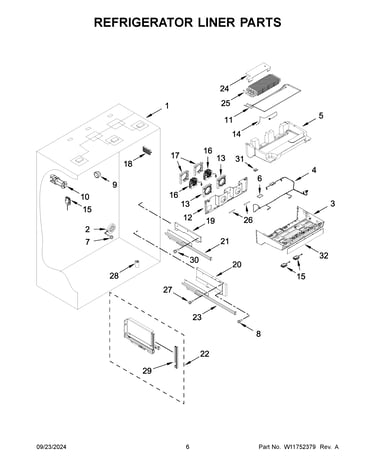

Refrigerator liner parts diagram

Refrigerator air filter

Part #W10315189

Replaced by #W10311524

?
Manufacturer substitution
This part replaces W10315189. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$16.74 |
11% OFF Phone Price : $18.74
In Stock
Refrigerator Thermistor W10280386
#26

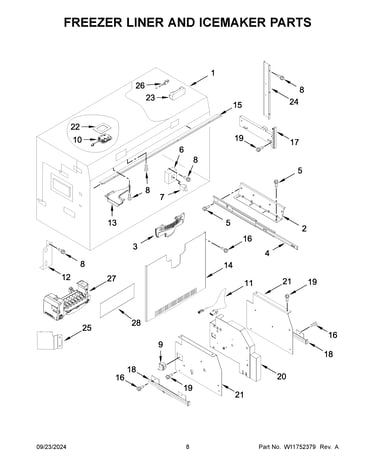

Freezer liner and icemaker parts diagram

Refrigerator thermistor

Part #W10280386

Replaced by #W10316760

?
Manufacturer substitution
This part replaces W10280386. Substitute parts can look different from the original.
BEST SELLER
$47.88 |
11% OFF Phone Price : $53.88
In Stock
Control-ps,v W10624574
#11

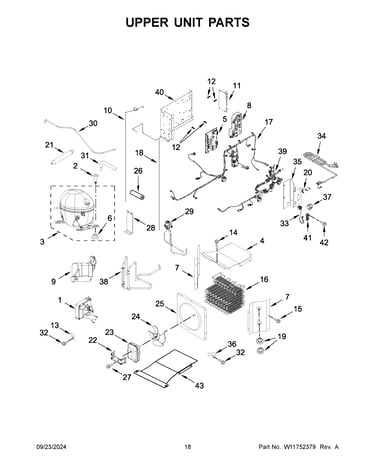

Upper unit parts diagram

Control-ps,v

Part #W10624574

Replaced by #WPW10624574

?
Manufacturer substitution
This part replaces W10624574. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$182.64 |
6% OFF Phone Price : $194.64
In Stock
Drier Tube W10805035
#21

Upper unit parts diagram

Drier tube

Part #W10805035

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W10805035. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
20% OFF Phone Price : $30.38
In Stock
Refrigerator Evaporator Fan Motor W10556724
#10

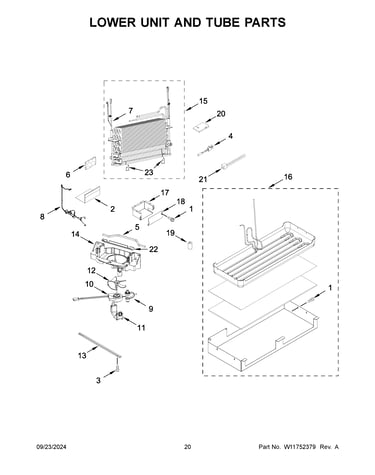

Lower unit and tube parts diagram

Refrigerator evaporator fan motor

Part #W10556724

Replaced by #W11396715

?
Manufacturer substitution
This part replaces W10556724. Substitute parts can look different from the original.
BEST SELLER
$63.20 |
9% OFF Phone Price : $69.20
In Stock
Refrigerator Water Filter Housing W10121140
#23

Cabinet parts diagram

Refrigerator water filter housing

Part #W10121140

Replaced by #WPW10121140

?
Manufacturer substitution
This part replaces W10121140. Substitute parts can look different from the original.
BEST SELLER
$101.37 |
11% OFF Phone Price : $113.37
In Stock
Screw 487539
#7

Refrigerator liner parts diagram

Screw

Part #487539

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487539. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Appliance Silicone Lubricant 542638
#NI

Optional parts diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Refrigerator Screw 8281164
#8

Cabinet parts diagram

Refrigerator screw

Part #8281164

Replaced by #WP8281164

?
Manufacturer substitution
This part replaces 8281164. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
