Model # 1555366741 Official Kenmore ductless range hood (shaded coppertone)

Here are the diagrams and repair parts for Official Kenmore 1555366741 ductless range hood (shaded coppertone), as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Cover Y11484
#27

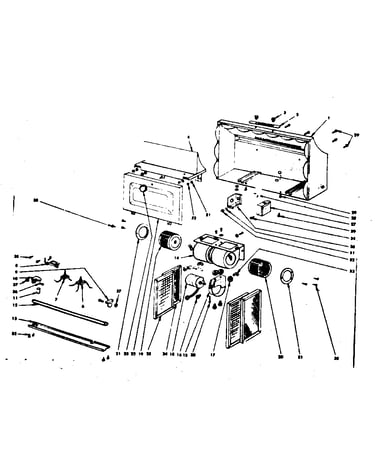

Ductless range hood diagram

Cover

Part #Y11484

The manufacturer no longer makes this part, and there's no substitute part

Tap Screw GM162874
#34

Ductless range hood diagram

Tap screw

Part #GM162874

The manufacturer no longer makes this part, and there's no substitute part

Screw GM141526
#29

Ductless range hood diagram

Screw

Part #GM141526

The manufacturer no longer makes this part, and there's no substitute part

Light K12966
#12

Ductless range hood diagram

Light

Part #K12966

The manufacturer no longer makes this part, and there's no substitute part

Emblem K13530
#2

Ductless range hood diagram

Emblem

Part #K13530

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Cover Y12068
#22

Ductless range hood diagram

Range hood blower cover

Part #Y12068

The manufacturer no longer makes this part, and there's no substitute part

Duct Y12165
#4

Ductless range hood diagram

Duct

Part #Y12165

The manufacturer no longer makes this part, and there's no substitute part

Canopy Y12163
#1B

Ductless range hood diagram

Canopy

Part #Y12163

The manufacturer no longer makes this part, and there's no substitute part

Nut Z3110
#16

Ductless range hood diagram

Nut

Part #Z3110

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual F2195

#NI

All parts diagram

Owner's manual

Part #F2195

The manufacturer no longer makes this part, and there's no substitute part
