Craftsman
Electric Walk-Behind Mower

Model # 663913841 Official Craftsman electric walk behind lawnmower

Here are the diagrams and repair parts for Official Craftsman 663913841 electric walk behind lawnmower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |

Locking Knob 95150-1
#50

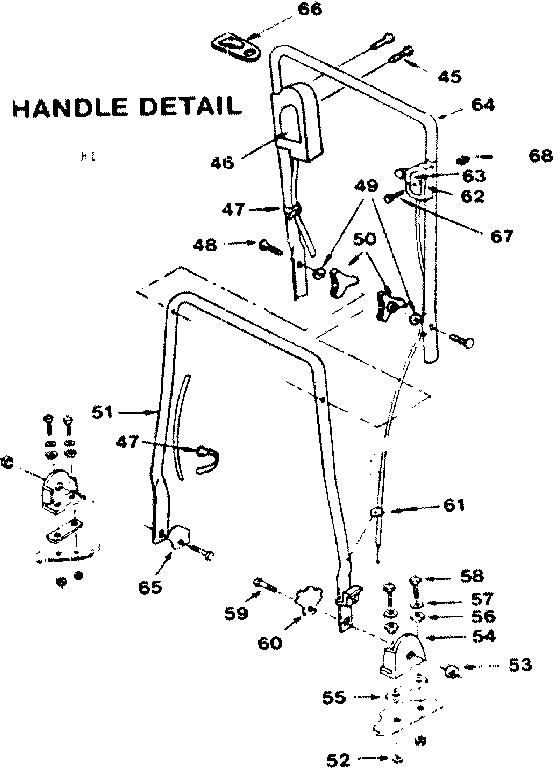

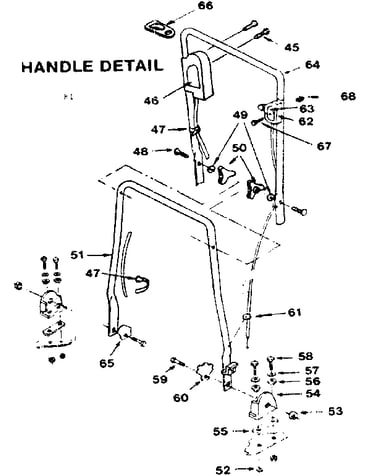

Handle assembly diagram

Locking knob

Part #95150-1

The manufacturer no longer makes this part, and there's no substitute part

Tie 93839-1
#47

Handle assembly diagram

Tie

Part #93839-1

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD533107
#29

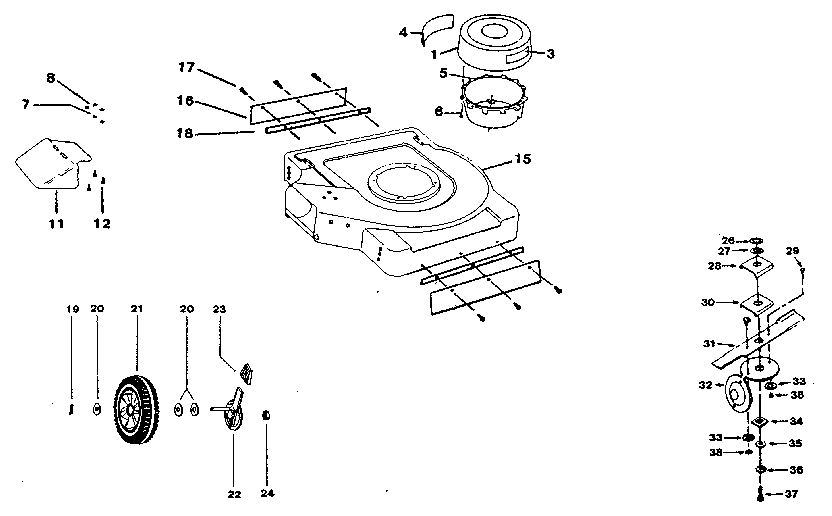

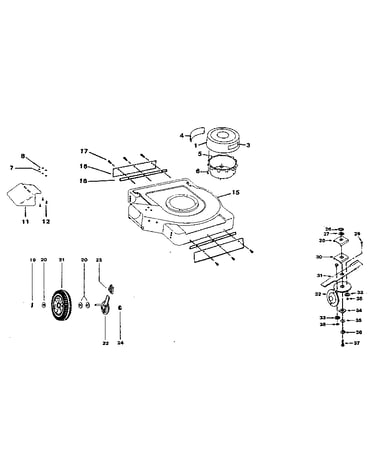

19" deck deluxe diagram

Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut STD541431
#38

19" deck deluxe diagram

Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Bolt 7535
#37

19" deck deluxe diagram

Bolt

Part #7535

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551025
#76

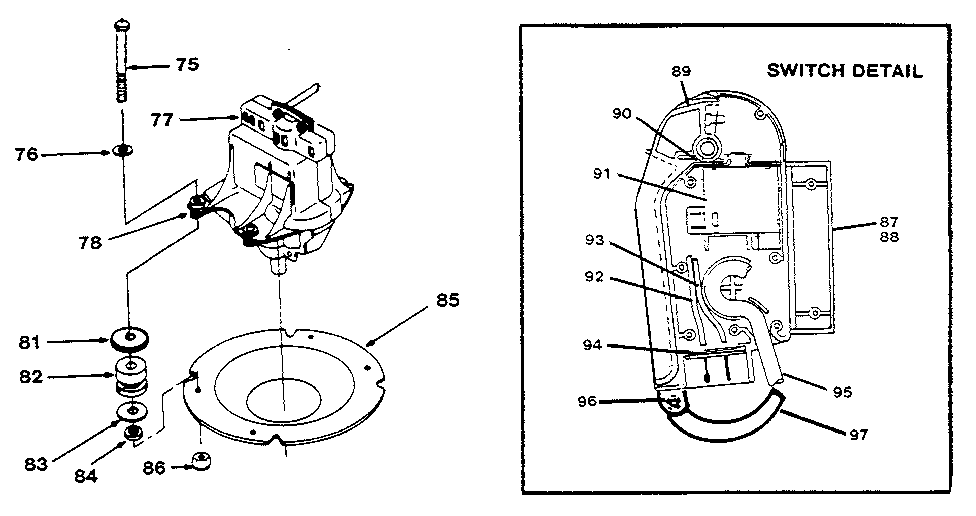

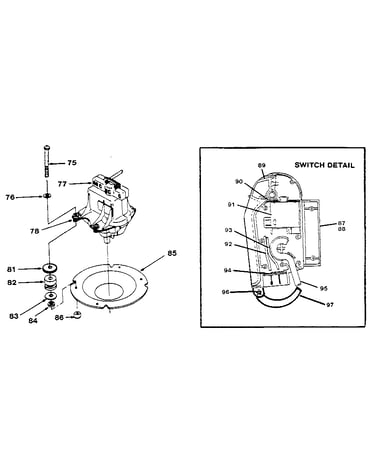

Motor insulators & switch assembly diagram

Washer

Part #STD551025

The manufacturer no longer makes this part, and there's no substitute part

Washer 94046
#35

19" deck deluxe diagram

Washer

Part #94046

The manufacturer no longer makes this part, and there's no substitute part

Washer 500178
#83

Motor insulators & switch assembly diagram

Washer

Part #500178

The manufacturer no longer makes this part, and there's no substitute part

Bolt 90646
#48

Handle assembly diagram

Bolt

Part #90646

The manufacturer no longer makes this part, and there's no substitute part

Rivet 87812
#17

19" deck deluxe diagram

Rivet

Part #87812

The manufacturer no longer makes this part, and there's no substitute part
