Model # LDGA200AAM Official Admiral dryer

Here are the diagrams and repair parts for Official Admiral LDGA200AAM dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

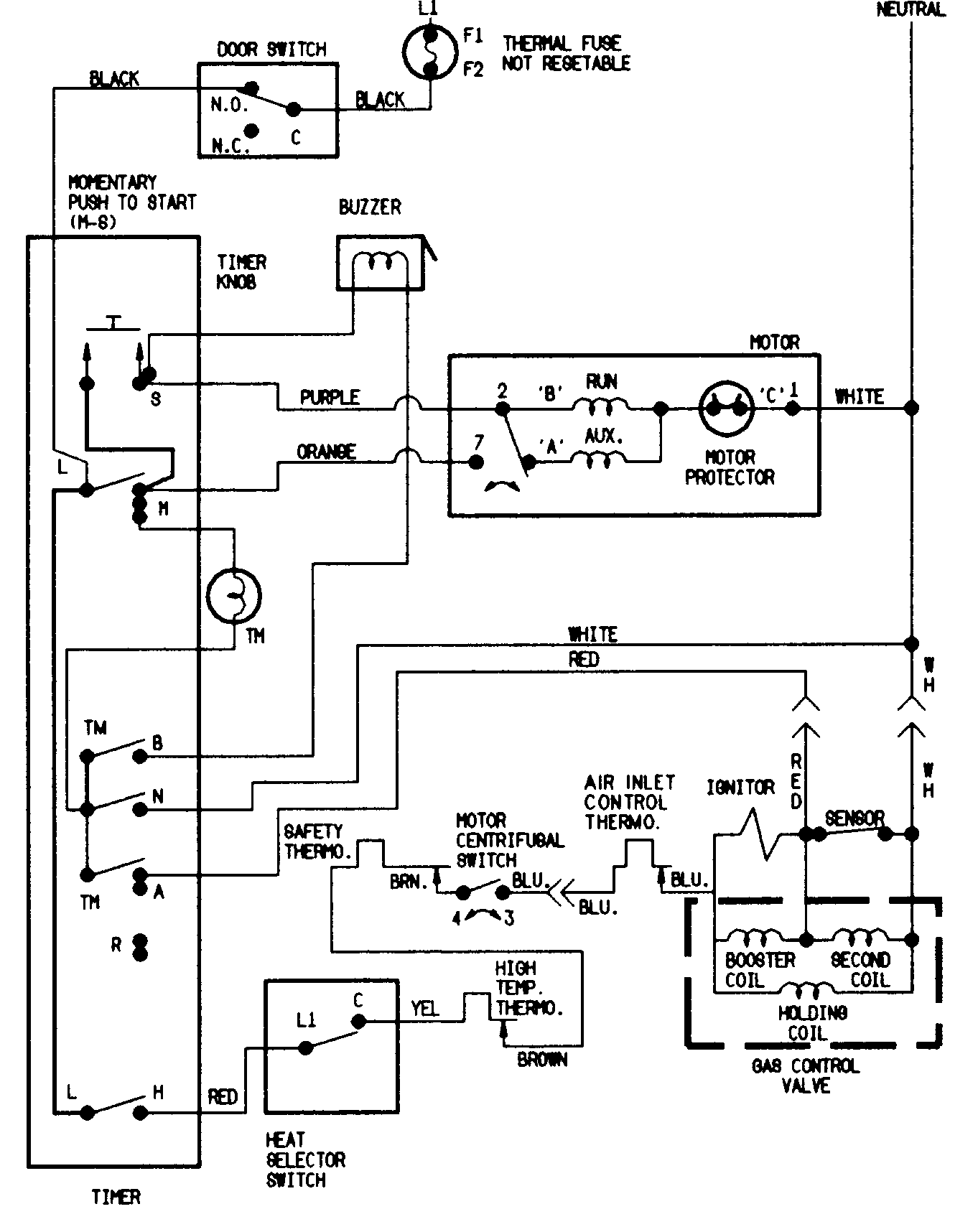

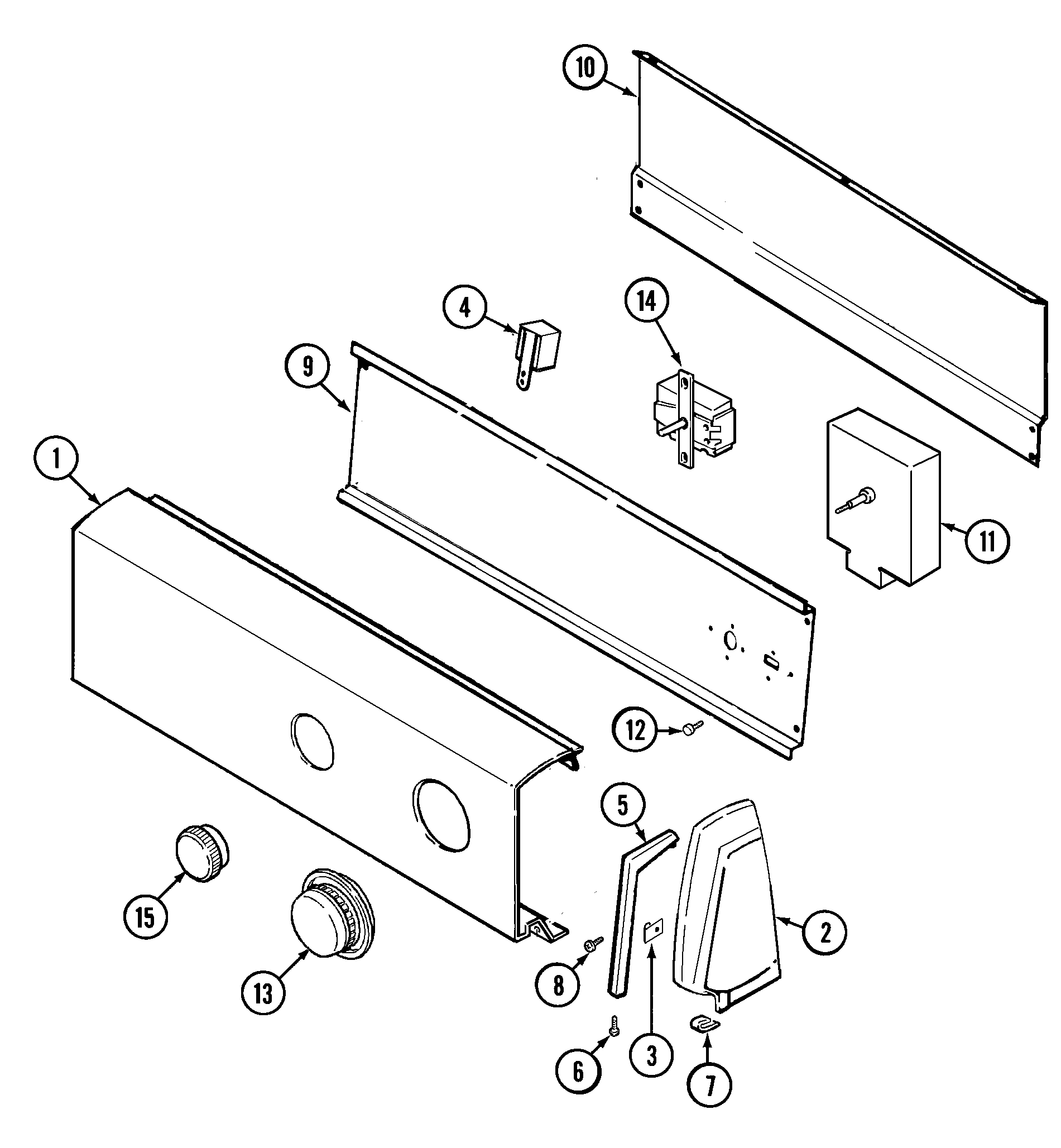

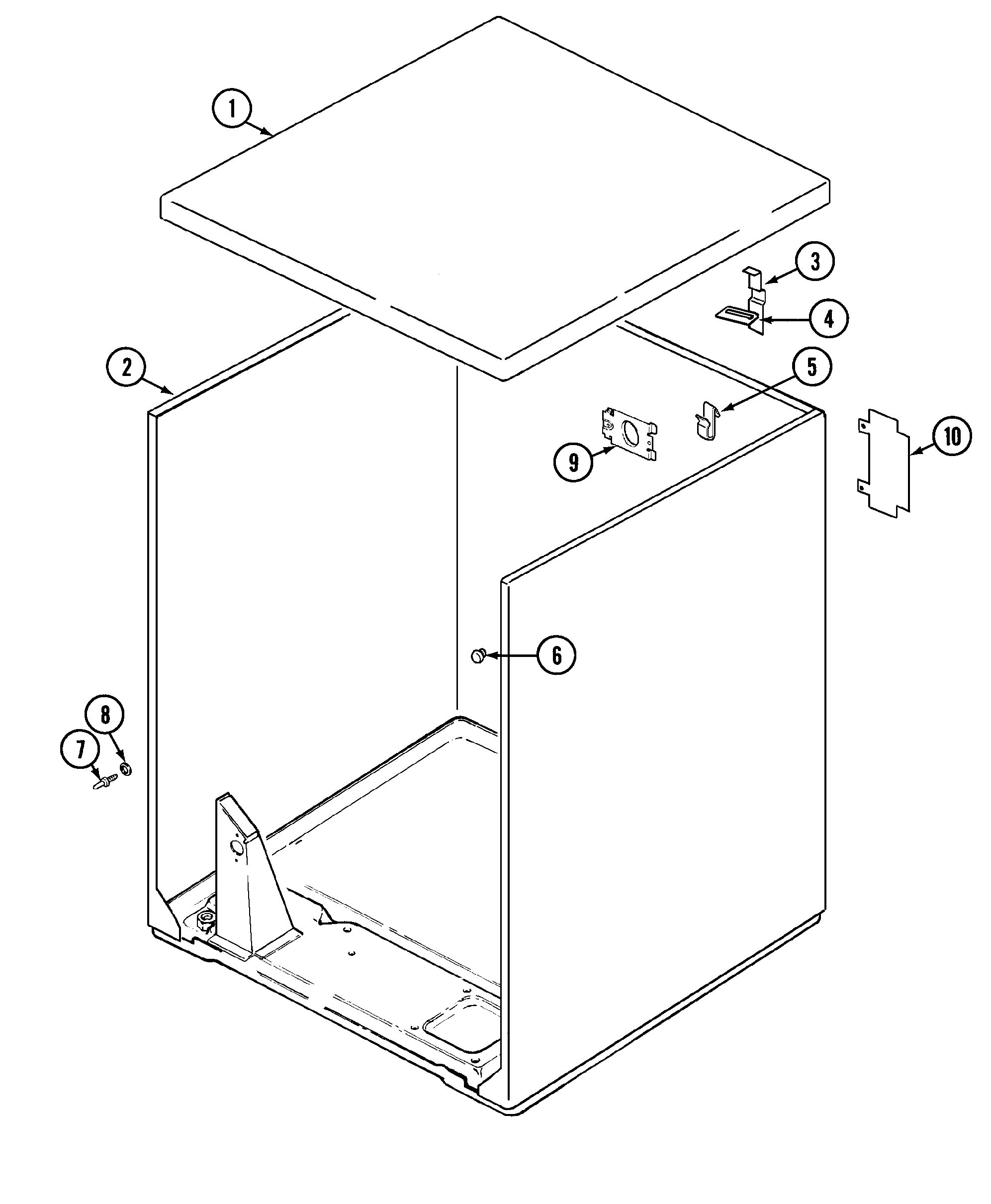

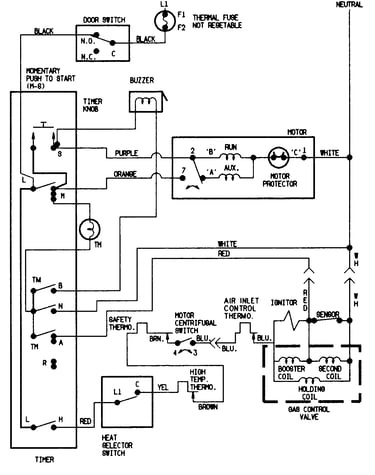

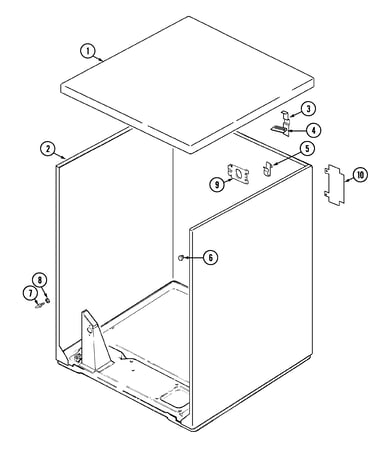

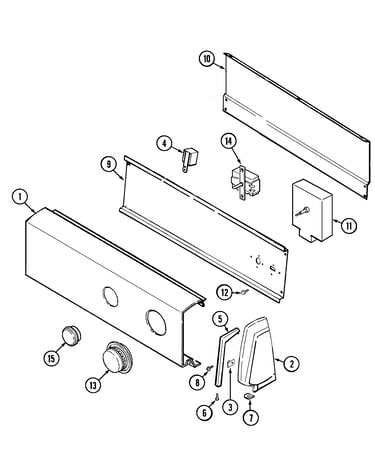

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Belt 31001026
#5

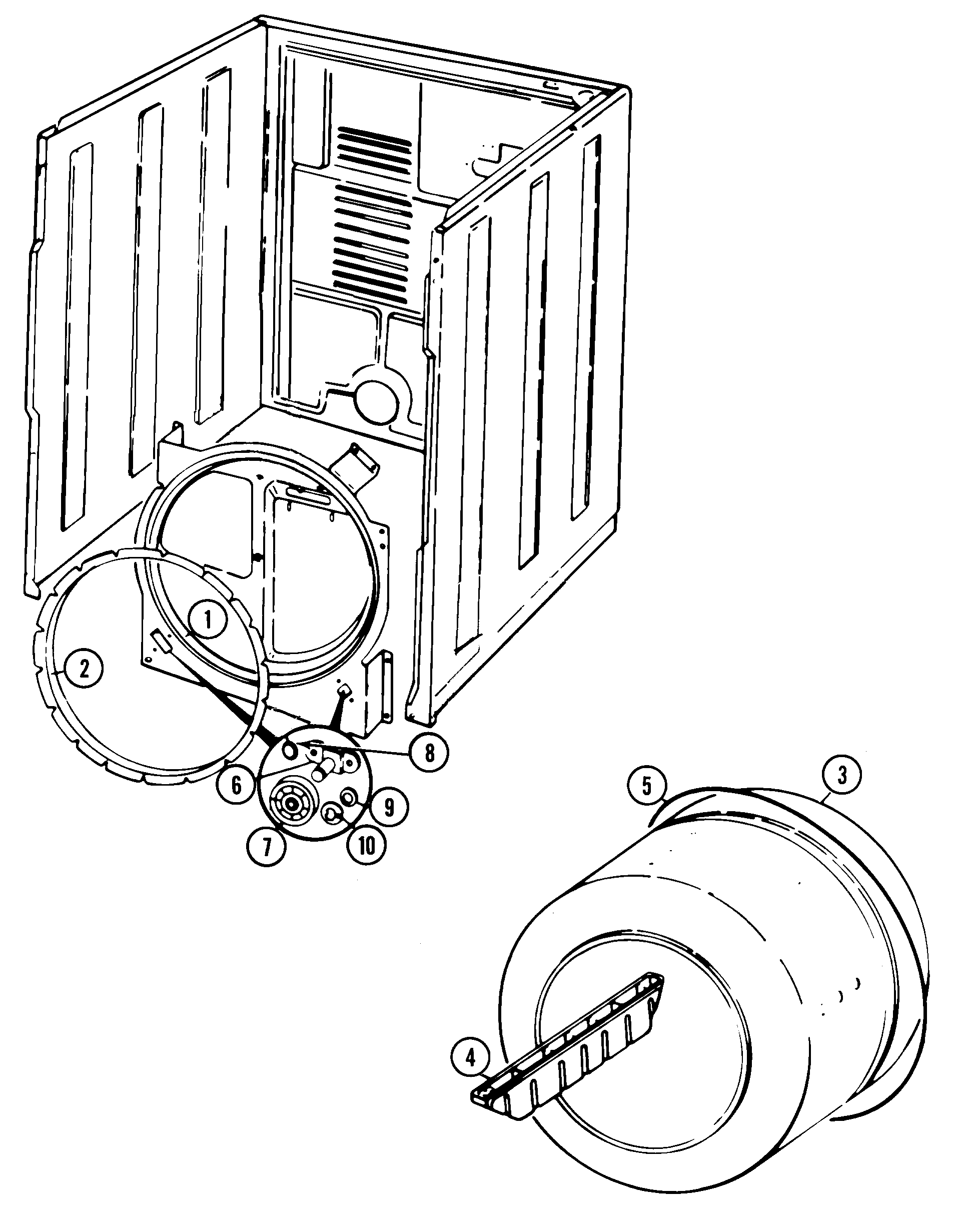

Tumbler (aae & aam) diagram

Belt

Part #31001026

Replaced by #341241

?
Manufacturer substitution
This part replaces 31001026. Substitute parts can look different from the original.
BEST SELLER
$12.56 |
14% OFF Phone Price : $14.56
In Stock
Secondary Co 63-6614
#3A

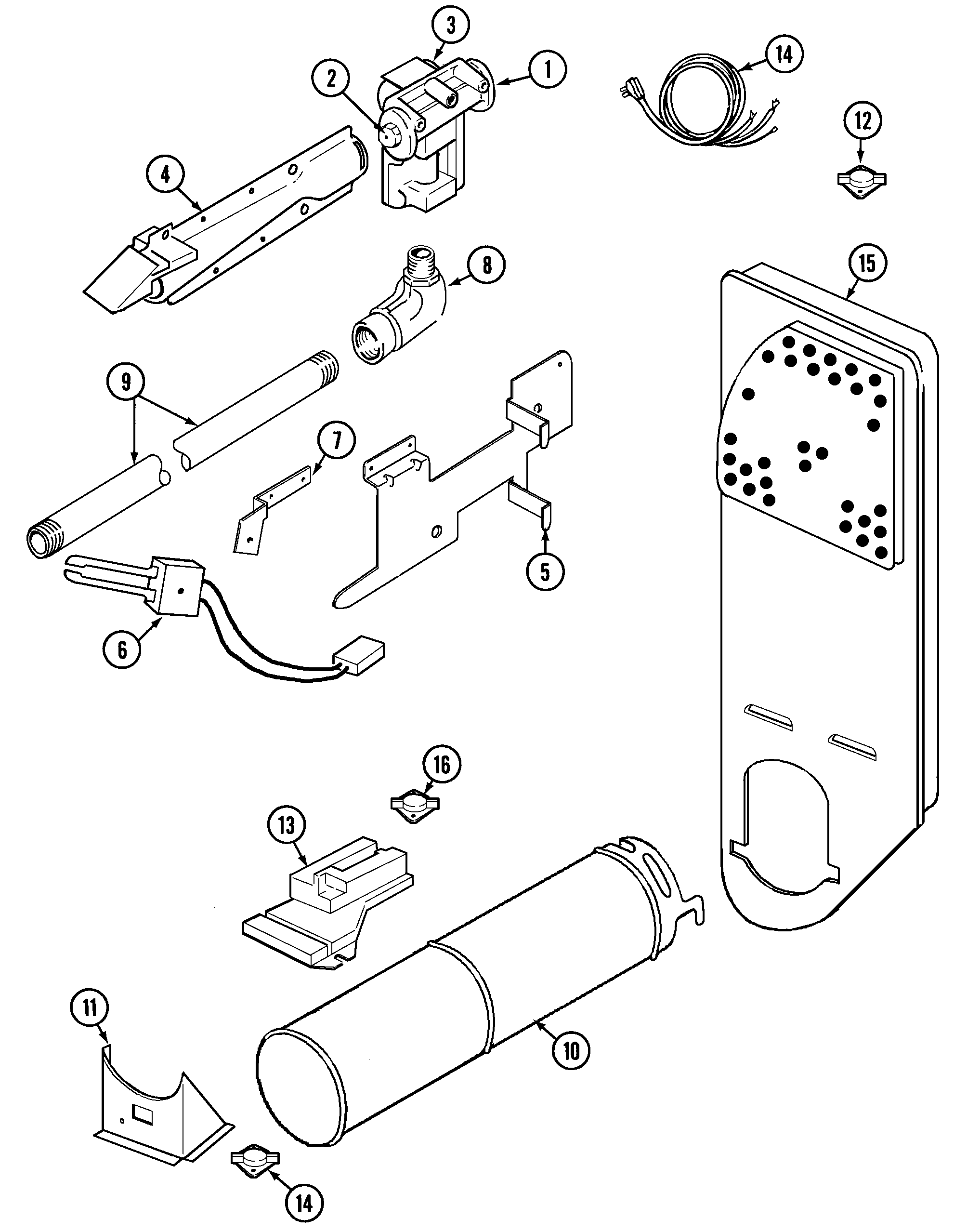

Gas carrying (aae & aam) diagram

Secondary co

Part #63-6614

Replaced by #279834

?
Manufacturer substitution
This part replaces 63-6614. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Dual Coil 63-6615
#3

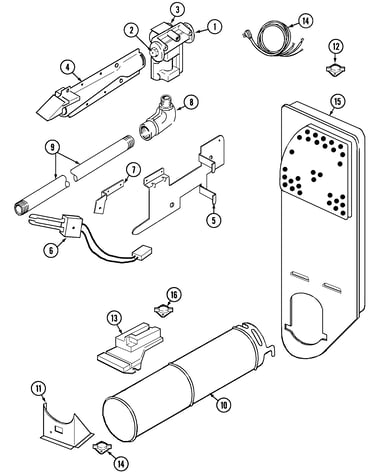

Gas carrying (aae & aam) diagram

Dual coil

Part #63-6615

Replaced by #279834

?
Manufacturer substitution
This part replaces 63-6615. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Sensor 63-5013
#13

Gas carrying (aae & aam) diagram

Sensor

Part #63-5013

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 63-5013. Substitute parts can look different from the original.
BEST SELLER
$37.66 |
14% OFF Phone Price : $43.66
In Stock
Clamp 25-7823
#15

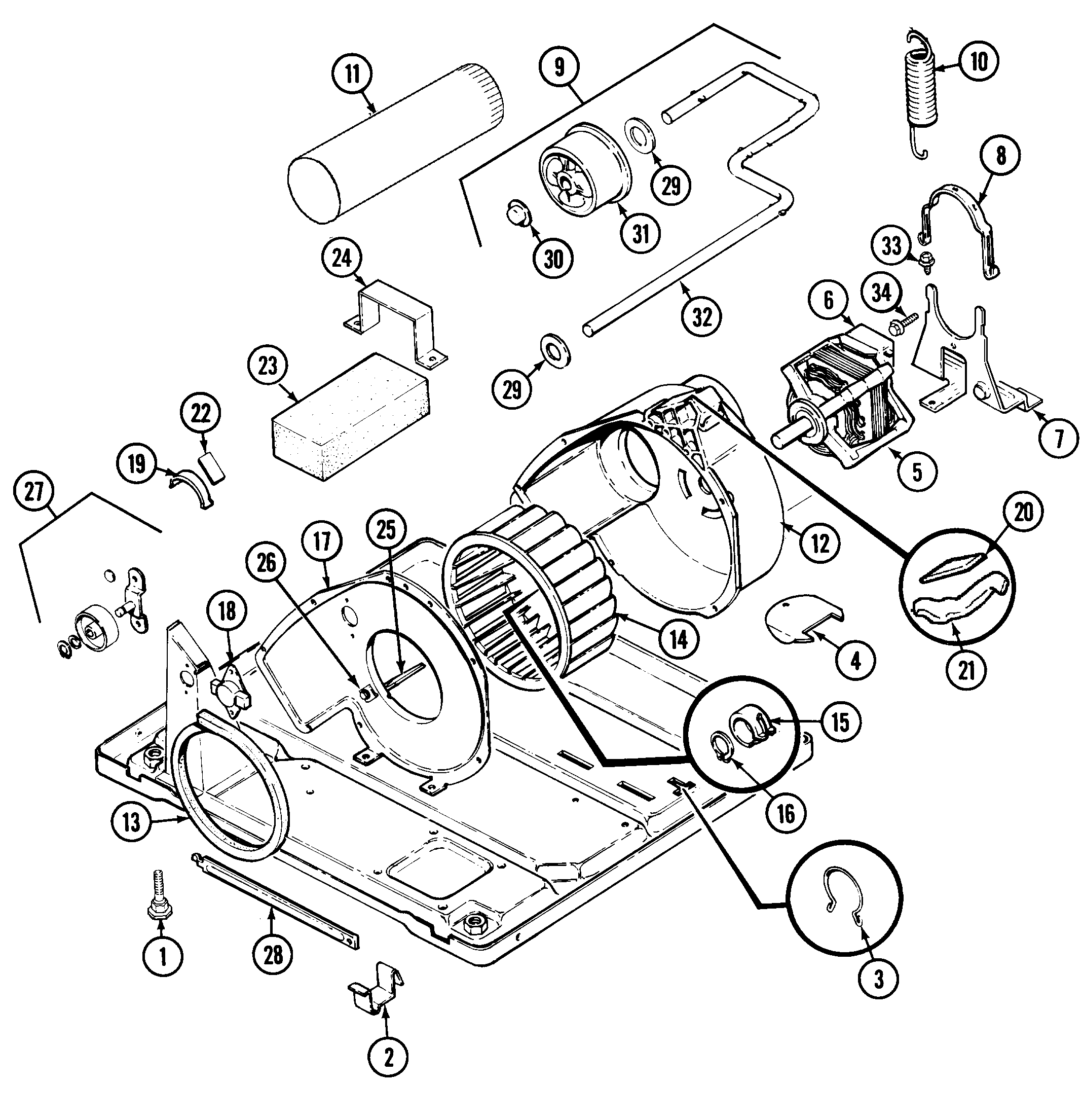

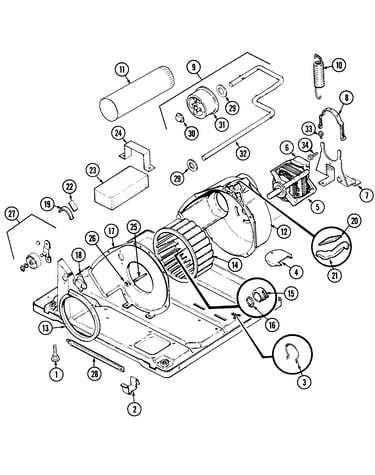

Motor & drive (aae & aam) diagram

Clamp

Part #25-7823

Replaced by #WP312967

?
Manufacturer substitution
This part replaces 25-7823. Substitute parts can look different from the original.
BEST SELLER
$8.39 |
11% OFF Phone Price : $9.39
In Stock
Screw, Suppo 25-7828
#22A

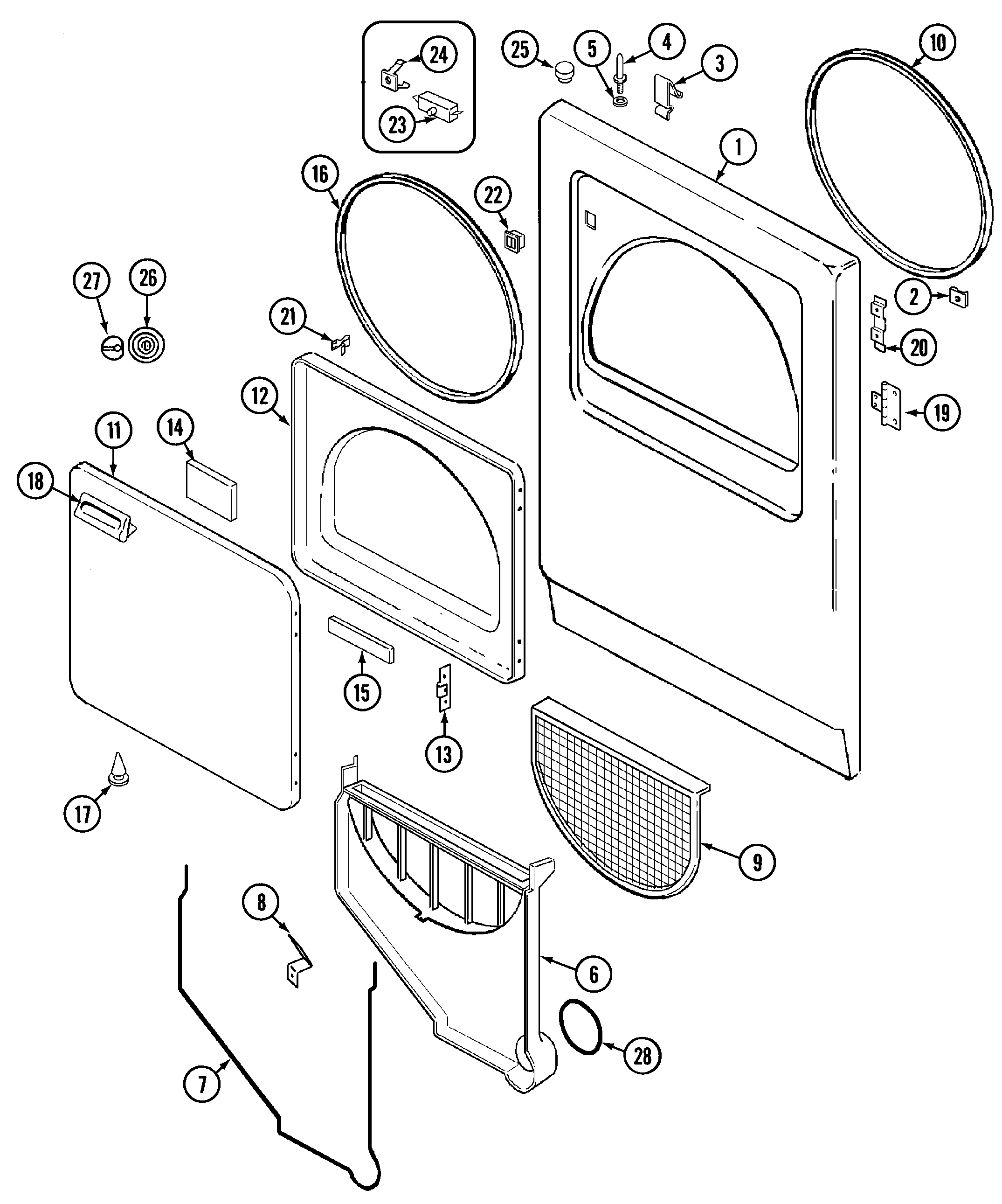

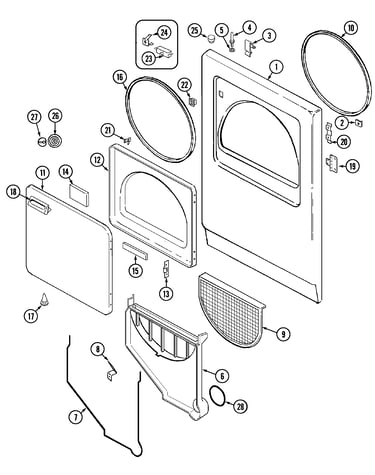

Door (aae & aam) diagram

Screw, suppo

Part #25-7828

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 25-7828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Motor Clamp 53-0214
#8

Motor & drive (aae & aam) diagram

Motor clamp

Part #53-0214

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 53-0214. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 25-7820
#2A

Door (aae & aam) diagram

Screw

Part #25-7820

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 25-7820. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Locator Nut 25-0224
Locator nut

Part #25-0224

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 25-0224. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Dryer Thermal Fuse 53-1182
#16D

Gas carrying (aae & aam) diagram

Dryer thermal fuse

Part #53-1182

Replaced by #WP53-1182

?
Manufacturer substitution
This part replaces 53-1182. Substitute parts can look different from the original.
$36.14 |
14% OFF Phone Price : $42.14
In Stock
