Model # YAES6603SFW3 Official Amana electric slide-in range

Here are the diagrams and repair parts for Official Amana YAES6603SFW3 electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Oven Sensor W10586204
#23

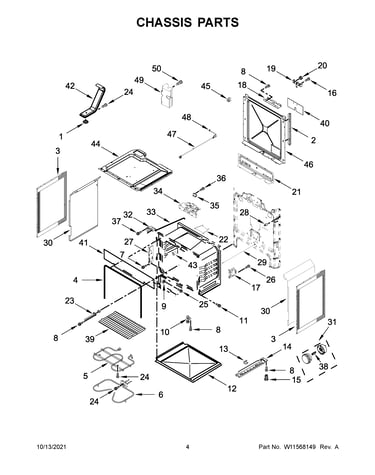

Chassis parts diagram

Oven sensor

Part #W10586204

Replaced by #W10833885

?
Manufacturer substitution
This part replaces W10586204. Substitute parts can look different from the original.
BEST SELLER
$90.42 |
6% OFF Phone Price : $96.42
In Stock
Range Radiant Surface Element 8273994
#6

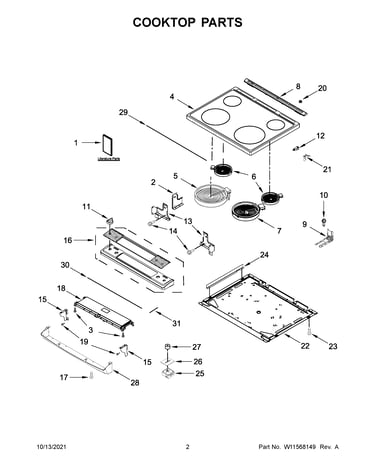

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$105.41 |
10% OFF Phone Price : $117.41
In Stock
Element, Rib W11282542
#5

Cooktop parts diagram

Element, rib

Part #W11282542

Replaced by #W11517959

?
Manufacturer substitution
This part replaces W11282542. Substitute parts can look different from the original.
BEST SELLER
$82.45 |
7% OFF Phone Price : $88.45
In Stock
Range Dual Surface Element Control Switch W10437092
#25A

Cooktop parts diagram

Range dual surface element control switch

Part #W10437092

Replaced by #W10857622

?
Manufacturer substitution
This part replaces W10437092. Substitute parts can look different from the original.
BEST SELLER
$143.69 |
8% OFF Phone Price : $155.69
In Stock
Range Surface Element Control Switch W10578768
#25

Cooktop parts diagram

Range surface element control switch

Part #W10578768

Replaced by #W10911303

?
Manufacturer substitution
This part replaces W10578768. Substitute parts can look different from the original.
BEST SELLER
$66.34 |
8% OFF Phone Price : $72.34
In Stock
Range Screw W10200660
#6

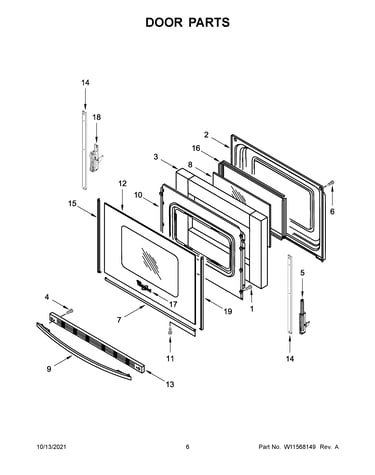

Door parts diagram

Range screw

Part #W10200660

Replaced by #WPW10200660

?
Manufacturer substitution
This part replaces W10200660. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.00 |
14% OFF Phone Price : $7.00
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Range Broil Element W10583047
#5

Chassis parts diagram

Range broil element

Part #W10583047

Replaced by #WPW10583047

?
Manufacturer substitution
This part replaces W10583047. Substitute parts can look different from the original.
$78.63 |
7% OFF Phone Price : $84.63
Back Order
Screw 3196169
Screw

Part #3196169

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196169. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Hinge Bracket W10289077
#27

Chassis parts diagram

Hinge bracket

Part #W10289077

Replaced by #W10647259

?
Manufacturer substitution
This part replaces W10289077. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
