Model # WTMC553SUC/06 Official Bosch dryer

Here are the diagrams and repair parts for Official Bosch WTMC553SUC-06 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

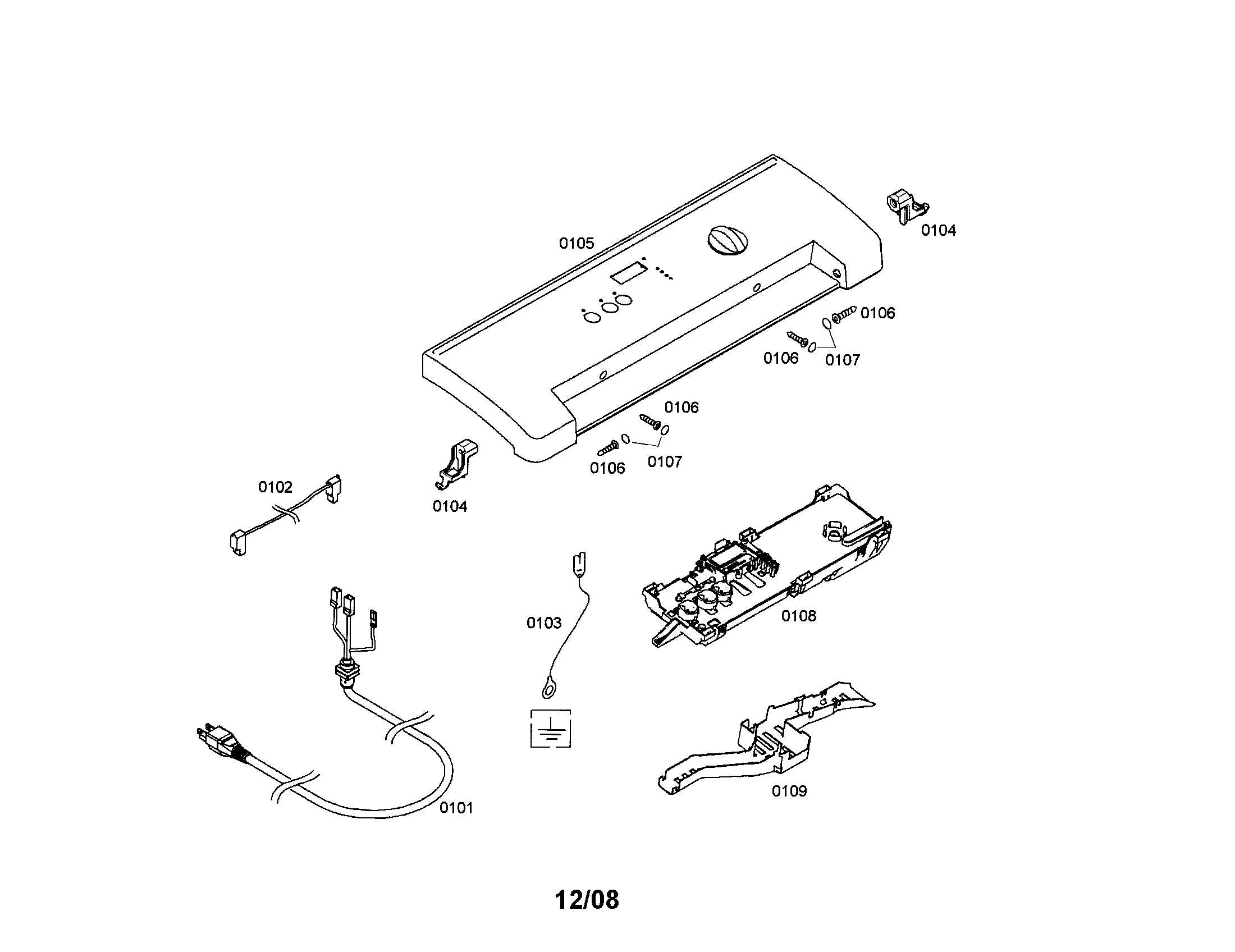

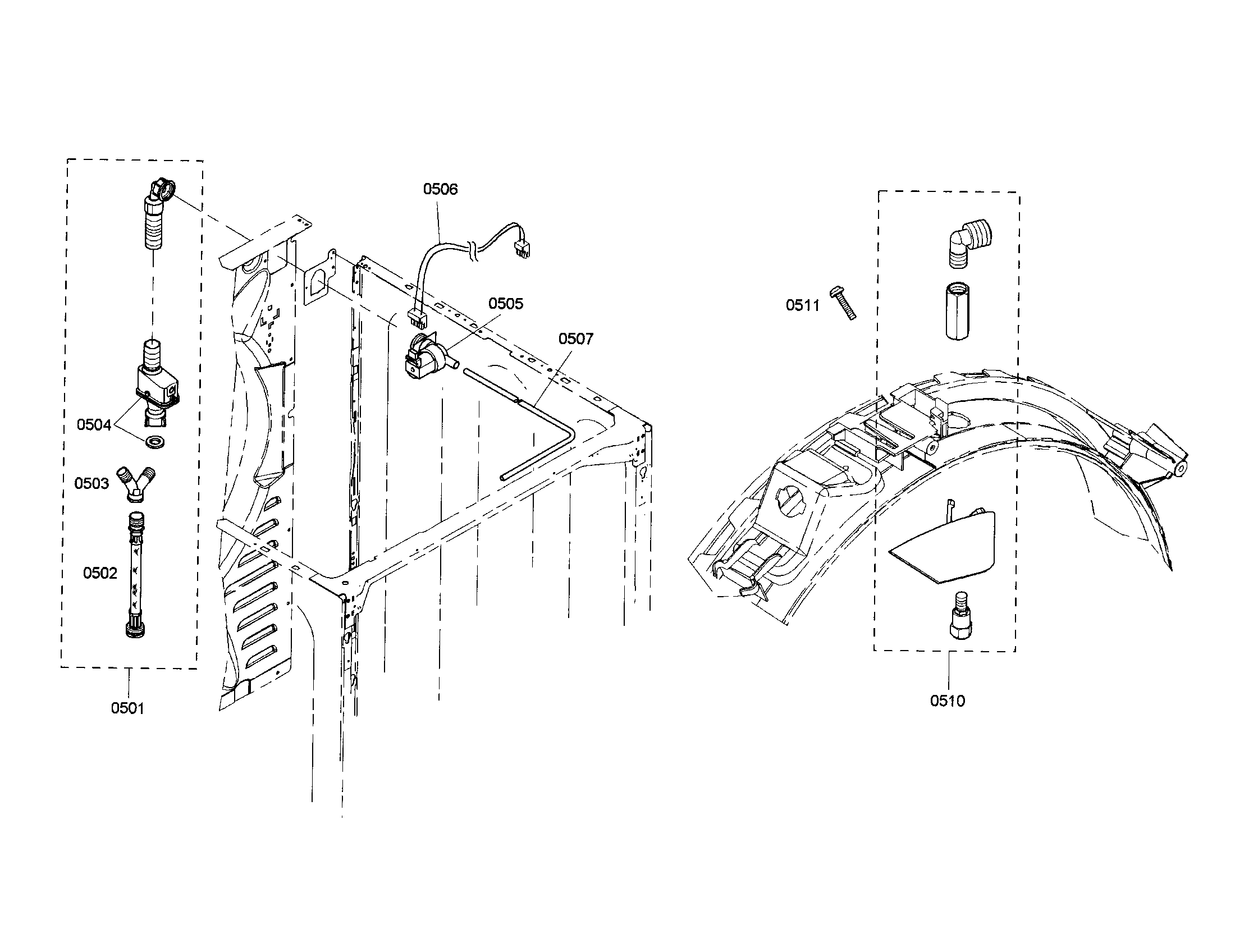

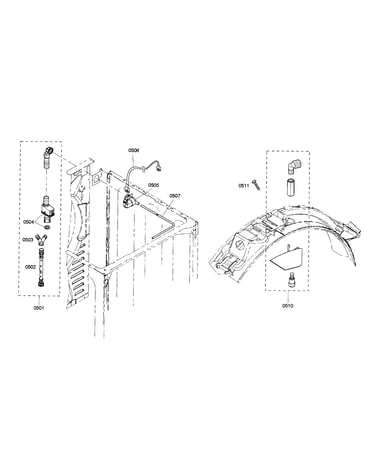

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Dryer Door Hinge 491647
#219

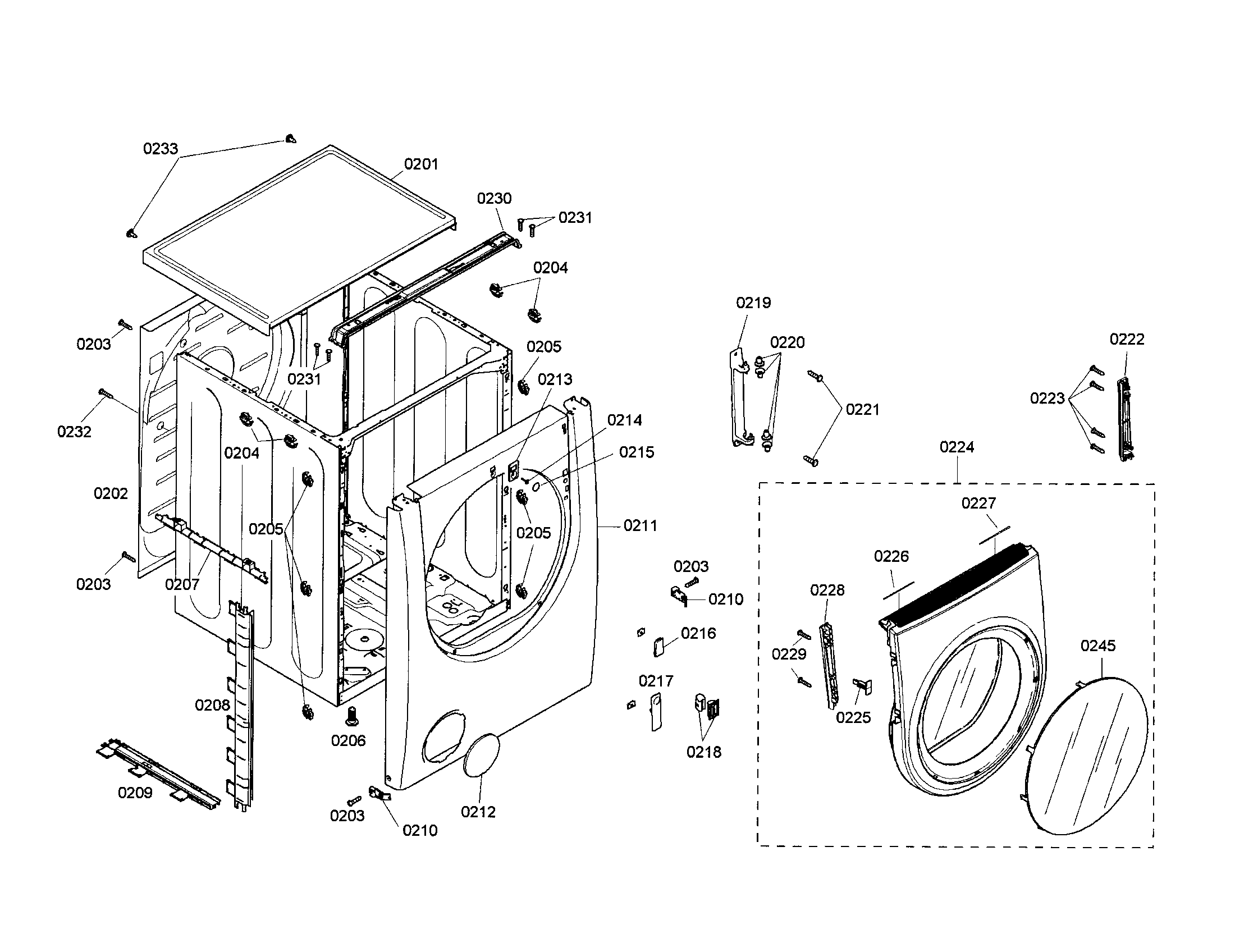

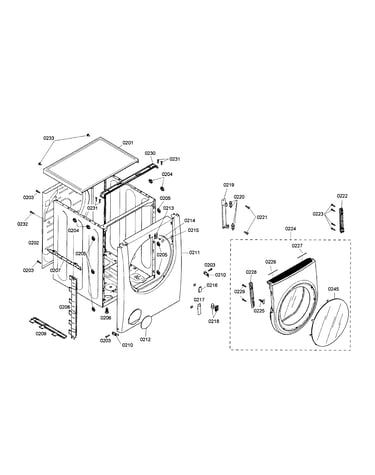

Body/door diagram

Dryer door hinge

Part #491647

Replaced by #00491647

?
Manufacturer substitution
This part replaces 491647. Substitute parts can look different from the original.
$35.89 |
14% OFF Phone Price : $41.89
In Stock
Dryer Sensor 422202
#323

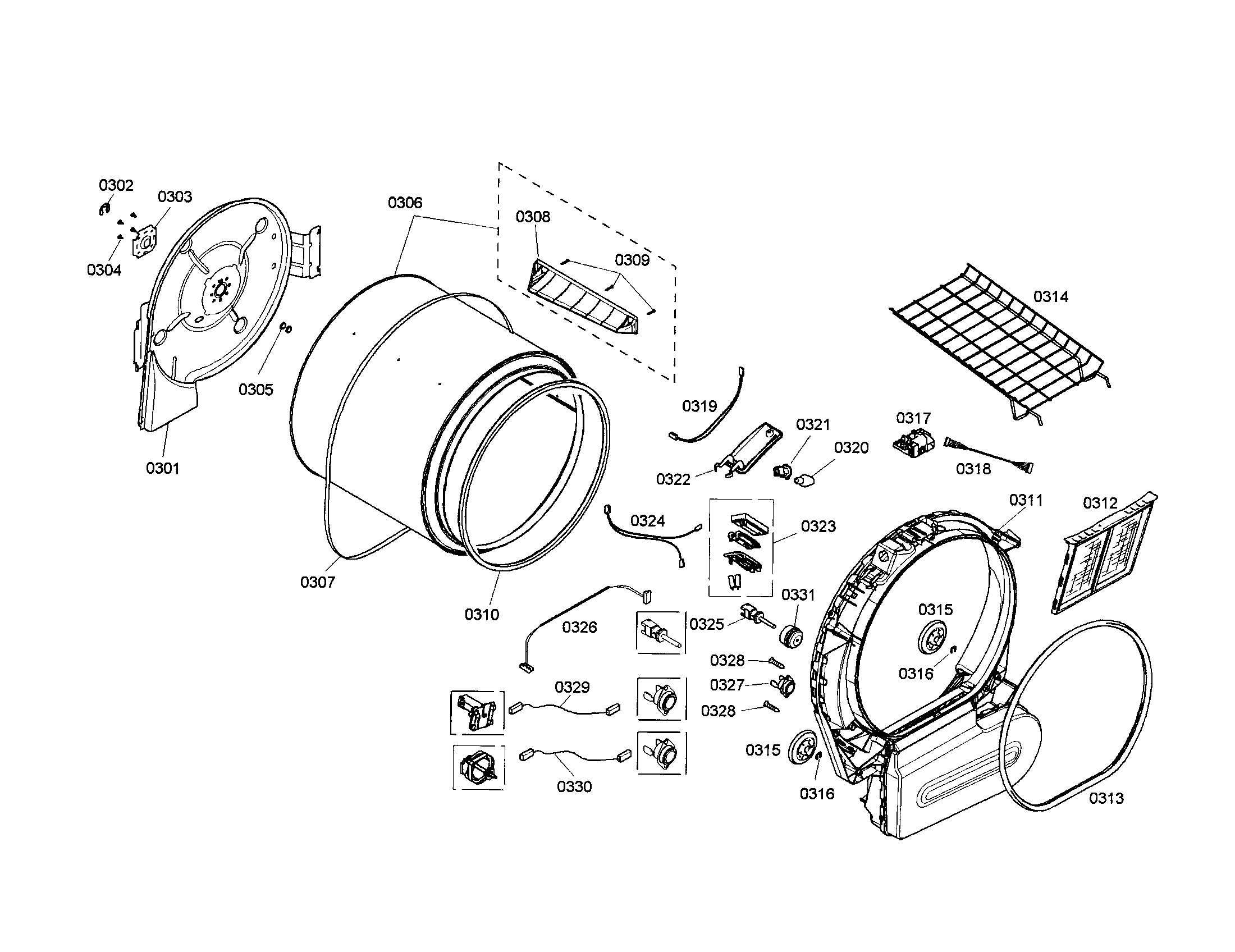

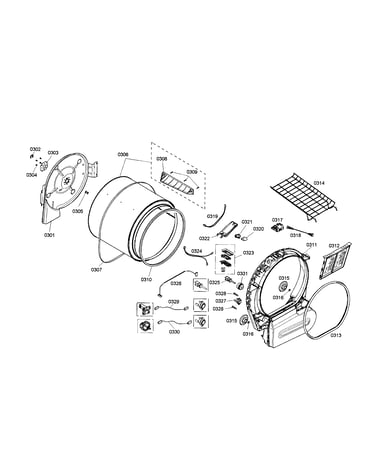

Drum diagram

Dryer sensor

Part #422202

Replaced by #00422202

?
Manufacturer substitution
This part replaces 422202. Substitute parts can look different from the original.
$35.39 |
14% OFF Phone Price : $41.39
In Stock
Screw 605325
#229

Body/door diagram

Screw

Part #605325

Replaced by #00422126

?
Manufacturer substitution
This part replaces 605325. Substitute parts can look different from the original.
This item is not returnable
$30.18
In Stock
Dryer Igniter 491648
#411

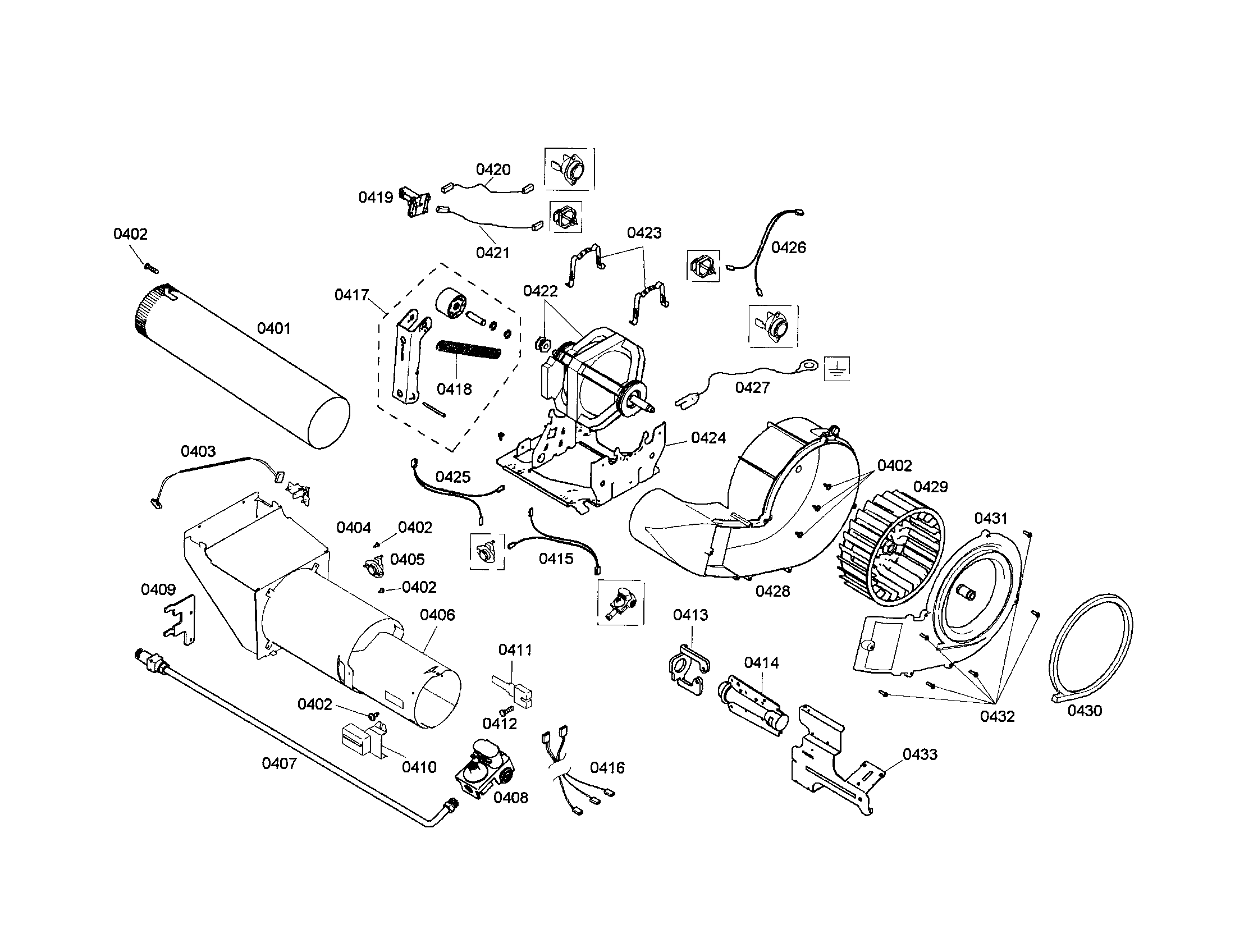

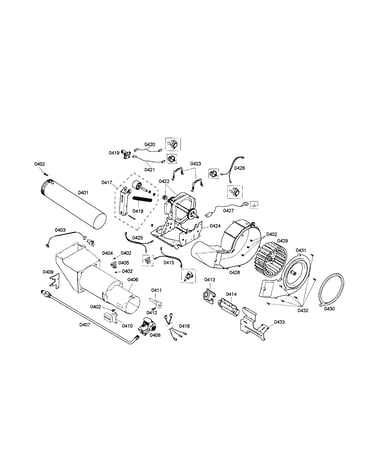

Motor support/fan housing diagram

Dryer igniter

Part #491648

Replaced by #00491648

?
Manufacturer substitution
This part replaces 491648. Substitute parts can look different from the original.
$58.79 |
9% OFF Phone Price : $64.79
In Stock
Dryer Drive Motor 436441
#422

Motor support/fan housing diagram

Dryer drive motor

Part #436441

The manufacturer no longer makes this part, and there's no substitute part

Dryer Drum Lamp 422173
#320

Drum diagram

Dryer drum lamp

Part #422173

This item is not returnable
$20.34
In Stock
Ntc 154166
#325

Drum diagram

Ntc

Part #154166

Replaced by #10010119

?
Manufacturer substitution
This part replaces 154166. Substitute parts can look different from the original.
$34.11
In Stock
Fan Wheel 491640
#429

Motor support/fan housing diagram

Fan wheel

Part #491640

Replaced by #00491640

?
Manufacturer substitution
This part replaces 491640. Substitute parts can look different from the original.
$46.39 |
11% OFF Phone Price : $52.39
In Stock
Dryer Drum Support Roller 422200
#315

Drum diagram

Dryer drum support roller

Part #422200

Replaced by #00422200

?
Manufacturer substitution
This part replaces 422200. Substitute parts can look different from the original.
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Film Sensor 491609
#410

Motor support/fan housing diagram

Film sensor

Part #491609

Replaced by #00491609

?
Manufacturer substitution
This part replaces 491609. Substitute parts can look different from the original.
$103.60
In Stock
