Model # 7KHWS160S Official KitchenAid hot water dispenser

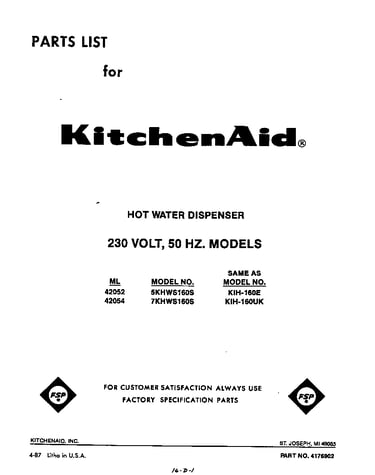

Here are the diagrams and repair parts for Official KitchenAid 7KHWS160S hot water dispenser, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
7KHWS160S Hot Water Dispenser
#2

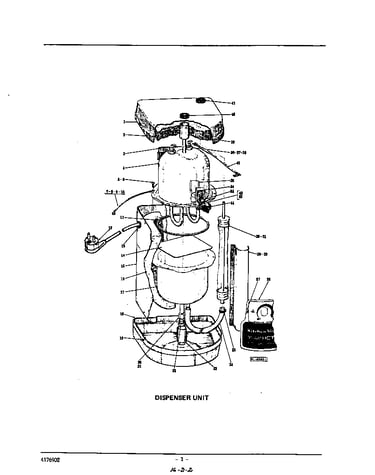

Dispenser unit diagram
Insulation - upper
Part #B-240811
The manufacturer no longer makes this part, and there's no substitute part
#7
Spout unit diagram
Tube (3/8" i.d.)
Part #B-203694-10
The manufacturer no longer makes this part, and there's no substitute part
#17
Spout unit diagram
Self-drilling valve assy
Part #C-113614
The manufacturer no longer makes this part, and there's no substitute part
#12A
Dispenser unit diagram
Screw
Part #241425
The manufacturer no longer makes this part, and there's no substitute part
#3
Dispenser unit diagram
Mounting bracket
Part #B-241258
The manufacturer no longer makes this part, and there's no substitute part
#24
Dispenser unit diagram
Hose - clear
Part #B-240821
The manufacturer no longer makes this part, and there's no substitute part
#34
Dispenser unit diagram
Thermostat
Part #D-240812
The manufacturer no longer makes this part, and there's no substitute part
#43
Dispenser unit diagram
Thermal fuse assy
Part #B-241371
The manufacturer no longer makes this part, and there's no substitute part
#3
Spout unit diagram
Spring - compression
Part #B-242464
The manufacturer no longer makes this part, and there's no substitute part
#44A
Dispenser unit diagram
Upper tank assy. (incls. items #4 & 36)
Part #C-240795-2
The manufacturer no longer makes this part, and there's no substitute part
