Range Hood

Model # KXU8030YSS1 Official KitchenAid canopy hood

Here are the diagrams and repair parts for Official KitchenAid KXU8030YSS1 canopy hood, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KXU8030YSS1 Canopy Hood
Hous-cntrl W10875484
#9

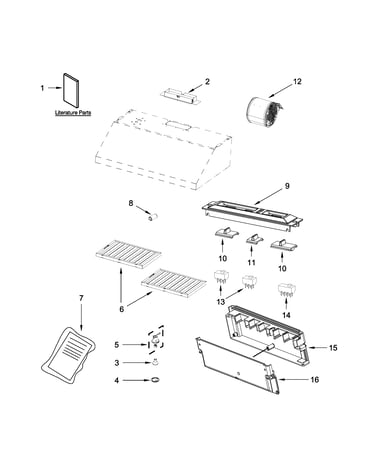

Hood parts diagram

Hous-cntrl

Part #W10875484

Replaced by #W11387938

?
Manufacturer substitution
This part replaces W10875484. Substitute parts can look different from the original.
$106.63 |
10% OFF Phone Price : $118.63
In Stock
Slide Switch W10370625
#10

Hood parts diagram

Slide switch

Part #W10370625

Replaced by #W11569415

?
Manufacturer substitution
This part replaces W10370625. Substitute parts can look different from the original.
$17.85 |
10% OFF Phone Price : $19.85
In Stock
Rocker Switch W10351916
#13

Hood parts diagram

Rocker switch

Part #W10351916

Replaced by #W10853393

?
Manufacturer substitution
This part replaces W10351916. Substitute parts can look different from the original.
$89.14 |
6% OFF Phone Price : $95.14
In Stock
Range Hood Light Bulb W10291579
#3

Hood parts diagram

Range hood light bulb

Part #W10291579

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Fan Motor Assembly W10293966
#12

Hood parts diagram

Range hood fan motor assembly

Part #W10293966

Replaced by #WPW10293966

?
Manufacturer substitution
This part replaces W10293966. Substitute parts can look different from the original.
$386.74 |
$12.00 OFF Phone Price : $398.74
In Stock
Control Housing W10721963
#16

Hood parts diagram

Control housing

Part #W10721963

$103.63
In Stock
Range Hood Flue Cover, Upper W10272079
#NI

Hood parts diagram

Range hood flue cover, upper

Part #W10272079

$131.34 |
8% OFF Phone Price : $143.34
In Stock
Range Hood Blower Motor Capacitor 8186677
#8

Hood parts diagram

Range hood blower motor capacitor

Part #8186677

$109.48
In Stock
Hardware W10351917
#7

Hood parts diagram

Hardware

Part #W10351917

$45.09
In Stock
Range Hood Duct Cover, 36-in W10272080
#NI

Hood parts diagram

Range hood duct cover, 36-in

Part #W10272080

$213.03 |
5% OFF Phone Price : $225.03
In Stock
