Frigidaire
Gas Range

Model # FGF376WECJ Official Frigidaire gas range

Here are the diagrams and repair parts for Official Frigidaire FGF376WECJ gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

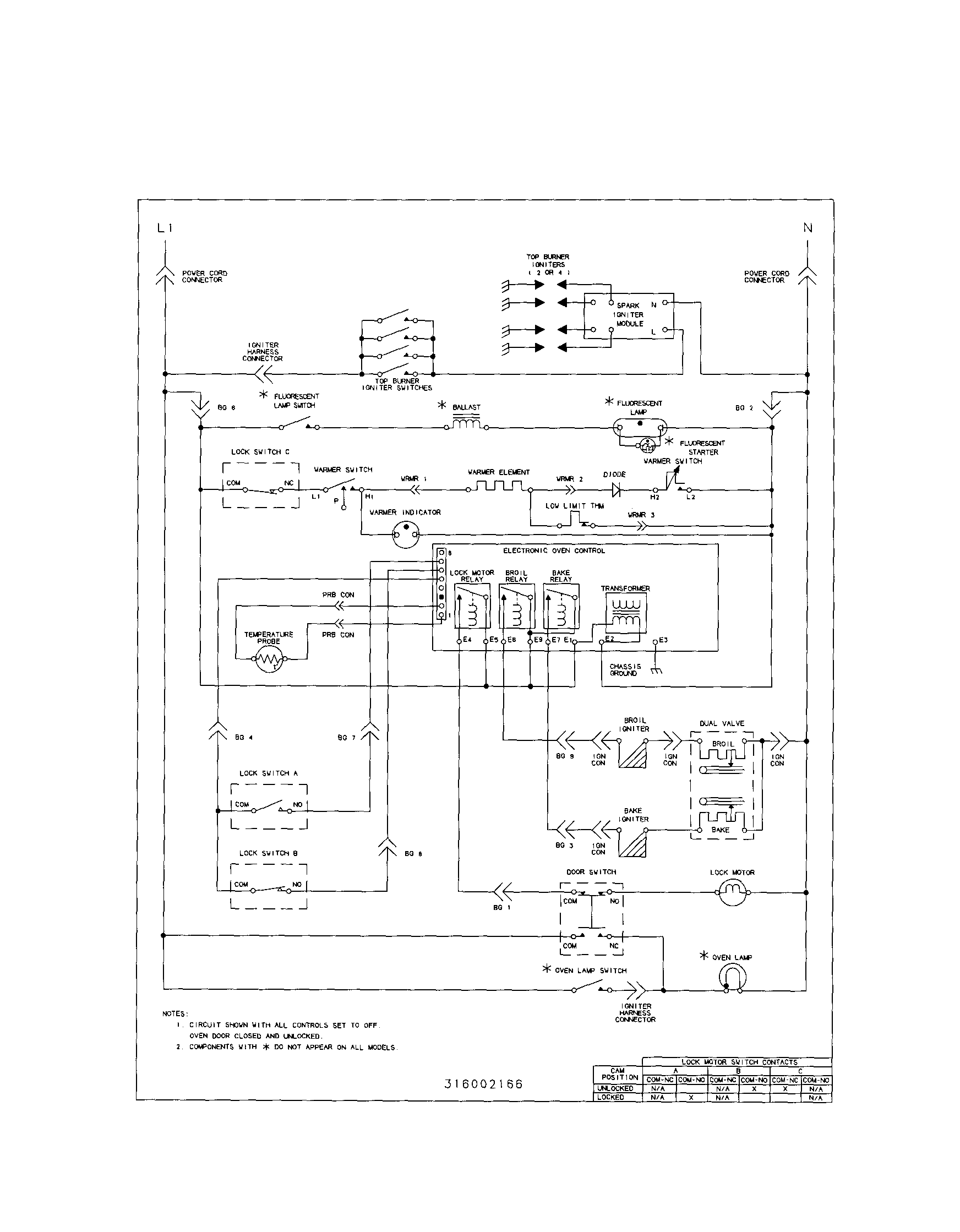

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Range Oven Burner Igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, Ap00205013, Ap205013, Ap205016, P205013, P205016, P205034) 5303935066
#19

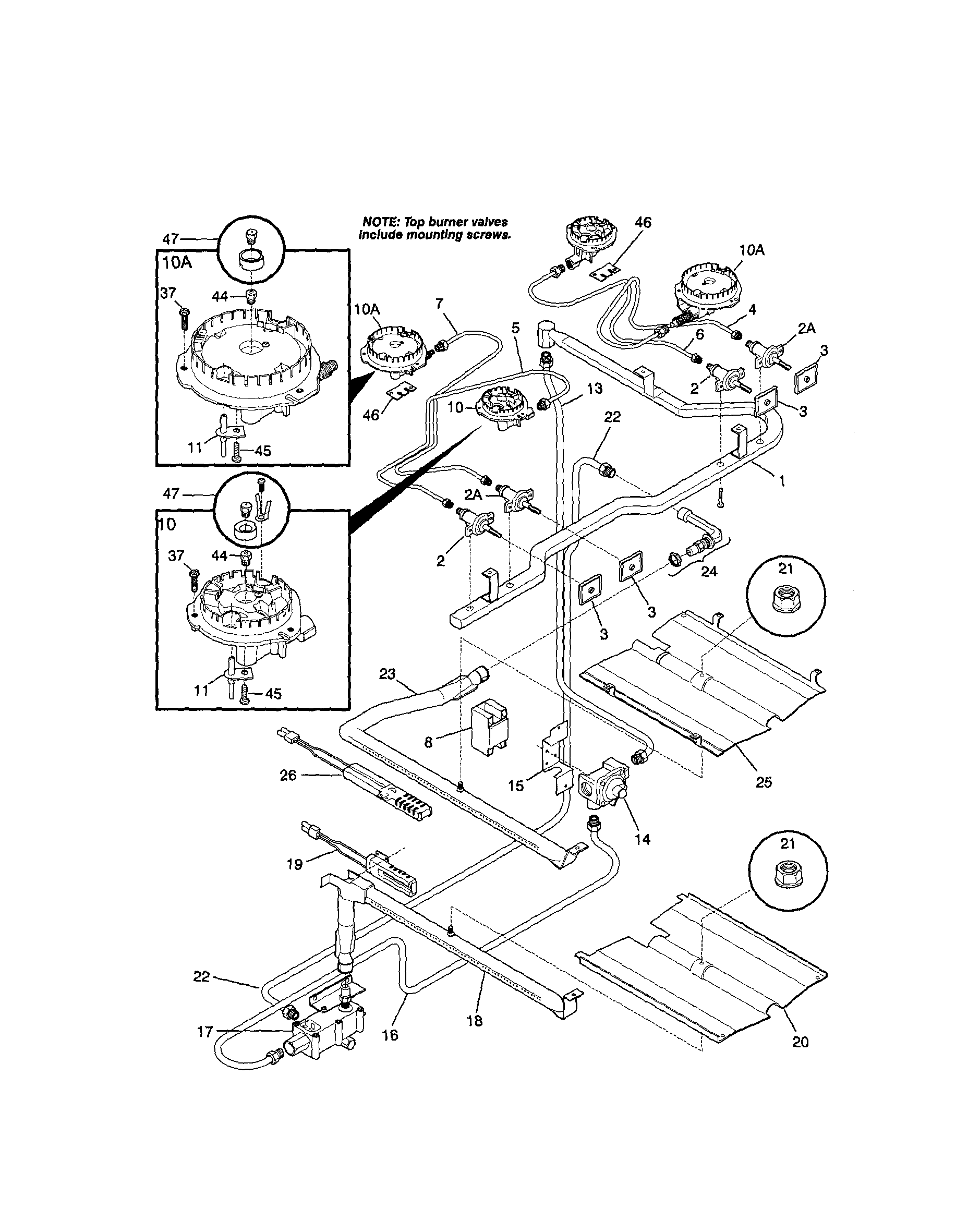

Burner diagram

Range oven burner igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, ap00205013, ap205013, ap205016, p205013, p205016, p205034)

Part #5303935066

BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Range Oven Light Bulb 5303013071
#15

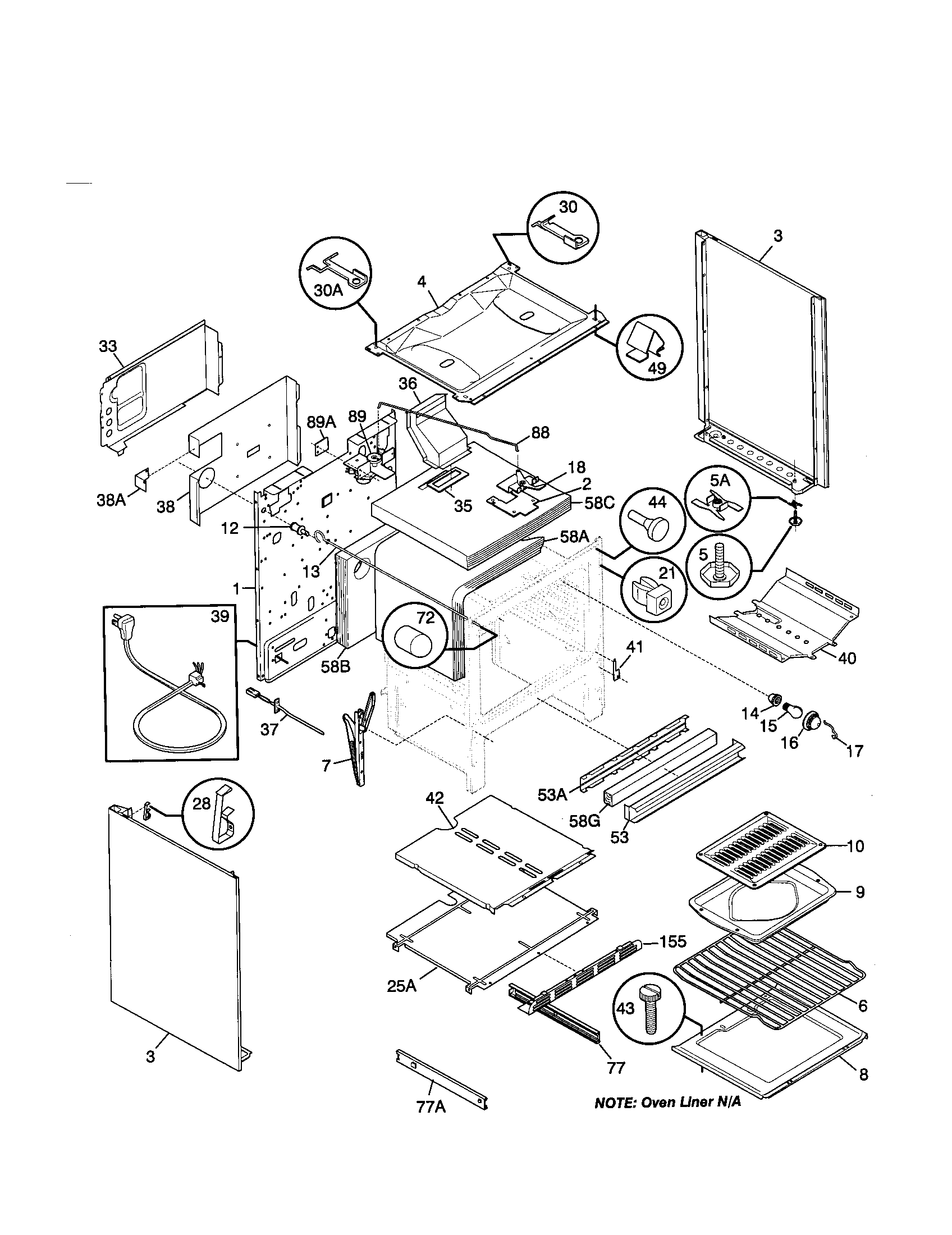

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Igniter Spark Module 5303280394
#8

Burner diagram

Range igniter spark module

Part #5303280394

Replaced by #316135702

?
Manufacturer substitution
This part replaces 5303280394. Substitute parts can look different from the original.
BEST SELLER
$75.37 |
7% OFF Phone Price : $81.37
In Stock
Socket 3014073
#14

Body diagram

Socket

Part #3014073

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Cover 08011086
#16

Body diagram

Cover

Part #08011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Out Rh Warmr 316105500

#NI11

All parts diagram

Out rh warmr

Part #316105500

Replaced by #316105501

?
Manufacturer substitution
This part replaces 316105500. Substitute parts can look different from the original.
$73.89 |
8% OFF Phone Price : $79.89
In Stock
Range Power Cord 3131425
#39

Body diagram

Range power cord

Part #3131425

Replaced by #5304509199

?
Manufacturer substitution
This part replaces 3131425. Substitute parts can look different from the original.
$39.29 |
13% OFF Phone Price : $45.29
In Stock
Oven Temperature Probe 3204593
#37

Body diagram

Oven temperature probe

Part #3204593

Replaced by #5304497424

?
Manufacturer substitution
This part replaces 3204593. Substitute parts can look different from the original.
This item is not returnable
$27.69 |
18% OFF Phone Price : $33.69
In Stock
Range Hex Nut 5303013272
#21

Burner diagram

Range hex nut

Part #5303013272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Oven Rack 316083800
#6

Body diagram

Oven rack

Part #316083800

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 316083800. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock
