Radial Arm Saw

Model # 11329220 Official Craftsman 8" radial arm saw

Here are the diagrams and repair parts for Official Craftsman 11329220 8" radial arm saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Radial Arm Saw Switch Key 37861
#28

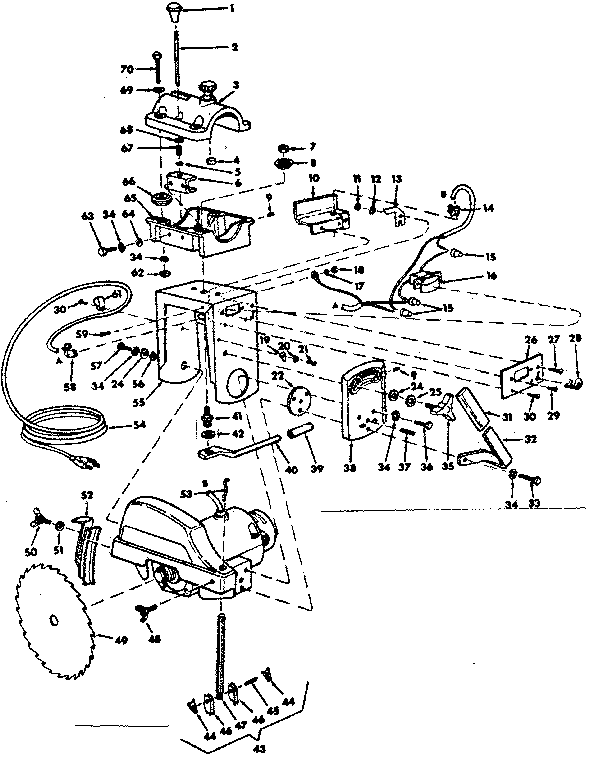

Yoke assembly diagram

Radial arm saw switch key

Part #37861

The manufacturer no longer makes this part, and there's no substitute part

Wing Screw (silver) 37858
#48

Yoke assembly diagram

Wing screw (silver)

Part #37858

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Hex Nut 120399
#62

Yoke assembly diagram

Radial arm saw hex nut

Part #120399

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Wing Screw, 1/4-in 30540
#50

Yoke assembly diagram

Power tool wing screw, 1/4-in

Part #30540

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Push Nut, 3/8-in 60240
#2

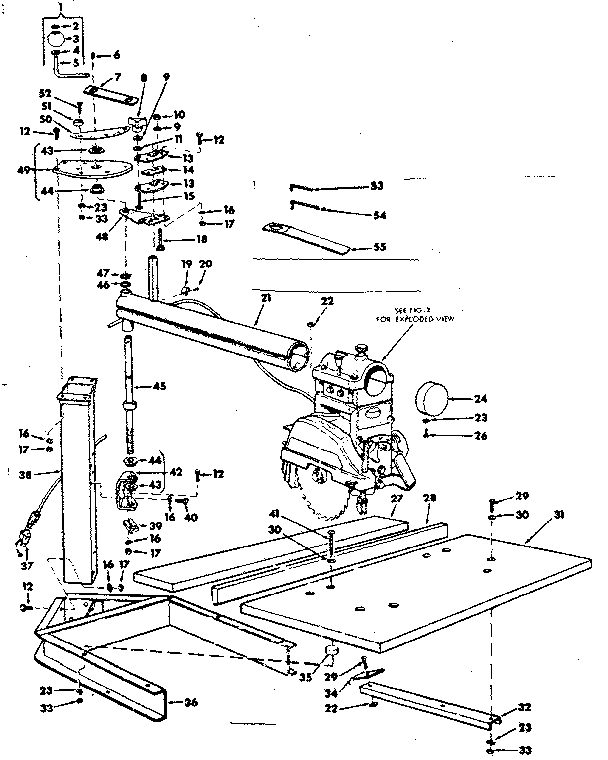

Unit diagram

Radial arm saw push nut, 3/8-in

Part #60240

The manufacturer no longer makes this part, and there's no substitute part

Clamp Washer (white) 63011
Clamp washer (white)

Part #63011

The manufacturer no longer makes this part, and there's no substitute part

Retain Shaft 63388
#43

Unit diagram

Retain shaft

Part #63388

The manufacturer no longer makes this part, and there's no substitute part

Fence 63021
#28

Unit diagram

Fence

Part #63021

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 118783
#26

Unit diagram

Machine screw

Part #118783

The manufacturer no longer makes this part, and there's no substitute part

Relief Str 37818
#14

Yoke assembly diagram

Relief str

Part #37818

The manufacturer no longer makes this part, and there's no substitute part
