GE
Bottom-Mount Refrigerator

Model # GFSS6KIXBSS Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE GFSS6KIXBSS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

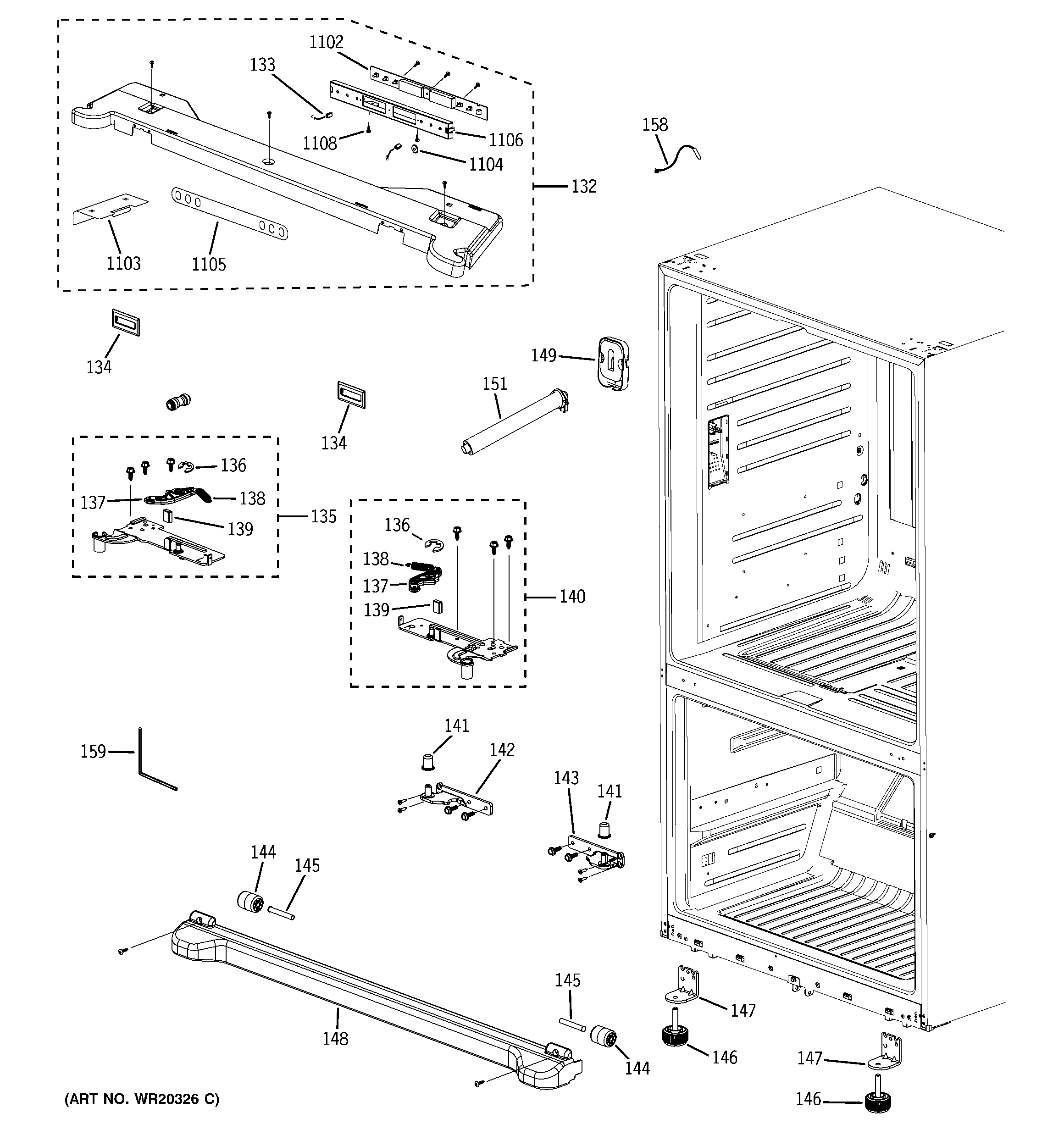

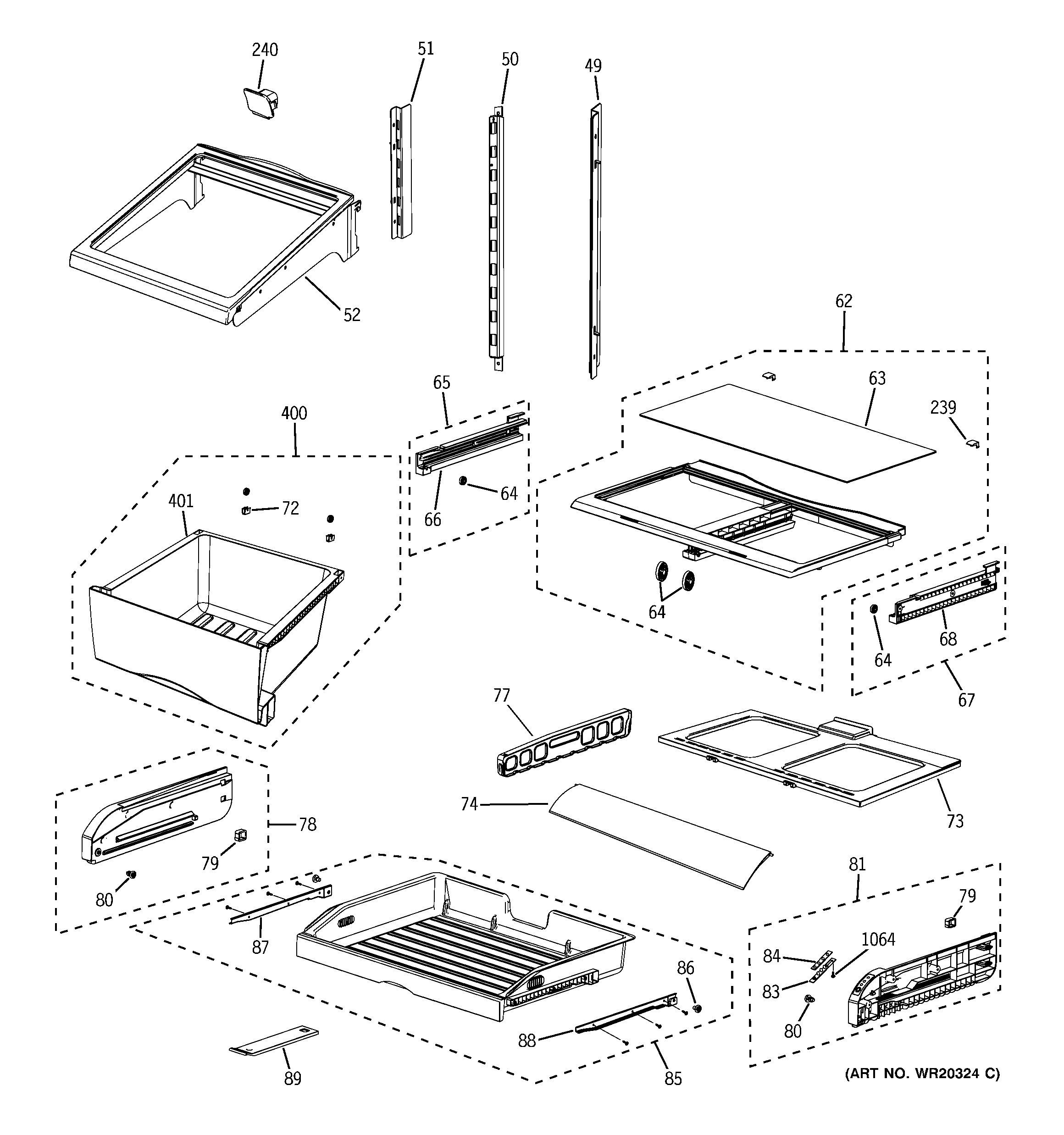

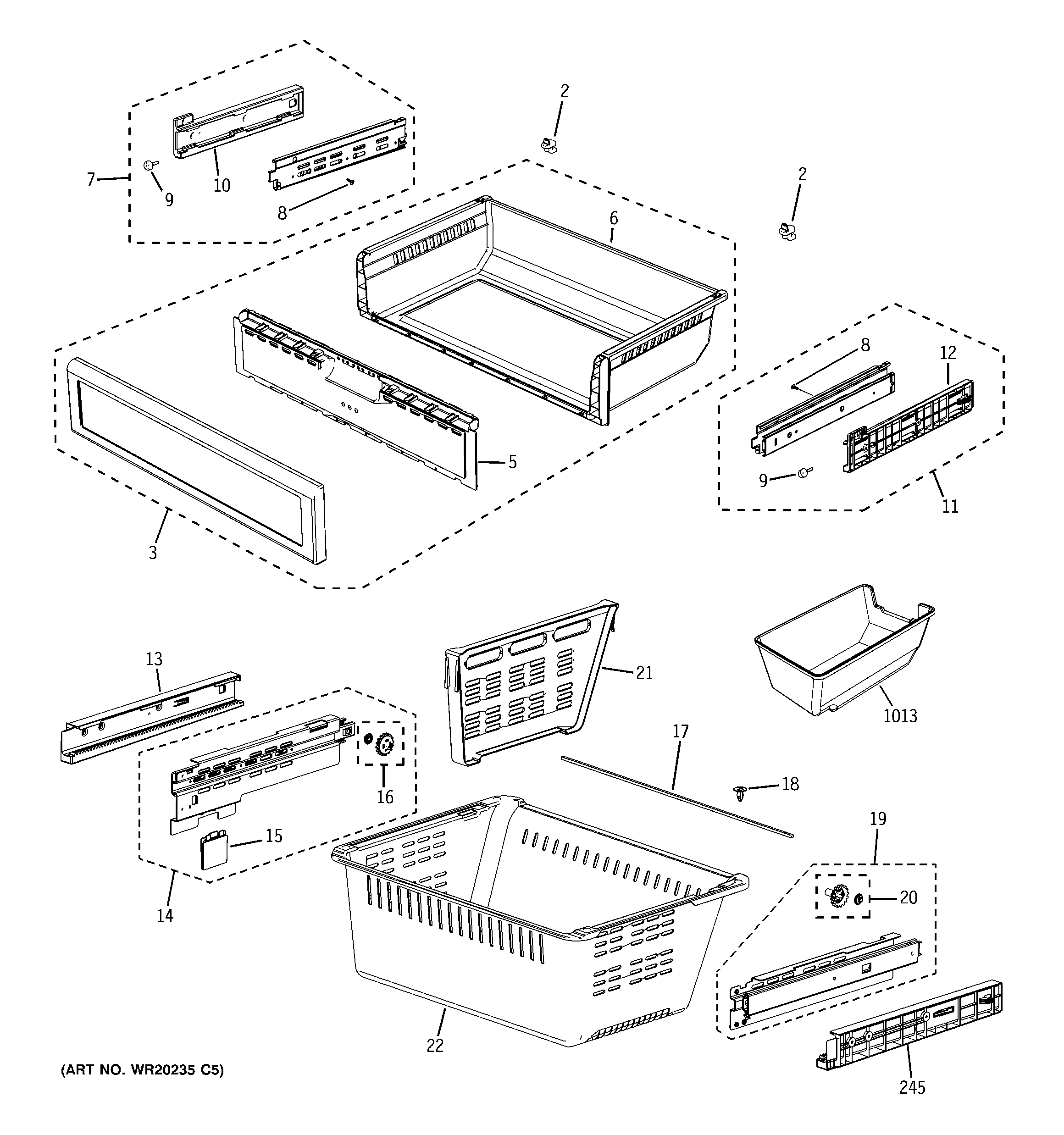

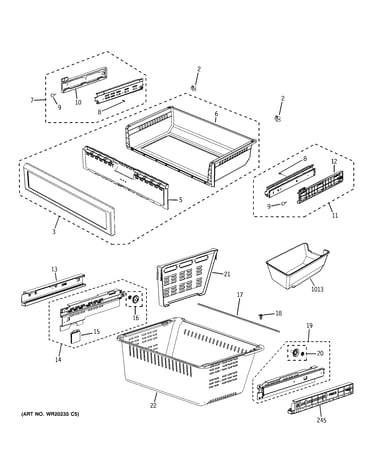

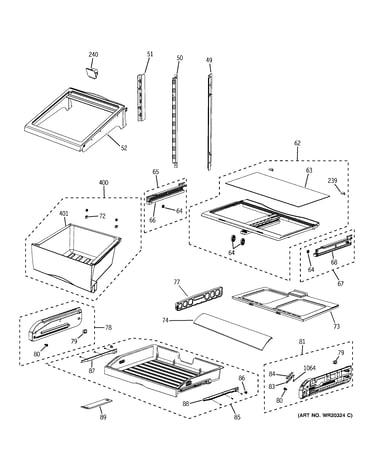

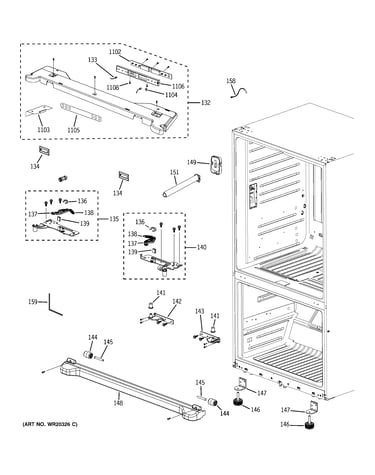

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 213 parts  |
Refrigerator Incandescent Lamp WR02X12594
#33

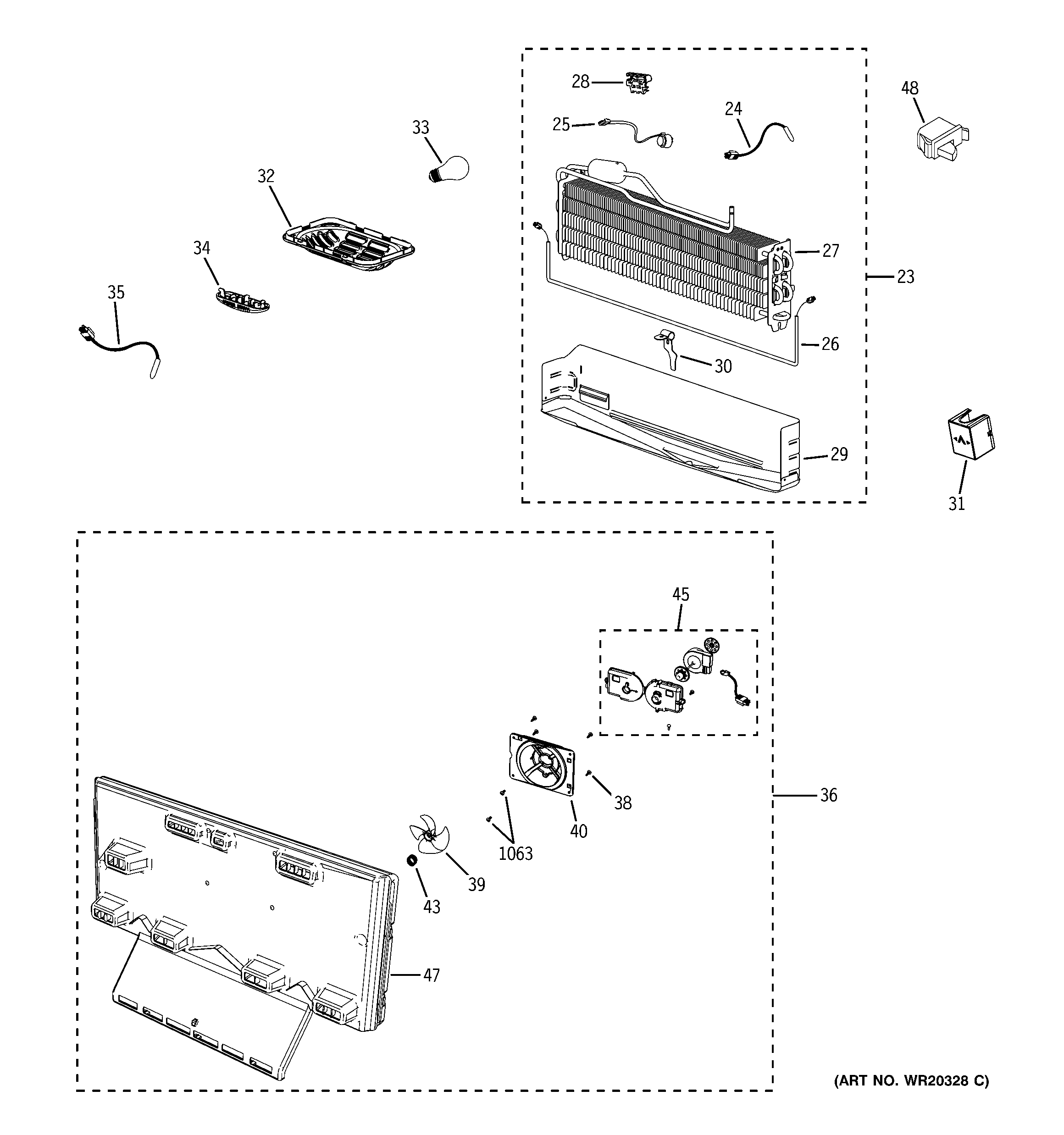

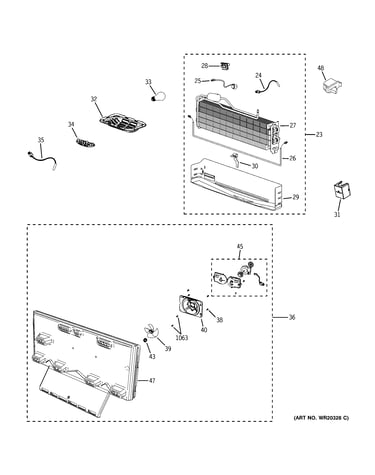

Freezer section diagram

Refrigerator incandescent lamp

Part #WR02X12594

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12594. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Water Filter GWF
#1003

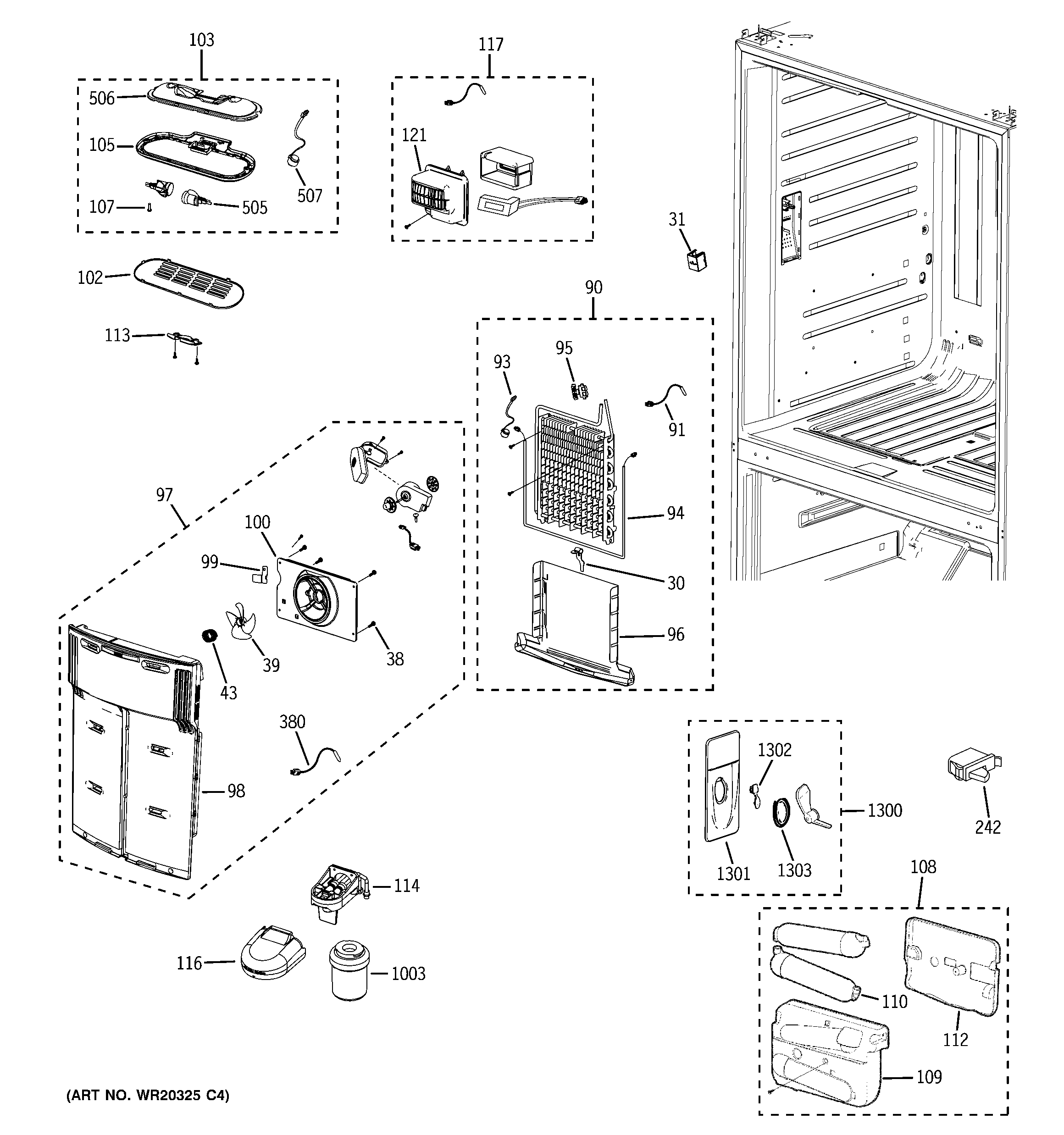

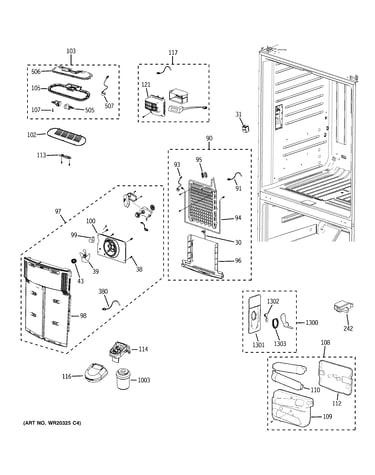

Fresh food section diagram

Refrigerator water filter

Part #GWF

Replaced by #MWFP

?
Manufacturer substitution
This part replaces GWF. Substitute parts can look different from the original.
$64.22
In Stock
Refrigerator Drain Tube Kit (replaces Wr02x13283, Wr87x10166) WR02X12751
#181

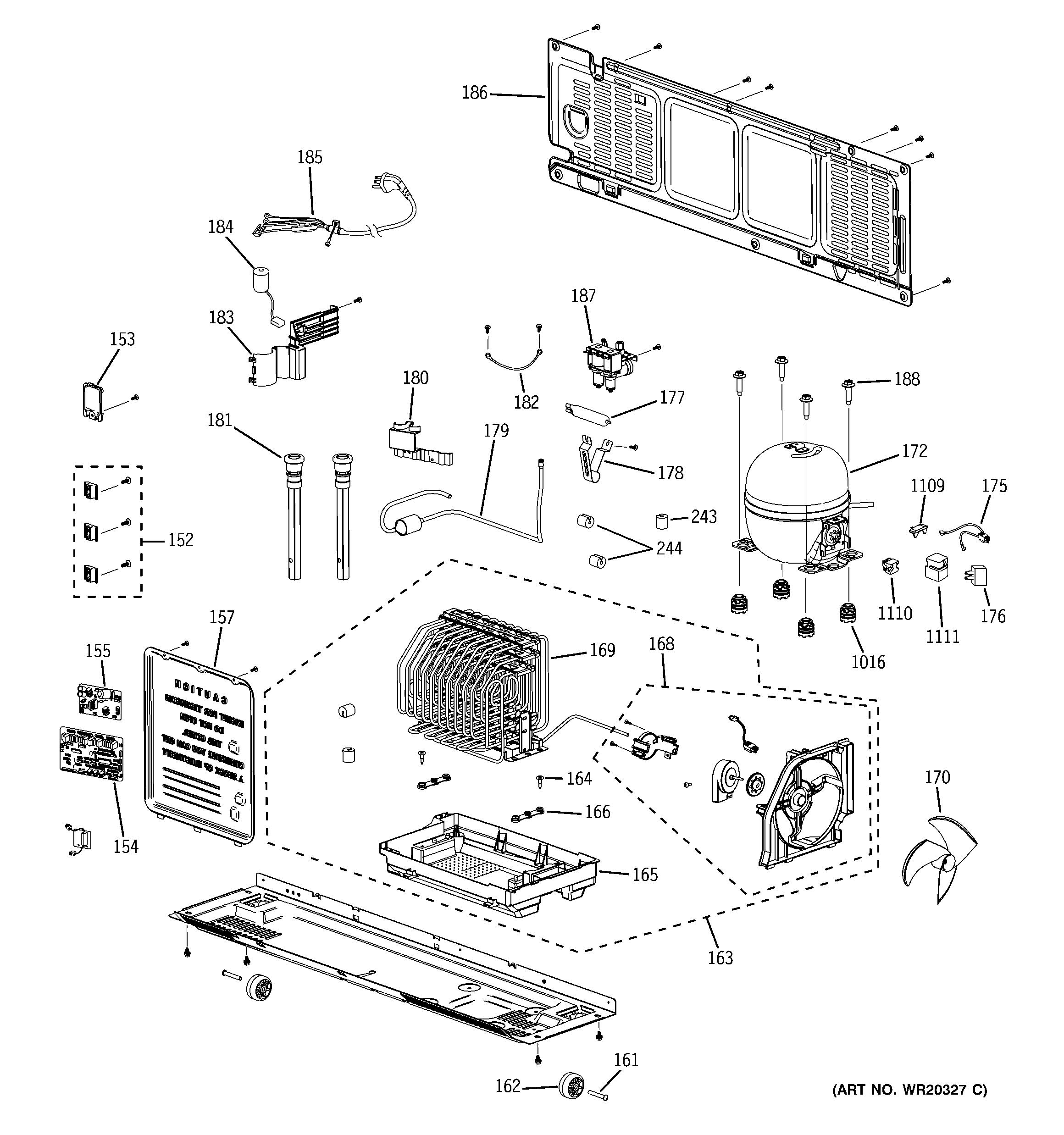

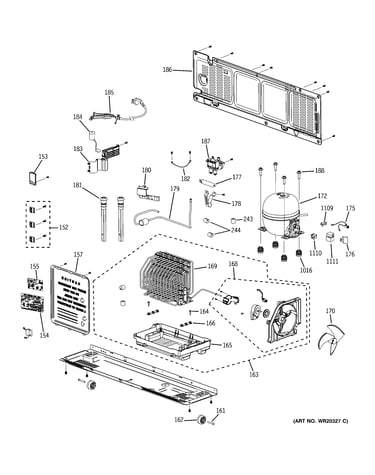

Unit parts diagram

Refrigerator drain tube kit (replaces wr02x13283, wr87x10166)

Part #WR02X12751

$47.55 |
11% OFF Phone Price : $53.55
In Stock
Refrigerator Defrost Heater WR51X10104
#26

Freezer section diagram

Refrigerator defrost heater

Part #WR51X10104

$175.06 |
6% OFF Phone Price : $187.06
In Stock
Refrigerator Water Filter Head (replaces Wr17x12805) WR17X12512
#114

Fresh food section diagram

Refrigerator water filter head (replaces wr17x12805)

Part #WR17X12512

$185.12 |
6% OFF Phone Price : $197.12
In Stock
Refrigerator Fresh Food Evaporator Cover Assembly WR60X10273
#97

Fresh food section diagram

Refrigerator fresh food evaporator cover assembly

Part #WR60X10273

$254.67
In Stock
Refrigerator Ice Maker Assembly WR30X10104
#123

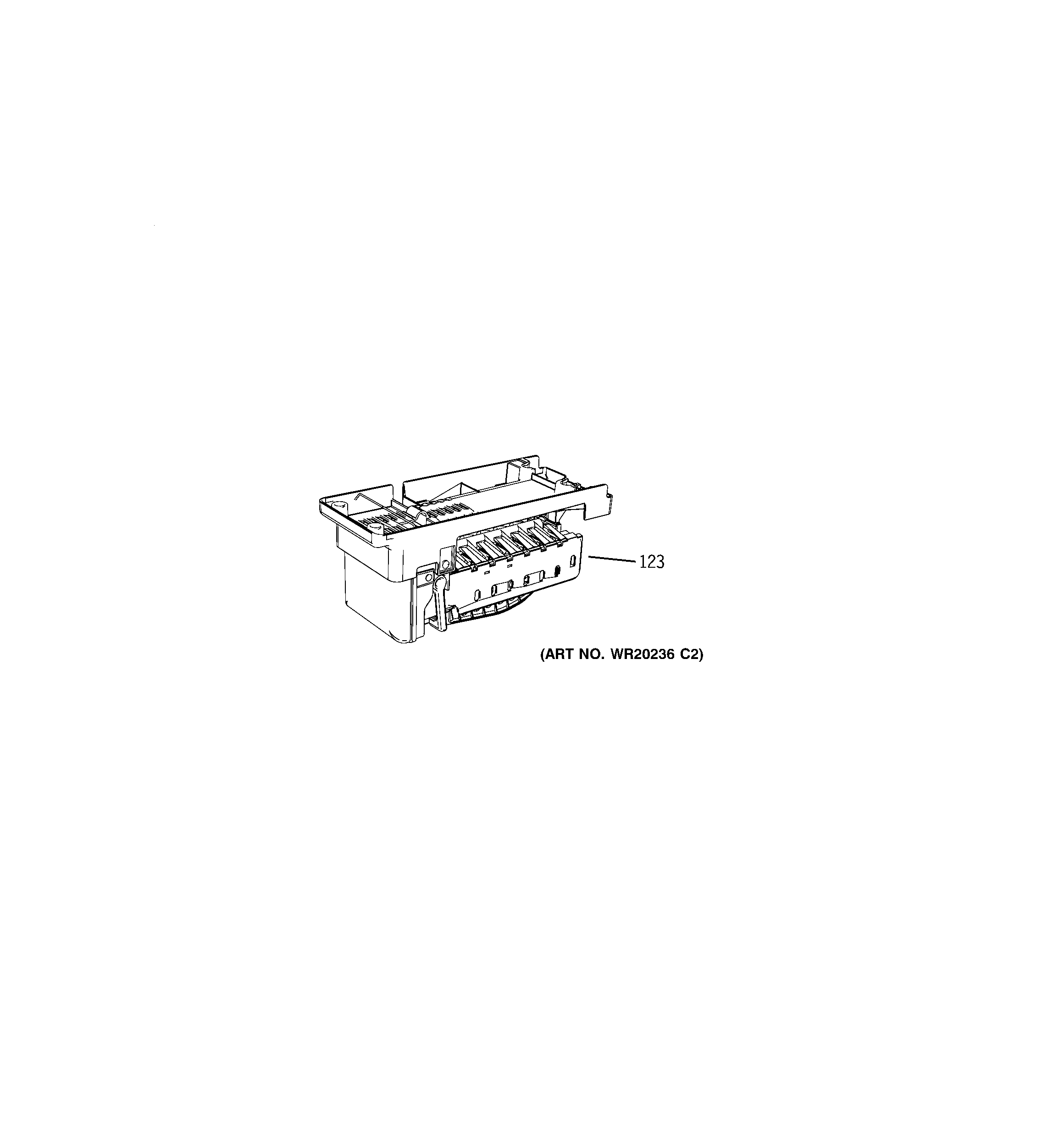

Ice maker & dispenser diagram

Refrigerator ice maker assembly

Part #WR30X10104

$320.92 |
$12.00 OFF Phone Price : $332.92
In Stock
Refrigerator Damper Motor Cover WR09X10173
#117

Fresh food section diagram

Refrigerator damper motor cover

Part #WR09X10173

$189.13 |
6% OFF Phone Price : $201.13
In Stock
Refrigerator Door Gasket (replaces Wr24x10241) WR24X10201
#207

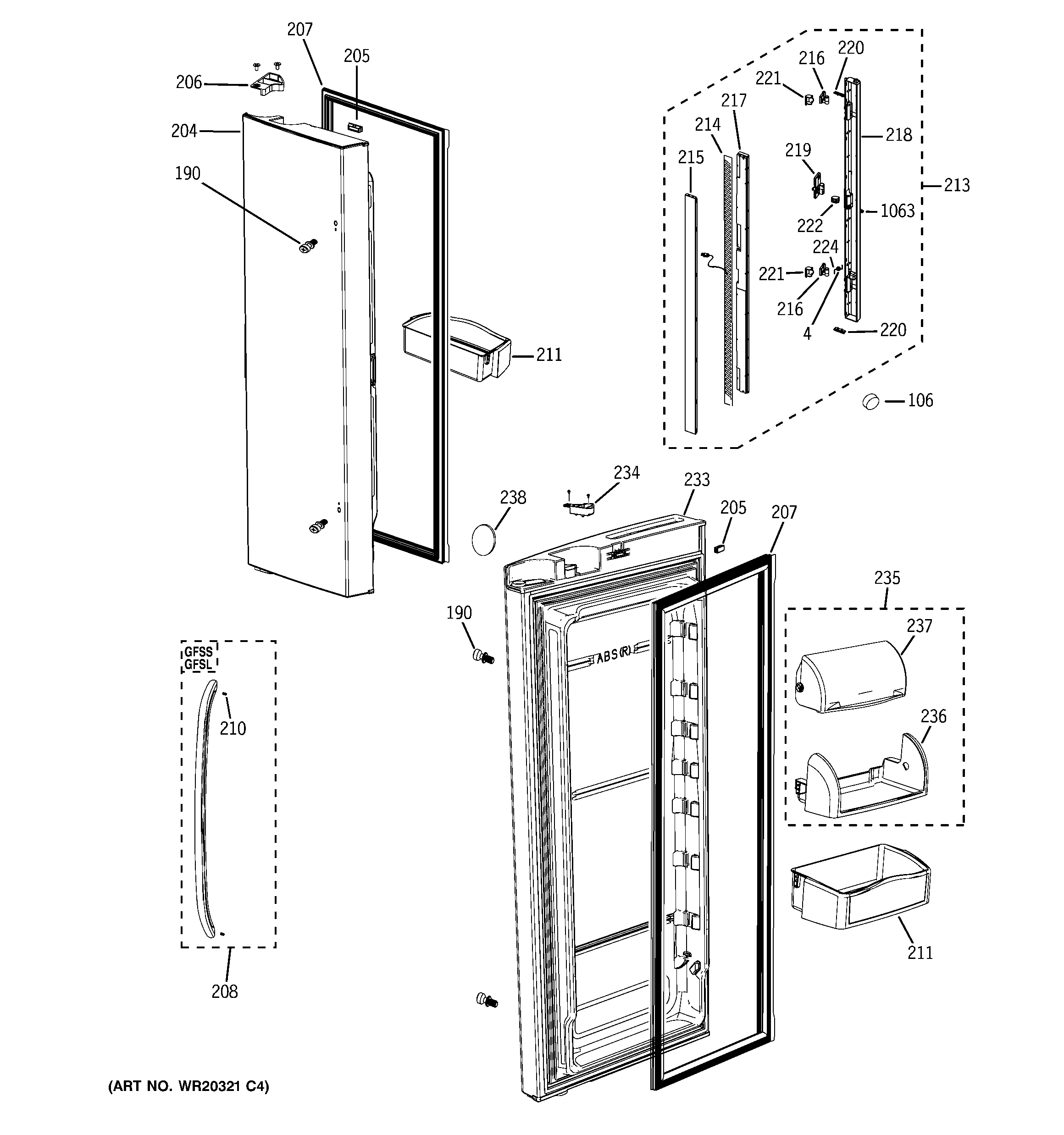

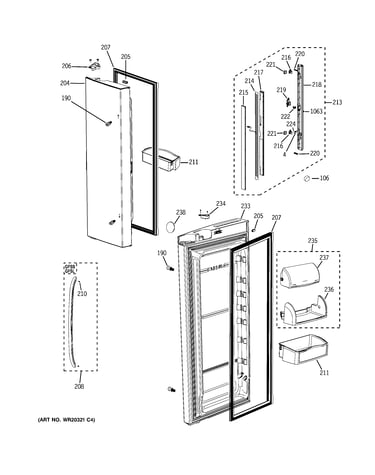

Fresh food doors diagram

Refrigerator door gasket (replaces wr24x10241)

Part #WR24X10201

$135.81 |
8% OFF Phone Price : $147.81
In Stock
Refrigerator Freezer Door Bin Support, Right WR02X12812
#200

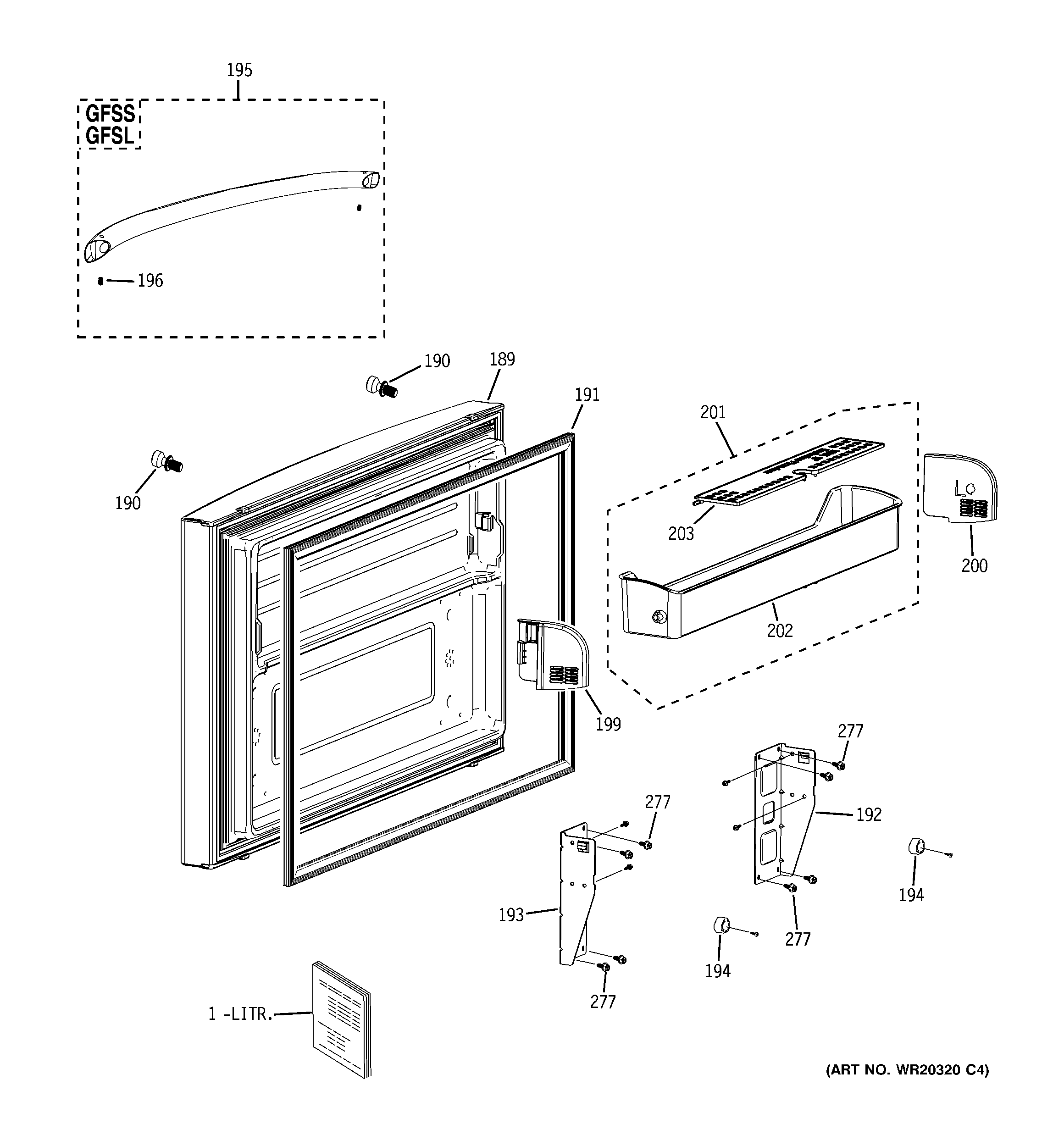

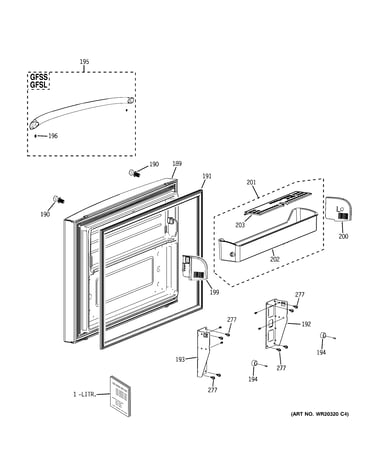

Freezer door diagram
