Model # ZVC30L3SS Official GE range hood

Here are the diagrams and repair parts for Official GE ZVC30L3SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Switch Box Assembly WB03X10327
#228

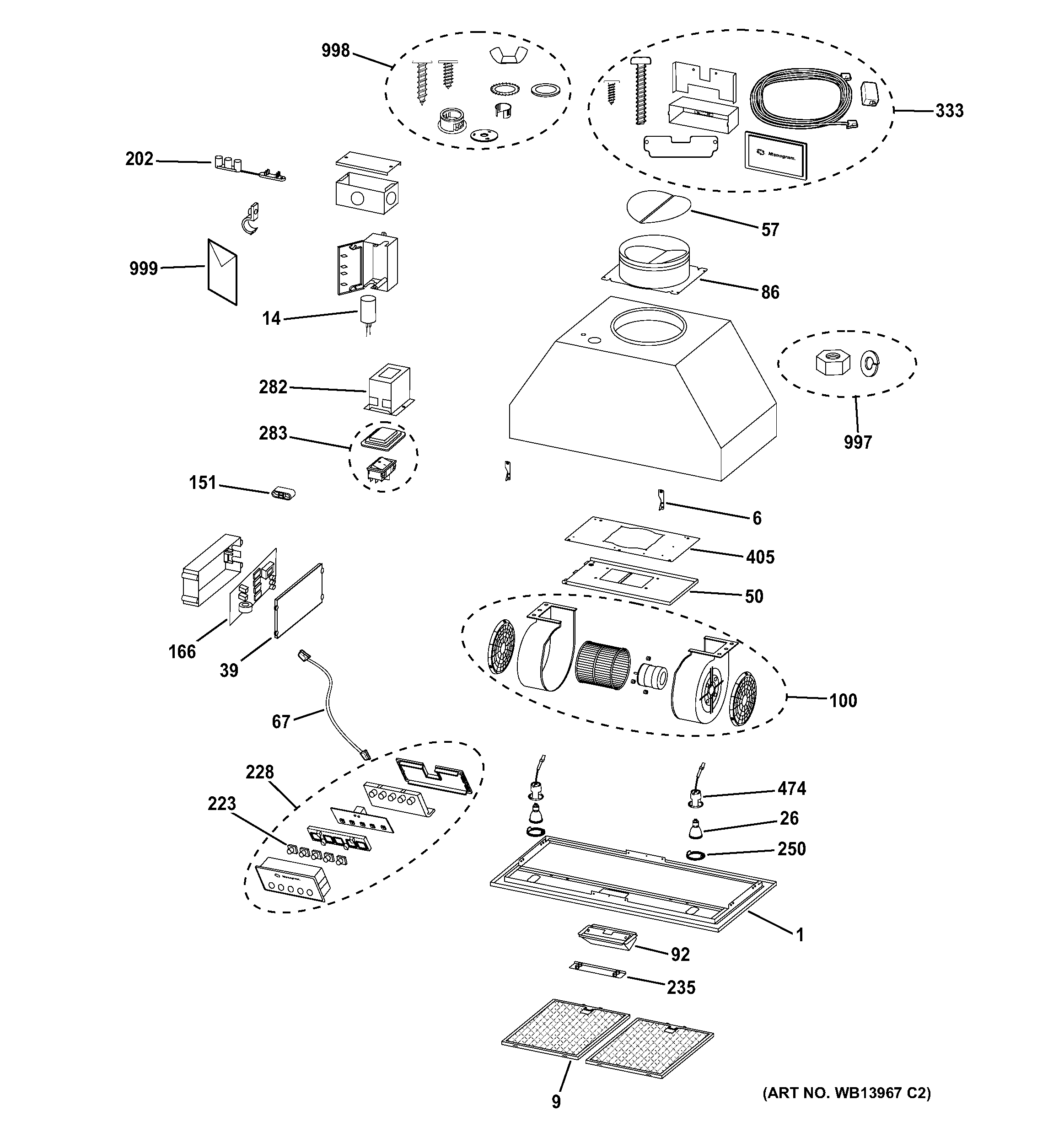

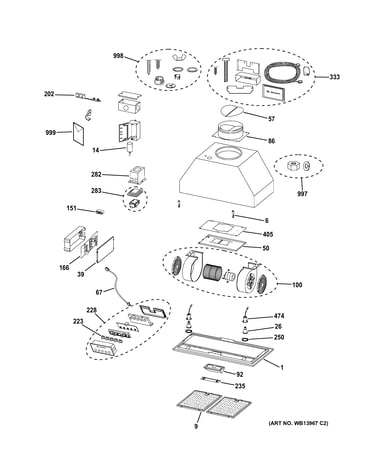

Hood parts diagram

Switch box assembly

Part #WB03X10327

Replaced by #WB03X10347

?
Manufacturer substitution
This part replaces WB03X10327. Substitute parts can look different from the original.
$205.63 |
6% OFF Phone Price : $217.63
In Stock
Range Hood Grease Filter WB02X11304
#9

Hood parts diagram

Range hood grease filter

Part #WB02X11304

$116.54 |
9% OFF Phone Price : $128.54
In Stock
Condenser WB17X10013
#14

Hood parts diagram

Condenser

Part #WB17X10013

Replaced by #WB17X10032

?
Manufacturer substitution
This part replaces WB17X10013. Substitute parts can look different from the original.
$176.42 |
6% OFF Phone Price : $188.42
In Stock
Spring WB09X10030
#6

Hood parts diagram

Spring

Part #WB09X10030

$22.01
In Stock
Remote Mntg WB02X11498
#333

Hood parts diagram

Remote mntg

Part #WB02X11498

$189.42
In Stock
Range Hood Blower Support Bracket WB02X11314
#50

Hood parts diagram

Range hood blower support bracket

Part #WB02X11314

$137.95 |
8% OFF Phone Price : $149.95
In Stock
Non-return F WB02X11308
#57

Hood parts diagram

Non-return f

Part #WB02X11308

$62.21 |
9% OFF Phone Price : $68.21
In Stock
Switches Support WB02X11497
#235

Hood parts diagram

Switches support

Part #WB02X11497

$47.64
In Stock
Fitting Set WB02X11301
#998

Hood parts diagram

Fitting set

Part #WB02X11301

$94.10 |
6% OFF Phone Price : $100.10
In Stock
Liner Insert WB53X10018
#999

Hood parts diagram

Liner insert

Part #WB53X10018

$571.66
In Stock
