Model # KCDC150G Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid KCDC150G garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 43 parts |

#18

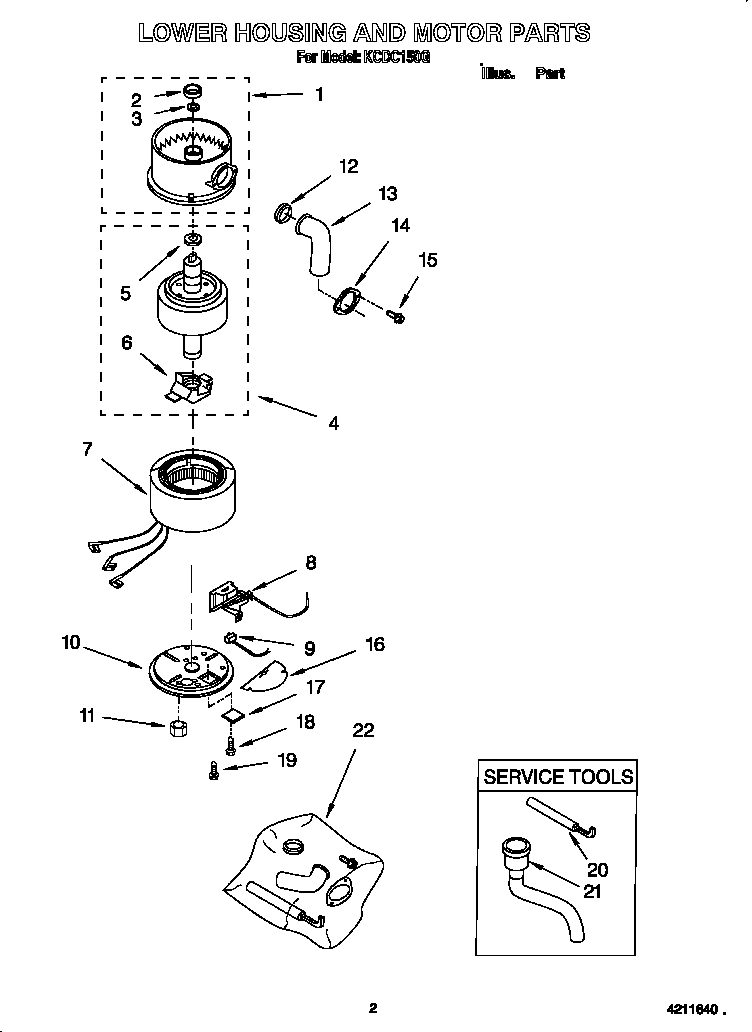

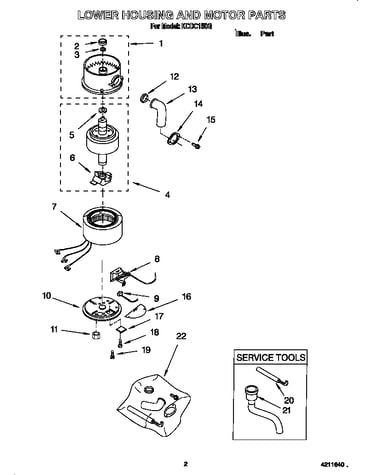

Lower house and motor diagram

Screw

Part #4211612

Replaced by #WP98008545

This item is not returnable

$4.67 |

18% OFF Phone Price : $5.67

In Stock

Qty

Whirlpool Garbage Disposal Drain Tube (replaces 4211370, 4323154, Y752553) 4211317

#13

Lower house and motor diagram

Whirlpool garbage disposal drain tube (replaces 4211370, 4323154, y752553)

Part #4211317

$29.89

In Stock

Qty

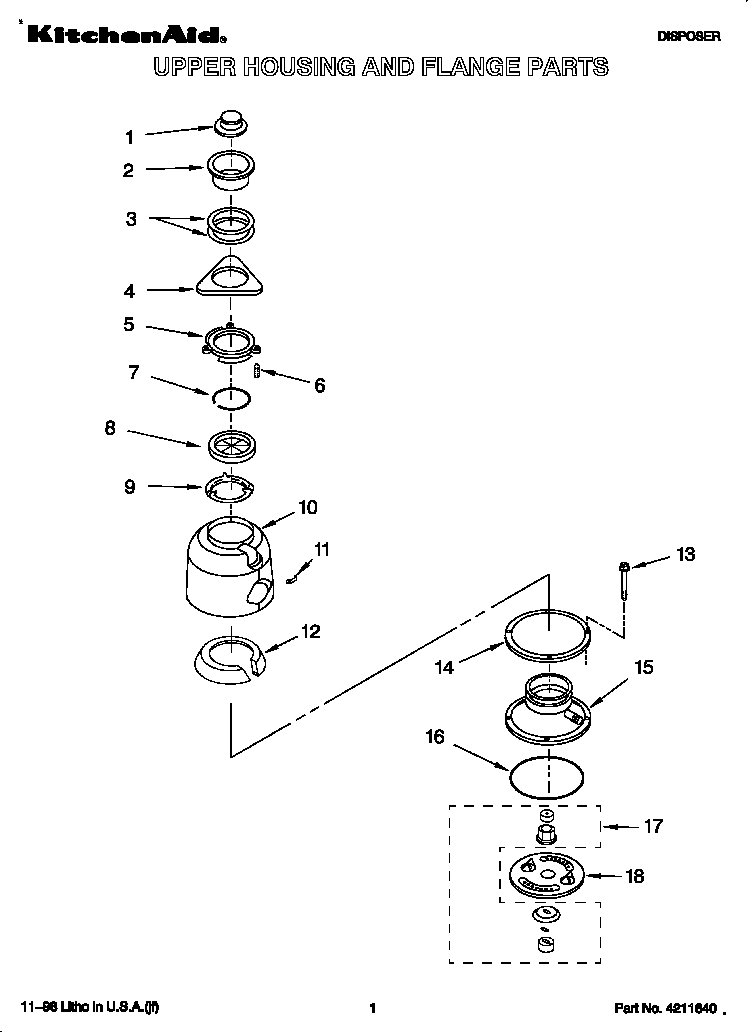

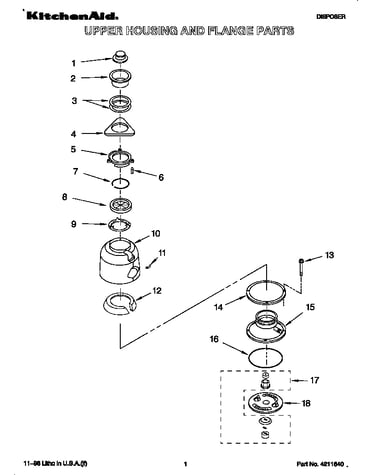

Upper housing and flange diagram

Garbage disposal mounting gasket and splash guard assembly

Part #4211615

This item is not returnable

$21.09 |

22% OFF Phone Price : $27.09

In Stock

Qty

Upper housing and flange diagram

Whirlpool flange

Part #4211303

$50.87

In Stock

Qty

Lower house and motor diagram

End bell

Part #4211313

$213.44

In Stock

Qty

Upper housing and flange diagram

Whirlpool ring

Part #4211306

This item is not returnable

$7.49

In Stock

Qty

#17

Upper housing and flange diagram

Whirlpool sleeve

Part #4211578

$43.24

In Stock

Qty

Lower house and motor diagram

Whirlpool washer

Part #4211321

$8.19

In Stock

Qty

#21

Lower house and motor diagram

Whirlpool adapter

Part #4211396

$240.89

In Stock

Qty

Upper housing and flange diagram

Whirlpool garbage disposal mounting flange screw

Part #4211305

$16.79 |

11% OFF Phone Price : $18.79

In Stock

Qty

Symptoms for top-mount refrigerators

Why is there water in the bottom of the fridge under vegetable drawers?

Main causes: frozen or clogged defrost drain tube, cracked water system tubing…

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Repair difficulty

Time required

15 minutes or less

How to replace the evaporator fan motor in a top-freezer refrigerator

The evaporator fan motor blows air across the evaporator coils and through the refrigerator cabinet for cooling. Replace…

Repair difficulty

Time required

15 minutes or less

How to replace the compressor start relay in a top-freezer refrigerator

The compressor start relay starts the compressor and shuts it off if the motor overheats. Replace the start relay if it'…

Repair difficulty

Time required

15 minutes or less
