Model # 50466001 Official Ikea range hood

Here are the diagrams and repair parts for Official Ikea 50466001 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

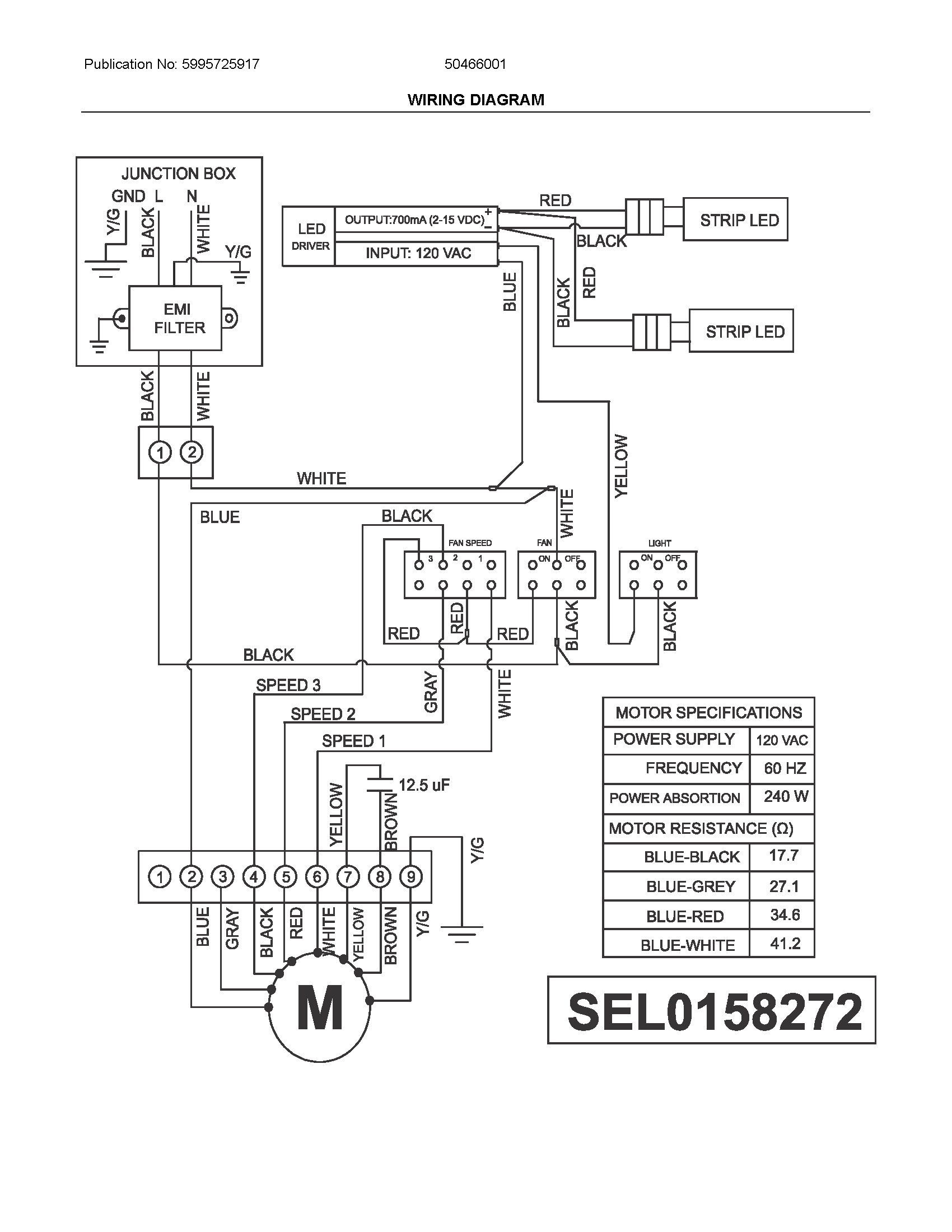

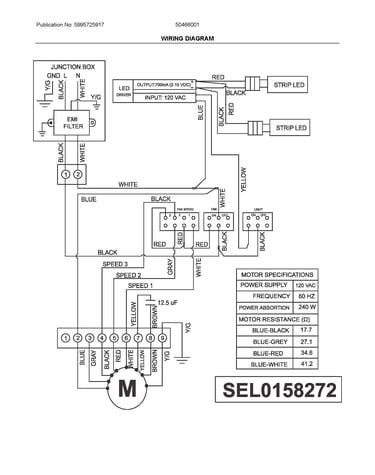

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Ikea Range Hood Flue Assembly 5304523631
#463

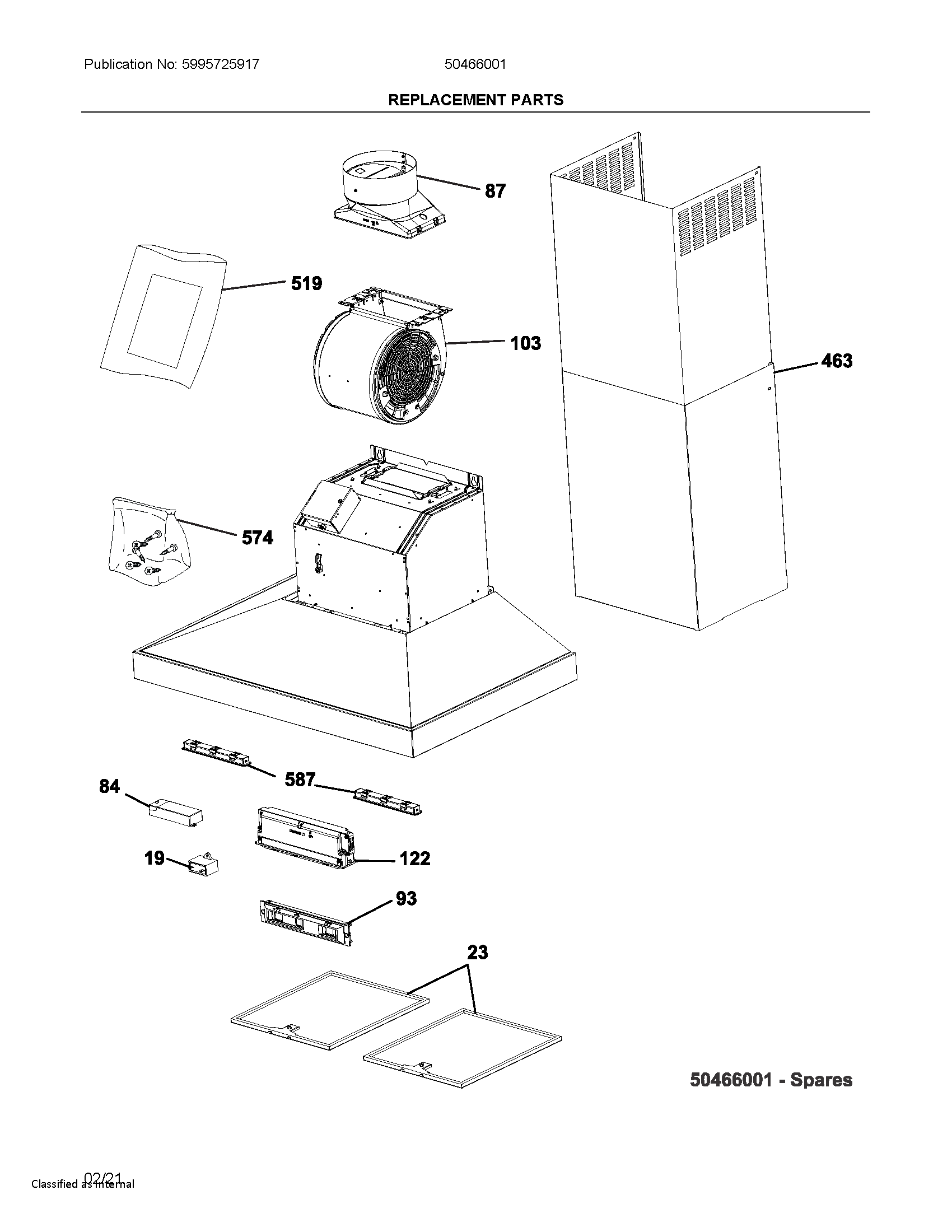

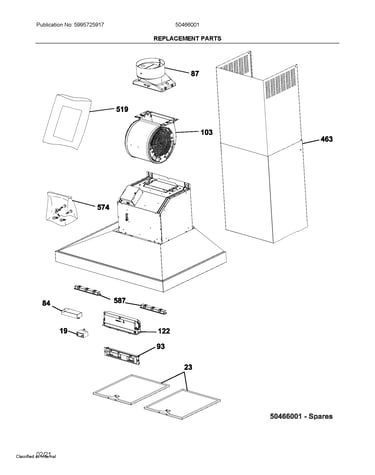

Replacement parts diagram

Ikea range hood flue assembly

Part #5304523631

$237.59 |
5% OFF Phone Price : $249.59
In Stock
Capacitor 5304523602
#19

Replacement parts diagram

Capacitor

Part #5304523602

$55.53
In Stock
Lamp 5304523611
#587

Replacement parts diagram

Lamp

Part #5304523611

$176.66
In Stock
Transformer 5304523603
#84

Replacement parts diagram

Transformer

Part #5304523603

$115.14
In Stock
Cover 5304523605
#93

Replacement parts diagram

Cover

Part #5304523605

$92.00
In Stock
Motor 5304523606
#103

Replacement parts diagram

Motor

Part #5304523606

$391.64
In Stock
Range Hood Grease Filter 5304464265
#23

Replacement parts diagram

Range hood grease filter

Part #5304464265

$121.13 |
9% OFF Phone Price : $133.13
In Stock
Mounting 5304523610
#574

Replacement parts diagram

Mounting

Part #5304523610

$66.09
In Stock
Slide 5304523607
#122

Replacement parts diagram

Slide

Part #5304523607

$234.65
In Stock
Connector,pipe Or Tubing 5304523604
#87

Replacement parts diagram

Connector,pipe or tubing

Part #5304523604

$107.86
In Stock

Most common symptoms to help you fix your range hoods

Choose a symptom to see related range hood repairs.

View all

Why doesn't my range hood's fan work?

Main causes: bad fan switch, electronic control board failure, faulty user interface control, wiring failure…

Read more

Why don't my range hood's lights work?

Main causes: bad light bulb, broken light switch, bad electronic control, user interface control failure, bad light sock…

Read more

Why does my range hood's fan turn on by itself?

Main causes: sentry feature trips due to high cooktop temperature, bad temperature sensor, electronic control board fail…

Read more

Why doesn't my range hood work?

Main causes: lack of electrical power, bad electronic control board, faulty user interface, fan and light switch failure…

Read more

Why isn't my range hood's fan pulling much air?

Main causes: clogged air filters, air duct problems, fan motor failure, broken fan blade…

Read more

Why is my range hood's exhaust fan noisy?

Main causes: loose mounting screws, bad fan motor, damaged fan blade, worn fan motor bearings…

Read more

Why don't my range hood's lights and fan work?

Main causes: electronic control board failure, bad user interface control, light and fan switch failures, wiring failure…
